HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

Click highlighted areas on diagram

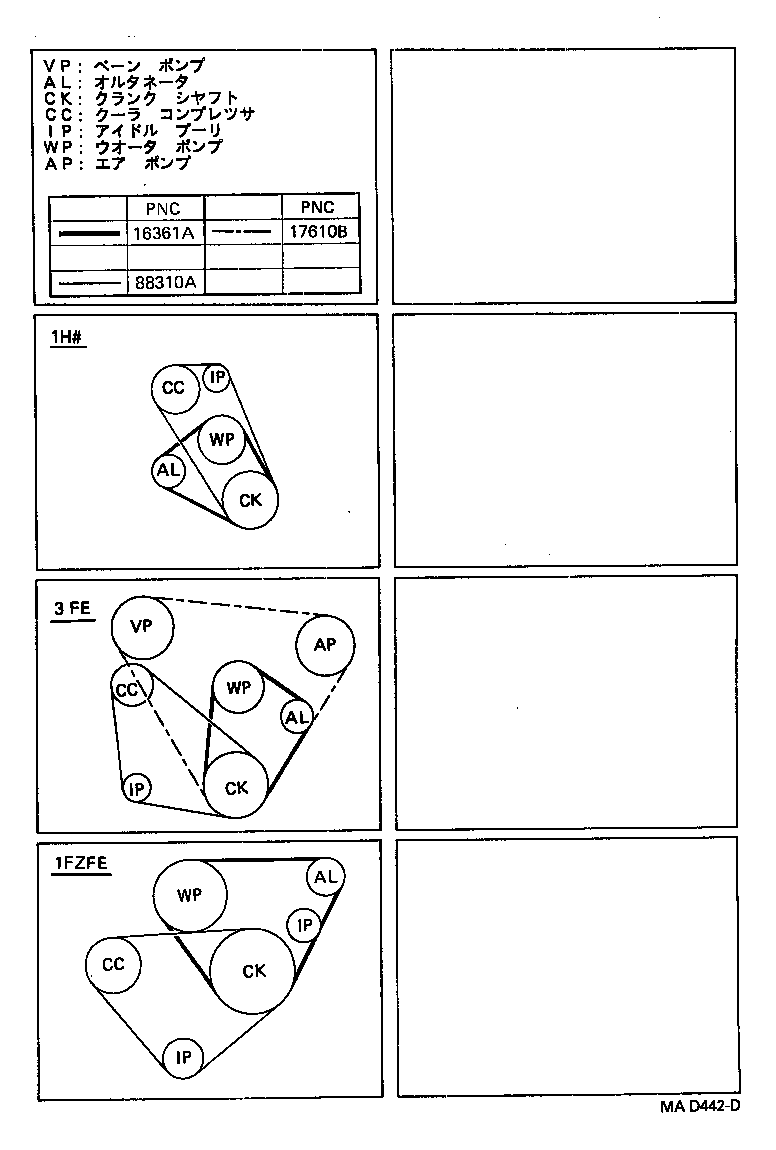

diagram 16361A 17610B 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
90916-02248

1H#..HDJ80,HZJ80

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-11260

HDJ80,HZJ80..LHD

L=1260,W(AIRCON SINGLE)

 1
