HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HD#,1HZ

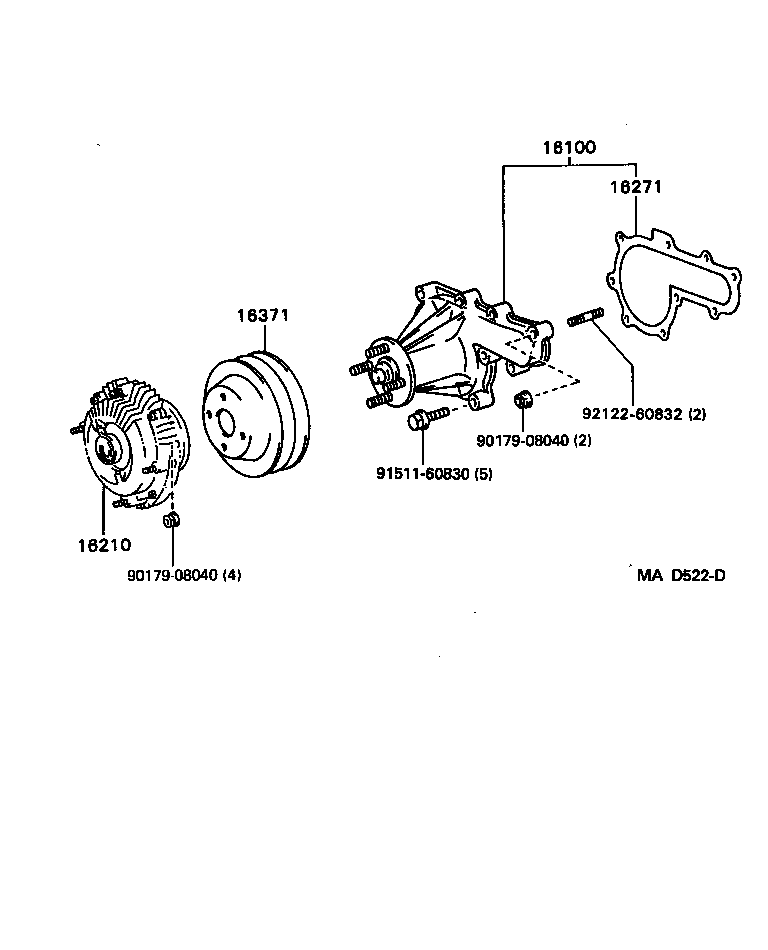

Click highlighted areas on diagram

diagram 16100 16210 16271 16371 9017908040 9017908040 9151160830 9212260832
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-19235

1HD#,1HZ..HDJ80,HZJ80

 1
16210 - COUPLING ASSY, FLUID
16210-17040

1HD#..HDJ80;1HZ..HZJ80..ATM

 1
16271 - GASKET, WATER PUMP
16271-17010

1HD#,1HZ..HDJ80,HZJ80

 1
16371 - PULLEY, FAN
16371-17010

1HD#,1HZ..HDJ80,HZJ80

 1
Common parts
90179-08040
91511-60830
92122-60832
