HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HD#,1HZ

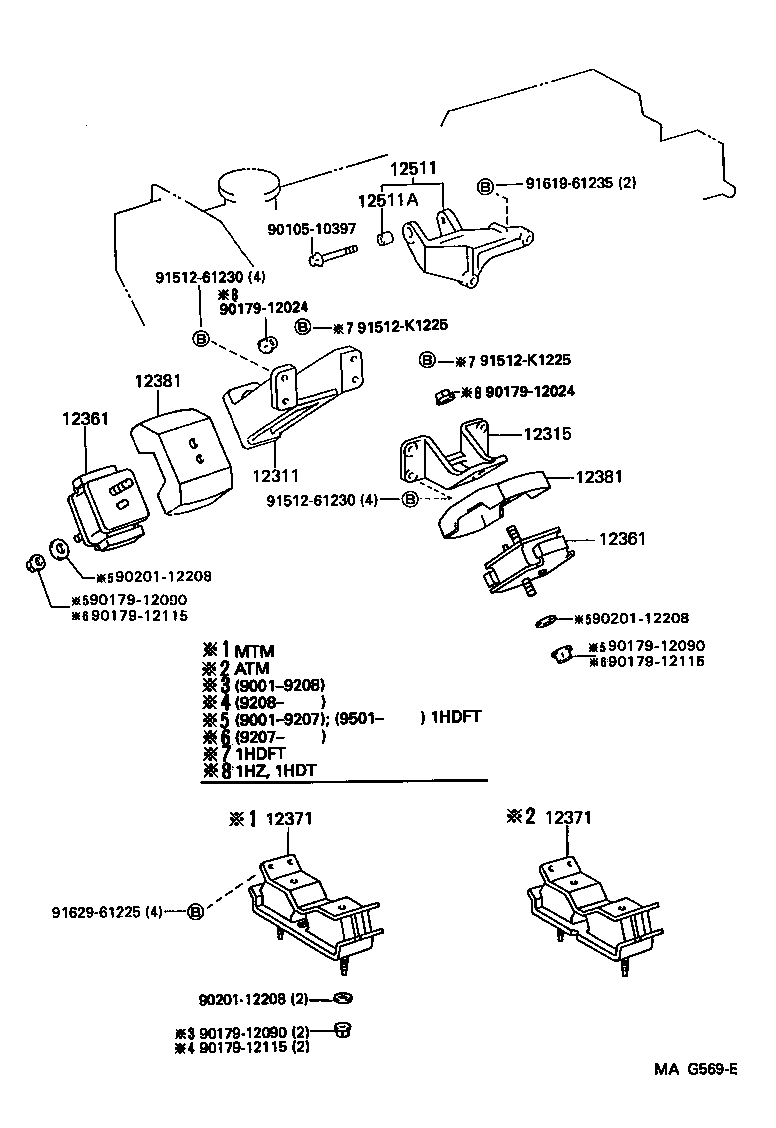

Click highlighted areas on diagram

diagram 12311 12315 12361 12361 12371 12371 12381 12381 12511 12511A 9010510397 9017912024 9017912024 9017912090 9017912090 9017912090 9017912115 9017912115 9017912115 9020112208 9020112208 9020112208 9151261230 9151261230 91512K1225 91512K1225 9161961235 9162961225
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-17010

1HDT,1HZ..HDJ80,HZJ80

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-17010

1HDT,1HZ..HDJ80,HZJ80

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17010

1HDT..HDJ80..ATM

 2
12361-17010

1H#..HDJ80,HZJ80

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-17010

1HDT..HDJ80..ATM

 2
12361-17010

1H#..HDJ80,HZJ80

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61060

1H#..HDJ80,HZJ80..ATM

 1
12371-61060

1HDT..HDJ80..ATM

 1
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-61060

1H#..HDJ80,HZJ80..ATM

 1
12371-61060

1HDT..HDJ80..ATM

 1
12381 - STABILIZER, ENGINE MOUNTING
12381-17010

1H#..HDJ80,HZJ80

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-17010

1H#..HDJ80,HZJ80

 2
12511 - BRACKET, ALTERNATOR, NO.1
12511-17010

1H#..HDJ80,HZJ80

 1
12511A - BUSH, ALTERNATOR BRACKET
90387-10101

1H#..HDJ80,HZJ80

 1
Common parts
90105-10397
90179-12024
90179-12090
90179-12115
90201-12208
91512-61230
91512-K1225
91619-61235
91629-61225
