HDJ80L-GNPEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )1HDT

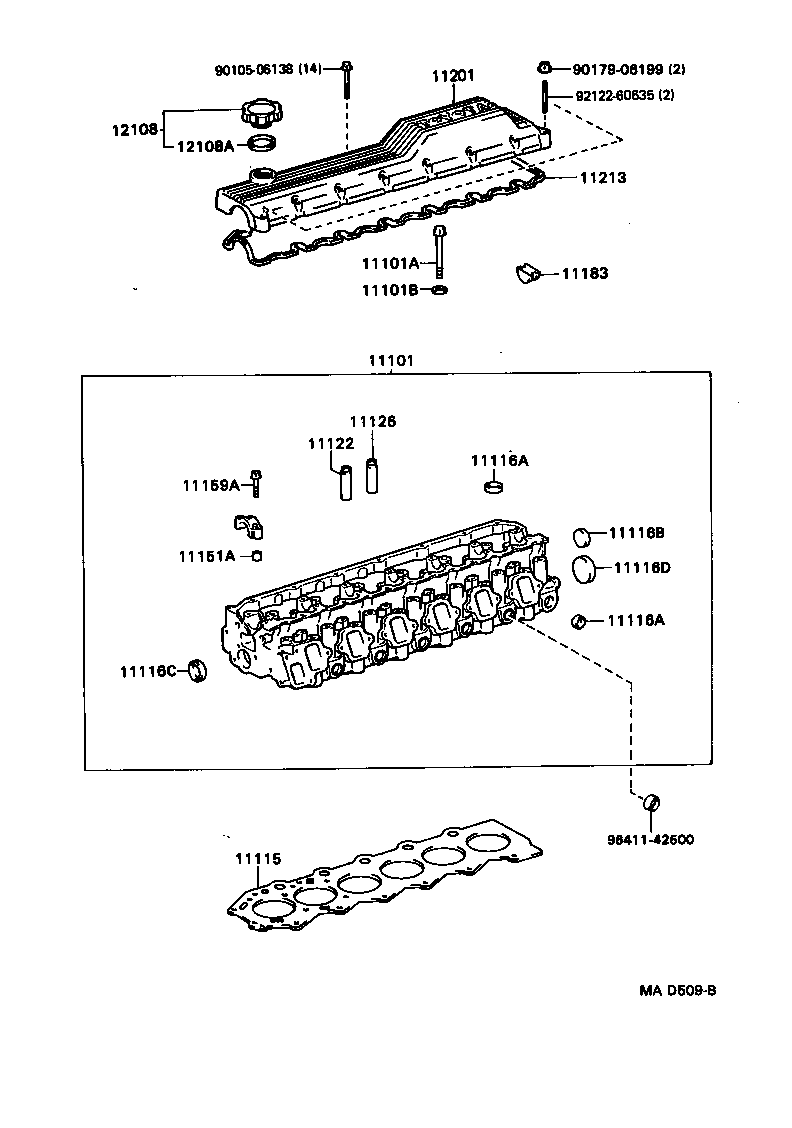

Click highlighted areas on diagram

diagram 11101 11101A 11101B 11115 11116A 11116A 11116B 11116C 11116D 11122 11126 11151A 11159A 11183 11201 11213 12108 12108A 9010506138 9017906199 9212260635 9641142500
Part # Description Qty Price
11101 - HEAD SUB-ASSY, CYLINDER
11101-17020

1HDT..HDJ80

 1
11101A - BOLT(FOR CYLINDER HEAD SET)
90910-02096

1HDT,1HZ..HDJ80,HZJ80

 26
11101B - WASHER, PLATE(FOR CYLINDER HEAD SET)
90201-11027

1H#..HDJ80,HZJ80

 26
11115 - GASKET, CYLINDER HEAD
11115-1701001

1HDT,1HZ..HDJ80,HZJ80

MARK 1,REFER REPAIR MANUAL

 1
11115-1701003

1HDT,1HZ..HDJ80,HZJ80

MARK 3,REFER REPAIR MANUAL

 1
11115-1701005

1HDT,1HZ..HDJ80,HZJ80

MARK 5,REFER REPAIR MANUAL

 1
11116A - PLUG, TIGHT, NO.1
96411-42500

1HDT,1HZ..HDJ80,HZJ80

 10
11116A - PLUG, TIGHT, NO.1
96411-42500

1HDT,1HZ..HDJ80,HZJ80

 10
11116B - PLUG, TIGHT, NO.2
96411-43500

1HDT,1HZ..HDJ80,HZJ80

 1
11116C - PLUG, TIGHT, NO.3
96411-44000

1HDT,1HZ..HDJ80,HZJ80

 1
11116D - PLUG, TIGHT, NO.4
96411-44500

1HDT,1HZ..HDJ80,HZJ80

 1
11122 - BUSH, INTAKE VALVE GUIDE
11122-54020

1HDT,1HZ..HDJ80,HZJ80

STD

 6
11123-54020

1HDT,1HZ..HDJ80,HZJ80

O/S 0.05

 6
11126 - BUSH, EXHAUST VALVE GUIDE
11122-54020

1HDT,1HZ..HDJ80,HZJ80

STD

 6
11123-54020

1HDT,1HZ..HDJ80,HZJ80

O/S 0.05

 6
11151A - PIN, RING(FOR CAMSHAFT BEARING CAP SETTING)
90253-11021

1HD#,1HZ..HDJ80,HZJ80

L=8,OD=11

 14
11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP)
90119-08789

1HDT,1HZ..HDJ80,HZJ80

 14
11183 - PLUG, SEMICIRCULAR
11183-54011

1HD#,1HZ..HDJ80,HZJ80

 1
11201 - COVER SUB-ASSY, CYLINDER HEAD
11201-17010

1HDT,1HZ..HDJ80,HZJ80

 1
11213 - GASKET, CYLINDER HEAD COVER
11213-17010

1HDT,1HZ..HDJ80,HZJ80

 1
12108 - CAP SUB-ASSY, OIL FILLER
12180-55010

1H#..HDJ80,HZJ80

 1
12108A - GASKET(FOR OIL FILLER CAP)
90430-37004

1HD#,1HZ..HDJ80,HZJ80

 1
Common parts
90105-06138
90179-06199
92122-60635
96411-42500
