HDJ80L-GNMNWW (1995)
Toyota Land Cruiser

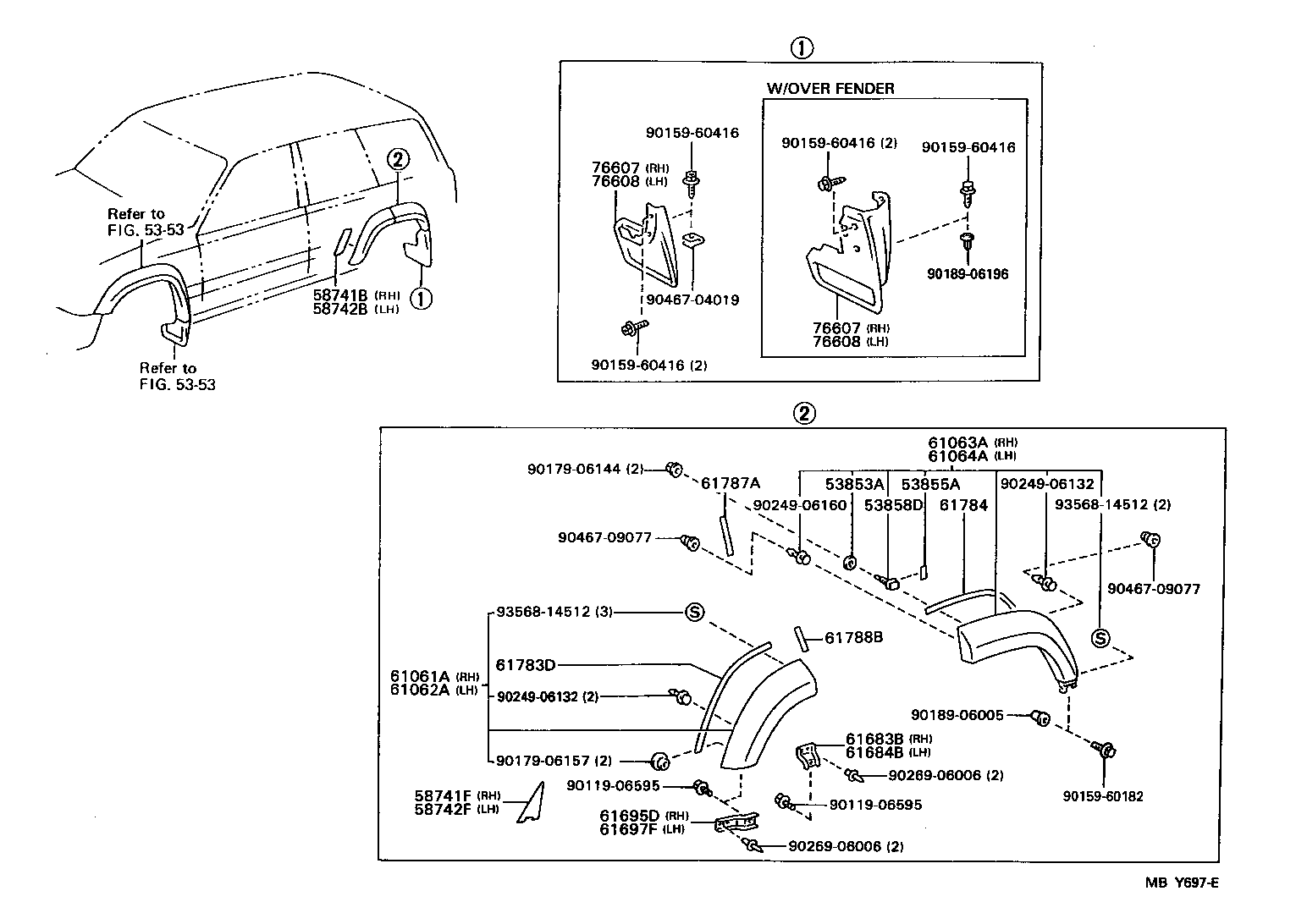

ILLUST NO. 2 OF 2(9501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53853A - PAD, REAR WHEEL OPENING EXTENSION | ||||
| 53853-60020 |
FZJ80,HDJ80..GX,VX |
4 | ||
| 90540-05030 |
FZJ80,HDJ80..GX,VX |
4 | ||
| 53853-60020 |
FZJ80,HDJ80..GX |
4 | ||
| 53855A - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 53855-60010 |
FZJ80,HDJ80..GX |
2 | ||
| 53855-60010 |
FZJ80,HDJ80..GX,VX |
2 | ||
| 53858D - BOLT, WHEEL OPENING | ||||
| 53858-60050 |
FZJ80,HDJ80..GX,VX |
4 | ||
| 53858-60050 |
FZJ80,HDJ80..GX |
4 | ||
| 53858-60020 |
FZJ80,HDJ80..GX,VX |
4 | ||
| 58741B - PROTECTOR, QUARTER PANEL, RH | ||||
| 58741-60020 |
HZJ80..STD;FZJ80,HDJ80 |
1 | ||
| 58741-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58741F - PROTECTOR, REAR WHEEL EXTENSION, RH | ||||
| 58741-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 58742B - PROTECTOR, QUARTER PANEL, LH | ||||
| 58742-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 58742-60020 |
HZJ80..STD;FZJ80,HDJ80 |
1 | ||
| 58742F - PROTECTOR, REAR WHEEL EXTENSION, LH | ||||
| 58742-60030 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61061A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 RH | ||||
| 61061-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61061-60903 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61061-60903 |
FZJ80,HDJ80..GX |
1 | ||
| 61062A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.1 LH | ||||
| 61062-60903 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61062-60903 |
FZJ80,HDJ80..GX |
1 | ||
| 61062-60900 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61063A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 RH | ||||
| 61063-60905 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61063-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61063-60905 |
FZJ80,HDJ80..GX |
1 | ||
| 61064A - EXTENSION SUB-ASSY, REAR WHEEL OPENING, NO.2 LH | ||||
| 61064-60905 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61064-60901 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61064-60905 |
FZJ80,HDJ80..GX |
1 | ||
| 61683B - BRACKET, REAR WHEEL OPENING, NO.1 RH | ||||
| 61683-60010 |
FZJ80,HDJ80..GX |
1 | ||
| 61683-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61684B - BRACKET, REAR WHEEL OPENING, NO.1 LH | ||||
| 61684-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61684-60010 |
FZJ80,HDJ80..GX |
1 | ||
| 61695D - BRACKET, REAR WHEEL OPENING, NO.3 | ||||
| 61695-60030 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61695-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61695-60030 |
FZJ80,HDJ80..GX |
1 | ||
| 61697F - BRACKET, REAR WHEEL OPENING, NO.3 LH | ||||
| 61697-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
1 | ||
| 61699-60010 |
FZJ80,HDJ80..GX |
1 | ||
| 61699-60010 |
FZJ80,HDJ80..GX,VX |
1 | ||
| 61783D - PAD, REAR WHEEL OPENING EXTENSION, NO.1 | ||||
| 61783-6001001 |
FJ80,HDJ80,HZJ80..GX BLACK,181 ,183 ,26P ,8H6 |
2 | ||
| 61783-6001005 |
FJ80,HDJ80,HZJ80..GX BEIGE,4E9 ,4K1 ,4L6 |
2 | ||
| 61783-6001002 |
FJ80,HDJ80,HZJ80..GX MAROON,20R ,27P ,3H4 ,3H7 |
2 | ||
| 61783-60070 |
FZJ80,HDJ80..GX |
2 | ||
| 61783-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61783-60071 |
FZJ80,HDJ80..GX |
2 | ||
| 61784 - PAD, REAR WHEEL OPENING EXTENSION, NO.2 | ||||
| 61784-6001008 |
FJ80,HDJ80,HZJ80..GX,VX WHITE,045 |
2 | ||
| 61784-6001001 |
FJ80,HDJ80,HZJ80..GX BLACK,181 ,183 ,26P ,8H6 |
2 | ||
| 61784-6001002 |
FJ80,HDJ80,HZJ80..GX MAROON,20R ,27P ,3H4 ,3H7 |
2 | ||
| 61784-6001005 |
FJ80,HDJ80,HZJ80..GX BEIGE,4E9 ,4K1 ,4L6 |
2 | ||
| 61784-60070 |
FZJ80,HDJ80..GX |
2 | ||
| 61784-60090 |
FZJ80,HDJ80..GX RH |
1 | ||
| 61794-60020 |
FZJ80,HDJ80..GX LH |
1 | ||
| 61787A - PAD, REAR WHEEL OPENING EXTENSION, NO.3 REAR | ||||
| 61787-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61787-60011 |
FZJ80,HDJ80..GX |
2 | ||
| 61788B - PAD, REAR WHEEL OPENING EXTENSION, NO.3 | ||||
| 61788-60010 |
FJ80,HDJ80,HZJ80..GX,VX |
2 | ||
| 61788-60011 |
FZJ80,HDJ80..GX |
2 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60170 |
FZJ80,HDJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH | ||||
| 76607-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76607-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60140 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76607-60170 |
FZJ80,HDJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60170 |
FZJ80,HDJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60140 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| 76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH | ||||
| 76608-60020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 76608-60010 |
FJ80,HDJ80,HZJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60170 |
FZJ80,HDJ80..GX,VX W(OVER FENDER & MUD GUARD) |
1 | ||
| 76608-60140 |
FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90119-06595 | ||||
| 90159-60182 | ||||
| 90159-60416 | ||||
| 90179-06144 | ||||
| 90179-06157 | ||||
| 90189-06005 | ||||
| 90189-06196 | ||||
| 90249-06132 | ||||
| 90249-06160 | ||||
| 90269-06006 | ||||
| 90467-04019 | ||||
| 90467-09077 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 5353 | ||||
