HDJ80L-GNMNWW (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1HDFT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )1HDFT

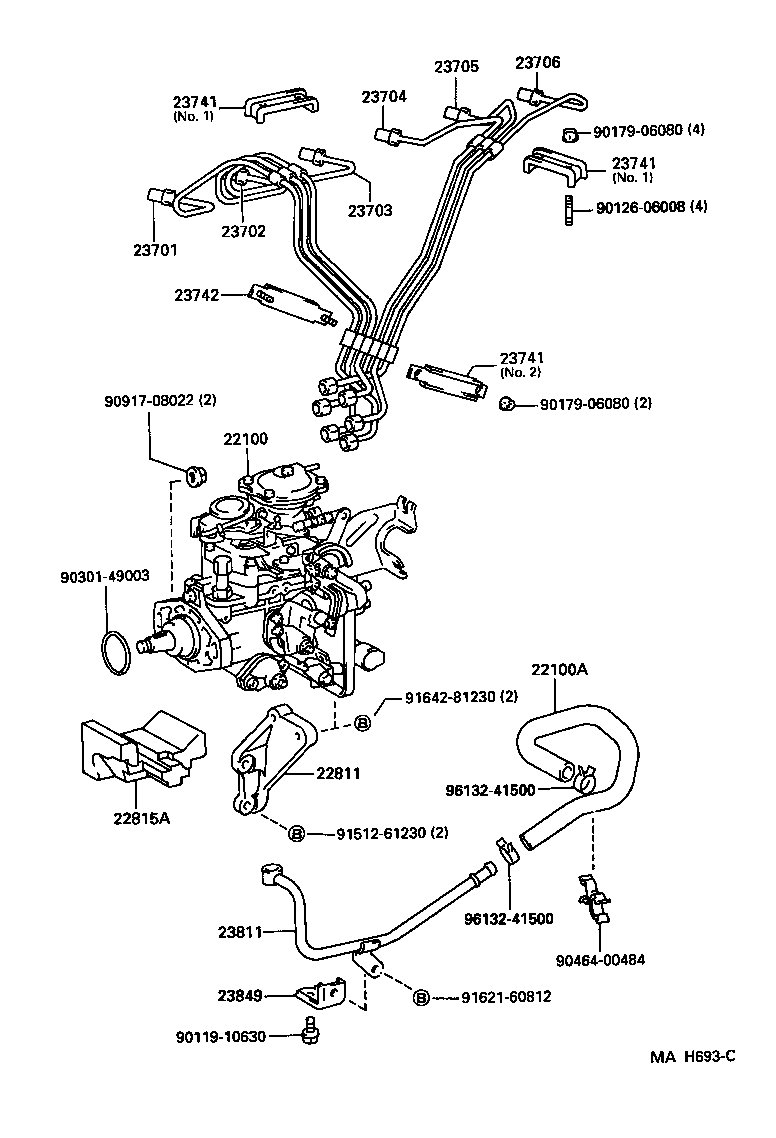

Click highlighted areas on diagram

diagram 22100 22100A 22811 22815A 23701 23702 23703 23704 23705 23706 23741 23741 23741 23742 23811 23849 9011910630 9012606008 9017906080 9017906080 9030149003 9046400484 9091708022 9151261230 9162160812 9164281230 9613241500 9613241500
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-17881

1HDFT..HDJ80

 1
22100-17880

1HDFT..HDJ80

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
23271-17101

1H#..HDJ80,HZJ80

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-17020

1HDFT..HDJ80

 1
22815A - INSULATOR, INJECTION PUMP
22815-17010

1HDFT..HDJ80

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-17050

1HDFT..HDJ80

 1
23701-17051

1HDFT..HDJ80

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-17050

1HDFT..HDJ80

 1
23702-17051

1HDFT..HDJ80

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-17050

1HDFT..HDJ80

 1
23703-17051

1HDFT..HDJ80

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-17051

1HDFT..HDJ80

 1
23704-17050

1HDFT..HDJ80

 1
23705 - PIPE SUB-ASSY, INJECTION, NO.5
23705-17051

1HDFT..HDJ80

 1
23705-17050

1HDFT..HDJ80

 1
23706 - PIPE SUB-ASSY, INJECTION, NO.6
23706-17051

1HDFT..HDJ80

 1
23706-17050

1HDFT..HDJ80

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17040

1HDFT..HDJ80

NO.1

 2
23741-17020

1HD#,1HZ..HDJ80,HZJ80

NO.2

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17040

1HDFT..HDJ80

NO.1

 2
23741-17020

1HD#,1HZ..HDJ80,HZJ80

NO.2

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-17040

1HDFT..HDJ80

NO.1

 2
23741-17020

1HD#,1HZ..HDJ80,HZJ80

NO.2

 1
23742 - CLAMP, INJECTION PIPE, NO.2
23742-17020

1HDFT..HDJ80

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-17060

1H#..HDJ80,HZJ80

 1
Common parts
90119-10630
90126-06008
90179-06080
90301-49003
90464-00484
90917-08022
91512-61230
91621-60812
91642-81230
96132-41500
