HDJ80L-GNMEXW (1990)

Toyota Land Cruiser

Production Jan 1990 - Jan 1995
Engine 1HDT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(9001-9501)MTM

Click highlighted areas on diagram

diagram 04318 31440 31440E 31440M 31440Q 31440R 31440S 31440T 9017908038
Part # Description Qty Price
04318 - BOOSTER KIT, CLUTCH
04318-60050

HDJ80..MTM..VX

 1
31440 - BOOSTER ASSY, CLUTCH W/AIR CLEANER
31440-60090

HDJ80..LHD..MTM..VX

 1
31440E - SEAL, BOOSTER BODY NO.1(FOR CLUTCH BOOSTER)
44621-28120

HDJ80..MTM..VX

 1
31440M - ROD SUB-ASSY, CLUTCH BOOSTER PISTON
44606-12520

HDJ80..MTM..VX

 1
31440Q - GASKET, BRAKE BOOSTER BRACKET
44785-14010

HDJ80..MTM..VX

 1
31440R - RING, CIRCULAR INTERN(FOR CLUTCH BOOSTER AIR VALVE)
44628-28120

HDJ80..MTM..VX

 1
31440S - KEY, VALVE STOPPER(FOR CLUTCH BOOSTER)
44635-36010

HDJ80..MTM..VX

 1
31440T - PISTON, BOOSTER(FOR CLUTCH BOOSTER)
44642-87502

HDJ80..MTM..VX

 1
Common parts
90179-08038

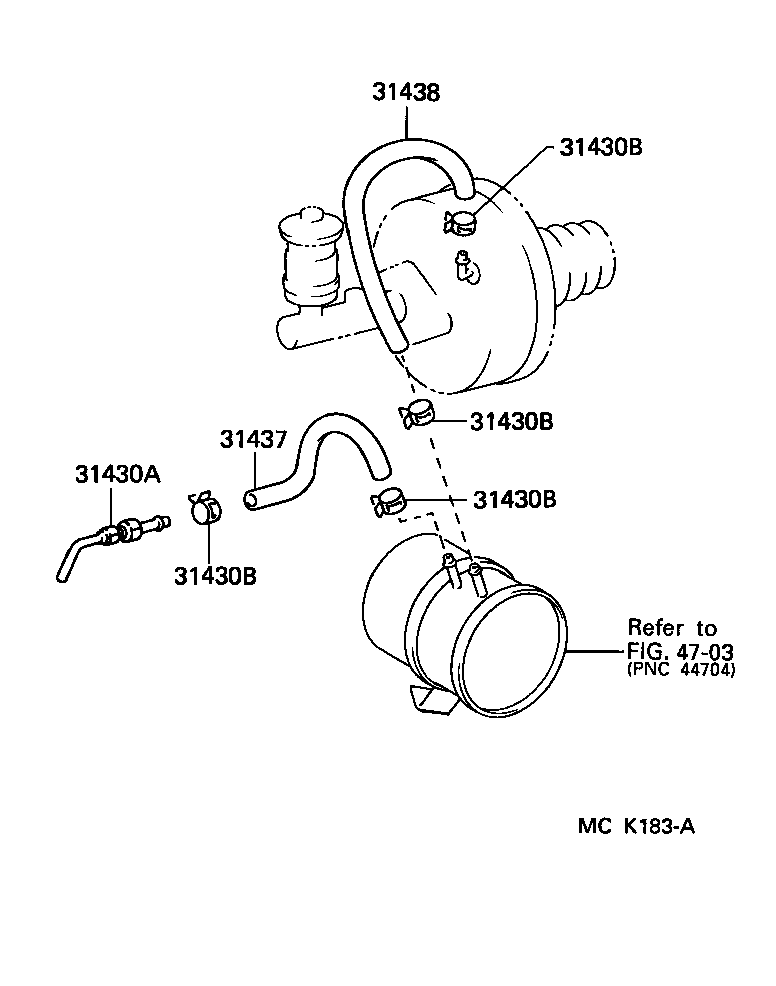

ILLUST NO. 2 OF 2(9001-9501)LHD..MTM

Click highlighted areas on diagram

diagram 31430A 31430B 31430B 31430B 31430B 31437 31438 4703
Part # Description Qty Price
31430A - VALVE ASSY, VACUUM CHECK(FOR CLUTCH VACUUM)
44730-16010

HDJ80..MTM..VX

 1
31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE)
90467-16020

HDJ80..LHD..MTM..VX

 4
31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE)
90467-16020

HDJ80..LHD..MTM..VX

 4
31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE)
90467-16020

HDJ80..LHD..MTM..VX

 4
31430B - CLIP(FOR CLUTCH BOOSTER VACUUM HOSE)
90467-16020

HDJ80..LHD..MTM..VX

 4
31437 - HOSE, NO.2(FOR CLUTCH BOOSTER VACUUM)
31437-60190

HDJ80..MTM..VX

W(*66)

 1
31437-60140

HDJ80..MTM..VX

 1
31438 - HOSE, NO.3(FOR CLUTCH BOOSTER VACUUM)
31438-60060

HDJ80..LHD..MTM..VX

 1
Linked diagrams
4703
