HDJ80L-GNMEXW (1990)
Toyota Land Cruiser

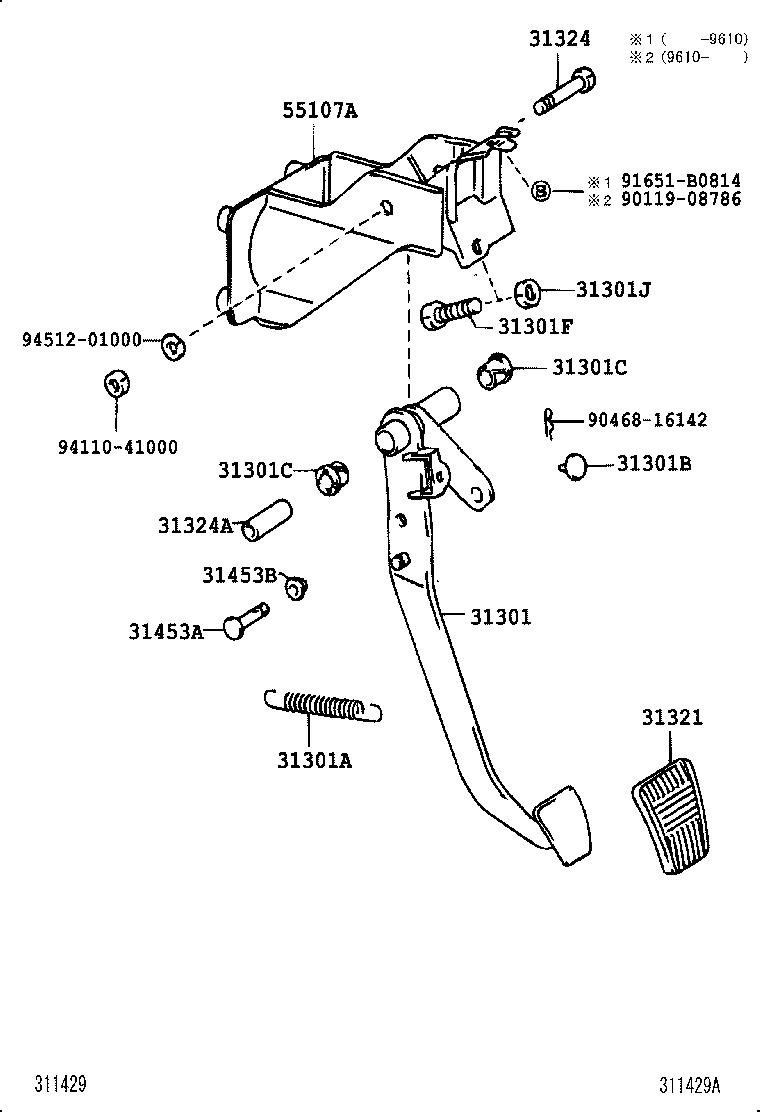

ILLUST NO. 1 OF 2(9001-9501)MTM..GX,STD ; (9501-9608)MTM ; (9608-)HDJ80,HZJ80
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60150 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31301-60150 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14015 |
HDJ80..MTM..VX |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
HDJ80,HZJ80..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
HDJ80,HZJ80..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
HDJ80,HZJ80..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
HDJ80,HZJ80..MTM |
1 | ||
| 90101-08052 |
HDJ80,HZJ80..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-40800 |
HDJ80,HZJ80..MTM |
1 | ||
| 94120-40800 |
HDJ80,HZJ80..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
HDJ80,HZJ80..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51080 |
HDJ80,HZJ80..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10116 |
HDJ80,HZJ80..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
HDJ80,HZJ80..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
HDJ80,HZJ80..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60050 |
HDJ80..LHD..MTM..VX |
1 | ||
| 55107-60050 |
HDJ80..LHD..MTM..VX |
1 | ||
| Common parts | ||||
| 90119-08786 | ||||
| 90468-16142 | ||||
| 90561-09017 | ||||
| 90561-09018 | ||||
| 91651-B0814 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||
| 96160-00600 | ||||
| 96160-00800 | ||||
ILLUST NO. 1 OF 2(9001-9501)MTM..VX ; (9608- )FZJ80..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31301 - PEDAL SUB-ASSY, CLUTCH | ||||
| 31301-60150 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31301-60150 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31301A - SPRING(FOR CLUTCH PEDAL) | ||||
| 90507-14015 |
HDJ80..MTM..VX |
1 | ||
| 31301B - CUSHION, NO.1(FOR CLUTCH PEDAL) | ||||
| 90541-06032 |
HDJ80,HZJ80..MTM |
1 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
HDJ80,HZJ80..MTM |
2 | ||
| 31301C - BUSH(FOR CLUTCH PEDAL) | ||||
| 90386-13015 |
HDJ80,HZJ80..MTM |
2 | ||
| 31301F - BOLT(FOR CLUTCH PEDAL STOPPER) | ||||
| 90101-08052 |
HDJ80,HZJ80..MTM |
1 | ||
| 90101-08052 |
HDJ80,HZJ80..MTM |
1 | ||
| 31301J - NUT(FOR CLUTCH PEDAL STOPPER) | ||||
| 94120-40800 |
HDJ80,HZJ80..MTM |
1 | ||
| 94120-40800 |
HDJ80,HZJ80..MTM |
1 | ||
| 31321 - PAD, CLUTCH PEDAL | ||||
| 31321-14020 |
HDJ80,HZJ80..MTM |
1 | ||
| 31324 - SHAFT, CLUTCH PEDAL | ||||
| 91121-51080 |
HDJ80,HZJ80..MTM |
1 | ||
| 31324A - COLLAR, CLUTCH PEDAL SHAFT | ||||
| 90387-10116 |
HDJ80,HZJ80..MTM |
1 | ||
| 31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90249-08018 |
HDJ80,HZJ80..MTM L=29.5 |
1 | ||
| 31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS) | ||||
| 90386-08033 |
HDJ80,HZJ80..MTM |
1 | ||
| 55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL | ||||
| 55107-60050 |
HDJ80..LHD..MTM..VX |
1 | ||
| 55107-60050 |
HDJ80..LHD..MTM..VX |
1 | ||
| Common parts | ||||
| 90119-08786 | ||||
| 90468-16142 | ||||
| 91651-B0814 | ||||
| 94110-41000 | ||||
| 94512-01000 | ||||

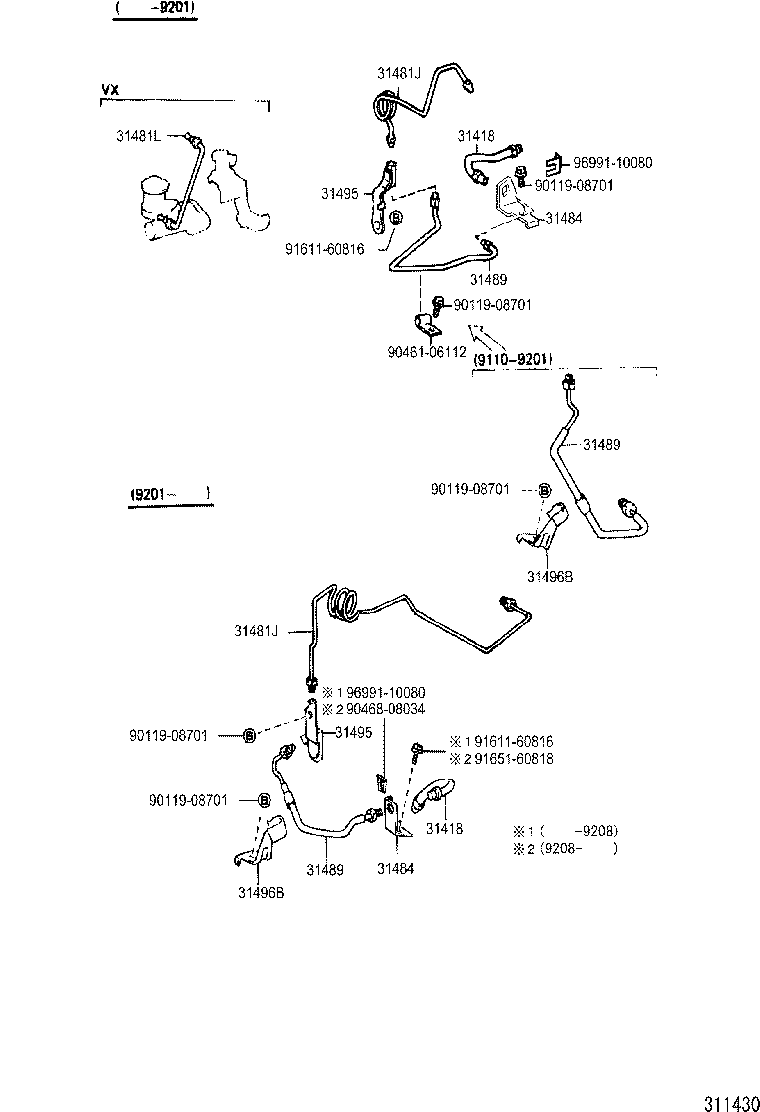

ILLUST NO. 2 OF 2(9001- )LHD..MTM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31418 - HOSE, CLUTCH | ||||
| 96812-50210 |
HDJ80,HZJ80..MTM |
1 | ||
| 31418 - HOSE, CLUTCH | ||||
| 96812-50210 |
HDJ80,HZJ80..MTM |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-60570 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481-60670 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481-60670 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481J - TUBE, CLUTCH MASTER CYLINDER TO 2 WAY | ||||
| 31481-60570 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481-60670 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481-60670 |
HDJ80..LHD..MTM..VX |
1 | ||
| 31481L - TUBE, MASTER CYLINDER TO TUBE CONNECTOR | ||||
| 31481-60510 |
HDJ80..MTM..VX |
1 | ||
| 31481-60510 |
HDJ80..MTM..VX |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60070 |
HDJ80,HZJ80..MTM |
1 | ||
| 31484-60120 |
HDJ80,HZJ80..MTM |
1 | ||
| 31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH) | ||||
| 31484-60070 |
HDJ80,HZJ80..MTM |
1 | ||
| 31484-60120 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60070 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60030 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60010 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60070 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60030 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60010 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489 - TUBE, TUBE CONNECTOR TO FLEXIBLE HOSE | ||||
| 31489-60070 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60030 |
HDJ80,HZJ80..MTM |
1 | ||
| 31489-60010 |
HDJ80,HZJ80..MTM |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60030 |
HDJ80,HZJ80..MTM |
1 | ||
| 31495-60050 |
HDJ80,HZJ80..MTM |
1 | ||
| 31495 - WAY, CLUTCH TUBE | ||||
| 31495-60030 |
HDJ80,HZJ80..MTM |
1 | ||
| 31495-60050 |
HDJ80,HZJ80..MTM |
1 | ||
| 31496B - CLAMP, CLUTCH TUBE | ||||
| 31496-60020 |
HDJ80,HZJ80..MTM |
1 | ||
| 31496B - CLAMP, CLUTCH TUBE | ||||
| 31496-60020 |
HDJ80,HZJ80..MTM |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90461-06112 | ||||
| 90468-08034 | ||||
| 91611-60816 | ||||
| 91651-60818 | ||||
| 96991-10080 | ||||
