HDJ80L-GCMRWW (1995)
Toyota Land Cruiser

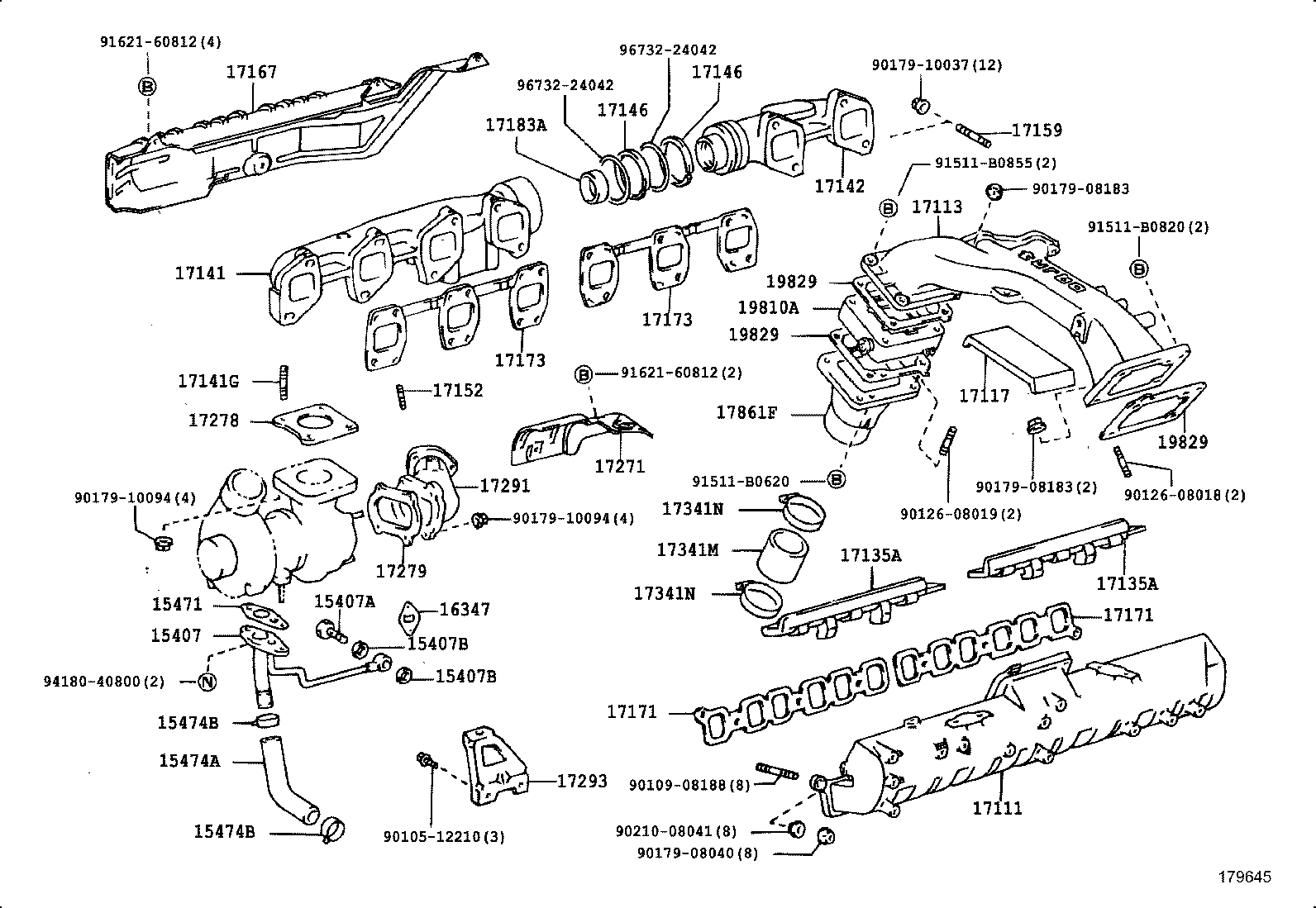

ILLUST NO. 1 OF 2(9501- )1HDFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-17012 |
1HDFT..HDJ80 |
1 | ||
| 15407-17013 |
1HDFT..HDJ80 |
1 | ||
| 15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE) | ||||
| 90401-12097 |
1HD#..HDJ80 |
1 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HD#..HDJ80 |
2 | ||
| 15407B - GASKET(FOR TURBO OIL INLET PIPE) | ||||
| 90430-12221 |
1HD#..HDJ80 |
2 | ||
| 15471 - GASKET, TURBO OIL INLET | ||||
| 15471-58010 |
1HD#..HDJ80 |
1 | ||
| 15474A - HOSE, TURBO OIL OUTLET | ||||
| 90910-05206 |
1HD#..HDJ80 |
1 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26001 |
1HD#..HDJ80 |
2 | ||
| 15474B - CLAMP OR CLIP(FOR TURBO OIL OUTLET HOSE) | ||||
| 90467-26001 |
1HD#..HDJ80 |
2 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HD#..HDJ80 |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-17020 |
1HDFT..HDJ80 |
1 | ||
| 17111-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 17113 - PIPE, INTAKE | ||||
| 17113-17050 |
1HDFT..HDJ80 |
1 | ||
| 17117 - INSULATOR, INTAKE PIPE | ||||
| 17117-17020 |
1HDFT..HDJ80 |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFT..HDJ80 |
2 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-17010 |
1HDFT..HDJ80 |
2 | ||
| 17141 - MANIFOLD, EXHAUST | ||||
| 17141-17030 |
1HDFT..HDJ80 |
1 | ||
| 17141G - BOLT, STUD(FOR TURBOCHARGER) | ||||
| 90116-10117 |
1HD#..HDJ80 |
4 | ||
| 17142 - CASE, EXHAUST MANIFOLD, NO.2 | ||||
| 17142-17030 |
1HDFT..HDJ80 |
1 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17146 - RING, EXHAUST MANIFOLD | ||||
| 17151-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 17152 - BOLT, STUD(FOR MANIFOLD TO EXHAUST PIPE) | ||||
| 90116-10087 |
1H#..HDJ80,HZJ80 |
3 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90116-10025 |
1H#..HDJ80,HZJ80 |
12 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-17060 |
1HDFT..HDJ80 |
1 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17020 |
1HDFT..HDJ80 |
2 | ||
| 17171 - GASKET, INTAKE TO EXHAUST MANIFOLD | ||||
| 17171-17020 |
1HDFT..HDJ80 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFT..HDJ80 |
2 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-17020 |
1HDFT..HDJ80 |
2 | ||
| 17183A - COLLAR, MANIFOLD | ||||
| 17183-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 17271 - INSULATOR, TURBO, NO.1 | ||||
| 17271-17010 |
1HD#..HDJ80 |
1 | ||
| 17278 - GASKET, TURBO TO EXHAUST MANIFOLD | ||||
| 17278-17010 |
1HDFT..HDJ80 |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-17020 |
1HDFT..HDJ80 |
1 | ||
| 17291 - ELBOW, TURBINE OUTLET | ||||
| 17291-17010 |
1HD#..HDJ80 |
1 | ||
| 17293 - STAY, TURBOCHARGER | ||||
| 17293-17010 |
1HD#..HDJ80 |
1 | ||
| 17861F - CONNECTOR, INTAKE AIR | ||||
| 17861-17020 |
1HDFT..HDJ80 |
1 | ||
| 19810A - HEATER ASSY, INTAKE | ||||
| 19810-17010 |
1HDFT..HDJ80 |
1 | ||
| 19829 - GASKET, INTAKE HEATER | ||||
| 19829-17010 |
1HDFT..HDJ80 |
3 | ||
| 19829 - GASKET, INTAKE HEATER | ||||
| 19829-17010 |
1HDFT..HDJ80 |
3 | ||
| 19829 - GASKET, INTAKE HEATER | ||||
| 19829-17010 |
1HDFT..HDJ80 |
3 | ||
| Common parts | ||||
| 90105-12210 | ||||
| 90109-08188 | ||||
| 90126-08018 | ||||
| 90126-08019 | ||||
| 90179-08040 | ||||
| 90179-08183 | ||||
| 90179-10037 | ||||
| 90179-10094 | ||||
| 90210-08041 | ||||
| 91511-B0620 | ||||
| 91511-B0820 | ||||
| 91511-B0855 | ||||
| 91621-60812 | ||||
| 94180-40800 | ||||
| 96732-24042 | ||||

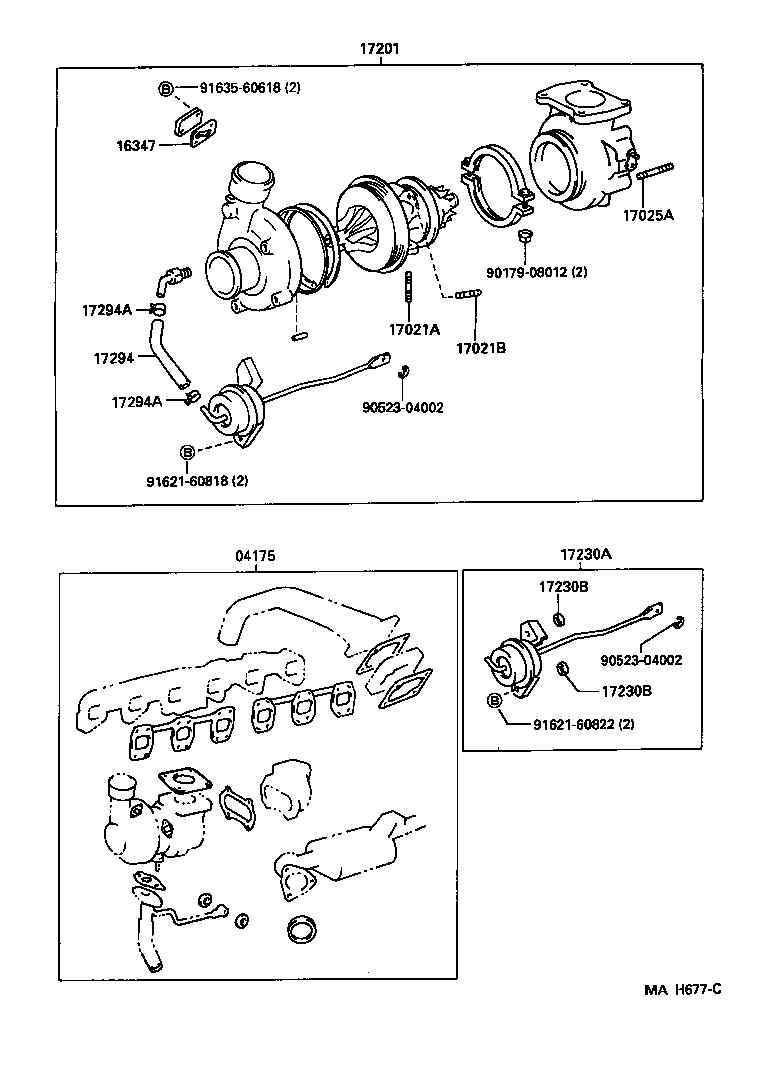

ILLUST NO. 2 OF 2(9501- )1HDFT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04175 - GASKET KIT, TURBOCHARGER | ||||
| 04175-17020 |
1HDFT..HDJ80 |
1 | ||
| 16347 - GASKET, WATER BY-PASS | ||||
| 16347-42020 |
1HD#..HDJ80 |
1 | ||
| 17021A - BOLT, STUD(FOR BEARING HOUSING) | ||||
| 90116-08158 |
1HD#..HDJ80 |
2 | ||
| 17021B - BOLT, STUD | ||||
| 90116-06048 |
1HD#..HDJ80 |
2 | ||
| 17025A - BOLT, STUD(FOR TURBINE HOUSING) | ||||
| 90116-10125 |
1HD#..HDJ80 |
4 | ||
| 17201 - TURBOCHARGER SUB-ASSY | ||||
| 17201-17030 |
1HDFT..HDJ80 |
1 | ||
| 17230A - REPAIR ACTUAOR ASSY, W/BRACKET | ||||
| 17230-19015 |
1HDFT..HDJ80 |
1 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
1HDFT..HDJ80 T=1.0 |
2 | ||
| 90201-08081 |
1HDFT..HDJ80 T=0.5 |
2 | ||
| 90201-08087 |
1HDFT..HDJ80 T=3.0 |
2 | ||
| 90201-08086 |
1HDFT..HDJ80 T=2.0 |
2 | ||
| 17230B - WASHER, PLATE(FOR REPAIR ACTUATOR SET) | ||||
| 90201-08082 |
1HDFT..HDJ80 T=1.0 |
2 | ||
| 90201-08081 |
1HDFT..HDJ80 T=0.5 |
2 | ||
| 90201-08087 |
1HDFT..HDJ80 T=3.0 |
2 | ||
| 90201-08086 |
1HDFT..HDJ80 T=2.0 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HD#..HDJ80 |
2 | ||
| 17294A - CLIP(FOR ACTUATOR HOSE) | ||||
| 96132-41100 |
1HD#..HDJ80 |
2 | ||
| Common parts | ||||
| 90179-08012 | ||||
| 90523-04002 | ||||
| 91621-60818 | ||||
| 91621-60822 | ||||
| 91635-60618 | ||||
