HDJ80L-GCMRWW (1995)
Toyota Land Cruiser
Production
Jan 1995
-
Jan 1998
Engine
1HDFT
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9501- )1HDFT

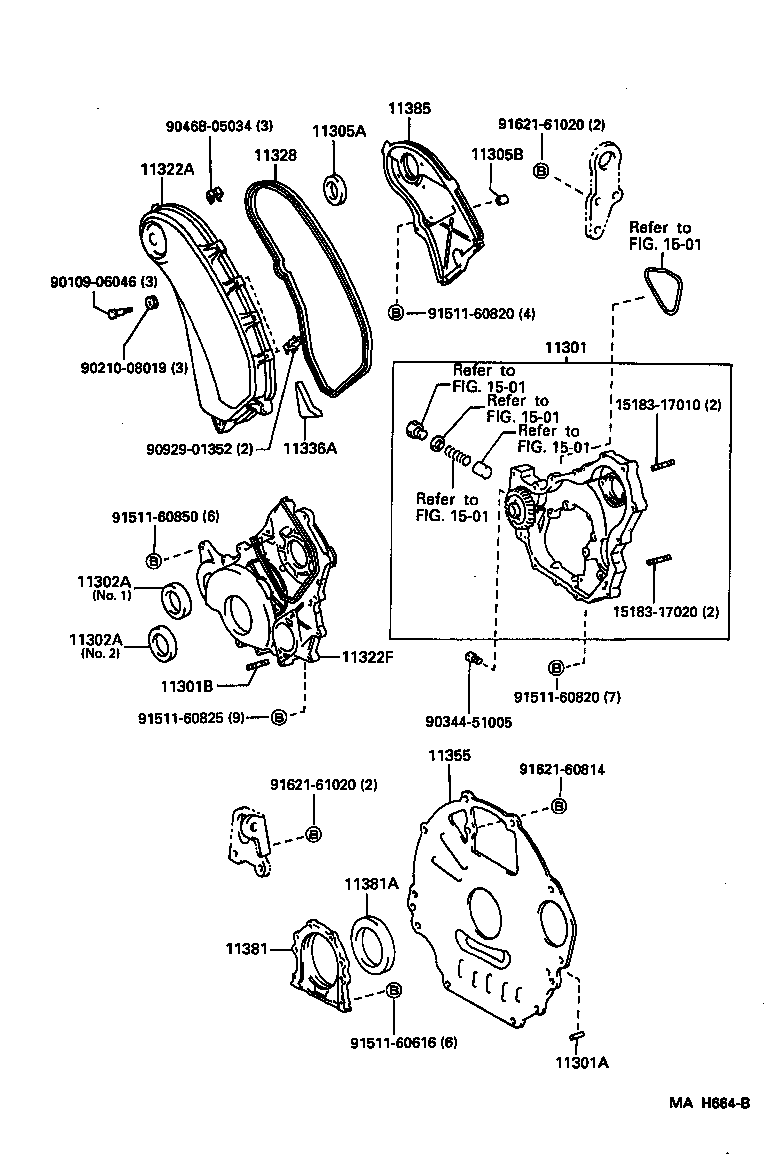

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11301 - CASE SUB-ASSY, TIMING GEAR | ||||
| 11301-17020 |
1H#..HDJ80,HZJ80 |
1 | ||
| 11301-17030 |
1HDFT..HDJ80 |
1 | ||
| 11301A - PIN, STRAIGHT(FOR TIMING GEAR CASE) | ||||
| 90250-08054 |
1HD#,1HZ..HDJ80,HZJ80 L=23,OD=8 |
1 | ||
| 11301B - BOLT,STUD(FOR TIMING GEAR CASE) | ||||
| 90116-10160 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-58006 |
1HD#,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 90311-58007 |
1HD#,1HZ..HDJ80,HZJ80 NO.2 |
1 | ||
| 11302A - SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) | ||||
| 90311-58006 |
1HD#,1HZ..HDJ80,HZJ80 NO.1 |
1 | ||
| 90311-58007 |
1HD#,1HZ..HDJ80,HZJ80 NO.2 |
1 | ||
| 11305A - SEAL, OIL(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90311-32017 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 11305B - PIN, RING(FOR OIL SEAL RETAINER, NO.2) | ||||
| 90253-11021 |
1HD#,1HZ..HDJ80,HZJ80 |
2 | ||
| 11322A - COVER, TIMING BELT, NO.1 | ||||
| 11321-17020 |
1HDFT..HDJ80 |
1 | ||
| 11322F - COVER, TIMING GEAR, NO.2 | ||||
| 11322-17021 |
1HDFT..HDJ80 |
1 | ||
| 11322-17020 |
1HDFT..HDJ80 |
1 | ||
| 11322-17010 |
1H#..HDJ80,HZJ80 |
1 | ||
| 11328 - GASKET, TIMING GEAR OR CHAIN COVER | ||||
| 11328-17021 |
1HDFT..HDJ80 |
1 | ||
| 11328-17022 |
1HDFT..HDJ80 |
1 | ||
| 11328-17020 |
1HDFT..HDJ80 |
1 | ||
| 11336A - INSULATOR, TIMING GEAR COVER | ||||
| 11336-17010 |
1HDFT..HDJ80 |
1 | ||
| 11355 - PLATE, REAR END | ||||
| 11355-17010 |
1HD#,1HZ..HDJ80,HZJ80..MTM |
1 | ||
| 11355-17011 |
1H#..HDJ80,HZJ80 |
1 | ||
| 11381 - RETAINER, ENGINE REAR OIL SEAL | ||||
| 11381-17010 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 11381A - SEAL, ENGINE REAR OIL | ||||
| 90311-95008 |
1HD#,1HZ..HDJ80,HZJ80 |
1 | ||
| 11385 - RETAINER, CAMSHAFT OIL SEAL | ||||
| 11382-17020 |
1HDFT..HDJ80 |
1 | ||
| Common parts | ||||
| 15183-17010 | ||||
| 15183-17020 | ||||
| 90109-06046 | ||||
| 90210-08019 | ||||
| 90344-51005 | ||||
| 90468-05034 | ||||
| 90929-01352 | ||||
| 91511-60616 | ||||
| 91511-60820 | ||||
| 91511-60825 | ||||
| 91511-60850 | ||||
| 91621-60814 | ||||
| 91621-61020 | ||||
| Linked diagrams | ||||
| 1501 | ||||
