GDJ155R-GJTEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )GDJ155

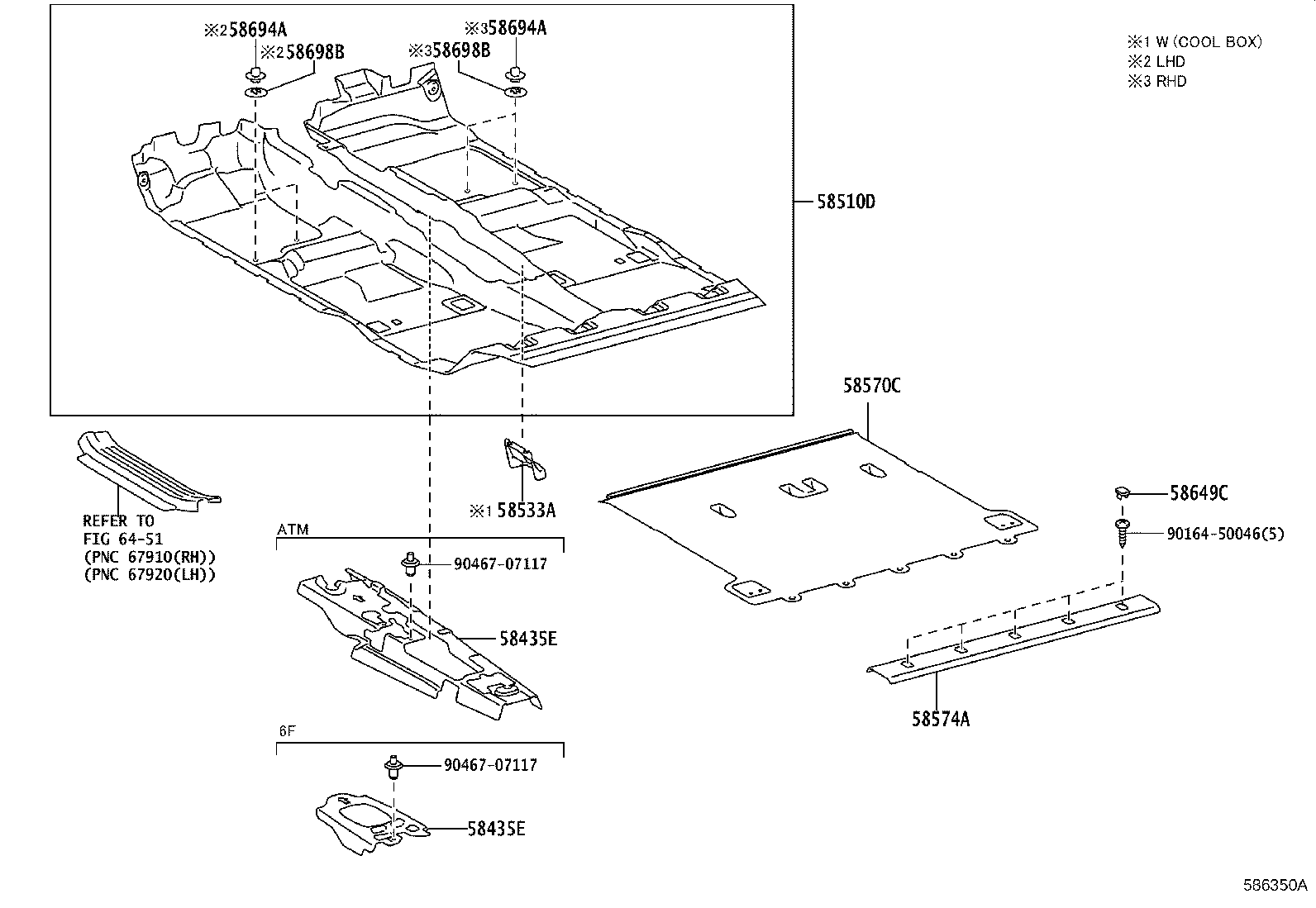

Click highlighted areas on diagram

diagram 58435E 58435E 58510D 58533A 58570C 58574A 58649C 58694A 58694A 58698B 58698B 6451 9016450046 9046707117 9046707117
Part # Description Qty Price
58435E - SILENCER, FRONT FLOOR, CENTER
58435-60040

GDJ15#..6FC;KDJ150..RHD

 1
58435-60030

GDJ15#..6F

 1
58435E - SILENCER, FRONT FLOOR, CENTER
58435-60040

GDJ15#..6FC;KDJ150..RHD

 1
58435-60030

GDJ15#..6F

 1
58510D - CARPET ASSY, FLOOR, FRONT
58510-60X21C1

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X11C1

GDJ155..RHD

BLACK,TRIM2#

 1
58510-60X20E0

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X20C1

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X10E0

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58510-60X10C1

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X10C1

GDJ155..RHD

BLACK,TRIM2#

 1
58510-60X20C1

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X10C1

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X10E0

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58510-60X10E0

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58510-60X10C1

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X20C1

GDJ155..RHD

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X20E0

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X10E0

GDJ155..RHD

NEUTRAL BEIGE,TRIM4#

 1
58510-60X20E0

GDJ155..RHD

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X21C1

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X11E0

GDJ155..RHD

NEUTRAL BEIGE,TRIM4#

 1
58510-60X21E0

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X21E0

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X21E0

GDJ155..RHD

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58510-60X21C1

GDJ155..RHD

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,BLACK,TRIM2#

 1
58510-60X11C1

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X11E0

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58510-60X11E0

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58510-60X11C1

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X11C1

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),BLACK,TRIM2#

 1
58510-60X11E0

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER),NEUTRAL BEIGE,TRIM4#

 1
58533A - COVER, FLOOR CARPET, CENTER RH
58533-60090C0

GDJ155..6FC

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58533-60090C0

GDJ155

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58533-60090C0

GDJ155..6F

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,BLACK,TRIM2#

 1
58533-60090E0

GDJ155

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58533-60090C0

GDJ155..6F

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,BLACK,TRIM2#

 1
58533-60090E0

GDJ155..6F

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58533-60090E0

GDJ155..6F

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58533-60090E0

GDJ155..6FC

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58533-60090E0

GDJ155..6FC

VX PACKAGE&*LES & WITHOUT(AVS)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4#

 1
58533-60090C0

GDJ155..6FC

VX PACKAGE&*FAS & *IP(ORNAMENT = WOOD-GRAIN)&COOL BOX-WITH,BLACK,TRIM2#

 1
58570C - CARPET ASSY, REAR FLOOR
58570-60C10C2

GDJ155

BLACK,TRIM2#

 1
58570-60C10E1

GDJ155

NEUTRAL BEIGE,TRIM4#

 1
58574A - PLATE, REAR FLOOR MAT SUPPORT, REAR
58574-60091E0

GDJ155

NEUTRAL BEIGE,TRIM4#

 1
58574-60091C0

GDJ155

BLACK,TRIM2#

 1
58649C - COVER, MAT SET PLATE
58649-60010C0

GDJ155

BLACK,TRIM2#

 5
58649-60010E0

GDJ155

NEUTRAL BEIGE,TRIM4#

 5
58694A - PLATE, MAT SET, UPPER
58694-76010

GDJ15#,GRJ150,KDJ150,TRJ150

 2
58694-76010

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58694-76010

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58694-76010

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58694A - PLATE, MAT SET, UPPER
58694-76010

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58694-76010

GDJ15#,GRJ150,KDJ150,TRJ150

 2
58694-76010

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58694-76010

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GDJ15#,GRJ150,KDJ150,TRJ150

 2
58698-76010

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698-76010

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698-76010

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698B - PLATE, MAT SET, LOWER
58698-76010

GDJ15#,GRJ150,KDJ150,TRJ150

 2
58698-76010

GDJ155..RHD

VX PACKAGE&*LES & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698-76010

GDJ155..RHD

TX-L PACKAGE&*LES & *IP(ORNAMENT = BLACK PAINT)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
58698-76010

GDJ155..RHD

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&SEAT HEATER-WITH (DRIVER & PASSENGER)

 2
Common parts
90164-50046
90467-07117
Linked diagrams
6451
