GDJ155R-GJTEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

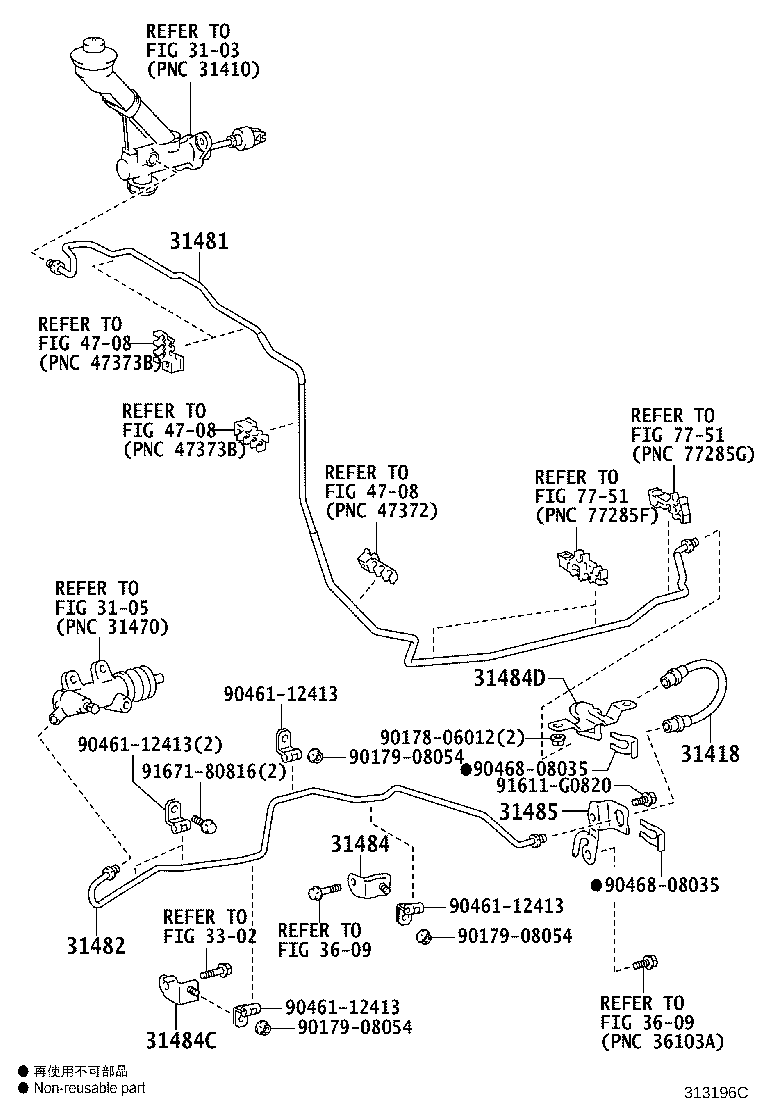

ILLUST NO. 2 OF 2(1708- )RHD..6F

Click highlighted areas on diagram

diagram 3103 3105 31418 31481 31482 31484 31484C 31484D 31485 3302 3609 3609 4708 4708 4708 7751 7751 9017806012 9017908054 9017908054 9017908054 9046112413 9046112413 9046112413 9046112413 9046808035 9046808035 91611G0820 9167180816
Part # Description Qty Price
31418 - HOSE, CLUTCH
90947-02D38

GDJ15#..6F

 1
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-60B90

GDJ15#..RHD..6F

 1
31481-60C10

GDJ15#..RHD..6F

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-60230

GDJ15#..6F

 1
31484 - BRACKET, FLEXIBLE HOSE(FOR CLUTCH)
31484-60280

GDJ15#..6F

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-60410

GDJ15#..6F

 1
31484D - BRACKET, CLUTCH TUBE, NO.2
31484-60370

GDJ15#..RHD..6F

 1
31485 - BRACKET, FLEXIBLE HOSE, NO.2(FOR CLUTCH)
31485-60040

GDJ15#..6F

 1
Common parts
90178-06012
90179-08054
90461-12413
90468-08035
91611-G0820
91671-80816
Linked diagrams
3103
3105
3302
3609
4708
7751

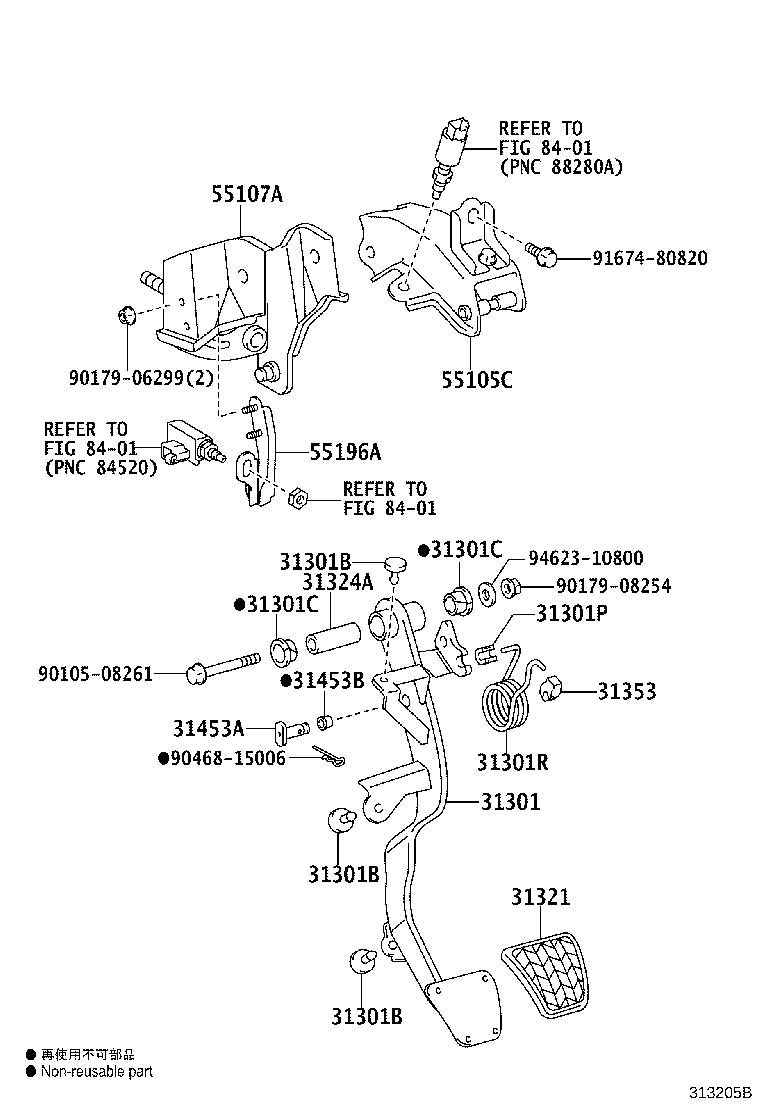

ILLUST NO. 1 OF 2(1708- )RHD..6F

Click highlighted areas on diagram

diagram 31301 31301B 31301B 31301B 31301C 31301C 31301P 31301R 31321 31324A 31353 31453A 31453B 55105C 55107A 55196A 8401 8401 8401 9010508261 9017906299 9017908254 9046815006 9167480820 9462310800
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-60310

GDJ15#..RHD..6F

 1
31301R - SPRING, COMPRESSION(FOR TURN OVER SPRING SEAT)
90949-03127

GDJ15#..RHD..6F

 1
55105C - SUPPORT, PEDAL BRACKET CLUTCH WIRE
55105-60020

GDJ15#..RHD..6F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-60310

GDJ15#..RHD..6F

 1
55196A - BRACKET, CLUTCH START SWITCH MOUNTING
55196-60100

GDJ15#..RHD..6F

 1
Common parts
90105-08261
90179-06299
90179-08254
90468-15006
91674-80820
94623-10800
Linked diagrams
8401
