GDJ155R-GJFEYW (2017)
Toyota Land Cruiser

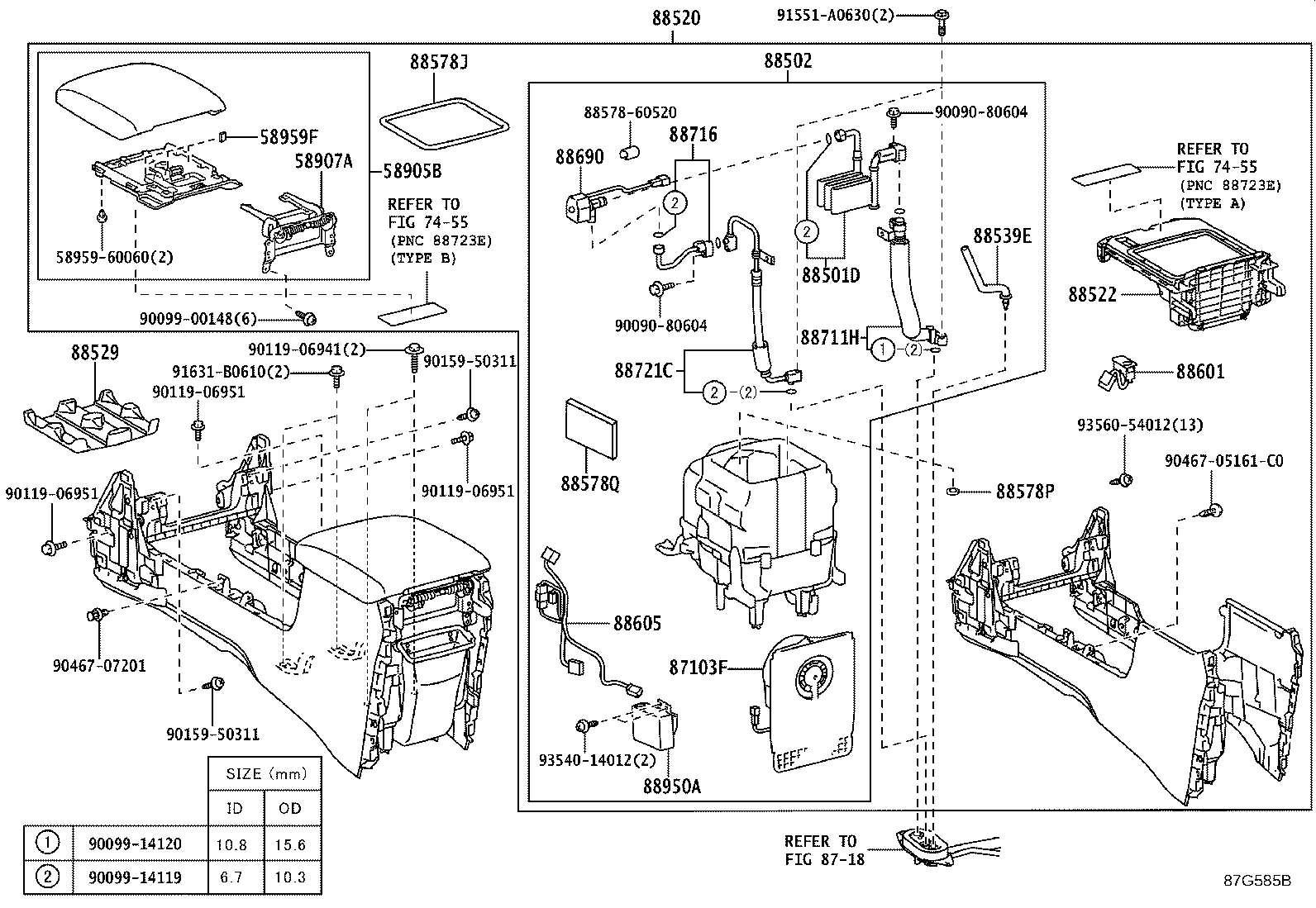

ILLUST NO. 3 OF 3(1708- )RHD
COOL BOX
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 58905B - DOOR SUB-ASSY, CONSOLE COMPARTMENT(FOR COOL BOX) | ||||
| 58905-60350C0 |
GDJ155 VX PACKAGE&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 58905-60350E0 |
GDJ155 VX PACKAGE&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 58907A - HINGE SUB-ASSY, COOLING BOX DOOR | ||||
| 58907-60130 |
GDJ155..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 58959F - CUSHION, COOLING BOX DOOR | ||||
| 55419-32020 |
GDJ155..6F VX PACKAGE&COOL BOX-WITH |
3 | ||
| 87103F - MOTOR SUB-ASSY, BLOWER W/FAN(FOR COOL BOX) | ||||
| 87103-60490 |
GDJ15#..EUR VX PACKAGE&COOL BOX-WITH |
1 | ||
| 87103-60490 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88501D - EVAPORATOR SUB-ASSY, COOLER, NO.2 | ||||
| 88501-60440 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88501-60440 |
GDJ15#..EUR VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88530-60040 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88530-60200 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88530-60200 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88530-60200 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88530-60050 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88520 - BOX ASSY, COOLING | ||||
| 88520-60A40C0 |
GDJ15#..RHD VX PACKAGE&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60A40E0 |
GDJ15#..RHD VX PACKAGE&COOL BOX-WITH,ORCHID BROWN,TRIM4# |
1 | ||
| 88520-60A41C0 |
GDJ15#..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60A41E0 |
GDJ15#..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,ORCHID BROWN,TRIM4# |
1 | ||
| 88520-60D70C0 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60D70C0 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60D70C0 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,BLACK,TRIM2# |
1 | ||
| 88520-60D70E0 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 88520-60D70E0 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,NEUTRALBEIGE,TRIM4# |
1 | ||
| 88520-60D70E0 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH,NEUTRAL BEIGE,TRIM4# |
1 | ||
| 88522 - DOOR, COOLING UNIT | ||||
| 88522-60100 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88522-60100 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88522-60100 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88522-60100 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88522-60100 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88529 - TRAY, COOLING BOX | ||||
| 88529-60040 |
GDJ15#..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88539E - HOSE, COOLER UNIT DRAIN, NO.3 | ||||
| 88539-60360 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88539-60360 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88539-60360 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88539-60360 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88539-60360 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88578J - PACKING, COOL BOX, NO.1 | ||||
| 88578-60230 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88578-60230 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88578-60230 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88578-60230 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88578-60230 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88578P - PACKING, COOL BOX, NO.2 | ||||
| 88578-60240 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
2 | ||
| 88578-60240 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
2 | ||
| 88578-60240 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
2 | ||
| 88578-60240 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
2 | ||
| 88578-60240 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
2 | ||
| 88578Q - PACKING, COOL BOX, NO.3 | ||||
| 88578-60250 |
GDJ15#..EUR VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88578-60250 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88601 - SWITCH SUB-ASSY, COOLER CONTROL | ||||
| 88601-60050 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88470-60050 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88608-60050 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88608-60010 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88608-60050 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88608-60050 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88608-60050 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88690 - VALVE ASSY, COOLER MAGNET | ||||
| 88690-60300 |
GDJ15#..EUR VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88690-60300 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88711H - HOSE, DISCHARGE | ||||
| 88720-60220 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150..6F,6FC VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88720-60280 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60280 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60280 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60280 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88716 - TUBE, LIQUID | ||||
| 88716-6C460 |
GDJ15#..EUR VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88716-6C460 |
GDJ15#..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88721C - HOSE, LIQUID | ||||
| 88720-60230 |
GDJ15#..RHD VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88720-60230 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60230 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60230 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88720-60230 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88950A - AMPLIFIER ASSY, COOLING BOX | ||||
| 88950-60020 |
GDJ155;GDJ150..RHD;GDJ150..LHD..6F VX PACKAGE&COOL BOX-WITH |
1 | ||
| 88950-60020 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88950-60020 |
GDJ15#..RHD;GDJ15#..LHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88950-60020 |
GDJ15#..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88950-60020 |
GDJ15#..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| Common parts | ||||
| 58959-60060 | ||||
| 88578-60520 | ||||
| 90090-80604 | ||||
| 90099-00148 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90119-06941 | ||||
| 90119-06951 | ||||
| 90159-50311 | ||||
| 90467-05161C0 | ||||
| 90467-07201 | ||||
| 91551-A0630 | ||||
| 91631-B0610 | ||||
| 93540-14012 | ||||
| 93560-54012 | ||||
| Linked diagrams | ||||
| 7455 | ||||
| 8718 | ||||

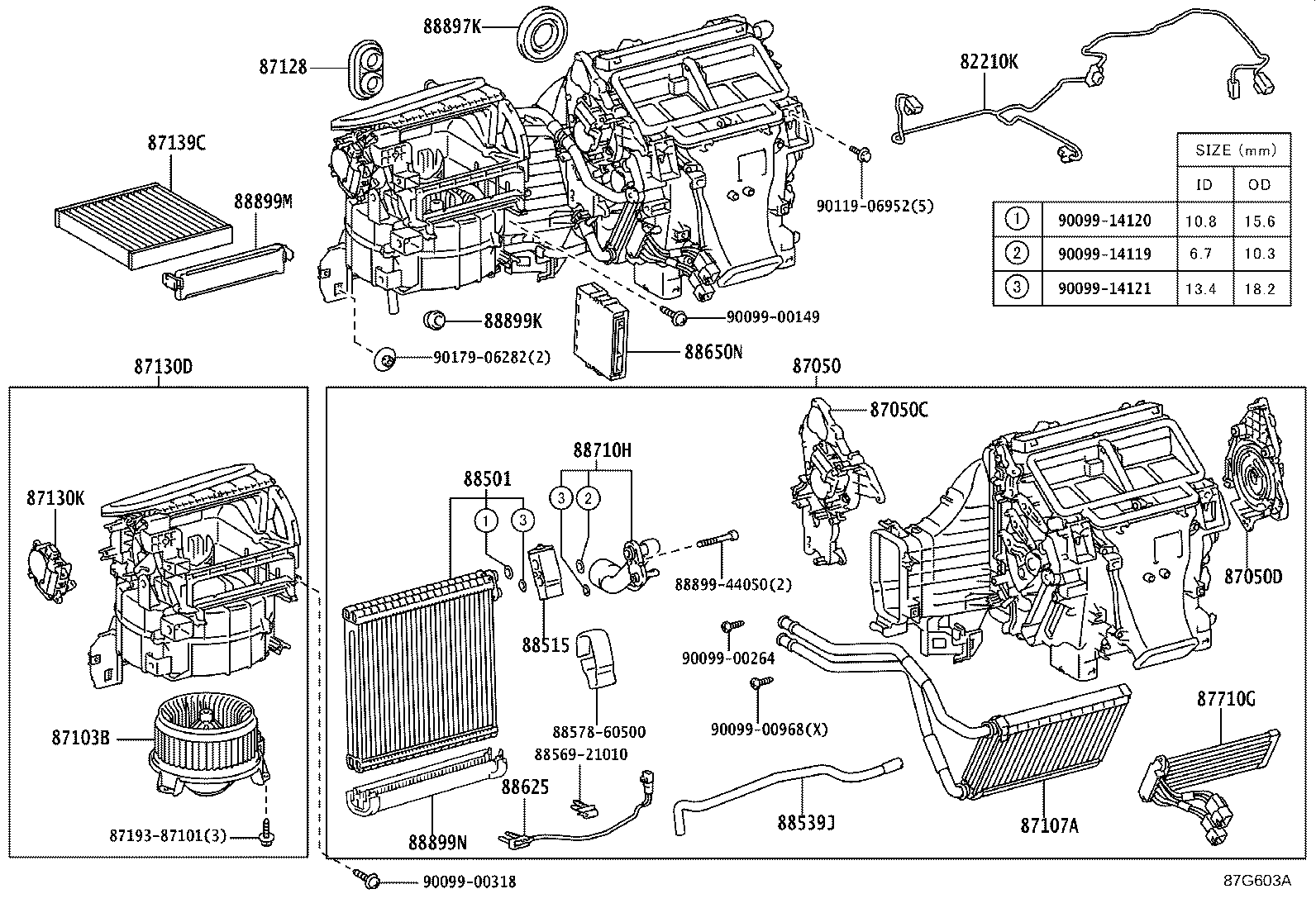

ILLUST NO. 1 OF 3(1708- )RHD
FRONT AUTO AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60131 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60151 |
GDJ15#..RHD |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60D60 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 87050-60C60 |
GDJ155..RHD TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C60 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C90 |
GDJ15#..RHD |
1 | ||
| 87050-60D50 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D60 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 87050-60D50 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D60 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 87050-60G60 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60G60 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60G90 |
GDJ15#..RHD..6F |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-60220 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..6F;GDJ155..LHD..6FC TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60240 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60230 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60410 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60430 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60690 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60621 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87130-60690 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ15#..RHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-60250 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 POLLEN DEODORANT |
1 | ||
| 87139-52040 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 POLLEN FILTER,OE PART |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-60050 |
GDJ15#,TRJ150 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60412 |
GDJ15#..RHD |
1 | ||
| 88501-60421 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60421 |
GDJ155..RHD TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60470 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60480 |
GDJ15#..RHD..6F |
1 | ||
| 88501-60470 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60250 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-50190 |
GDJ15# |
1 | ||
| 88515-60270 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 88515-60270 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 88515-60270 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88515-60300 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-60350 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y80 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U10 |
GDJ155 VX PACKAGE |
1 | ||
| 88650-60U10 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U50 |
GDJ15#,TRJ150 |
1 | ||
| 88650-60U11 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U11 |
GDJ155 VX PACKAGE |
1 | ||
| 88650-60Y80 |
GDJ155..RHD..6F VX PACKAGE |
1 | ||
| 88650-60U51 |
GDJ15#,TRJ150 |
1 | ||
| 88650-60Z20 |
GDJ15#,TRJ150 |
1 | ||
| 88669B - HOSE, COOLER AIR | ||||
| 88669-60060 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88669-60060 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60E10 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-60190 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88897U - PIPE, ASPIRATOR | ||||
| 88897-32090 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..6F;GDJ155..LHD..6FC TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88897-32090 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60440 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899-60440 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899-60460 |
GDJ15#..RHD..6F |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88578-60500 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00264 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90179-06282 | ||||
| 91631-B0614 | ||||
ILLUST NO. 1 OF 3(1708- )RHD
FRONT MANUAL AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82210K - HARNESS ASSY, AIR CONDITIONER | ||||
| 82212-60131 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60151 |
GDJ15#..RHD |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 82212-60131 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050 - RADIATOR ASSY, AIR CONDITIONER | ||||
| 87050-60D60 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 87050-60D60 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 87050-60D60 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 87050-60C60 |
GDJ155..RHD TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C60 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60C90 |
GDJ15#..RHD |
1 | ||
| 87050-60D50 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60D50 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60G60 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60G60 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60G90 |
GDJ15#..RHD..6F |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 87050-60J30 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87050-60J40 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 87050C - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.1 | ||||
| 87106-60220 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60220 |
GDJ155..6F;GDJ155..LHD..6FC TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87106-60240 |
KDJ150..LHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 87050D - DAMPER SERVO SUB-ASSY, AIR CONDITIONER RADIATOR, NO.2 | ||||
| 87106-60230 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87103B - MOTOR SUB-ASSY, BLOWER W/FAN | ||||
| 87103-60410 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87107A - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60430 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87128 - GROMMET, HEATER | ||||
| 87128-35020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 87130D - BLOWER ASSY | ||||
| 87130-60690 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60621 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87130-60690 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 87130-60690 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 87130-60690 |
GDJ15#..RHD |
1 | ||
| 87130K - DAMPER SERVO SUB-ASSY, BLOWER, NO.1 | ||||
| 87106-60250 |
GDJ15#,KDJ150..RHD |
1 | ||
| 87139C - FILTER, CLEAN AIR | ||||
| 87139-50100 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 POLLEN DEODORANT |
1 | ||
| 87139-52040 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 POLLEN FILTER,OE PART |
1 | ||
| 87710G - QUICK HEATER ASSY | ||||
| 87710-60050 |
GDJ15#,TRJ150 |
1 | ||
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-60412 |
GDJ15#..RHD |
1 | ||
| 88501-60421 |
GDJ155..RHD VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60421 |
GDJ155..RHD TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60470 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60480 |
GDJ15#..RHD..6F |
1 | ||
| 88501-60470 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88501-60500 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88501-60500 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-60250 |
GDJ155..RHD..6F MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-50190 |
GDJ15# |
1 | ||
| 88515-60270 |
GDJ155..RHD UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD IRELAND SPEC |
1 | ||
| 88515-60270 |
GDJ155..RHD IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD UNITED KINGDOM SPEC |
1 | ||
| 88515-60270 |
GDJ155..RHD MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ155..RHD MALTA SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60270 |
GDJ15#..RHD MALTA SPEC |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F IRELAND SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F MALTA SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F UNITED KINGDOM SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ155..RHD..6F IRELAND SPEC&TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88515-60250 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88515-60300 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88539J - HOSE, DRAIN COOLER | ||||
| 88539-60350 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88620-50020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88650N - AMPLIFIER ASSY, AIR CONDITIONER | ||||
| 88650-60Y80 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U10 |
GDJ155 VX PACKAGE |
1 | ||
| 88650-60U10 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U50 |
GDJ15#,TRJ150 |
1 | ||
| 88650-60U11 |
GDJ155 TX-L PACKAGE |
1 | ||
| 88650-60U11 |
GDJ155 VX PACKAGE |
1 | ||
| 88650-60Y80 |
GDJ155..RHD..6F VX PACKAGE |
1 | ||
| 88650-60U51 |
GDJ15#,TRJ150 |
1 | ||
| 88650-60Z20 |
GDJ15#,TRJ150 |
1 | ||
| 88710H - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60E10 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88897K - GROMMET, (FOR COOLER PIPE) | ||||
| 88897-60190 |
GDJ15#,KDJ150..RHD |
1 | ||
| 88899K - PLATE, COVER | ||||
| 88899-3A010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899M - PLATE, COVER(FOR AIR FILTER) | ||||
| 88899-33040 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88899N - PLATE, COVER | ||||
| 88899-60440 |
GDJ155..RHD..6F VX PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899-60440 |
GDJ155..RHD..6F TX-L PACKAGE&AIR CONDITIONER-SINGLE(AUTO) |
1 | ||
| 88899-60460 |
GDJ15#..RHD..6F |
1 | ||
| Common parts | ||||
| 87193-87101 | ||||
| 88569-21010 | ||||
| 88578-60500 | ||||
| 88899-44050 | ||||
| 90099-00149 | ||||
| 90099-00264 | ||||
| 90099-00318 | ||||
| 90099-00968 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06952 | ||||
| 90179-06282 | ||||
ILLUST NO. 2 OF 3(1708- )
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 87124-60240 | ||||
| 87452-60070 | ||||
| 88688-6B080 | ||||
| 88688-6B230 | ||||
| 88718-6B380 | ||||
| 90099-00968 | ||||
| 90099-04542 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06833 | ||||
| 90119-06941 | ||||
| 90159-60008 | ||||
| 91553-80618 | ||||
| Linked diagrams | ||||
| 8716 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
