GDJ155R-GJFEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )1GDFTV

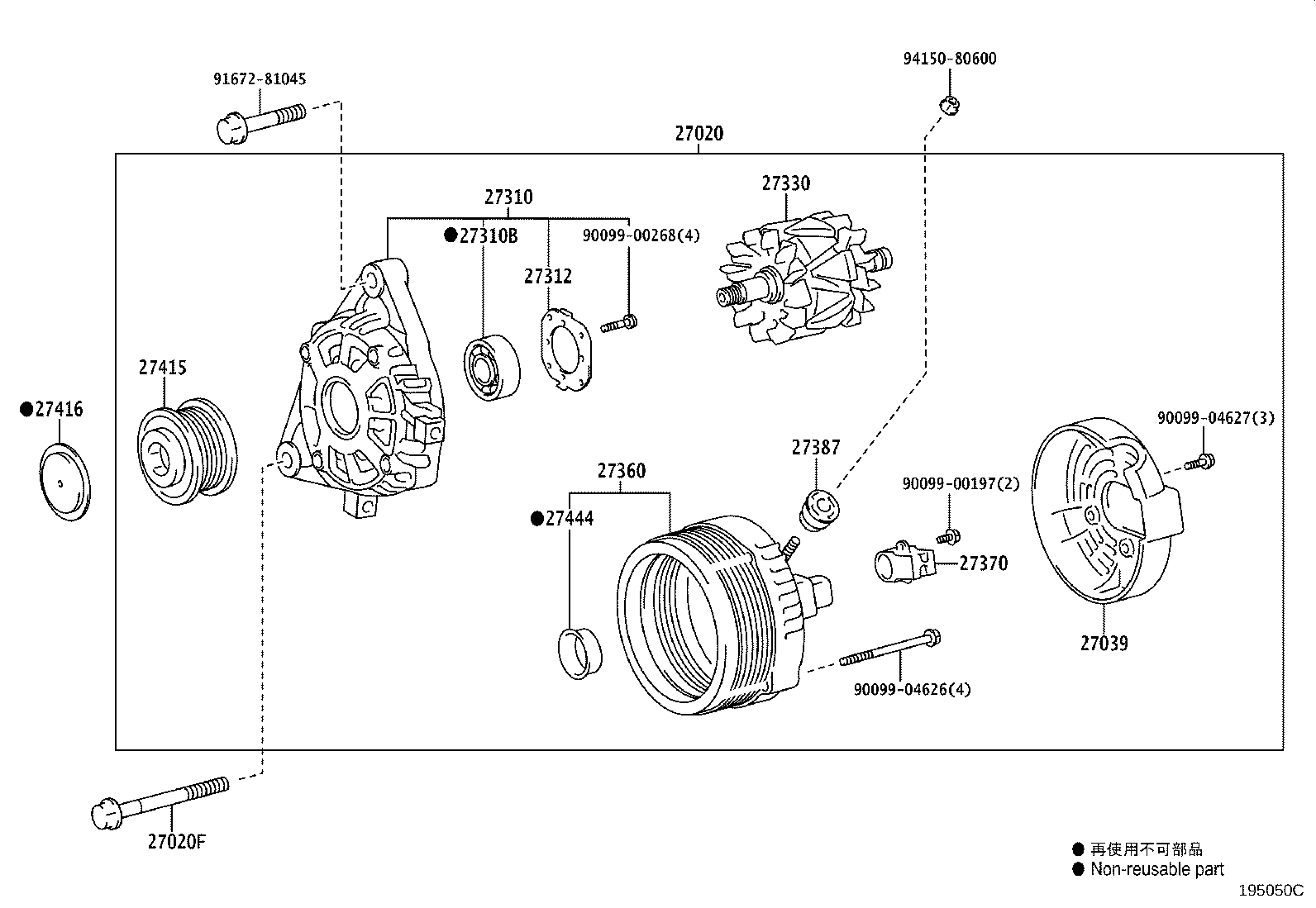

Click highlighted areas on diagram

12V 100A,130A

diagram 27020 27020F 27039 27310 27310B 27312 27330 27360 27370 27387 27415 27416 27444 9009900197 9009900268 9009904626 9009904627 9167281045 9415080600
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-11350

1GDFTV..GDJ155..RHD..6F

12V 130A,VX PACKAGE&*LES & WITHOUT(AVS)&COLD AREA SPEC

 1
27060-11350

1GDFTV..GDJ155..RHD..6F

12V 130A,VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COLD AREA SPEC

 1
27060-11180

1GDFTV..GDJ15#..6F;1GDFTV..GDJ150..RUS

12V 100A

 1
27020F - BOLT, NO.1(FOR ALTERNATOR)
91552-81090

1GDFTV..GDJ15#

 1
27039 - COVER, ALTERNATOR REAR END
27039-11290

1GDFTV..GDJ15#

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-30240

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES & WITHOUT(AVS)&COLD AREA SPEC

 1
27310-30240

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COLD AREA SPEC

 1
27310-11280

1GDFTV..GDJ15#..6F;1GDFTV..GDJ150..RUS

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
27312 - PLATE, RETAINER
27312-72100

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-37220

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES & WITHOUT(AVS)&COLD AREA SPEC

 1
27330-37220

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COLD AREA SPEC

 1
27330-47330

1GDFTV..GDJ15#..6F;1GDFTV,2TRFE..GDJ150,TRJ150..RUS

 1
27360 - COIL ASSY, ALTERNATOR
27360-11290

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES(COLOR) & WITHOUT(AVS)&COLD AREA SPEC

 1
27360-11290

1GDFTV..GDJ155..RHD..6F

VX PACKAGE&*LES & WITHOUT(AVS)&COLD AREA SPEC

 1
27360-11280

1GDFTV..GDJ15#..6F;1GDFTV..GDJ150..RUS

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220

1G#..GDJ15#,GRJ150

 1
27387 - INSULATOR, TERMINAL
27387-20130

1G#,1KDFTV,2TRFE..GDJ15#,GRJ150,KDJ150,TRJ150

 1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-30010

1GDFTV..GDJ15#;1KDFTV..KDJ150..RHD

 1
27416 - CAP, ALTERNATOR PULLEY
27416-30020

1GDFTV..GDJ15#;1KDFTV..KDJ150..RHD

 1
27444 - PACKING, ALTERNATOR BEARING COVER
27444-21190

1GDFTV,2TRFE..GDJ15#,TRJ150

 1
Common parts
90099-00197
90099-00268
90099-04626
90099-04627
91672-81045
94150-80600
