GDJ155L-GJTEYW (2017)
Toyota Land Cruiser
Production
Aug 2017
-
Sep 9999
Engine
1GDFTV
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1708- )1GDFTV

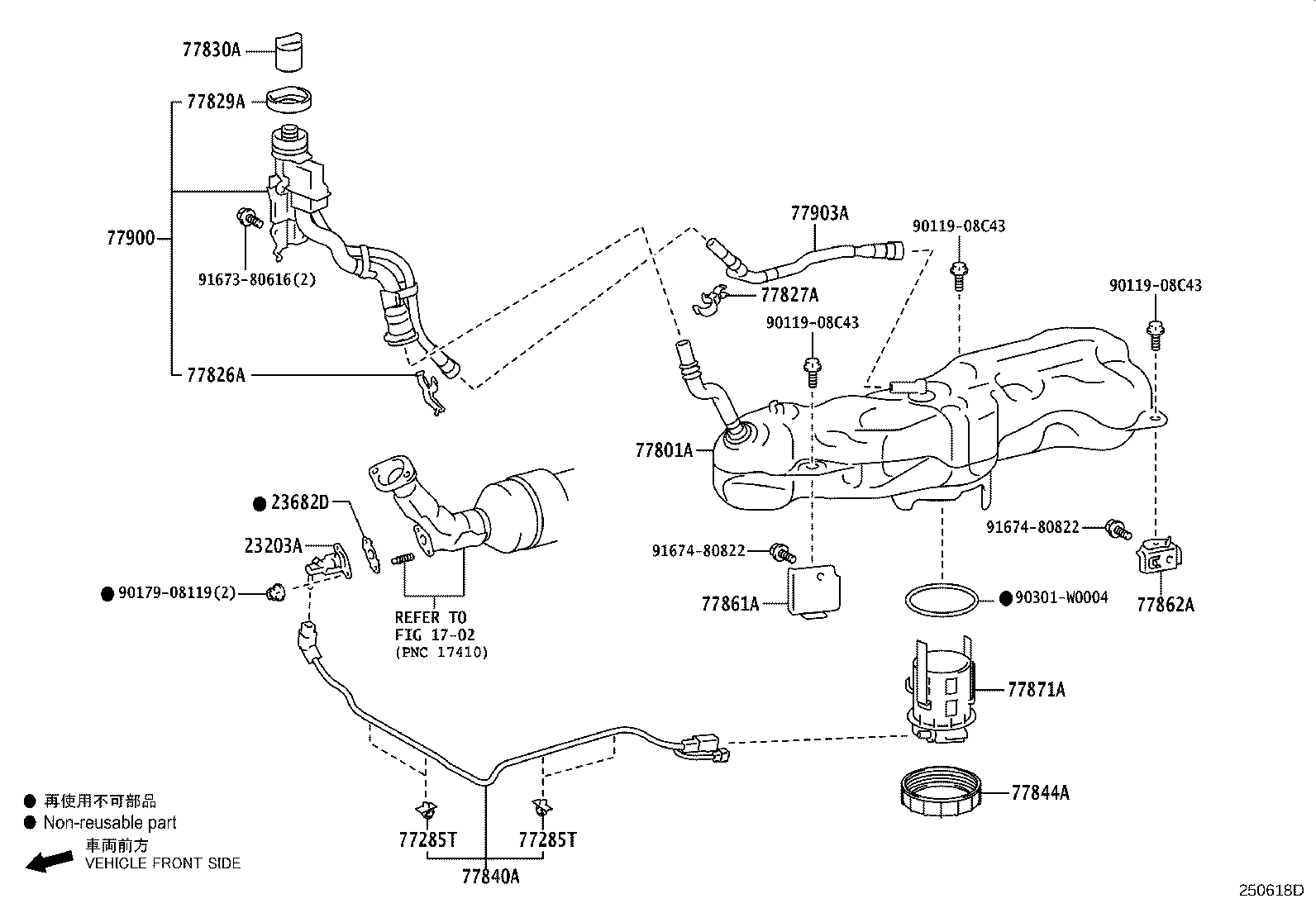

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23203A - INJECTOR SET, UREA | ||||
| 23203-11020 |
1GDFTV..GDJ15#..EUR |
1 | ||
| 23203-11021 |
1GDFTV..GDJ15#..EUR |
1 | ||
| 23682D - GASKET, NOZZLE HOLDER | ||||
| 23682-11010 |
1GDFTV..GDJ15#..EUR |
1 | ||
| 77285T - CLAMP, UREA TUBE, NO.1 | ||||
| 77285-60C40 |
GDJ15#..EUR |
4 | ||
| 77285T - CLAMP, UREA TUBE, NO.1 | ||||
| 77285-60C40 |
GDJ15#..EUR |
4 | ||
| 77801A - TANK SUB-ASSY, UREA | ||||
| 77801-60030 |
GDJ15#..EUR |
1 | ||
| 77826A - SUPPORT, UREA TANK FILLER PIPE, NO.1 | ||||
| 77917-60040 |
GDJ15#..EUR |
1 | ||
| 77827A - SUPPORT, UREA TANK FILLER PIPE, NO.2 | ||||
| 77917-60050 |
GDJ15#..EUR |
1 | ||
| 77917-60051 |
GDJ15#..EUR |
1 | ||
| 77829A - COVER, UREA TANK CAP | ||||
| 77829-60020 |
GDJ15#..EUR |
1 | ||
| 77830A - CAP ASSY, UREA TANK | ||||
| 77830-60010 |
GDJ15#..EUR |
1 | ||
| 77840A - TUBE ASSY, UREA W/HEATER | ||||
| 77840-60020 |
GDJ15#..EUR |
1 | ||
| 77844A - RETAINER, UREA PUMP GAGE | ||||
| 77844-60010 |
GDJ15#..EUR |
1 | ||
| 77861A - BRACKET, UREA TANK, NO.1 | ||||
| 77861-60010 |
GDJ15#..EUR |
1 | ||
| 77862A - BRACKET, UREA TANK, NO.2 | ||||
| 77862-60010 |
GDJ15#..EUR |
1 | ||
| 77871A - PUMP, UREA | ||||
| 77871-0K010 |
GDJ15#..EUR |
1 | ||
| 77900 - PIPE ASSY, UREA TANK FILLER W/SUPPORT | ||||
| 77900-60010 |
GDJ15#..EUR |
1 | ||
| 77903A - TUBE SUB-ASSY, UREA TANK BREATHER | ||||
| 77903-60020 |
GDJ15#..EUR |
1 | ||
| Common parts | ||||
| 90119-08C43 | ||||
| 90179-08119 | ||||
| 90301-W0004 | ||||
| 91673-80616 | ||||
| 91674-80822 | ||||
| Linked diagrams | ||||
| 1702 | ||||
