GDJ155L-GJTEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )1GDFTV

Click highlighted areas on diagram

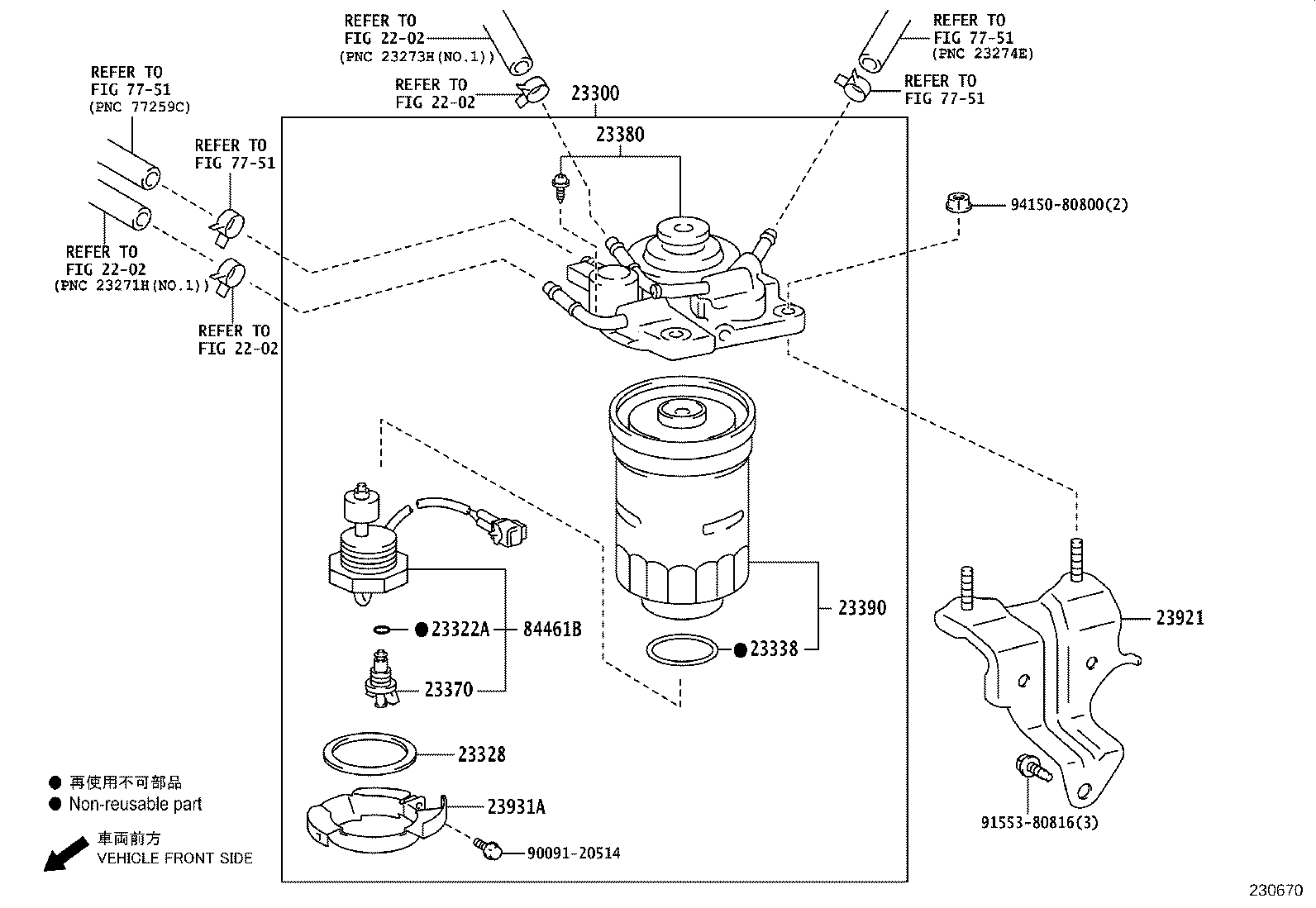

diagram 2202 2202 2202 2202 23300 23322A 23328 23338 23370 23380 23390 23921 23931A 7751 7751 7751 7751 84461B 9009120514 9155380816 9415080800
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-30340

1GDFTV..GDJ15#

 1
23322A - RING, O(FOR DRAIN PLUG)
23344-54010

1GDFTV..GDJ15#

 1
23328 - GASKET(FOR FUEL FILTER)
23385-30160

1GDFTV..GDJ15#

 1
23338 - GASKET(FOR WARNING SWITCH)
23344-64010

1GDFTV..GDJ15#

 1
23370 - COCK ASSY, FUEL FILTER DRAIN
23370-30010

1GDFTV..GDJ15#

 1
23380 - CAP ASSY, FUEL FILTER
23380-30340

1GDFTV..GDJ15#

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-30340

1GDFTV..GDJ15#

 1
23921 - SUPPORT, FUEL FILTER
23921-30070

1GDFTV..GDJ15#

 1
23931A - COVER, FUEL FILTER
23931-26031

1GDFTV..GDJ15#

 1
84461B - SWITCH, LEVEL WARNING
84461-60102

GDJ15#

 1
84461-60101

GDJ15#

 1
Common parts
90091-20514
91553-80816
94150-80800
Linked diagrams
2202
7751

(1708- )1GDFTV

Click highlighted areas on diagram

PRESSURIZED FUEL FILTER

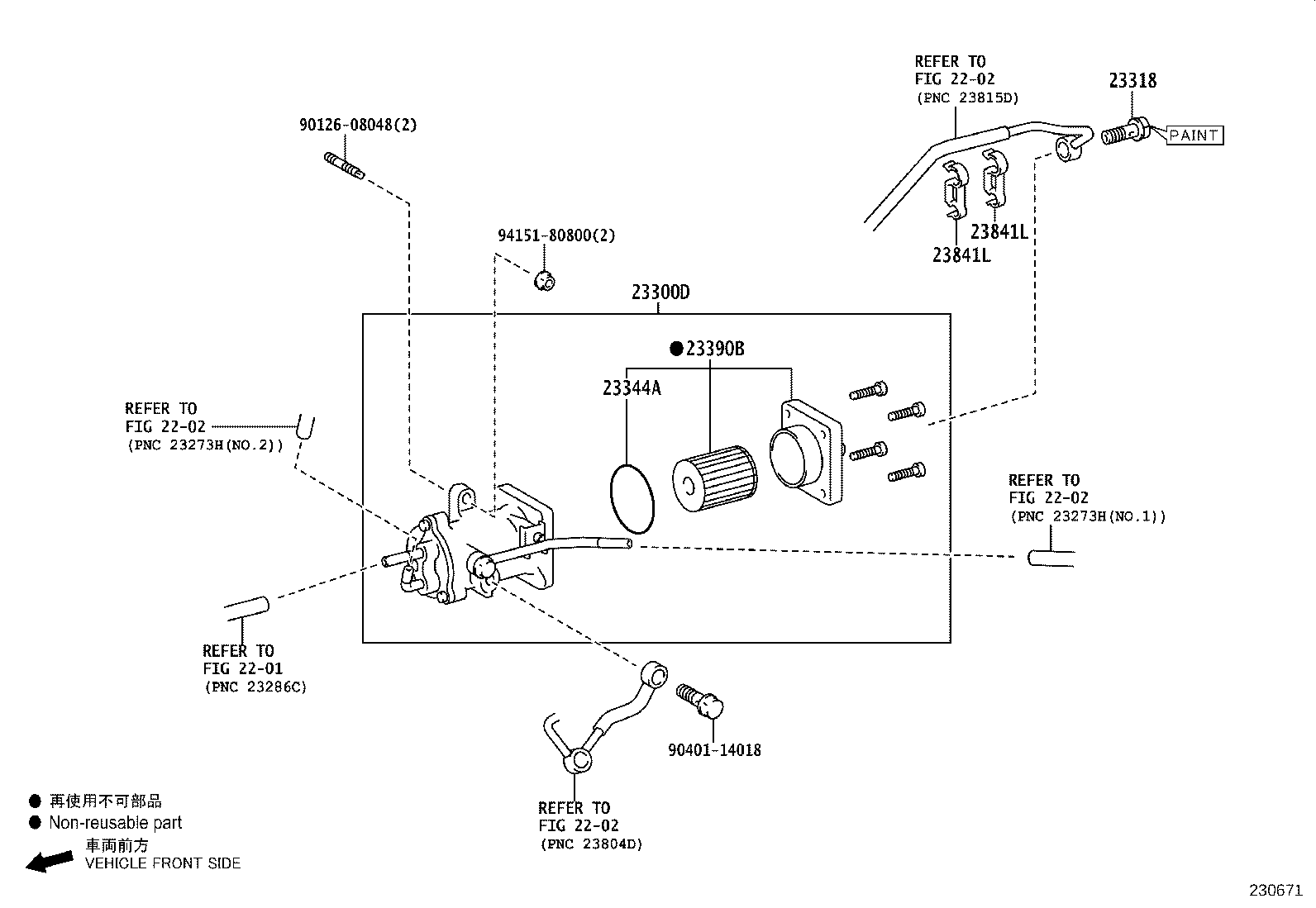

diagram 2201 2202 2202 2202 2202 23300D 23318 23344A 23390B 23841L 23841L 9012608048 9040114018 9415180800
Part # Description Qty Price
23300D - FILTER ASSY, FUEL(FOR DIESEL)
23300-11230

1GDFTV..GDJ15#

 1
23300-11231

1GDFTV..GDJ15#

 1
23318 - BOLT, UNION
90401-14020

1GDFTV..GDJ15#

PAINTED=PINK

 1
90401-14018

1GDFTV..GDJ15#

NO PAINT

 1
90401-T0009

1GDFTV..GDJ15#

NO PAINT

 1
23344A - GASKET, FUEL FILTER ELEMENT
23385-11230

1GDFTV..GDJ15#

 1
23390B - ELEMENT ASSY, FUEL FILTER, NO.2
23390-11230

1GDFTV..GDJ15#

 1
23390-11231

1GDFTV..GDJ15#

 1
23841L - CLAMP, FUEL PIPE
23841-11050

1GDFTV..GDJ15#

 2
23841L - CLAMP, FUEL PIPE
23841-11050

1GDFTV..GDJ15#

 2
Common parts
90126-08048
90401-14018
94151-80800
Linked diagrams
2201
2202
