GDJ155L-GJTEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708-2008)1GDFTV

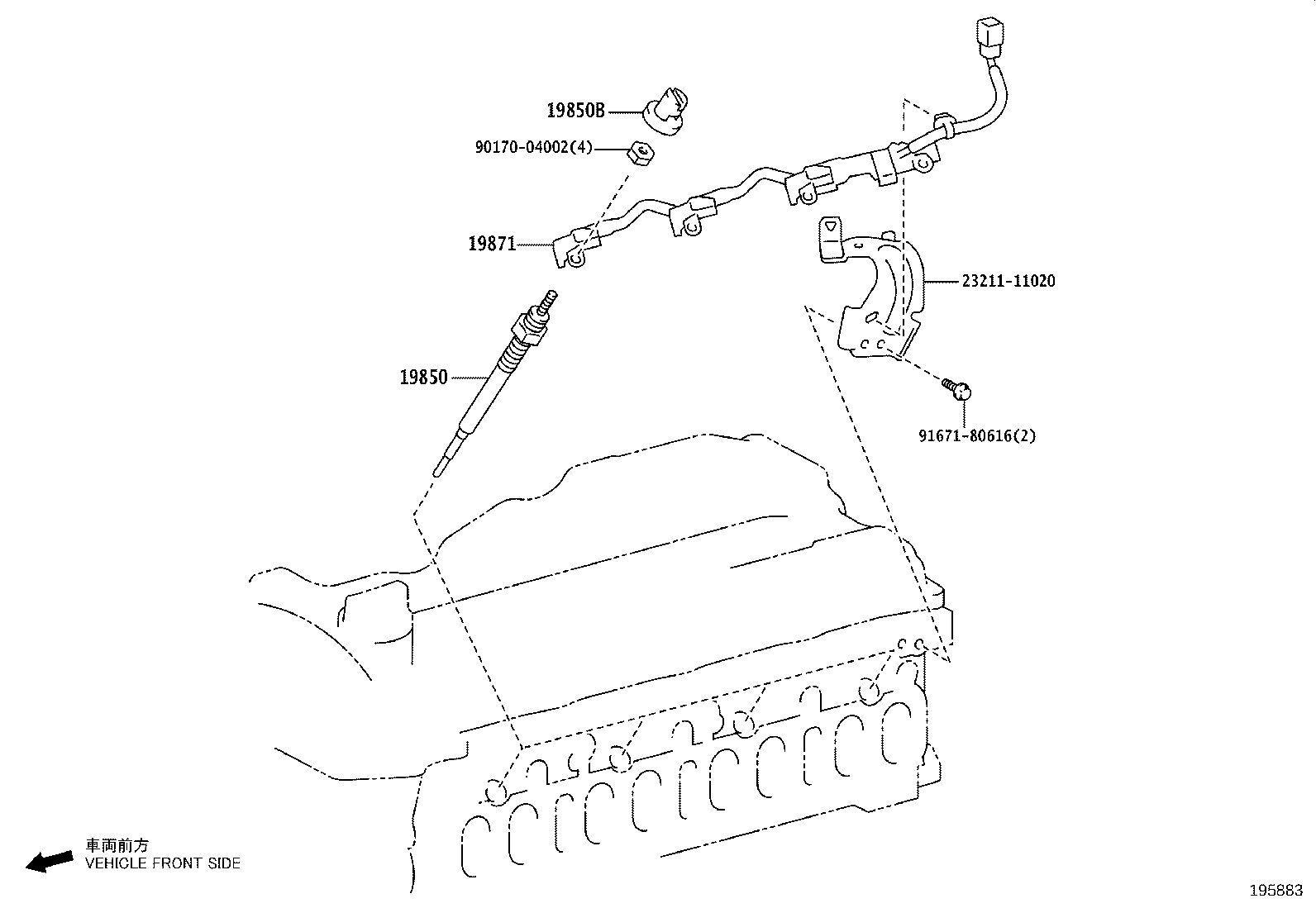

Click highlighted areas on diagram

diagram 19850 19850B 19871 44781KK020 9017004002 9167180616
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-11040

1GDFTV..GDJ15#

*BV-GV=12V-7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1GDFTV..GDJ15#

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-11010

1GDFTV..GDJ15#

 1
Common parts
44781-KK020
90170-04002
91671-80616

(2008- )1GDFTV

Click highlighted areas on diagram

diagram 19850 19850B 19871 2321111020 9017004002 9167180616
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-11040

1GDFTV..GDJ15#

*BV-GV=12V-7V

 4
19850B - GROMMET, SCREW(FOR GLOW PLUG)
90189-04024

1GDFTV..GDJ15#

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-11010

1GDFTV..GDJ15#

 1
Common parts
23211-11020
90170-04002
91671-80616
