GDJ155L-GJFEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )1GDFTV

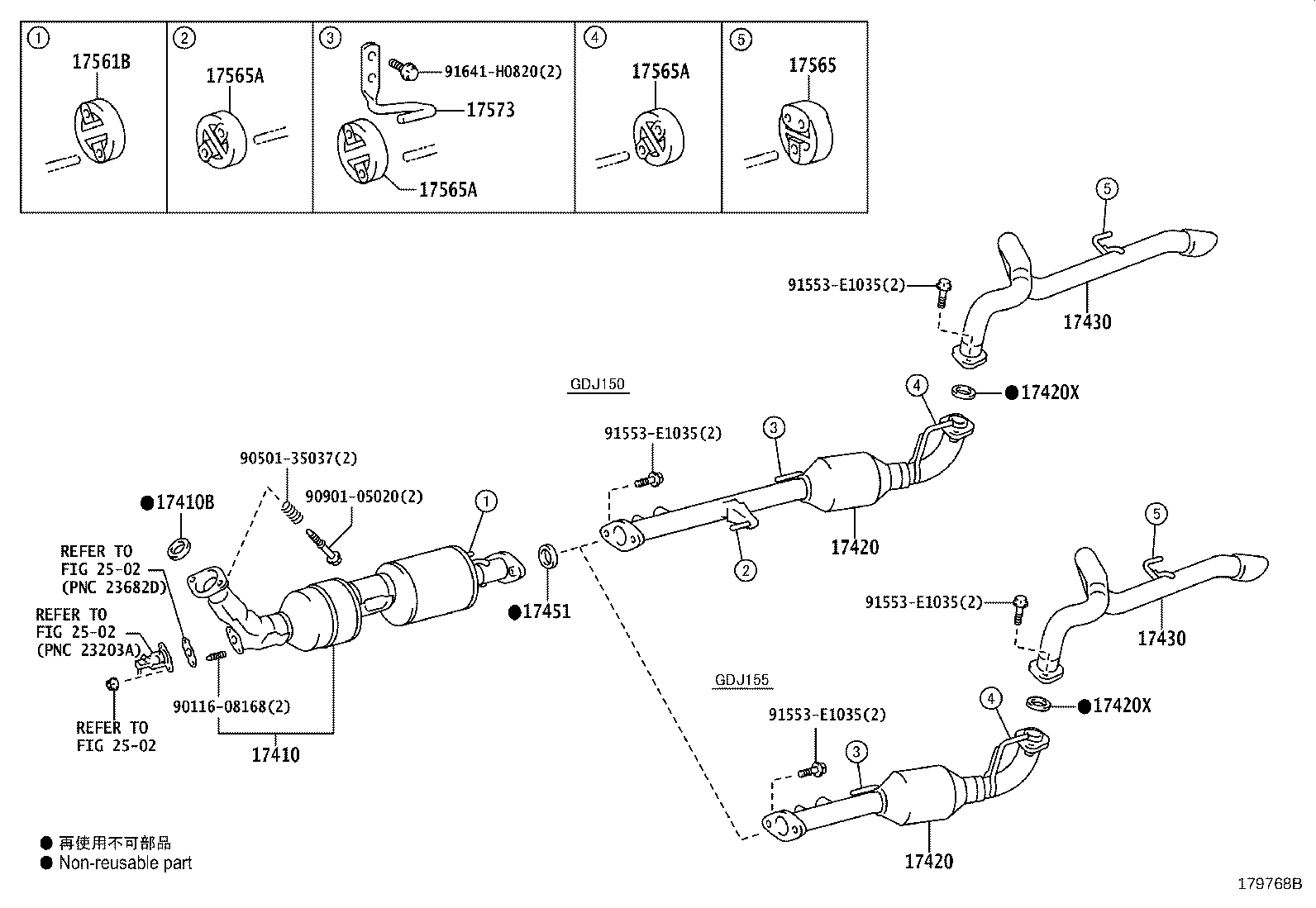

Click highlighted areas on diagram

EURO 6 OR EURO 6C OR EURO 6D

diagram 17410 17410B 17420 17420 17420X 17420X 17430 17430 17451 17561B 17565 17565A 17565A 17565A 17573 2502 2502 2502 9011608168 9050135037 9090105020 91553E1035 91553E1035 91553E1035 91553E1035 91641H0820
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-30360

1GDFTV..GDJ15#..EUR

*114=*416

 1
17410-11B30

1GDFTV..GDJ15#..EUR

*114=TOYOTA/ZD4ZC7/Y

 1
17410-11B31

1GDFTV..GDJ15#..EUR

*114=TOYOTA/ZD4ZC7/Y

 1
17410B - GASKET, EXHAUST PIPE
17451-22070

1GDFTV,2TRFE..GDJ15#,TRJ150

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11700

1GDFTV..GDJ155

 1
17420-11760

1GDFTV..GDJ155

 1
17420 - PIPE ASSY, EXHAUST, CENTER
17420-11700

1GDFTV..GDJ155

 1
17420-11760

1GDFTV..GDJ155

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ150..RHD;1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06090

1KDFTV..KDJ150..RHD;1G#,2TRFE..GDJ15#,GRJ150,TRJ150

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30150

1GDFTV..GDJ155

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-30150

1GDFTV..GDJ155

 1
17451 - GASKET, EXHAUST PIPE
90917-06090

1GDFTV,2TRFE..GDJ15#,TRJ150

 1
17561B - SUPPORT, EXHAUST PIPE, NO.1
17565-22040

1KDFTV..KDJ150..RHD;1GDFTV,2TRFE..GDJ15#,TRJ150

 1
17565 - SUPPORT, EXHAUST PIPE, NO.5
17565-74320

1GDFTV..GDJ15#;1KDFTV..KDJ150..RHD

 1
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1GDFTV,2TRFE..GDJ155,TRJ150

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1GDFTV,2TRFE..GDJ155,TRJ150

 2
17565A - SUPPORT, EXHAUST PIPE, NO.4
17565-22040

1GDFTV,2TRFE..GDJ155,TRJ150

 2
17573 - BRACKET, EXHAUST PIPE NO.1 SUPPORT, LOWER
17573-11070

1GDFTV..GDJ15#..EUR

 1
Common parts
90116-08168
90501-35037
90901-05020
91553-E1035
91641-H0820
Linked diagrams
2502
