GDJ150R-GKFEYW (2017)
Toyota Land Cruiser
ILLUST NO. 1 OF 3(1708- )
W(CONDENSER FAN)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16793C - LABEL, COOLING FAN CAUTION | ||||
| 16793-31070 |
1GDFTV,1KDFTV..GDJ15#,KDJ150 |
1 | ||
| 88453 - FAN, COOLING (FOR CONDENSER) | ||||
| 88453-60030 |
GDJ15#,KDJ150 |
1 | ||
| 88454A - SHROUD, FAN | ||||
| 88454-60071 |
GDJ15#,KDJ150 |
1 | ||
| 88550 - MOTOR ASSY, BLOWER (FOR CONDENSER) | ||||
| 88550-34010 |
GDJ15#,KDJ150 |
1 | ||
| 88590 - BLOWER ASSY, W/SHROUD | ||||
| 88590-60101 |
GDJ15#,KDJ150 |
1 | ||
| Common parts | ||||
| 82711-2B640 | ||||
| 88897-60170 | ||||
| 88897-60180 | ||||
| 88897-60200 | ||||
| 90099-04117 | ||||
| 90099-04119 | ||||
| 90119-06192 | ||||

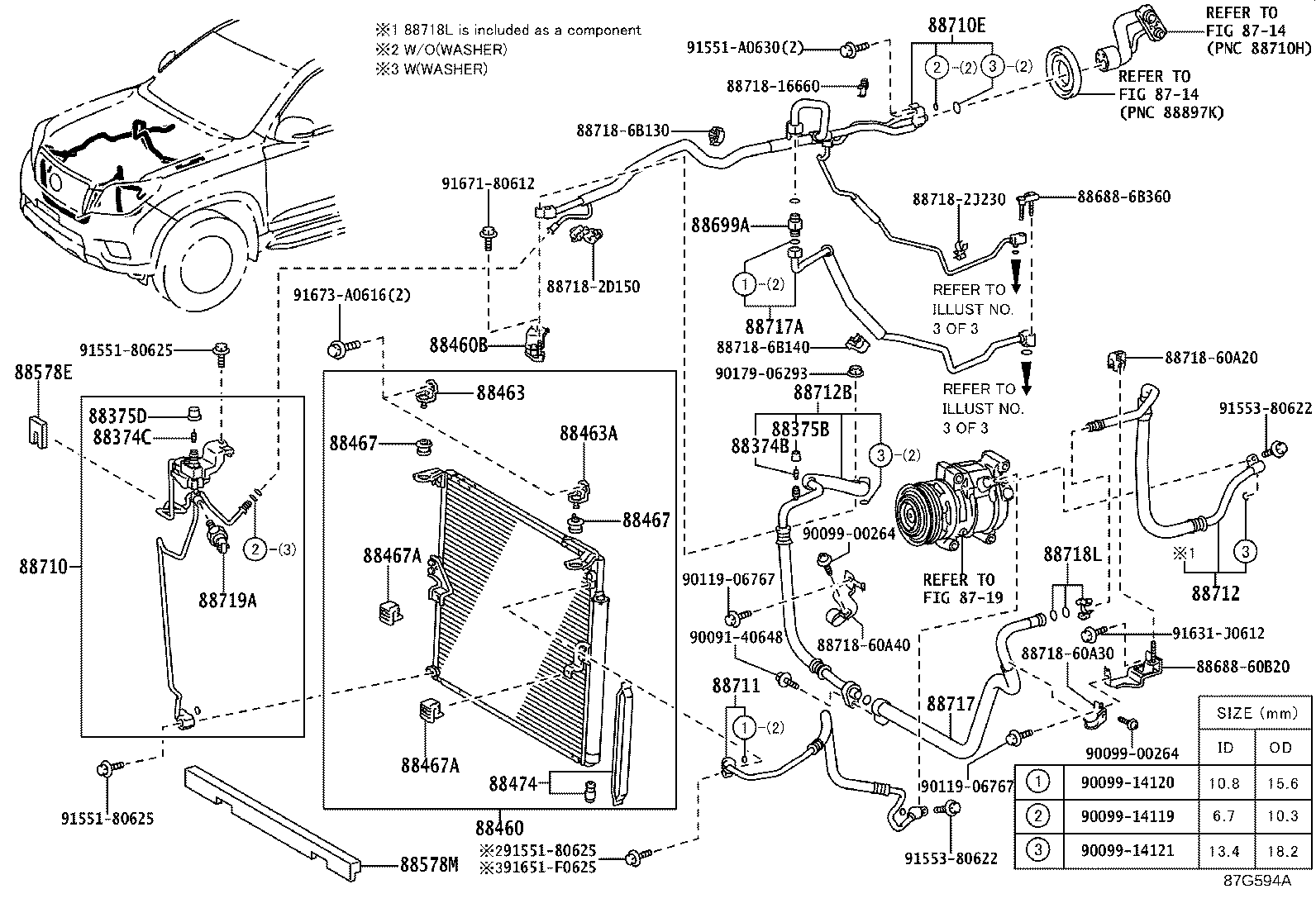

ILLUST NO. 2 OF 3(1708- )GDJ15#..RHD
FRONT,W/O(REAR)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30310 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30290 |
GDJ150,TRJ150..RUS;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60440 |
GDJ15#..6F;GDJ150,TRJ150..RUS |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-60010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-60540 |
GDJ15# |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-60480 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60J10 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88710-60C60 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88710-60D90 |
GDJ15# |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60F20 |
GDJ15#..RHD |
1 | ||
| 88710-60F60 |
GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88710-60F60 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A50 |
GDJ15#..EUR |
1 | ||
| 88711-60A30 |
GDJ15#..EUR |
1 | ||
| 88711-60B10 |
GDJ15#..EUR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60B50 |
GDJ15#..EUR |
1 | ||
| 88712-60B30 |
GDJ15#..EUR |
1 | ||
| 88712-60A40 |
GDJ15#..EUR |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-60A90 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88712-60A70 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-60B00 |
GDJ15# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
GDJ15# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 88688-60B20 | ||||
| 88718-2D150 | ||||
| 88718-60A20 | ||||
| 88718-60A30 | ||||
| 88718-60A40 | ||||
| 90091-40648 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06767 | ||||
| 90179-06293 | ||||
| 91551-80625 | ||||
| 91551-A0630 | ||||
| 91553-80622 | ||||
| 91631-J0612 | ||||
| 91651-F0625 | ||||
| 91671-80612 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

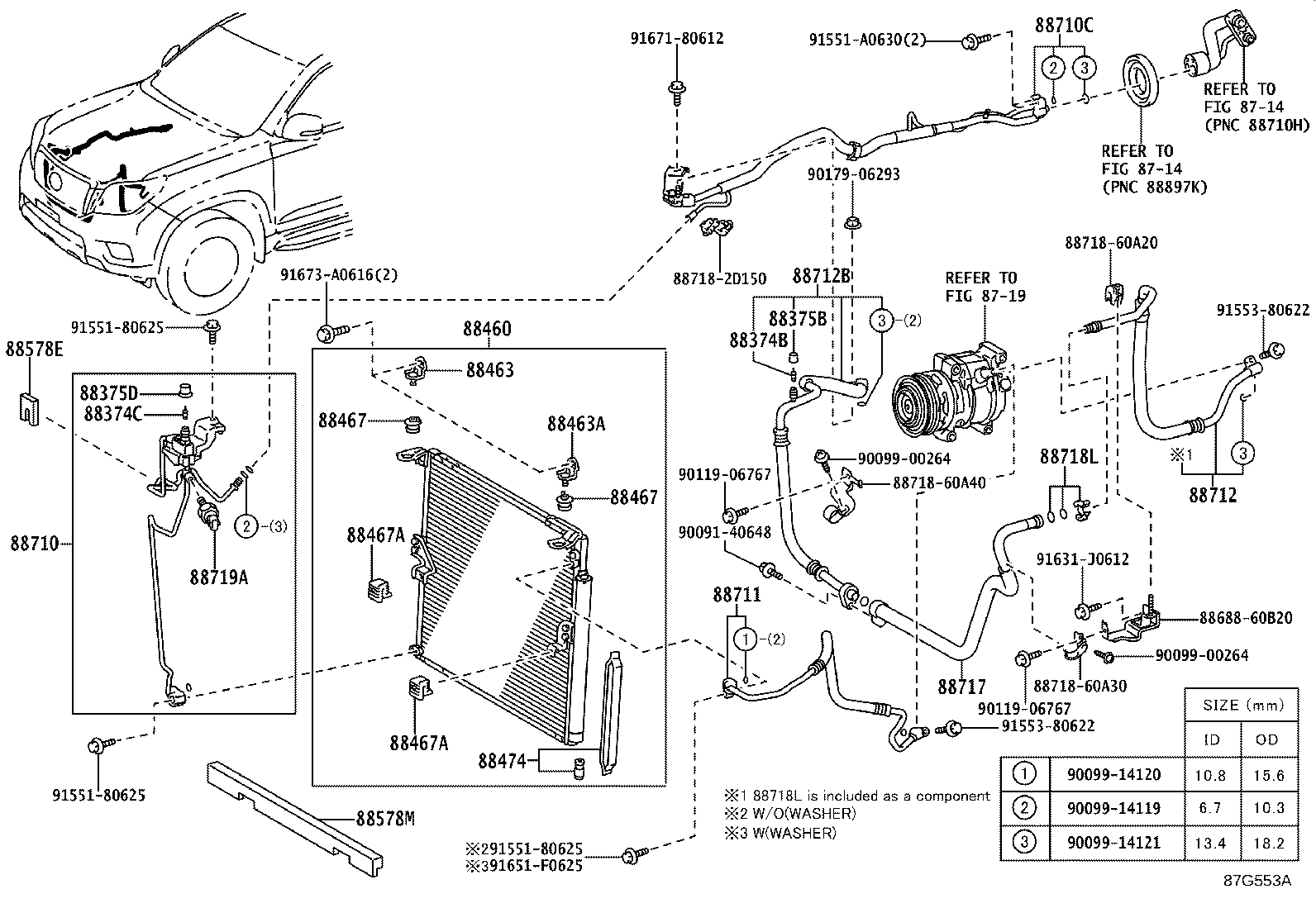

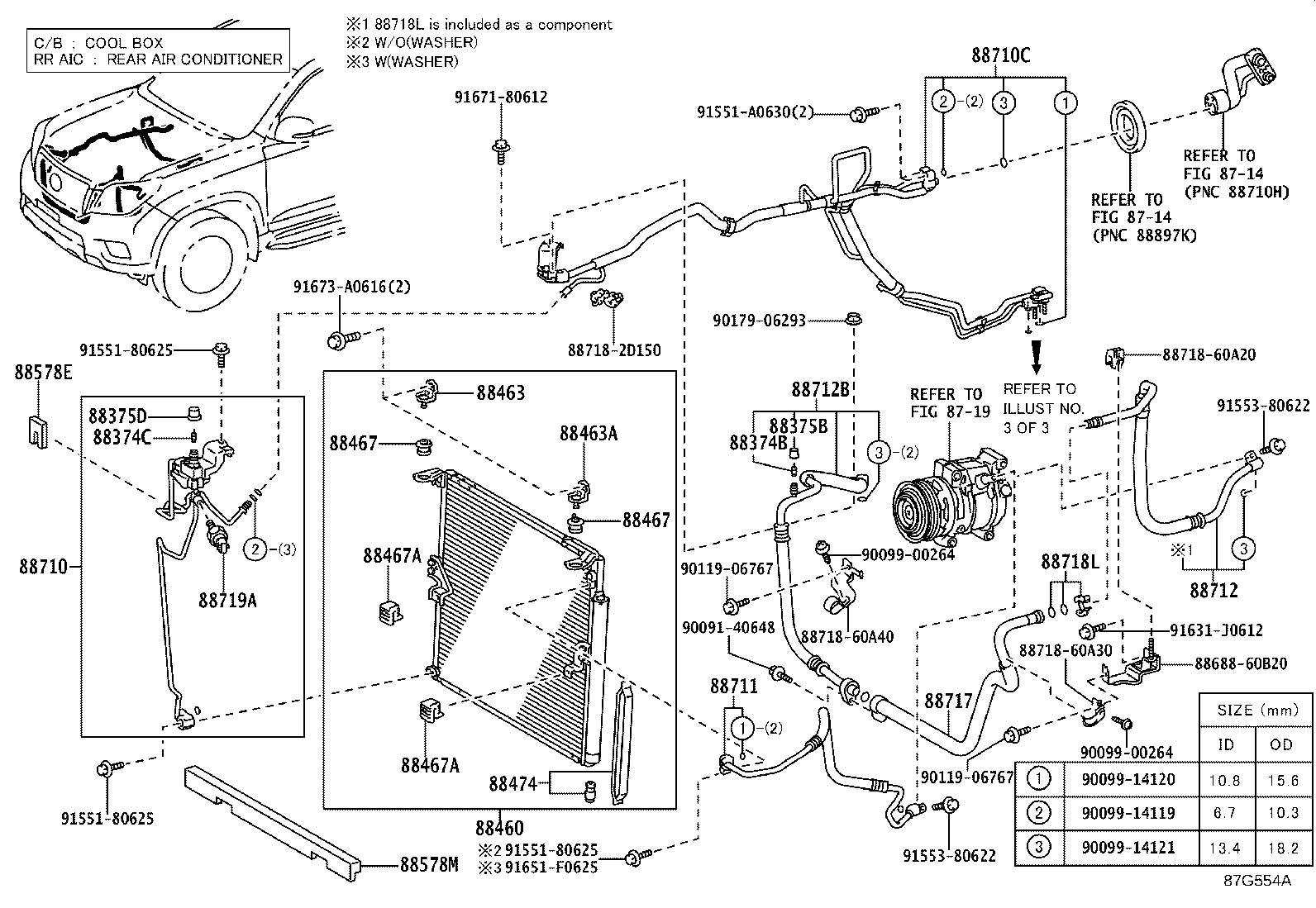

ILLUST NO. 2 OF 3(1708- )GDJ15#..RHD
FRONT,W(RR AIC) OR W(C/B & RR AIC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30310 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30290 |
GDJ150,TRJ150..RUS;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60440 |
GDJ15#..6F;GDJ150,TRJ150..RUS |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-60010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-60540 |
GDJ15# |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-60480 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60J10 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88710-60C60 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88710-60D90 |
GDJ15# |
1 | ||
| 88710C - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60F20 |
GDJ15#..RHD |
1 | ||
| 88710-60F60 |
GDJ150..RHD..6F AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88710-60F60 |
GDJ150..RHD AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A50 |
GDJ15#..EUR |
1 | ||
| 88711-60A30 |
GDJ15#..EUR |
1 | ||
| 88711-60B10 |
GDJ15#..EUR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60B50 |
GDJ15#..EUR |
1 | ||
| 88712-60B30 |
GDJ15#..EUR |
1 | ||
| 88712-60A40 |
GDJ15#..EUR |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-60A90 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88712-60A70 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-60B00 |
GDJ15# |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
GDJ15# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 88688-60B20 | ||||
| 88718-2D150 | ||||
| 88718-60A20 | ||||
| 88718-60A30 | ||||
| 88718-60A40 | ||||
| 90091-40648 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06767 | ||||
| 90179-06293 | ||||
| 91551-80625 | ||||
| 91551-A0630 | ||||
| 91553-80622 | ||||
| 91631-J0612 | ||||
| 91651-F0625 | ||||
| 91671-80612 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
ILLUST NO. 3 OF 3(1708- )
REAR,W/O(REAR *AIC) & W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6C580 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88716-6C560 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C580 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C570 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88716-6C570 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6B240 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88717-6B250 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717-6B250 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| Common parts | ||||
| 88578-60260 | ||||
| 88688-6A680 | ||||
| 88688-6A690 | ||||
| 88718-6B280 | ||||
| 88718-6B290 | ||||
| 93319-14012 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(1708- )
REAR,W(REAR *AIC & COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88712C - HOSE, SUCTION | ||||
| 88712-6A500 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88712-6A500 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88712-6A500 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88712-6A500 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6C580 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88716-6C560 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C580 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C570 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88716-6C570 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6C550 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C550 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88716-6C550 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88716-6C550 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6B240 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88717-6B250 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717-6B250 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| Common parts | ||||
| 88578-60260 | ||||
| 88688-6A680 | ||||
| 88688-6A690 | ||||
| 88688-6B220 | ||||
| 88718-2J230 | ||||
| 88718-6B280 | ||||
| 88718-6B290 | ||||
| 88718-6B300 | ||||
| 88718-6B310 | ||||
| 88718-6B400 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91551-A0630 | ||||
| 93319-14012 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 3 OF 3(1708- )
REAR,W(REAR *AIC) & W/O(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88712C - HOSE, SUCTION | ||||
| 88712-6A500 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88712-6A500 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88712-6A500 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88712-6A500 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-6C580 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88716-6C560 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C580 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C570 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88716-6C570 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-6C550 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88716-6C550 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88716-6C550 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| 88716-6C550 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-6B240 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..RHD;GDJ150..LHD..6F AIR CONDITIONER-DUAL(AUTO)&COOL BOX-WITH |
1 | ||
| 88717-6B260 |
GDJ150..6F AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G)&COOL BOX-WITH |
1 | ||
| 88717-6B250 |
GDJ150..6F;GDJ150..LHD..6FC;GRJ150,KDJ150,TRJ150..LHD AIR CONDITIONER-DUAL(AUTO) |
1 | ||
| 88717-6B250 |
GDJ150,GRJ150,TRJ150 AIR CONDITIONER-DUAL(AUTO),WITH(*RR AIR DUCT=PNC 87217G) |
1 | ||
| Common parts | ||||
| 88688-6B220 | ||||
| 88718-2J230 | ||||
| 88718-6B280 | ||||
| 88718-6B290 | ||||
| 88718-6B300 | ||||
| 88718-6B310 | ||||
| 88718-6B400 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 91551-A0630 | ||||
| 94151-80641 | ||||
| Linked diagrams | ||||
| 8714 | ||||
ILLUST NO. 2 OF 3(1708- )GDJ15#..RHD
FRONT,W(COOL BOX)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88374B - VALVE, SERVICE, NO.1 | ||||
| 88374-30010 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| 88374C - VALVE, SERVICE, NO.2 | ||||
| 88374-30010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88375B - CAP, SERVICE VALVE, NO.1 | ||||
| 88375-30310 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30290 |
GDJ150,TRJ150..RUS;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30310 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375D - CAP, SERVICE VALVE, NO.2 | ||||
| 88375-30280 |
GDJ150..RUS;GRJ150,TRJ150;GDJ15#,KDJ150..5FC,6F |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88375-30320 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-60440 |
GDJ15#..6F;GDJ150,TRJ150..RUS |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88460-60490 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88460B - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88688-60B30 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-60010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-60020 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467 - CUSHION, COOLER CONDENSER, NO.1 | ||||
| 88467-28050 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88467A - CUSHION, COOLER CONDENSER, NO.2 | ||||
| 88467-35080 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-17010 |
GDJ15#,GRJ150,KDJ150,TRJ150 |
1 | ||
| 88578E - PACKING, COOLER PIPE, NO.2 | ||||
| 88578-60540 |
GDJ15# |
1 | ||
| 88578M - PACKING, COOLING PIPE, NO.3 | ||||
| 88578-60480 |
KDJ150..RHD;GDJ15#,GRJ150,TRJ150 |
1 | ||
| 88699A - VALVE, AIR | ||||
| 88699-60010 |
GDJ150..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-60J10 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88710-60J10 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88710-60C60 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88710-60D90 |
GDJ15# |
1 | ||
| 88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER | ||||
| 88710-60G10 |
GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-60A50 |
GDJ15#..EUR |
1 | ||
| 88711-60A30 |
GDJ15#..EUR |
1 | ||
| 88711-60B10 |
GDJ15#..EUR |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-60B50 |
GDJ15#..EUR |
1 | ||
| 88712-60B30 |
GDJ15#..EUR |
1 | ||
| 88712-60A40 |
GDJ15#..EUR |
1 | ||
| 88712B - HOSE, COOLER REFRIGERANT SUCTION | ||||
| 88712-60A90 |
GDJ15#..RHD..6F MALTA SPEC |
1 | ||
| 88712-60A70 |
GDJ15#..6F;GDJ150..RUS |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F UNITED KINGDOM SPEC |
1 | ||
| 88712-60A90 |
GDJ15#..RHD..6F IRELAND SPEC |
1 | ||
| 88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88717-60B00 |
GDJ15# |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-6B190 |
GDJ150..RHD..6F AIR CONDITIONER-SINGLE(AUTO)&COOL BOX-WITH |
1 | ||
| 88718L - CLAMP, PIPING | ||||
| 88718-52280 |
GDJ15# |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-33020 |
GDJ15#,KDJ150,TRJ150 |
1 | ||
| Common parts | ||||
| 88688-60B20 | ||||
| 88688-6B360 | ||||
| 88718-16660 | ||||
| 88718-2D150 | ||||
| 88718-2J230 | ||||
| 88718-60A20 | ||||
| 88718-60A30 | ||||
| 88718-60A40 | ||||
| 88718-6B130 | ||||
| 88718-6B140 | ||||
| 90091-40648 | ||||
| 90099-00264 | ||||
| 90099-14119 | ||||
| 90099-14120 | ||||
| 90099-14121 | ||||
| 90119-06767 | ||||
| 90179-06293 | ||||
| 91551-80625 | ||||
| 91551-A0630 | ||||
| 91553-80622 | ||||
| 91631-J0612 | ||||
| 91651-F0625 | ||||
| 91671-80612 | ||||
| 91673-A0616 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
