Toyota Land cruiser GDJ150 ELECTRONIC CONTROLED DIESEL (ECD)

GDJ150R-GKFEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999

Engine 1GDFTV

Transmission 6F MTM

Displacement 2500cc

Power 168 HP (125 kW)

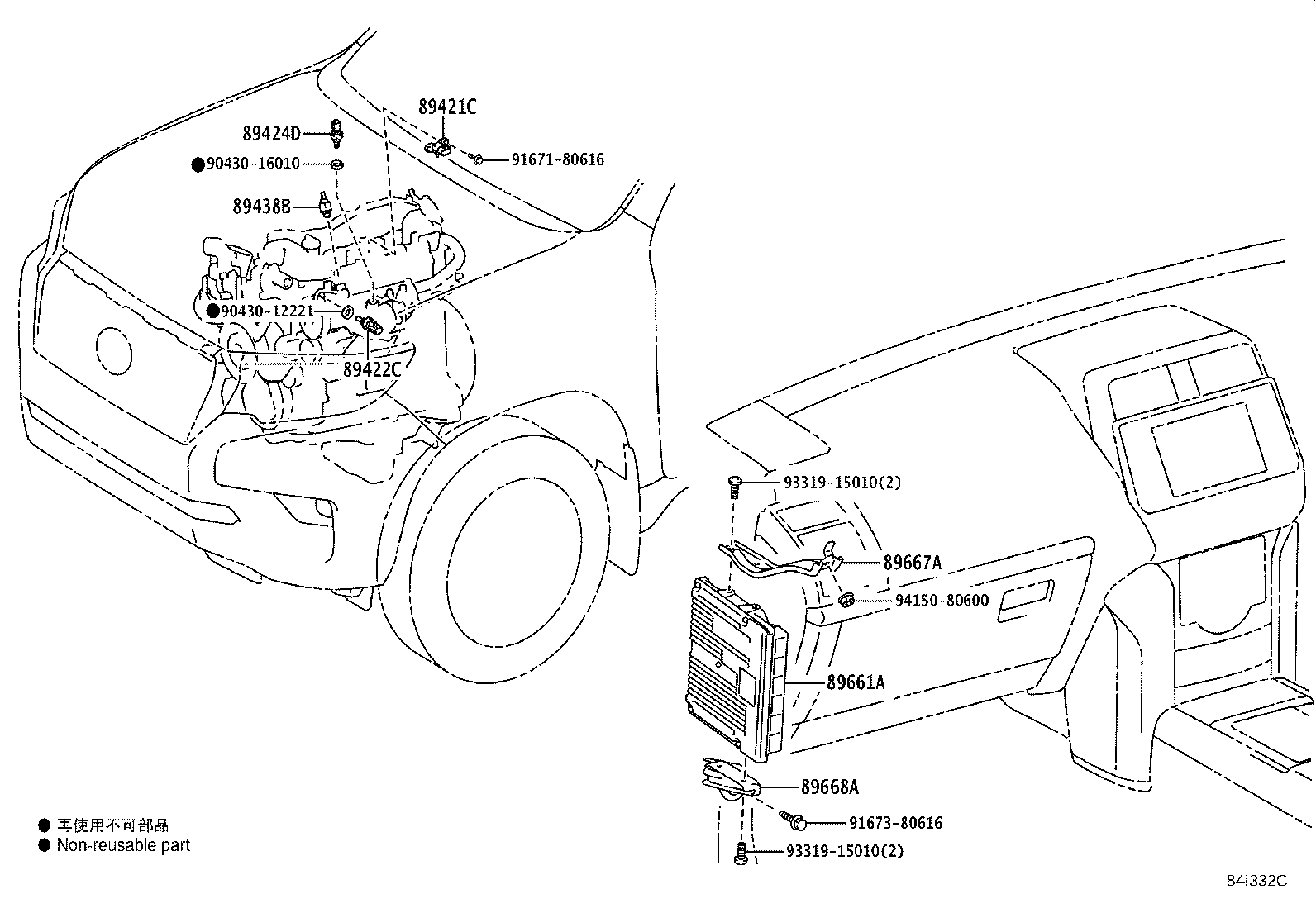

Click highlighted areas on diagram

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	GDJ15#	08/2017 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	GDJ15#,KDJ150	08/2017 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GDJ15#..EUR	08/2017 - 06/2018	1
89424-60020	GDJ15#..EUR INTERCOOLER SIDE,INTAKE SIDE	06/2018 - 12/2999	1
89438B - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	GDJ15#;KDJ150..RHD	08/2017 - 08/2020	1
89661A - COMPUTER, ENGINE CONTROL
89666-60B92	GDJ15#..6F DENSO	10/2019 - 11/2019	1
89666-60E70	GDJ15#..RHD..6F DENSO	08/2017 - 03/2018	1
89666-60E71	GDJ15#..RHD..6F DENSO	03/2018 - 06/2018	1
89666-60B90	GDJ15#..6F DENSO	06/2018 - 11/2018	1
89666-60B91	GDJ15#..6F DENSO	12/2018 - 09/2019	1
89666-60B93	GDJ15#..6F DENSO	12/2019 - 08/2020	1
89666-60K60	GDJ15#..6F DENSO	08/2020 - 12/2020	1
89666-60K62	GDJ15#..6F DENSO	03/2021 - 06/2021	1
89666-60K61	GDJ15#..RHD..6F DENSO	01/2021 - 02/2021	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-60290	GDJ15#	08/2017 - 12/2999	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60310	GDJ15#..RHD	08/2017 - 12/2999	1
Common parts
90430-12221
90430-16010
91671-80616
91673-80616
93319-15010
94150-80600

Click highlighted areas on diagram

W(INTERCOOLER(WATER COOLED TYPE))

Part #	Description	Period	Qty
89421C - SENSOR, TURBO PRESSURE (FOR DIESEL TURBO)
89421-71030	GDJ15#	08/2017 - 12/2999	1
89422C - SENSOR, DIESEL ENGINE WATER TEMPERATURE
89422-33030	GDJ15#,KDJ150	08/2017 - 12/2999	1
89422P - SENSOR, WATER TEMPERATURE
89422-33030	GDJ15#..EUR	06/2018 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GDJ15#..EUR	08/2017 - 06/2018	1
89424-60020	GDJ15#..EUR INTERCOOLER SIDE,INTAKE SIDE	06/2018 - 12/2999	1
89424D - SENSOR, INLET AIR TEMPERATURE
89424-60010	GDJ15#..EUR	08/2017 - 06/2018	1
89424-60020	GDJ15#..EUR INTERCOOLER SIDE,INTAKE SIDE	06/2018 - 12/2999	1
89438B - SWITCH, POWER STEERING OIL PRESSURE
89438-71010	GDJ15#;KDJ150..RHD	08/2017 - 08/2020	1
89661A - COMPUTER, ENGINE CONTROL
89666-60B92	GDJ15#..6F DENSO	10/2019 - 11/2019	1
89666-60E70	GDJ15#..RHD..6F DENSO	08/2017 - 03/2018	1
89666-60E71	GDJ15#..RHD..6F DENSO	03/2018 - 06/2018	1
89666-60B90	GDJ15#..6F DENSO	06/2018 - 11/2018	1
89666-60B91	GDJ15#..6F DENSO	12/2018 - 09/2019	1
89666-60B93	GDJ15#..6F DENSO	12/2019 - 08/2020	1
89666-60K60	GDJ15#..6F DENSO	08/2020 - 12/2020	1
89666-60K62	GDJ15#..6F DENSO	03/2021 - 06/2021	1
89666-60K61	GDJ15#..RHD..6F DENSO	01/2021 - 02/2021	1
89667A - BRACKET, ENGINE CONTROL COMPUTER, NO.1
89667-60290	GDJ15#	08/2017 - 12/2999	1
89668A - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-60310	GDJ15#..RHD	08/2017 - 12/2999	1
Common parts
90430-12221
91671-80616
91673-80616
93319-15010
94150-80600
