GDJ150R-GKFEYW (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )GDJ15#

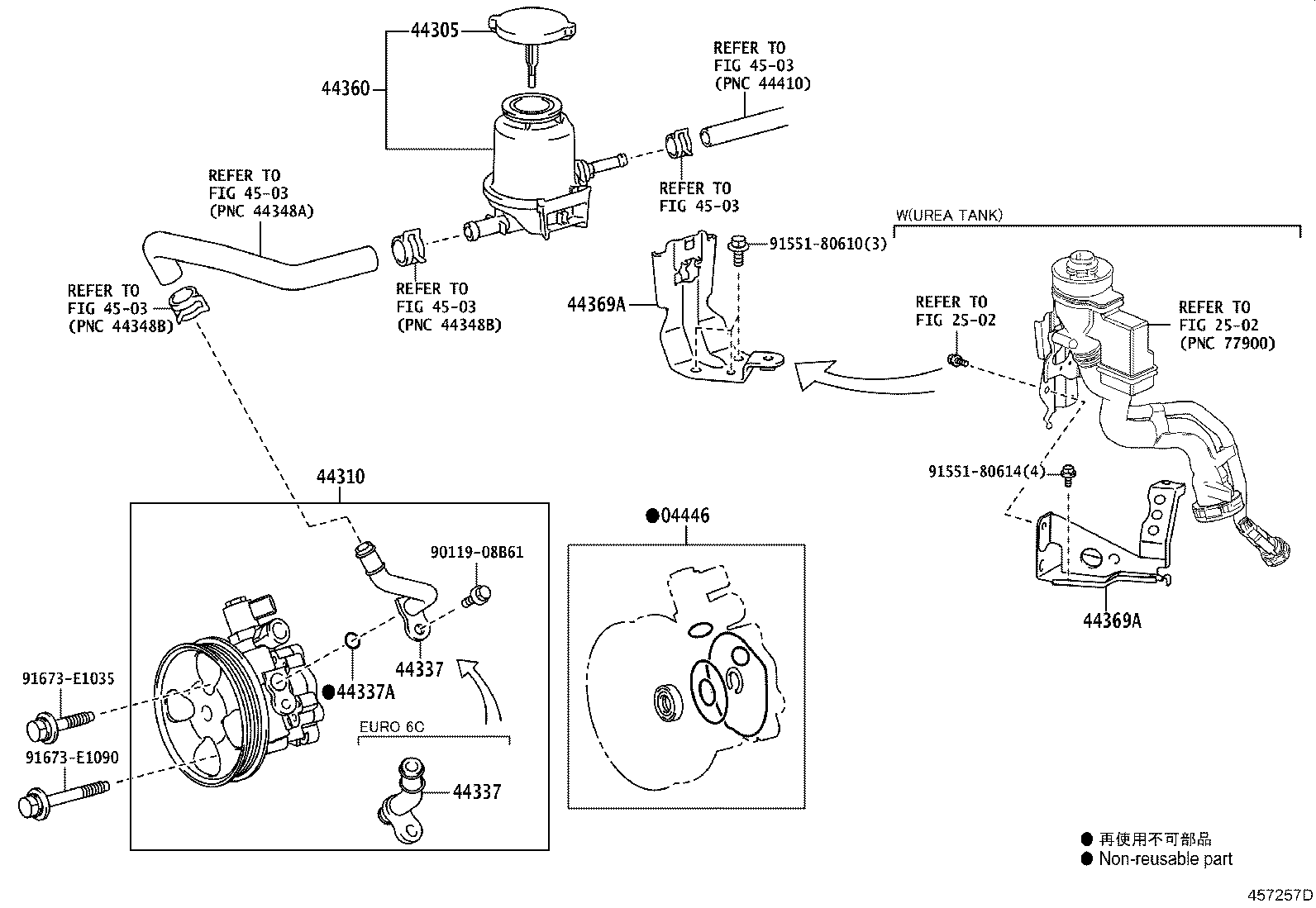

Click highlighted areas on diagram

diagram 04446 2502 2502 44305 44310 44337 44337 44337A 44360 44369A 44369A 4503 4503 4503 4503 4503 9011908B61 9155180610 9155180614 91673E1035 91673E1090
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-32050

GDJ15#,TRJ150

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-28061

GDJ15#,GRJ150,KDJ150

 1
44310 - PUMP ASSY, VANE
44310-60660

GDJ15#..EUR

 1
44310-60680

GDJ15#..EUR

 1
44310-60681

GDJ15#..EUR

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-60260

GDJ15#..EUR

 1
44337-20080

GDJ15#..EUR

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-60260

GDJ15#..EUR

 1
44337-20080

GDJ15#..EUR

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11020

GDJ15#,KDJ150

 1
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-60340

GDJ15#

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-60040

GDJ15#..EUR

 1
44369A - BRACKET, OIL RESERVOIR, NO.1
44390-60040

GDJ15#..EUR

 1
Common parts
90119-08B61
91551-80610
91551-80614
91673-E1035
91673-E1090
Linked diagrams
2502
4503
