GDJ150L-GKTEYX (2017)

Toyota Land Cruiser

Production Aug 2017 - Sep 9999
Engine 1GDFTV
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1708- )1GDFTV

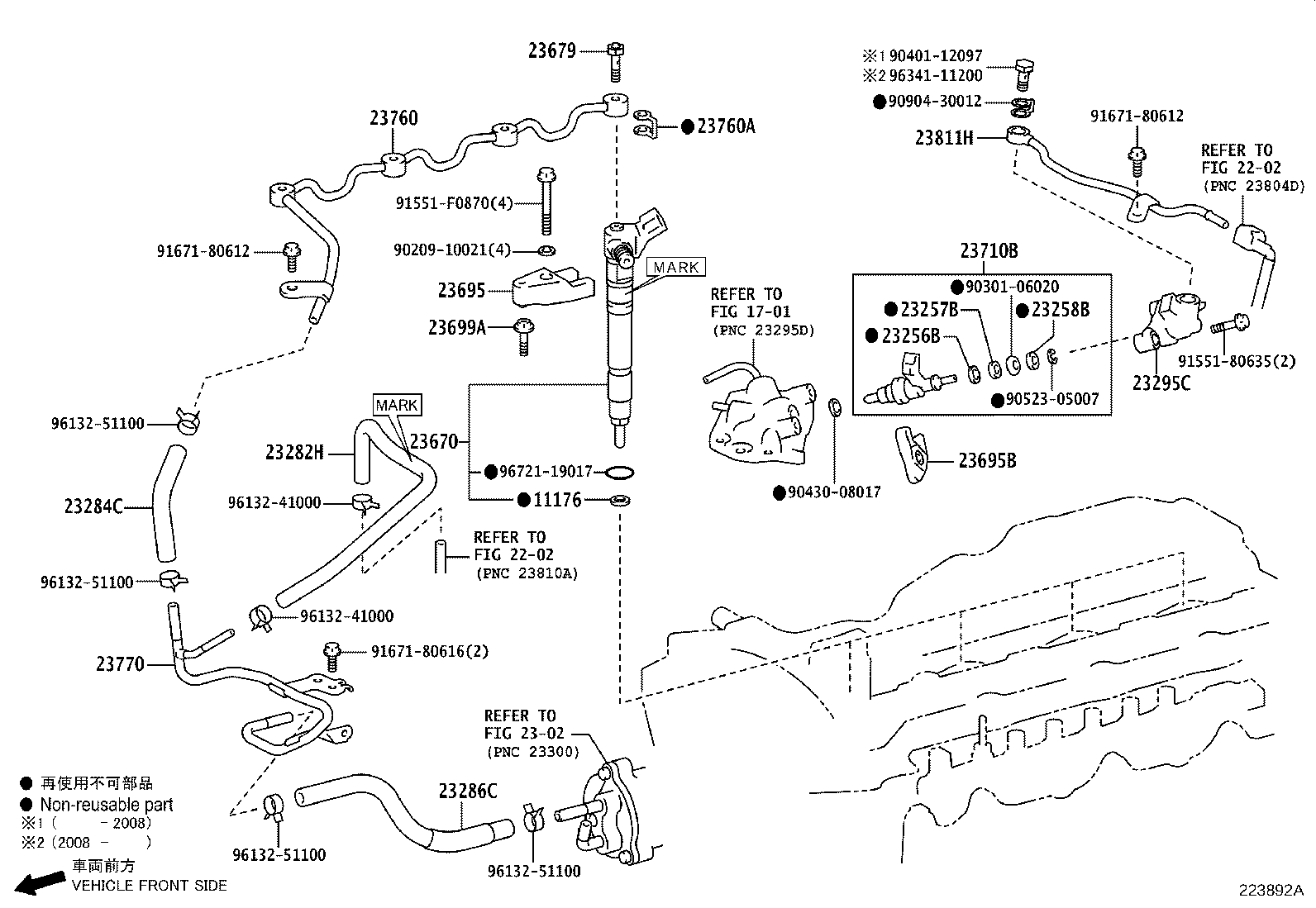

Click highlighted areas on diagram

diagram 11176 1701 2202 2202 2302 23256B 23257B 23258B 23282H 23284C 23286C 23295C 23670 23679 23695 23695B 23699A 23710B 23760 23760A 23770 23811H 9020910021 9030106020 9040112097 9043008017 9052305007 9090430012 9155180635 91551F0870 9167180612 9167180612 9167180616 9613241000 9613241000 9613251100 9613251100 9613251100 9613251100 9634111200 9672119017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-33010

1GDFTV..GDJ15#

 4
23256B - RING, FUEL INJECTOR BACK-UP, NO.1
23256-74010

1GDFTV..GDJ15#

 1
23256-74010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23256-74010

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23256-74010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23257B - RING, FUEL INJECTOR BACK-UP, NO.2
23257-74010

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23257-74010

1GDFTV..GDJ15#

 1
23257-74010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23257-74010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23258B - RING, FUEL INJECTOR BACK-UP, NO.3
23258-28011

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23258-28011

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23258-28011

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23258-28011

1GDFTV..GDJ15#

 1
23282H - HOSE, FUEL, NO.4
23282-11021

1GDFTV..GDJ150..RUS

UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H),MARK=PINK

 1
23282-0E010

1GDFTV..GDJ15#

 1
23282-0E011

1GDFTV..GDJ150..RUS

MARK=WHITE

 1
23282-11020

1GDFTV..GDJ150..RUS

UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H),MARK=WHITE

 1
23282-0E012

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H),MARK=PINK

 1
23282-11021

1GDFTV..GDJ150..RUS

UKRAINE SPEC&ENGINE-FOR EURO 6C CONFORMITY&SPEEDOMETER-OPTITRON(KM/H),MARK=PINK

 1
23282-0E012

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),MARK=PINK

 1
23282-0E012

1GDFTV..GDJ150..RUS

MARK=PINK

 1
23284C - HOSE, FUEL, NO.5
23284-11010

1GDFTV..GDJ15#

 1
23286C - HOSE, FUEL, NO.6
23286-11011

1GDFTV..GDJ15#

 1
23286-11010

1GDFTV..GDJ15#

 1
23295C - HOLDER, INJECTOR
23296-11020

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23296-11020

1GDFTV..GDJ15#

 1
23296-11020

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23296-11020

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23670 - INJECTOR ASSY
23670-19075

1GDFTV..GDJ150..RUS

MARK 23670-11050

 4
23670-19046

1GDFTV..GDJ150..RUS

UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H),MARK 23670-11070

 4
23670-19055

1GDFTV..GDJ150..RUS

UKRAINE SPEC&SPEEDOMETER-OPTITRON(KM/H),MARK 23670-11080

 4
23670-09470

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),MARK 23670-0E060

 4
23670-19015

1GDFTV..GDJ150..RUS

MARK 23670-11010

 4
23670-09470

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H),MARK 23670-0E060

 4
23670-19075

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),MARK 23670-11050

 4
23670-19075

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H),MARK 23670-11050

 4
23670-09470

1GDFTV..GDJ150..RUS

MARK 23670-0E060

 4
23679 - SCREW, INJECTOR FOLLOW
90401-06002

1GDFTV..GDJ15#

(J)

 4
90401-T0007

1GDFTV..GDJ15#

(L)

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-11010

1GDFTV..GDJ15#

 4
23695B - CLAMP, NOZZLE HOLDER, NO.2
23695-28010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23695-28010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23695-28010

1GDFTV..GDJ15#

 1
23695-28010

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23699A - SEAT, NOZZLE HOLDER CLAMP
23699-11010

1GDFTV..GDJ15#

 4
23710B - INJECTOR ASSY, EXHAUST FUEL ADDITION
23710-11010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H)

 1
23710-11010

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4

 1
23710-11010

1GDFTV..GDJ15#

 1
23710-11010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H)

 1
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-0E010

1GDFTV..GDJ15#

 1
23760-0E011

1GDFTV..GDJ15#

(L)

 1
23760-11010

1GDFTV..GDJ15#

(J)

 1
23760A - GASKET
90430-06013

1GDFTV..GDJ15#

 4
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-0E011

1GDFTV..GDJ15#

(L)

 1
23770-11010

1GDFTV..GDJ15#

(J)

 1
23770-0E010

1GDFTV..GDJ15#

(L)

 1
23770-11011

1GDFTV..GDJ15#

(J)

 1
23811H - PIPE, FUEL, NO.1
23811-0E010

1GDFTV..GDJ15#

(L)

 1
23811-11040

1GDFTV..GDJ15#

(J)

 1
23811-0E010

1GDFTV..GDJ150..LHD..6F

EXHAUST EMISSION CONTROL-EURO 4,(L)

 1
23811-0E010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-WITHOUT&SPEEDOMETER-ANALOG(KM/H),(L)

 1
23811-0E010

1GDFTV..GDJ150..LHD..6F

MOROCCO SPEC&STEERING SWITCH-AUDIO & TELEPHONE&SPEEDOMETER-ANALOG(KM/H),(L)

 1
Common parts
90209-10021
90301-06020
90401-12097
90430-08017
90523-05007
90904-30012
91551-80635
91551-F0870
91671-80612
91671-80616
96132-41000
96132-51100
96341-11200
96721-19017
Linked diagrams
1701
2202
2302
