FZJ80L-GNPEKA (1992)
Toyota Land Cruiser
Production
Aug 1992
-
Jan 1998
Engine
1FZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

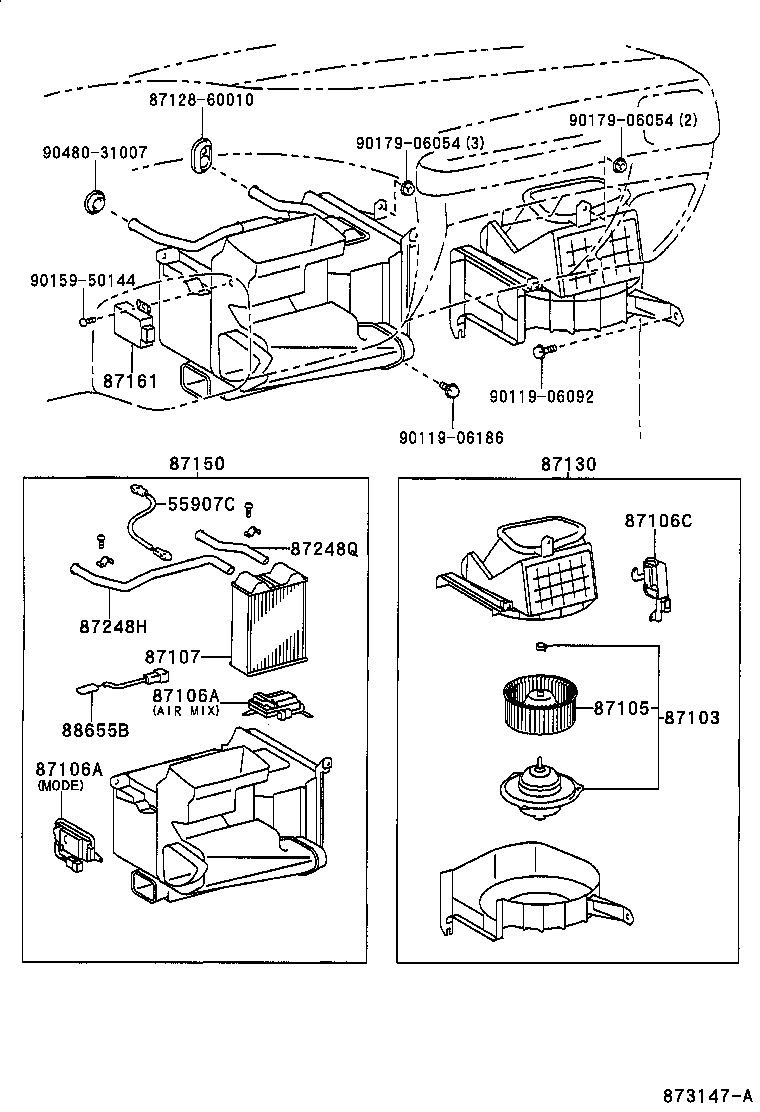

ILLUST NO. 1 OF 2(9608- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-60090 |
FZJ80 |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-26020 |
FJ80,FZJ80 |
1 | ||
| 87103-60150 |
FJ80,FZJ80 W(AIR CONDITIONER) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20110 |
FJ80,FZJ80 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-60040 |
FZJ80 MODE |
1 | ||
| 87106-60060 |
FZJ80 AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-60040 |
FZJ80 MODE |
1 | ||
| 87106-60060 |
FZJ80 AIR MIX |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-60020 |
FZJ80 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60270 |
FZJ80 |
1 | ||
| 87107-60130 |
FJ80,FZJ80 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60240 |
FZJ80 |
1 | ||
| 87130-60320 |
FZJ80 W(AIR CONDITIONER) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60330 |
FZJ80 |
1 | ||
| 87150-60331 |
FZJ80 |
1 | ||
| 87150-60640 |
FZJ80 |
1 | ||
| 87161 - AMPLIFIER, HEATER SERVO MOTOR | ||||
| 87161-60020 |
FZJ80 |
1 | ||
| 87248H - PIPE, HEATER WATER INLET | ||||
| 87248-60660 |
FZJ80 |
1 | ||
| 87248-60430 |
FZJ80 |
1 | ||
| 87248Q - PIPE, FRONT HEATER RADIATOR WATER | ||||
| 87248-60650 |
FZJ80 |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-60080 |
FZJ80 |
1 | ||
| 88790-60030 |
FZJ80 |
1 | ||
| Common parts | ||||
| 87128-60010 | ||||
| 90119-06092 | ||||
| 90119-06186 | ||||
| 90159-50144 | ||||
| 90179-06054 | ||||
| 90480-31007 | ||||

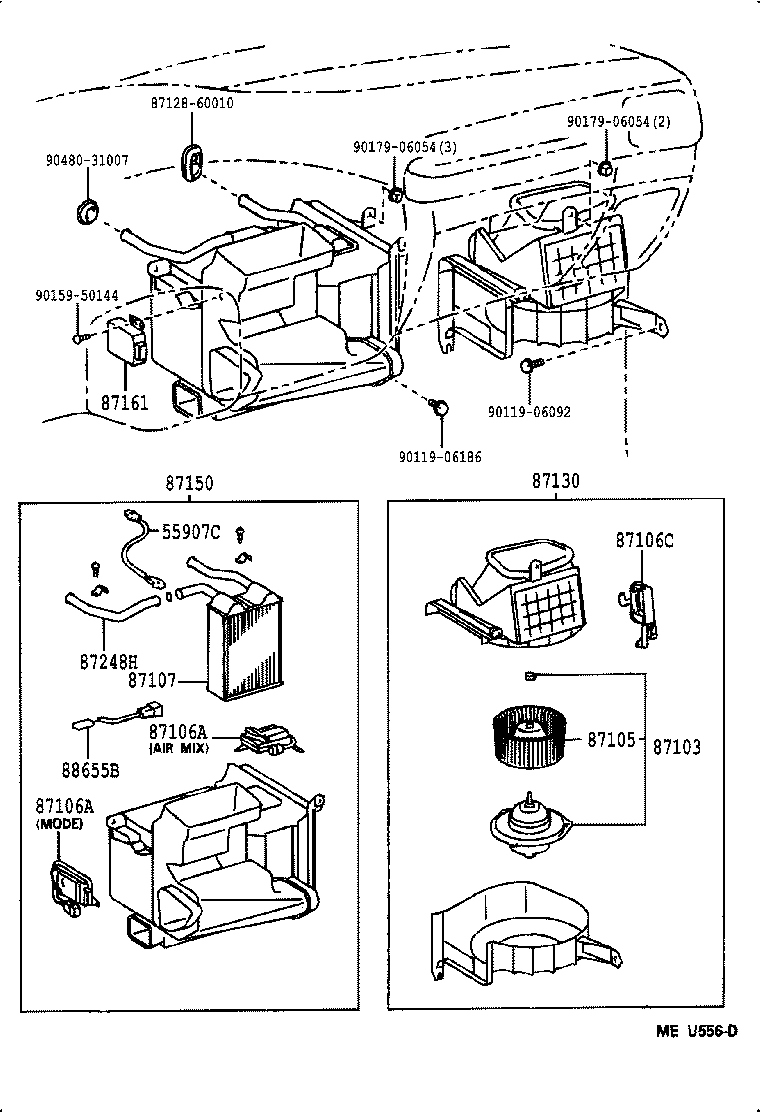

ILLUST NO. 1 OF 2(9208-9608)
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55907C - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-60090 |
FZJ80 |
1 | ||
| 87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN | ||||
| 87103-26020 |
FJ80,FZJ80 |
1 | ||
| 87103-60150 |
FJ80,FZJ80 W(AIR CONDITIONER) |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-20110 |
FJ80,FZJ80 |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-60040 |
FZJ80 MODE |
1 | ||
| 87106-60060 |
FZJ80 AIR MIX |
1 | ||
| 87106A - SERVO SUB-ASSY, DAMPER | ||||
| 87106-60040 |
FZJ80 MODE |
1 | ||
| 87106-60060 |
FZJ80 AIR MIX |
1 | ||
| 87106C - SERVO SUB-ASSY, DAMPER(FOR BLOWER) | ||||
| 87106-60020 |
FZJ80 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-60270 |
FZJ80 |
1 | ||
| 87107-60130 |
FJ80,FZJ80 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-60240 |
FZJ80 |
1 | ||
| 87130-60320 |
FZJ80 W(AIR CONDITIONER) |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-60330 |
FZJ80 |
1 | ||
| 87150-60331 |
FZJ80 |
1 | ||
| 87150-60640 |
FZJ80 |
1 | ||
| 87161 - AMPLIFIER, HEATER SERVO MOTOR | ||||
| 87161-60020 |
FZJ80 |
1 | ||
| 87248H - PIPE, HEATER WATER INLET | ||||
| 87248-60660 |
FZJ80 |
1 | ||
| 87248-60430 |
FZJ80 |
1 | ||
| 88655B - SWITCH, WATER TEMPERATURE | ||||
| 88790-60080 |
FZJ80 |
1 | ||
| 88790-60030 |
FZJ80 |
1 | ||
| Common parts | ||||
| 87128-60010 | ||||
| 90119-06092 | ||||
| 90119-06186 | ||||
| 90159-50144 | ||||
| 90179-06054 | ||||
| 90480-31007 | ||||
