FZJ80L-GNPEKA (1992)
Toyota Land Cruiser
Production
Aug 1992
-
Jan 1998
Engine
1FZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

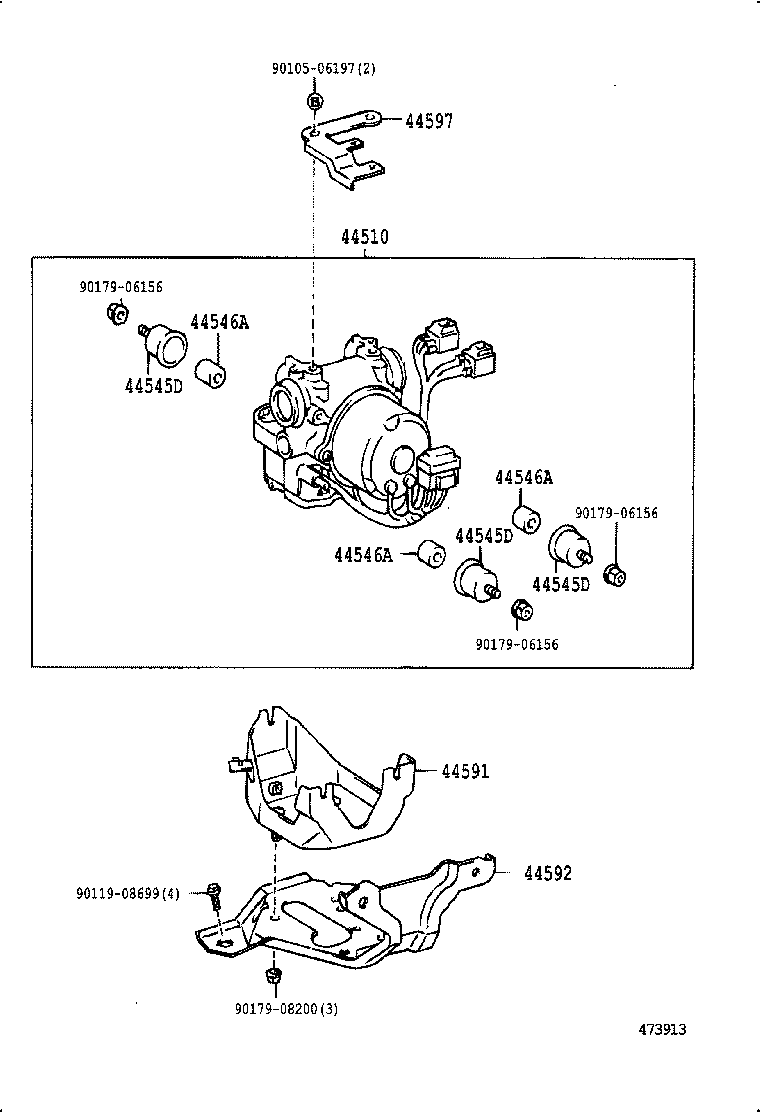

ILLUST NO. 3 OF 3(9208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-60010 |
FZJ80 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60010 |
FZJ80 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-60010 |
FZJ80 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-60010 |
FZJ80 |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90119-08699 | ||||
| 90179-06156 | ||||
| 90179-08200 | ||||

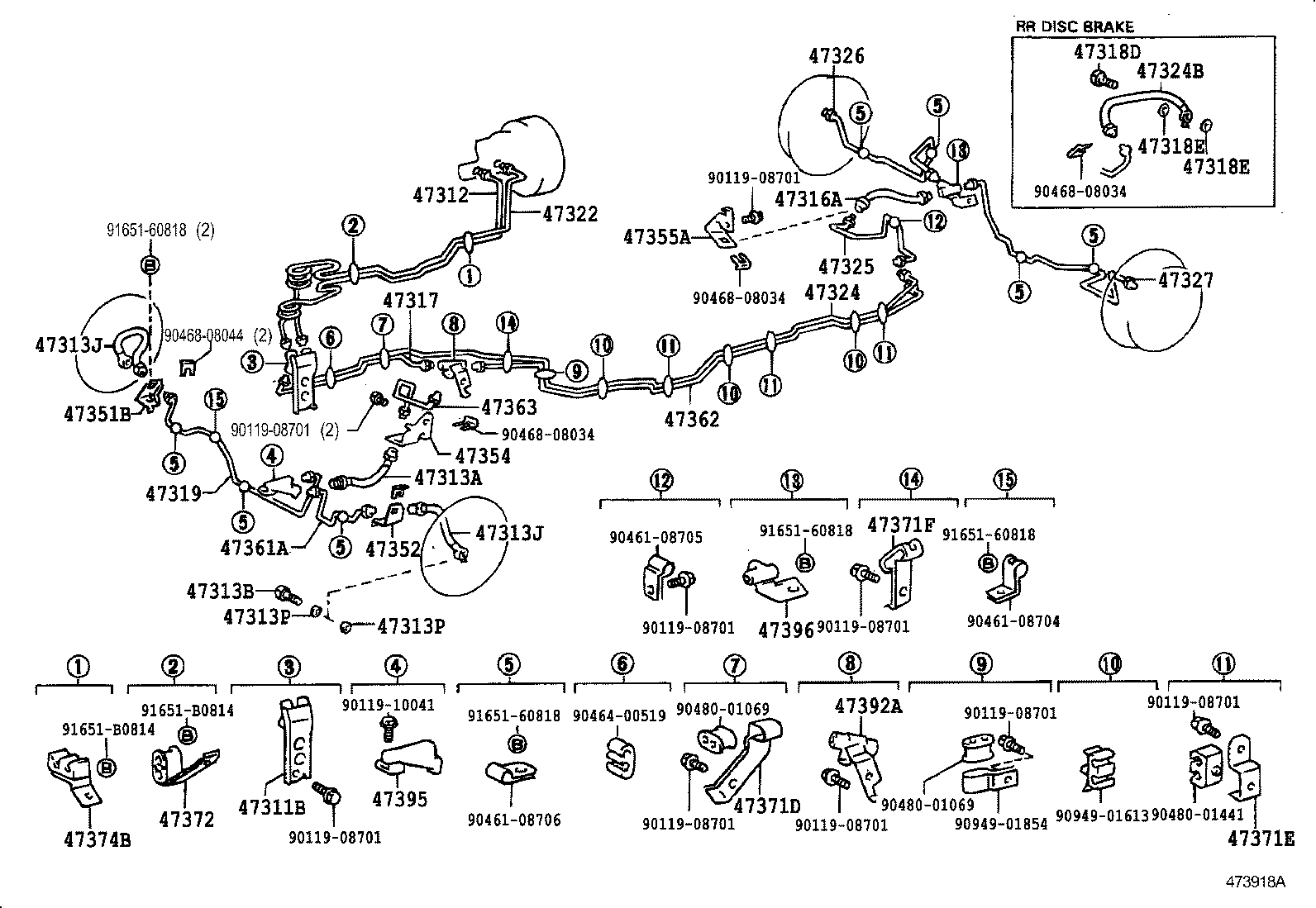

ILLUST NO. 1 OF 3(9208- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60010 |
FJ80,FZJ80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60810 |
FZJ80 W(*66) |
1 | ||
| 47312-60810 |
FZJ80 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02815 |
FZJ80 LH |
1 | ||
| 96940-34006 |
FZJ80 W(*66),LH |
1 | ||
| 96940-34006 |
FJ80,FZJ80 |
1 | ||
| 90947-02817 |
FZJ80 RH |
1 | ||
| 90947-02716 |
FZJ80 W(*66),RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FJ80,FZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02714 |
FZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02714 |
FZJ80 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80 |
4 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33406 |
FJ80,FZJ80 |
1 | ||
| 90947-02816 |
FZJ80 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60050 |
FZJ80 |
1 | ||
| 47317-60061 |
FZJ80 |
1 | ||
| 47317-60060 |
FZJ80 W(*66) |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ80 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ80 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ80 |
4 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60090 |
FZJ80 |
1 | ||
| 47319-60100 |
FZJ80 W(*66) |
1 | ||
| 47319-60101 |
FZJ80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60692 |
FZJ80 |
1 | ||
| 47322-60691 |
FZJ80 W(*66) |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60211 |
FZJ80 |
1 | ||
| 47324-60210 |
FZJ80 |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-02614 |
FZJ80 RH |
1 | ||
| 90947-02615 |
FZJ80 LH |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60110 |
FJ80,FZJ80 |
1 | ||
| 47325-60111 |
FZJ80 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60180 |
FZJ80 W(*66) |
1 | ||
| 47326-60180 |
FZJ80 |
1 | ||
| 47326-60160 |
FZJ80 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60060 |
FZJ80 |
1 | ||
| 47327-60080 |
FZJ80 W(*66) |
1 | ||
| 47327-60080 |
FZJ80 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60210 |
FZJ80 RH |
1 | ||
| 47351-60210 |
FZJ80 RH |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-60120 |
FZJ80 LH |
1 | ||
| 47352-60120 |
FZJ80 LH |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60121 |
FZJ80 |
1 | ||
| 47354-60120 |
FZJ80 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60050 |
FJ80,FZJ80 |
1 | ||
| 47355-60051 |
FZJ80 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60100 |
FZJ80 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-60051 |
FZJ80 |
1 | ||
| 47362-60050 |
FZJ80 W(*66) |
1 | ||
| 47362-60040 |
FZJ80 |
1 | ||
| 47363 - TUBE, FRONT BRAKE, NO.12 | ||||
| 47363-60020 |
FZJ80 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-60070 |
FZJ80 |
1 | ||
| 47371-60110 |
FZJ80 W(*66) |
1 | ||
| 47371E - CLAMP, BRAKE TUBE, NO.9 | ||||
| 47371-60080 |
FZJ80 |
3 | ||
| 47371F - CLAMP, BRAKE TUBE, NO.10 | ||||
| 47371-60090 |
FZJ80 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-60020 |
FJ80,FZJ80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-60010 |
FJ80,FZJ80 |
1 | ||
| 47372-60050 |
FZJ80 W(*66) |
2 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60020 |
FZJ80 W(*66) |
1 | ||
| 47392-60020 |
FZJ80 |
1 | ||
| 47392-60010 |
FJ80,FZJ80 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60050 |
FZJ80 W(*66) |
1 | ||
| 47395-60040 |
FZJ80 |
1 | ||
| 47395-60050 |
FZJ80 |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FJ80,FZJ80 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-10041 | ||||
| 90461-08704 | ||||
| 90461-08705 | ||||
| 90461-08706 | ||||
| 90464-00519 | ||||
| 90468-08034 | ||||
| 90468-08044 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90949-01613 | ||||
| 90949-01854 | ||||
| 91651-60818 | ||||
| 91651-B0814 | ||||

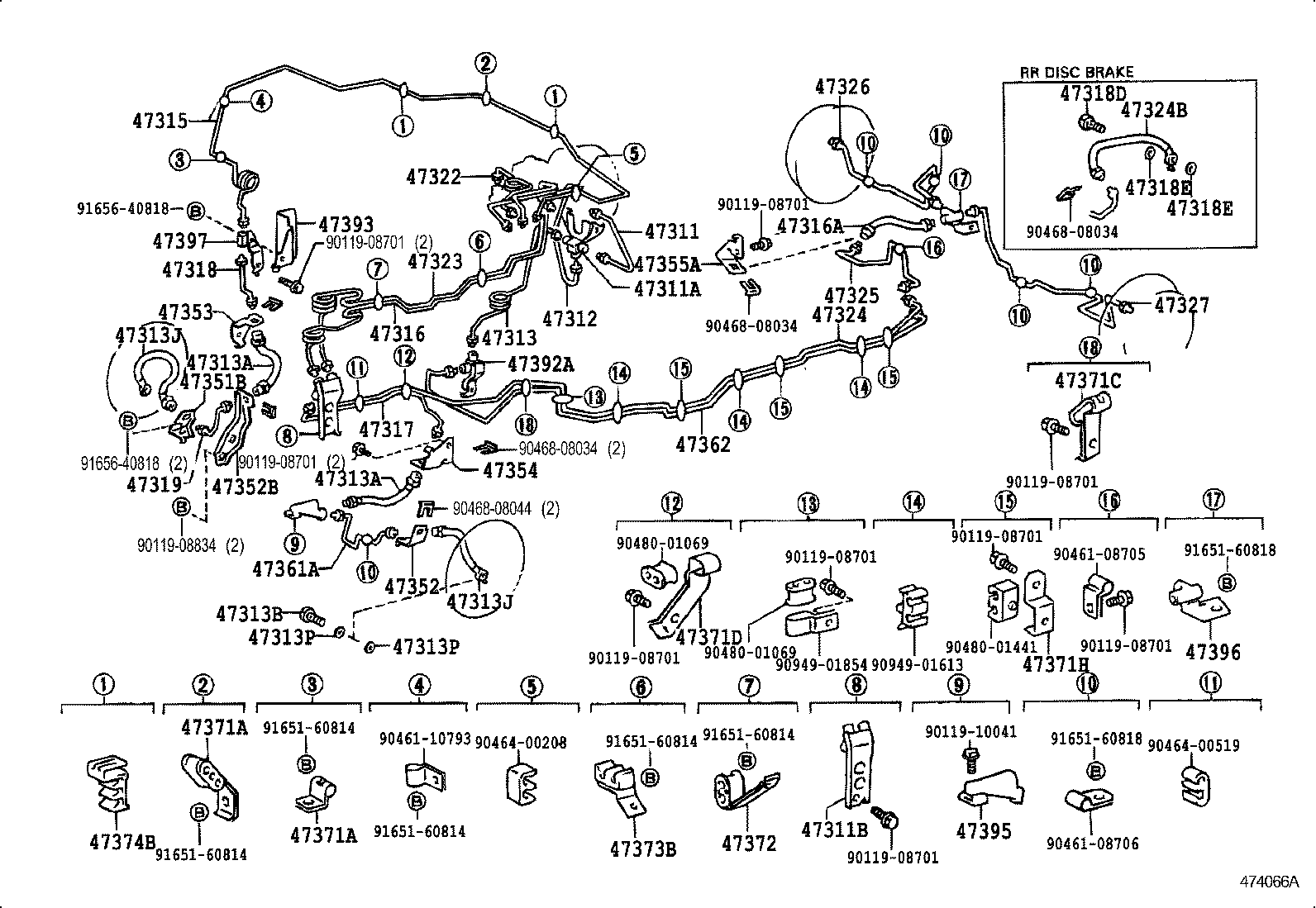

ILLUST NO. 1 OF 3(9208- )
Click highlighted areas on diagram
W(ANTILOCK BRAKING SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-60470 |
FZJ80 |
1 | ||
| 47311-60480 |
FZJ80 |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90413-10058 |
FZJ80 |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 47391-60010 |
FJ80,FZJ80 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-60810 |
FZJ80 W(*66) |
1 | ||
| 47312-60810 |
FZJ80 |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-60221 |
FZJ80 |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02815 |
FZJ80 LH |
1 | ||
| 96940-34006 |
FZJ80 W(*66),LH |
1 | ||
| 96940-34006 |
FJ80,FZJ80 |
1 | ||
| 90947-02817 |
FZJ80 RH |
1 | ||
| 90947-02716 |
FZJ80 W(*66),RH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02815 |
FZJ80 LH |
1 | ||
| 96940-34006 |
FZJ80 W(*66),LH |
1 | ||
| 96940-34006 |
FJ80,FZJ80 |
1 | ||
| 90947-02817 |
FZJ80 RH |
1 | ||
| 90947-02716 |
FZJ80 W(*66),RH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
FJ80,FZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02714 |
FZJ80 |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02714 |
FZJ80 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80 |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
FJ80,FZJ80 |
4 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-60372 |
FZJ80 |
1 | ||
| 47315-60371 |
FZJ80 |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-60431 |
FZJ80 |
1 | ||
| 47316-60432 |
FZJ80 |
1 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-33406 |
FJ80,FZJ80 |
1 | ||
| 90947-02816 |
FZJ80 |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-60050 |
FZJ80 |
1 | ||
| 47317-60061 |
FZJ80 |
1 | ||
| 47317-60060 |
FZJ80 W(*66) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-60080 |
FZJ80 |
1 | ||
| 47318-60081 |
FZJ80 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
FZJ80 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ80 |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
FZJ80 |
4 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-60090 |
FZJ80 |
1 | ||
| 47319-60100 |
FZJ80 W(*66) |
1 | ||
| 47319-60101 |
FZJ80 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-60692 |
FZJ80 |
1 | ||
| 47322-60691 |
FZJ80 W(*66) |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-60530 |
FZJ80 |
1 | ||
| 47323-60531 |
FZJ80 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-60211 |
FZJ80 |
1 | ||
| 47324-60210 |
FZJ80 |
1 | ||
| 47324B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE, NO.2) | ||||
| 90947-02614 |
FZJ80 RH |
1 | ||
| 90947-02615 |
FZJ80 LH |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-60110 |
FJ80,FZJ80 |
1 | ||
| 47325-60111 |
FZJ80 |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-60180 |
FZJ80 W(*66) |
1 | ||
| 47326-60180 |
FZJ80 |
1 | ||
| 47326-60160 |
FZJ80 |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-60060 |
FZJ80 |
1 | ||
| 47327-60080 |
FZJ80 W(*66) |
1 | ||
| 47327-60080 |
FZJ80 |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-60210 |
FZJ80 RH |
1 | ||
| 47351-60210 |
FZJ80 RH |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-60120 |
FZJ80 LH |
1 | ||
| 47352-60120 |
FZJ80 LH |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47356-60011 |
FZJ80 |
1 | ||
| 47356-60010 |
FZJ80 |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47353-60101 |
FZJ80 |
1 | ||
| 47353-60100 |
FZJ80 |
1 | ||
| 47354 - BRACKET, FRONT FLEXIBLE HOSE | ||||
| 47354-60121 |
FZJ80 |
1 | ||
| 47354-60120 |
FZJ80 |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-60050 |
FJ80,FZJ80 |
1 | ||
| 47355-60051 |
FZJ80 |
1 | ||
| 47361A - TUBE, FRONT BRAKE, NO.10 | ||||
| 47361-60100 |
FZJ80 |
1 | ||
| 47362 - TUBE, FRONT BRAKE, NO.11 | ||||
| 47362-60051 |
FZJ80 |
1 | ||
| 47362-60050 |
FZJ80 W(*66) |
1 | ||
| 47362-60040 |
FZJ80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60030 |
FZJ80 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47371-60030 |
FZJ80 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-60090 |
FZJ80 |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 47371-60070 |
FZJ80 |
1 | ||
| 47371-60110 |
FZJ80 W(*66) |
1 | ||
| 47371H - CLAMP, BRAKE TUBE, NO.12 | ||||
| 47371-60080 |
FZJ80 |
3 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47372-60020 |
FJ80,FZJ80 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 47374-60010 |
FZJ80 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 47374-60010 |
FJ80,FZJ80 |
1 | ||
| 47372-60050 |
FZJ80 W(*66) |
2 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-60020 |
FZJ80 W(*66) |
1 | ||
| 47392-60020 |
FZJ80 |
1 | ||
| 47392-60010 |
FJ80,FZJ80 |
1 | ||
| 47393 - INSULATOR, BRAKE TUBE HEAT | ||||
| 47393-60040 |
FZJ80 |
1 | ||
| 47395 - WAY, BRAKE TUBE, NO.3 | ||||
| 47395-60050 |
FZJ80 W(*66) |
1 | ||
| 47395-60040 |
FZJ80 |
1 | ||
| 47395-60050 |
FZJ80 |
1 | ||
| 47396 - WAY, BRAKE TUBE, NO.4 | ||||
| 47396-60010 |
FJ80,FZJ80 |
1 | ||
| 47397 - WAY, BRAKE TUBE, NO.5 | ||||
| 47397-60010 |
FZJ80 |
1 | ||
| Common parts | ||||
| 90119-08701 | ||||
| 90119-08834 | ||||
| 90119-10041 | ||||
| 90461-08705 | ||||
| 90461-08706 | ||||
| 90461-10793 | ||||
| 90464-00208 | ||||
| 90464-00519 | ||||
| 90468-08034 | ||||
| 90468-08044 | ||||
| 90480-01069 | ||||
| 90480-01441 | ||||
| 90949-01613 | ||||
| 90949-01854 | ||||
| 91651-60814 | ||||
| 91651-60818 | ||||
| 91656-40818 | ||||
ILLUST NO. 3 OF 3(9208- )
Click highlighted areas on diagram
W(ANTI-LOCK BRAKING SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44510-60010 |
FZJ80 |
1 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44545D - HOLDER, BRAKE ACTUATOR BOLT | ||||
| 44545-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-33010 |
FZJ80 |
3 | ||
| 44591 - BRACKET, BRAKE ACTUATOR, NO.1 | ||||
| 44591-60010 |
FZJ80 |
1 | ||
| 44592 - BRACKET, BRAKE ACTUATOR, NO.2 | ||||
| 44592-60010 |
FZJ80 |
1 | ||
| 44597 - CLAMP, BRAKE ACTUATOR CONNECTOR, NO.1 | ||||
| 44597-60010 |
FZJ80 |
1 | ||
| Common parts | ||||
| 90105-06197 | ||||
| 90119-08699 | ||||
| 90179-06156 | ||||
| 90179-08200 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
