FZJ80L-GNMNKW (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1FZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

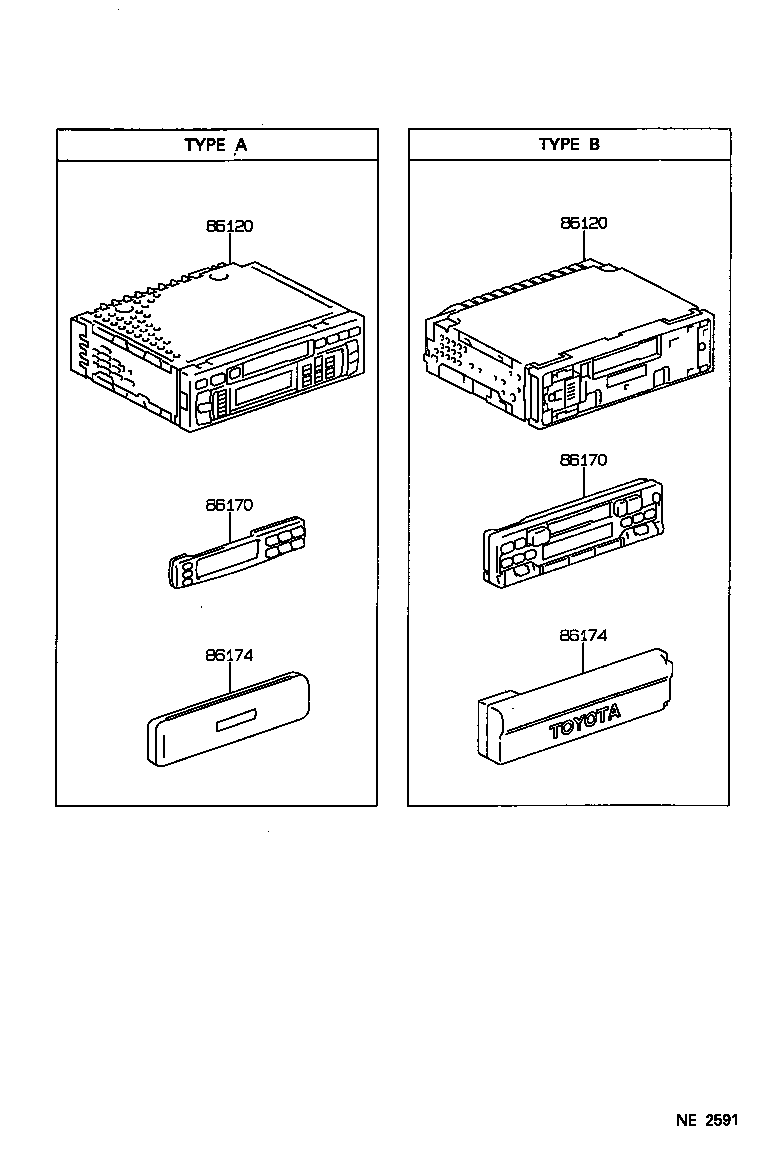

ILLUST NO. 1 OF 2(9608- )

Click highlighted areas on diagram

diagram 86120 86120 86170 86170 86174 86174
Part # Description Qty Price
86120 - RECEIVER ASSY, RADIO
86120-2B450

HZJ80..GX;FZJ80,HDJ80

MATSUSHITA,ID=58405

 1
86120-2B560

FZJ80,HDJ80,HZJ80

FUJITSU TEN,ID=18401,LW/MW/UKW ETR CASSETTE

 1
86120-60210

HZJ80..STD;FZJ80,HDJ80..LHD

MATSUSHITA, ID=58408

 1
86120 - RECEIVER ASSY, RADIO
86120-2B450

HZJ80..GX;FZJ80,HDJ80

MATSUSHITA,ID=58405

 1
86120-2B560

FZJ80,HDJ80,HZJ80

FUJITSU TEN,ID=18401,LW/MW/UKW ETR CASSETTE

 1
86120-60210

HZJ80..STD;FZJ80,HDJ80..LHD

MATSUSHITA, ID=58408

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-20050

FZJ80,HDJ80,HZJ80

TYPE A

 1
86170-60010

HZJ80..STD;FZJ80,HDJ80..LHD

TYPE B

 1
86170 - SWITCH AND VOLUME ASSY, RADIO
86170-20050

FZJ80,HDJ80,HZJ80

TYPE A

 1
86170-60010

HZJ80..STD;FZJ80,HDJ80..LHD

TYPE B

 1
86174 - CASE, SWITCH & VOLUME
86174-20010

FZJ80,HDJ80,HZJ80

W(LW/MW/UKW ETR CASSETTE)

 1
86174-60010

HZJ80..STD;FZJ80,HDJ80..LHD

 1
86174 - CASE, SWITCH & VOLUME
86174-20010

FZJ80,HDJ80,HZJ80

W(LW/MW/UKW ETR CASSETTE)

 1
86174-60010

HZJ80..STD;FZJ80,HDJ80..LHD

 1
