Toyota Land cruiser FZJ80 ALTERNATOR

FZJ80L-GCPNKW (1992)

Toyota Land Cruiser

Production Aug 1992 - Jan 1998

Engine 1FZFE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9208- )

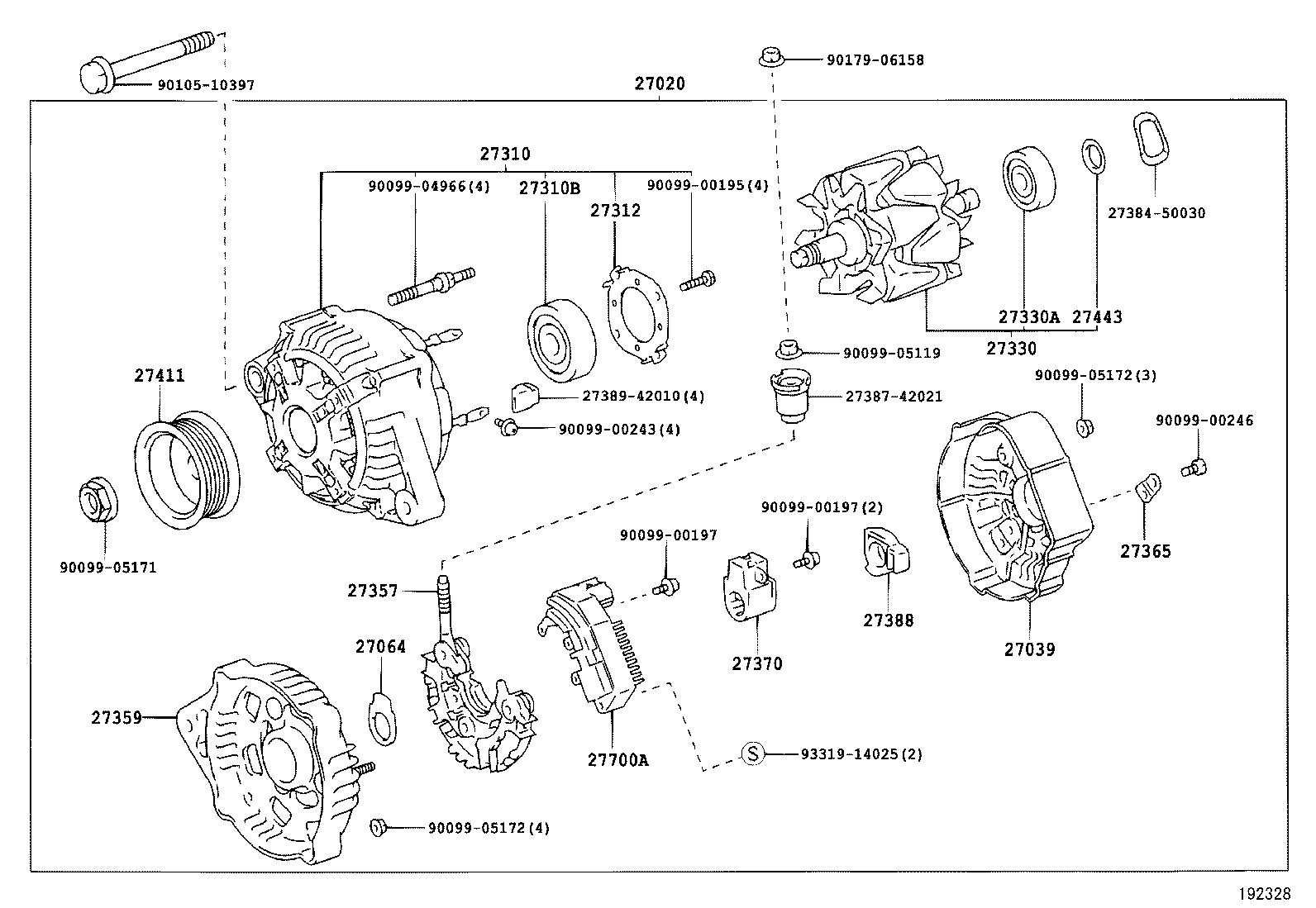

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-66070	1FZFE..FZJ80 12V 80A	08/1992 - 01/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1FZFE,3FE,1H#..FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27064-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74110	1FZFE..FZJ80	08/1992 - 01/1998	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27312 - PLATE, RETAINER
27312-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27312-42010	1FZFE,1H#..FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
90099-10140	1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80	01/1990 - 08/1996	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-16310	1FZFE,1HDT..FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
27357-16310	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-42010	1FZFE..FZJ80	08/1992 - 03/1994	1
27359-42010	1FZFE..FZJ80	08/1992 - 03/1994	1
27359-74330	1FZFE..FZJ80	03/1994 - 01/1998	1
27365 - PLATE, TERMINAL
27365-55080	1FZFE..FZJ80	08/1992 - 01/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	1FZFE,1HDT..FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
27370-75060	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27388-42010	1FZFE,3FE,1H#..FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27411 - PULLEY, ALTERNATOR
27411-66040	1FZFE..FZJ80	08/1992 - 01/1998	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1996	1
27443-63020	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27700A - REGULATOR ASSY, GENERATOR
27700-66040	1FZFE..FZJ80	08/1992 - 01/1998	1
Common parts
27384-50030
27387-42021
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90105-10397
90179-06158
93319-14025

(9208- )1FZFE

Click highlighted areas on diagram

12V 80A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-66070	1FZFE..FZJ80 12V 80A	08/1992 - 01/1998	1
27039 - COVER, ALTERNATOR REAR END
27039-55080	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	1FZFE,3FE,1H#..FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27064-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-74110	1FZFE..FZJ80	08/1992 - 01/1998	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10192	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27312 - PLATE, RETAINER
27312-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80 12V 80A	08/1992 - 01/1998	1
27312-42010	1FZFE,1H#..FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27330 - ROTOR ASSY, ALTERNATOR
27330-76030	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
90099-10140	1FZFE,1HD#,1HZ..FZJ80,HDJ80,HZJ80	01/1990 - 08/1996	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-16310	1FZFE,1HDT..FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
27357-16310	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-42010	1FZFE..FZJ80	08/1992 - 03/1994	1
27359-42010	1FZFE..FZJ80	08/1992 - 03/1994	1
27359-74330	1FZFE..FZJ80	03/1994 - 01/1998	1
27365 - PLATE, TERMINAL
27365-55080	1FZFE..FZJ80	08/1992 - 01/1998	1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-75060	1FZFE,1HDT..FZJ80,HDJ80..ATM	08/1992 - 01/1995	1
27370-75060	1FZFE,1H#..FZJ80,HDJ80,HZJ80	01/1995 - 01/1998	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27388-42010	1FZFE,3FE,1H#..FJ80,FZJ80,HDJ80,HZJ80..ATM	01/1990 - 01/1995	1
27411 - PULLEY, ALTERNATOR
27411-66040	1FZFE..FZJ80	08/1992 - 01/1998	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	1FZFE,3FE,1HD#,1HZ..FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 08/1996	1
27443-63020	1HZ..HZJ80..SOB;1FZFE,1HDFT..FZJ80,HDJ80	08/1992 - 01/1998	1
27700A - REGULATOR ASSY, GENERATOR
27700-66040	1FZFE..FZJ80	08/1992 - 01/1998	1
Common parts
27384-50030
27387-42021
27389-42010
90099-00195
90099-00197
90099-00243
90099-00246
90099-04966
90099-05119
90099-05171
90099-05172
90105-10397
90179-06158
93319-14025
