FZJ80L-GCPNKW (1992)

Toyota Land Cruiser

Production Aug 1992 - Jan 1998
Engine 1FZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )

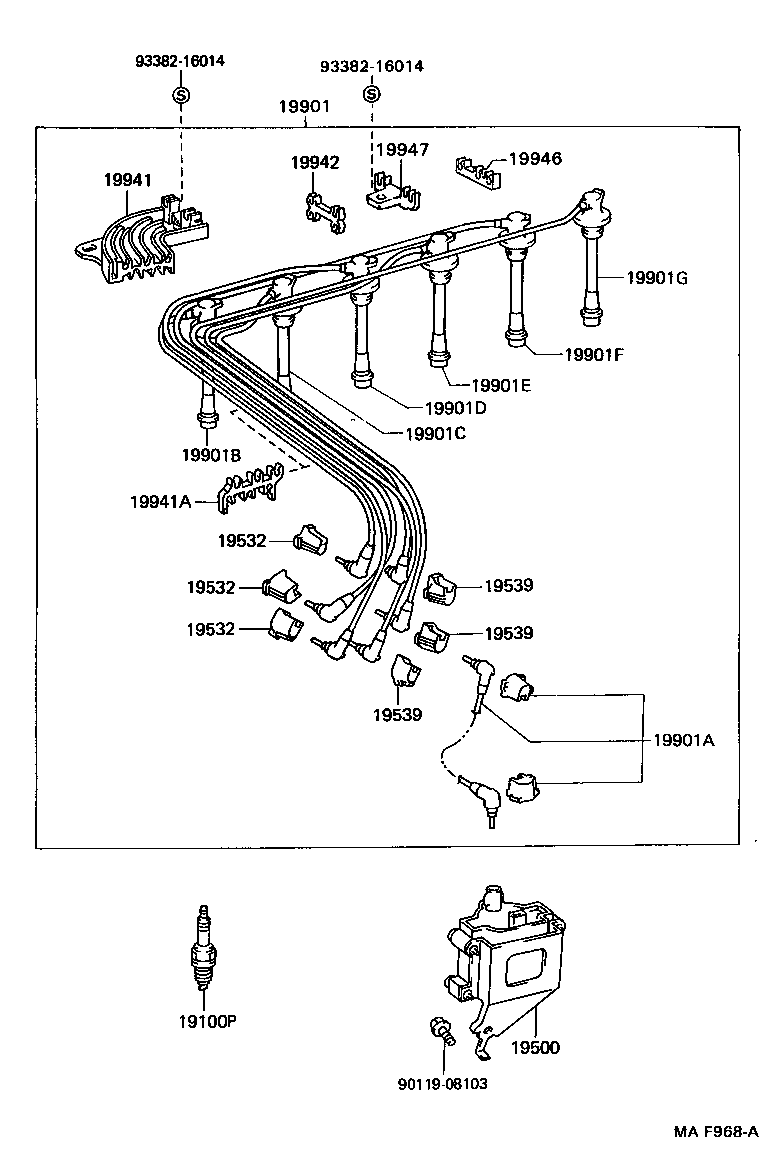

Click highlighted areas on diagram

diagram 19100P 19500 19532 19532 19532 19539 19539 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19946 19947 9011908103 9338216014 9338216014
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

1FZFE..FZJ80

K16R-U

 6
19500 - COIL ASSY, IGNITION
19080-66010

1FZFE..FZJ80

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21557

1FZFE..FZJ80

 1
19901A - CORD, COIL RESISTIVE
90919-13436

1FZFE..FZJ80

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15362

1FZFE..FZJ80

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15363

1FZFE..FZJ80

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15364

1FZFE..FZJ80

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15365

1FZFE..FZJ80

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15366

1FZFE..FZJ80

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15367

1FZFE..FZJ80

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-66010

1FZFE..FZJ80

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90929-01278

1FZFE..FZJ80

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-66010

1FZFE..FZJ80

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-66010

1FZFE..FZJ80

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
19947-66010

1FZFE..FZJ80

 1
Common parts
90119-08103
93382-16014

(9208- )1FZFE

Click highlighted areas on diagram

diagram 19100P 19500 19532 19532 19532 19539 19539 19539 19901 19901A 19901B 19901C 19901D 19901E 19901F 19901G 19941 19941A 19942 19946 19947 9011908103 9338216014 9338216014
Part # Description Qty Price
19100P - PLUG, SPARK
90919-01176

1FZFE..FZJ80

K16R-U

 6
19500 - COIL ASSY, IGNITION
19080-66010

1FZFE..FZJ80

 1
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19532 - HOLDER, RESISTIVE CODE, NO.2
19532-46010

1FZFE..FZJ80

 3
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19539 - HOLDER, RESISTIVE CODE, NO.4
19539-50010

1FZFE..FZJ80

MARK C

 1
19539-46010

1FZFE..FZJ80

MARK A

 2
19901 - CORD SET, COIL & SPARK, W/RESISTIVE
90919-21557

1FZFE..FZJ80

 1
19901A - CORD, COIL RESISTIVE
90919-13436

1FZFE..FZJ80

 1
19901B - CORD, SPARK PLUG RESISTIVE, NO.1
90919-15362

1FZFE..FZJ80

 1
19901C - CORD, SPARK PLUG RESISTIVE, NO.2
90919-15363

1FZFE..FZJ80

 1
19901D - CORD, SPARK PLUG RESISTIVE, NO.3
90919-15364

1FZFE..FZJ80

 1
19901E - CORD, SPARK PLUG RESISTIVE, NO.4
90919-15365

1FZFE..FZJ80

 1
19901F - CORD, SPARK PLUG RESISTIVE, NO.5
90919-15366

1FZFE..FZJ80

 1
19901G - CORD, SPARK PLUG RESISTIVE, NO.6
90919-15367

1FZFE..FZJ80

 1
19941 - CLAMP, RESISTIVE CORD, NO.1
19941-66010

1FZFE..FZJ80

 1
19941A - CLAMP(FOR RESISTIVE CORD)
90929-01278

1FZFE..FZJ80

 2
19942 - CLAMP, RESISTIVE CORD, NO.2
19942-66010

1FZFE..FZJ80

 1
19946 - CLAMP, RESISTIVE CORD, NO.3
19946-66010

1FZFE..FZJ80

 1
19947 - CLAMP, RESISTIVE CORD, NO.4
19947-66010

1FZFE..FZJ80

 1
Common parts
90119-08103
93382-16014
