FZJ80L-GCMRKW (1995)

Toyota Land Cruiser

Production Jan 1995 - Jan 1998
Engine 1FZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9501- )

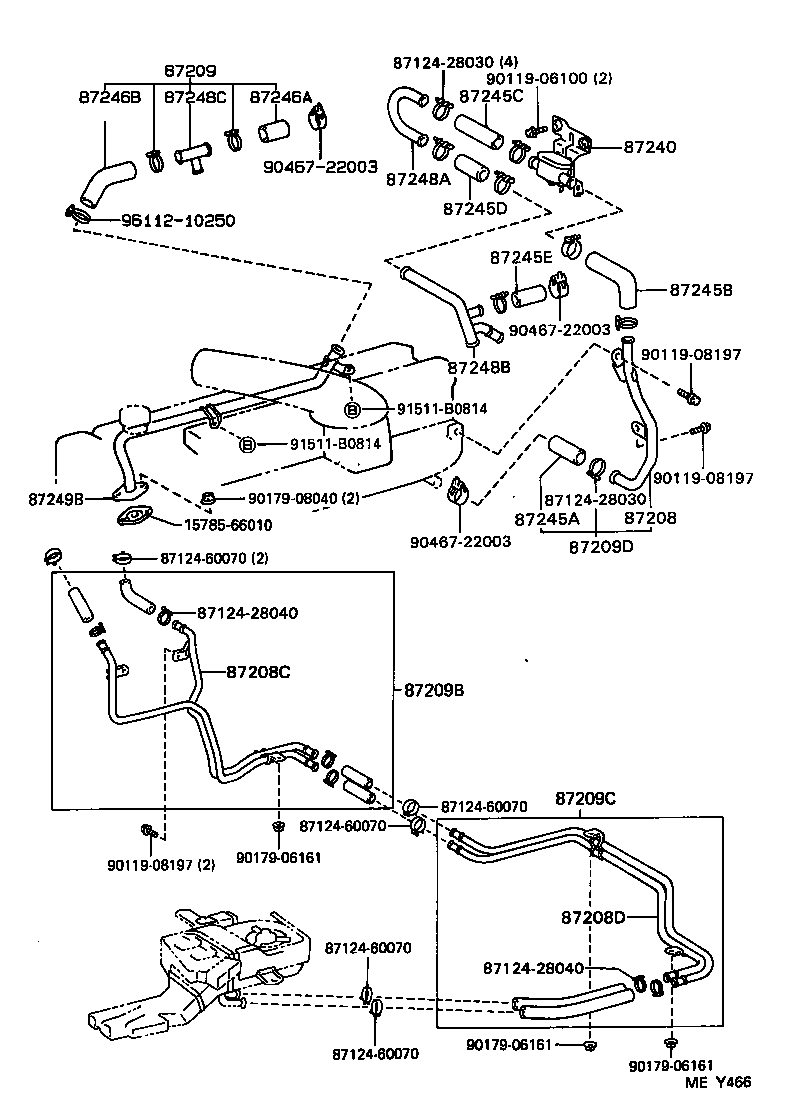

Click highlighted areas on diagram

diagram 1578566010 8712428030 8712428030 8712428040 8712428040 8712460070 8712460070 8712460070 8712460070 8712460070 87208 87208C 87208D 87209 87209B 87209C 87209D 87240 87245A 87245B 87245C 87245D 87245E 87246A 87246B 87248A 87248B 87248C 87249B 9011906100 9011908197 9011908197 9011908197 9017906161 9017906161 9017906161 9017908040 9046722003 9046722003 9046722003 91511B0814 91511B0814 9611210250
Part # Description Qty Price
Common parts
15785-66010
87124-28030
87124-28040
87124-60070
90119-06100
90119-08197
90179-06161
90179-08040
90467-22003
91511-B0814
96112-10250

(9501- )FZJ80

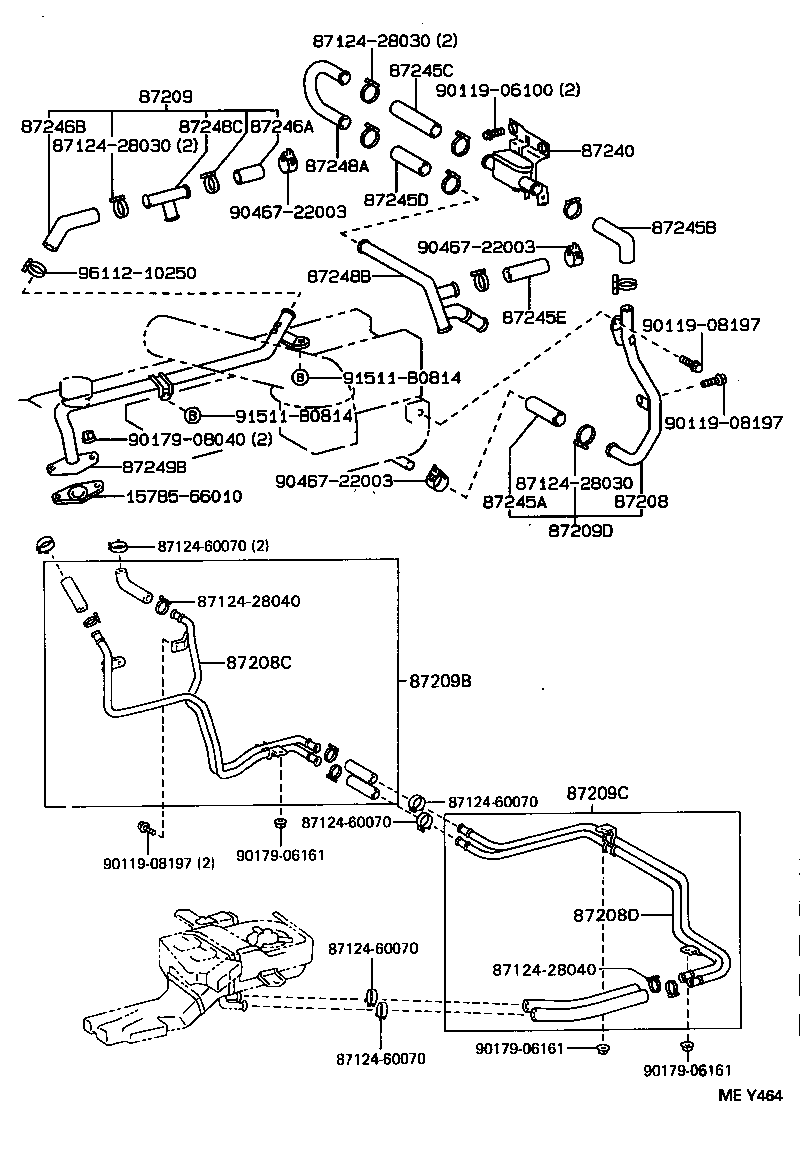

Click highlighted areas on diagram

diagram 1578566010 8712428030 8712428030 8712428030 8712428040 8712428040 8712460070 8712460070 8712460070 8712460070 8712460070 87208 87208C 87208D 87209 87209B 87209C 87209D 87240 87245A 87245B 87245C 87245D 87245E 87246A 87246B 87248A 87248B 87248C 87249B 9011906100 9011908197 9011908197 9011908197 9017906161 9017906161 9017906161 9017908040 9046722003 9046722003 9046722003 91511B0814 91511B0814 9611210250
Part # Description Qty Price
87208D - PIPE SUB-ASSY, HEATER WATER, D
87208-60360

FZJ80,HZJ80

 1
87209C - HOSE SUB-ASSY, WATER, C
87209-60441

FZJ80,HDJ80,HZJ80

 1
87240 - VALVE ASSY, HEATER WATER
87240-60170

FZJ80,HDJ80,HZJ80..LHD

 1
87240-60170

FZJ80,HDJ80,HZJ80..LHD

 1
87245C - HOSE, HEATER WATER ,INLET C
99556-30100

FZJ80

*H,L=95

 1
87245D - HOSE, HEATER WATER, INLET D
99556-30100

FZJ80;HDJ80..LUB;HZJ80..MTM

*H,L=60

 1
99556-30100

FZJ80

*H,L=60

 1
87245E - HOSE, HEATER WATER, INLET E
99556-30065

FZJ80

*H,L=65

 1
87248A - PIPE, HEATER WATER INLET, A
87248-60480

FZJ80

 1
87249B - PIPE, HEATER WATER OUTLET, B
87208-60161

FZJ80

 1
Common parts
15785-66010
87124-28030
87124-28040
87124-60070
90119-06100
90119-08197
90179-06161
90179-08040
90467-22003
91511-B0814
96112-10250
