FJ80L-GNPNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

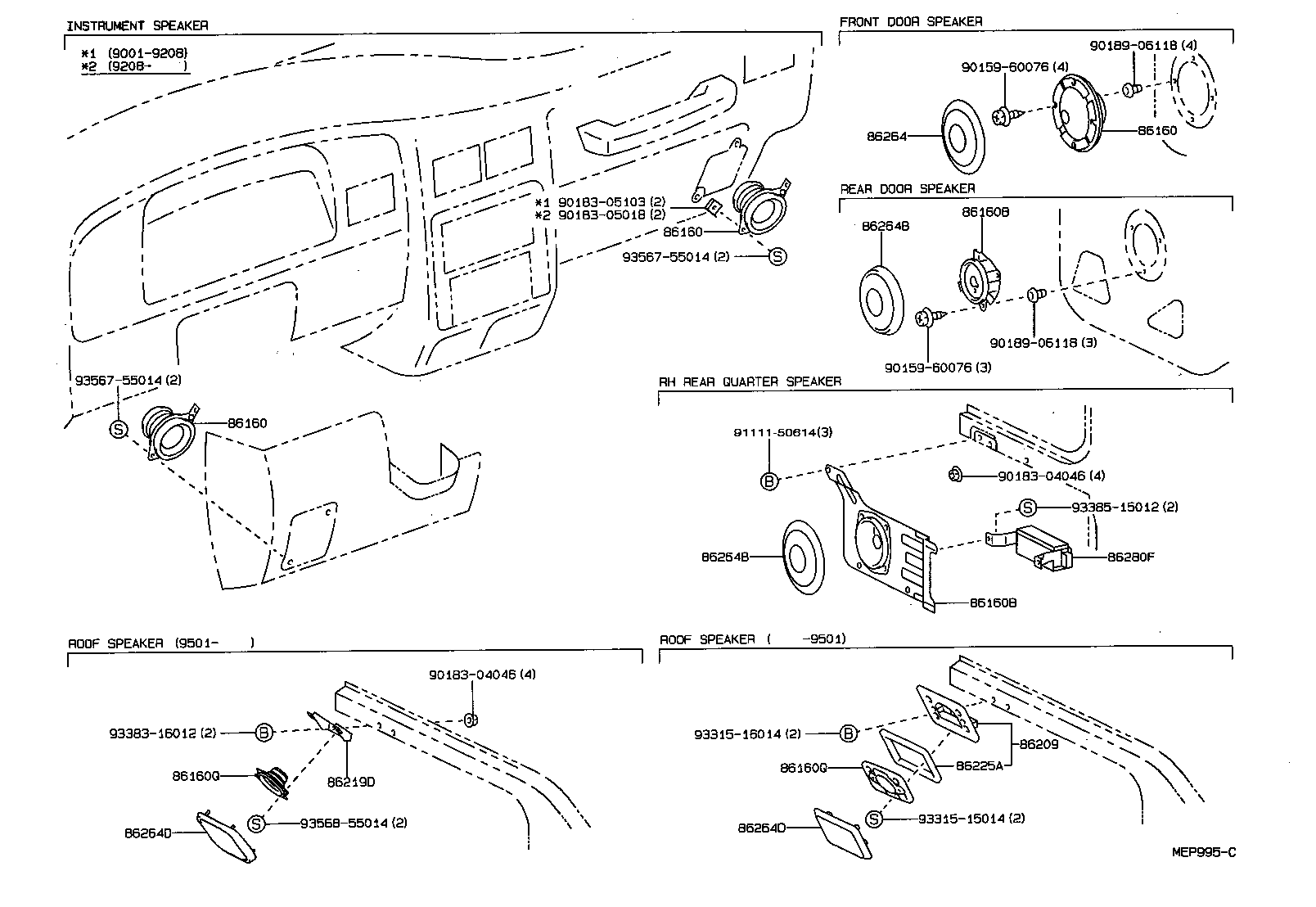

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

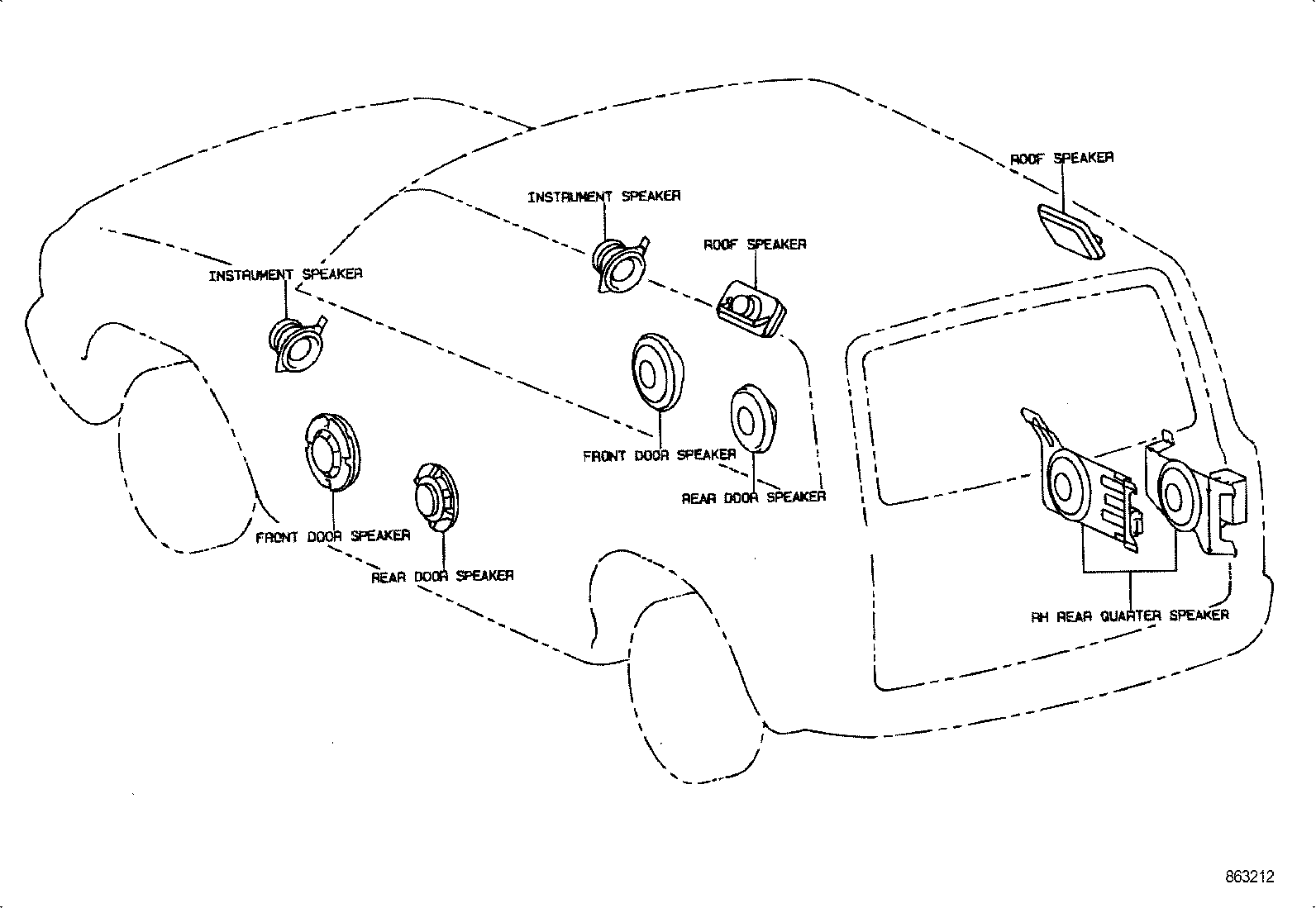

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 86160 86160 86160 86160B 86160B 86160Q 86160Q 86209 86219D 86225A 86264 86264B 86264B 86264D 86264D 86280F 9015960076 9015960076 9018304046 9018304046 9018305018 9018305103 9018906118 9018906118 9111150614 9331515014 9331516014 9338316012 9338515012 9356755014 9356755014 9356855014
Part # Description Qty Price
Common parts
90159-60076
90183-04046
90183-05018
90183-05103
90189-06118
91111-50614
93315-15014
93315-16014
93383-16012
93385-15012
93567-55014
93568-55014

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

diagram
Part # Description Qty Price

ILLUST NO. 2 OF 2(9001- )

Click highlighted areas on diagram

diagram 86160 86160 86160B 86160B 86264B 86264B 86280F 9015960076 9016850023 9016850023 9018305018 9018305103 9018906118 9111150614 9338515012 9356755014 9356755014
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

FJ80,HDJ80,HZJ80

INSTRUMENT PANEL

 2
86160 - SPEAKER ASSY, FRONT NO.1
86160-16130

FJ80,HDJ80,HZJ80

INSTRUMENT PANEL

 2
86160B - SPEAKER ASSY, REAR
86160-60090

FJ80,HDJ80,HZJ80..GX,VX

REAR DOOR

 2
86160-60100

FJ80,HDJ80,HZJ80..GX,VX

REAR QUARTER PANEL

 1
86160B - SPEAKER ASSY, REAR
86160-60090

FJ80,HDJ80,HZJ80..GX,VX

REAR DOOR

 2
86160-60100

FJ80,HDJ80,HZJ80..GX,VX

REAR QUARTER PANEL

 1
86264B - GRILLE, SPEAKER, REAR
86269-6001003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#,REAR DOOR

 2
86269-6001006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#,REAR DOOR

 2
86269-6002003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#,REAR QUARTER PANEL

 1
86269-6002006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#,REAR QUARTER PANEL

 1
86264B - GRILLE, SPEAKER, REAR
86269-6001003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#,REAR DOOR

 2
86269-6001006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#,REAR DOOR

 2
86269-6002003

FJ80,HDJ80,HZJ80..GX,VX

BLUISH GRAY,TRIM1#,REAR QUARTER PANEL

 1
86269-6002006

FJ80,HDJ80,HZJ80..GX,VX

SABLE,TRIM4#,REAR QUARTER PANEL

 1
86280F - AMPLIFIER ASSY, STEREO COMPONENT
86280-60010

FJ80,HDJ80,HZJ80..GX,VX

 1
Common parts
90159-60076
90168-50023
90183-05018
90183-05103
90189-06118
91111-50614
93385-15012
93567-55014
