Toyota Land cruiser FJ80 FRONT DOOR PANEL & GLASS

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ80L-GNPNEW (1990)
6751 - FRONT DOOR PANEL & GLASS

FJ80L-GNPNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991

Engine 3FE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

(9001- )

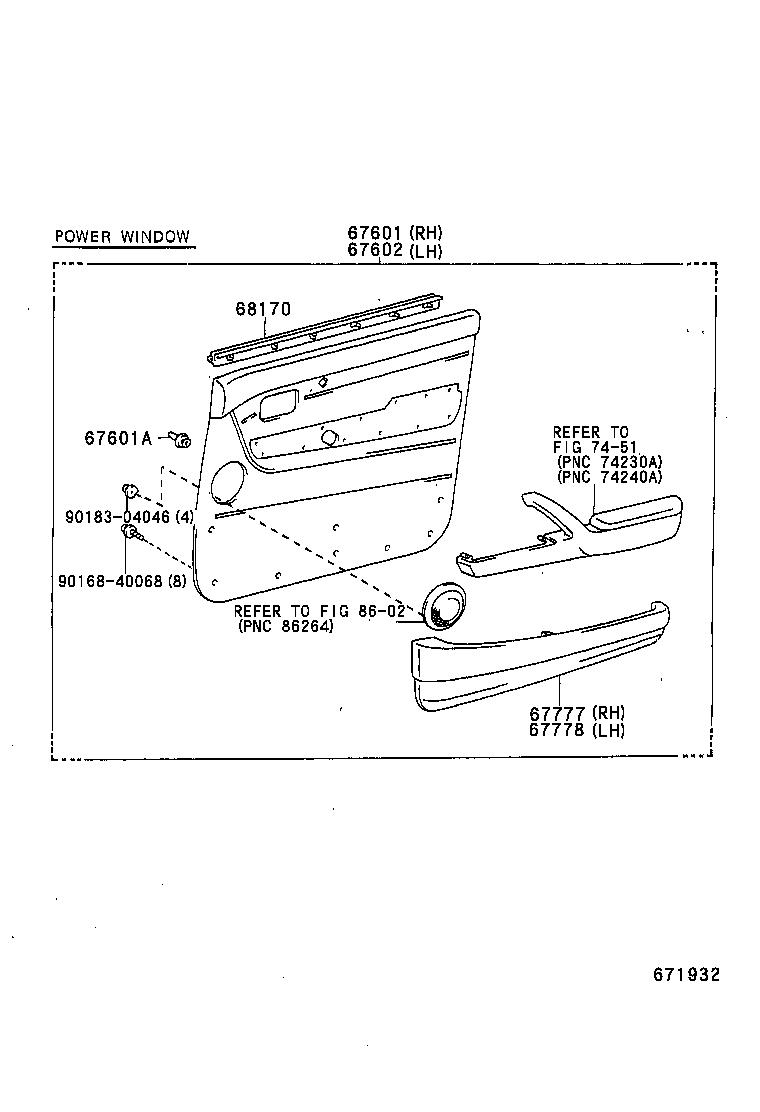

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90168-40068
90183-04046
Linked diagrams
7451
8602

(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90119-06241
90119-06307
90333-20001
90333-35004
90541-09038

(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67610-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040	FJ80,HDJ80,HZJ80..GX,VX GRAY	03/1990 - 04/1990	22
67771-12040	FJ80,HDJ80,HZJ80..GX GRAY	01/1990 - 03/1990	26
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	04/1990 - 07/1991	26
67771-12040	FJ80,HDJ80,HZJ80..GX W(POWER WINDOW),GRAY	01/1990 - 03/1990	22
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	03/1990 - 04/1990	4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67620-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67777-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67778-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	2
Common parts
90168-40068
Linked diagrams
7451
8602

(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90168-40068
Linked diagrams
7451

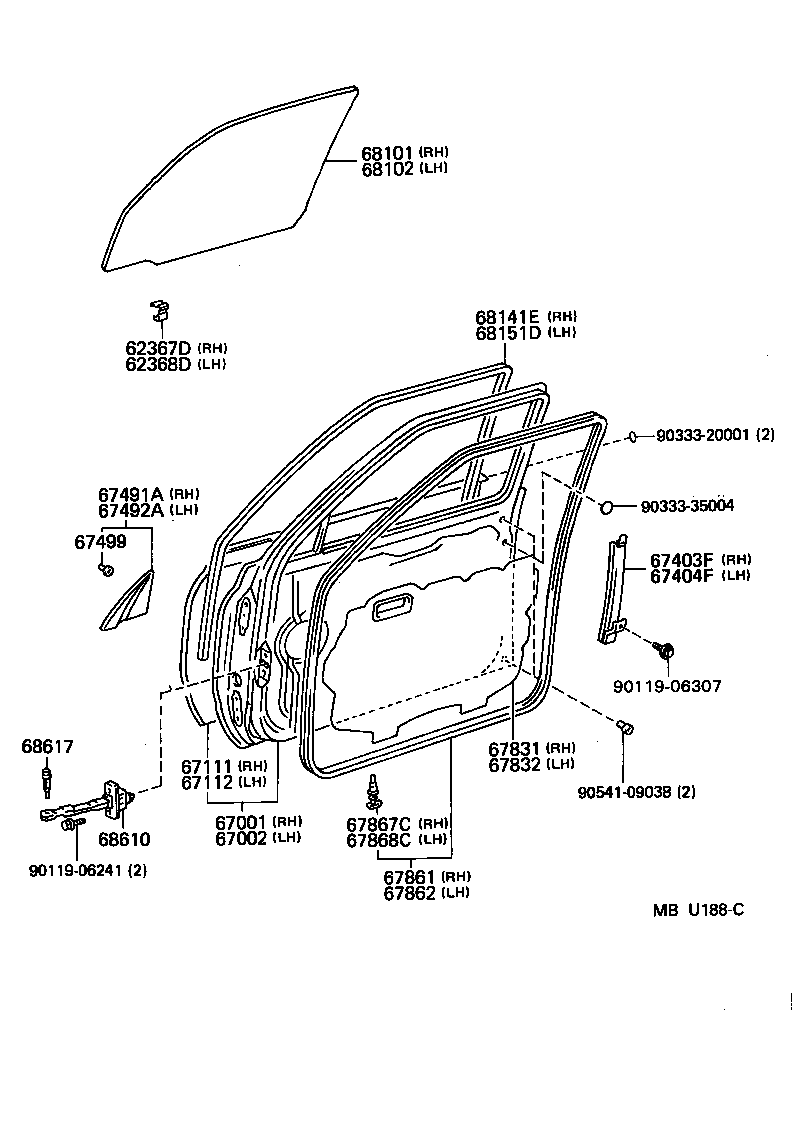

ILLUST NO. 1 OF 2(9001- )

Click highlighted areas on diagram

DOOR PANEL

Part #	Description	Period	Qty
62367D - CLIP, DOOR WINDOW GLASS, RH
62367-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	1
62368D - CLIP, DOOR WINDOW GLASS, LH
62367-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	1
67001 - PANEL SUB-ASSY, FRONT DOOR, RH
67001-60340	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 02/1992	1
67001-60350	FJ80,HDJ80,HZJ80..GX W(*SPM)	01/1990 - 02/1992	1
67002 - PANEL SUB-ASSY, FRONT DOOR, LH
67002-60340	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 02/1992	1
67002-60350	FJ80,HDJ80,HZJ80..GX W(*SPM)	01/1990 - 02/1992	1
67111 - PANEL, FRONT DOOR, OUTER RH
67111-60240	FJ80,HDJ80,HZJ80..GX W(*SPM)	01/1990 - 01/1995	1
67111-60230	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 01/1995	1
67112 - PANEL, FRONT DOOR, OUTER LH
67112-60240	FJ80,HDJ80,HZJ80..GX W(*SPM)	01/1990 - 01/1995	1
67112-60230	FJ80,HDJ80,HZJ80..GX,STD	01/1990 - 01/1995	1
67403F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67403-60010	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	1
67404F - FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67404-60020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	1
67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH
67491-60020	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	1
67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH
67492-60020	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	1
67499 - RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH
67499-30020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	2
67831 - COVER, FRONT DOOR SERVICE HOLE, RH
67831-60030	FJ80,FZJ80,HDJ80,HZJ80..GX W(*PW)	01/1990 - 01/1995	1
67831-60020	FJ80,FZJ80,HDJ80,HZJ80..GX,STD	01/1990 - 01/1995	1
67832 - COVER, FRONT DOOR SERVICE HOLE, LH
67831-60030	FJ80,FZJ80,HDJ80,HZJ80..GX W(*PW)	01/1990 - 01/1995	1
67831-60020	FJ80,FZJ80,HDJ80,HZJ80..GX,STD	01/1990 - 01/1995	1
67861 - WEATHERSTRIP, FRONT DOOR, RH
67861-60010	FJ80,HDJ80,HZJ80	01/1990 - 01/1991	1
67862 - WEATHERSTRIP, FRONT DOOR, LH
67862-60010	FJ80,HDJ80,HZJ80	01/1990 - 01/1991	1
67867C - RETAINER, FRONT DOOR WEATHERSTRIP, RH
67868-22020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1995	21
67868C - RETAINER, FRONT DOOR WEATHERSTRIP, LH
67868-22020	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1995	21
68101 - GLASS SUB-ASSY, FRONT DOOR, RH
68111-60060	FJ80,FZJ80,HDJ80,HZJ80 *TT,T=4.0	01/1990 - 08/1996	1
68102 - GLASS SUB-ASSY, FRONT DOOR, LH
68112-60050	FJ80,FZJ80,HDJ80,HZJ80 *TT,T=4.0	01/1990 - 08/1996	1
68141E - RUN, FRONT DOOR GLASS, RH
68141-60010	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
68151D - RUN, FRONT DOOR GLASS, LH
68151-60010	FJ80,HDJ80,HZJ80	01/1990 - 08/1992	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	2
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	2
68610 - CHECK ASSY, FRONT DOOR
68610-60010	FJ80,HDJ80,HZJ80	01/1990 - 01/1992	2
68617 - PIN, FRONT DOOR CHECK
68617-20011	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	2
Common parts
90119-06241
90119-06307
90333-20001
90333-35004
90541-09038
90950-01345

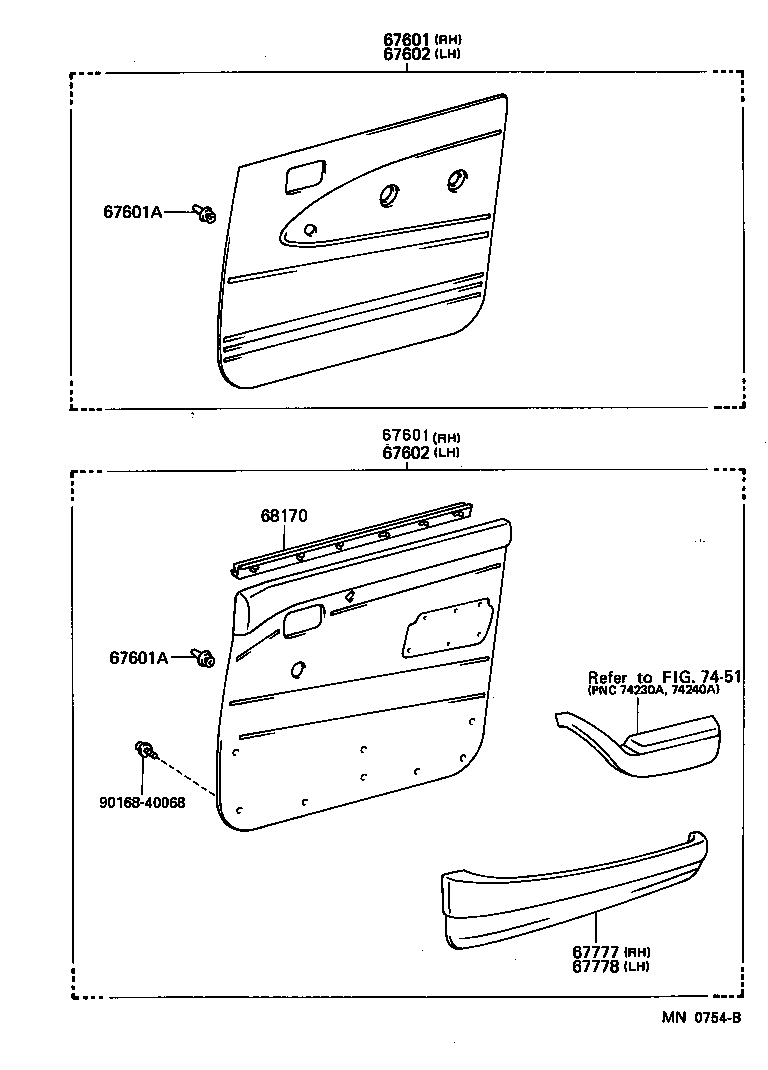

ILLUST NO. 2 OF 2(9001- )GX,STD

Click highlighted areas on diagram

DOOR TRIM

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67610-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67610-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040	FJ80,HDJ80,HZJ80..GX,VX GRAY	03/1990 - 04/1990	22
67771-12040	FJ80,HDJ80,HZJ80..GX GRAY	01/1990 - 03/1990	26
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	04/1990 - 07/1991	26
67771-12040	FJ80,HDJ80,HZJ80..GX W(POWER WINDOW),GRAY	01/1990 - 03/1990	22
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	03/1990 - 04/1990	4
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040	FJ80,HDJ80,HZJ80..GX,VX GRAY	03/1990 - 04/1990	22
67771-12040	FJ80,HDJ80,HZJ80..GX GRAY	01/1990 - 03/1990	26
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	04/1990 - 07/1991	26
67771-12040	FJ80,HDJ80,HZJ80..GX W(POWER WINDOW),GRAY	01/1990 - 03/1990	22
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	03/1990 - 04/1990	4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67620-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67620-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67777-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67778-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	2
Common parts
90168-40068
Linked diagrams
7451

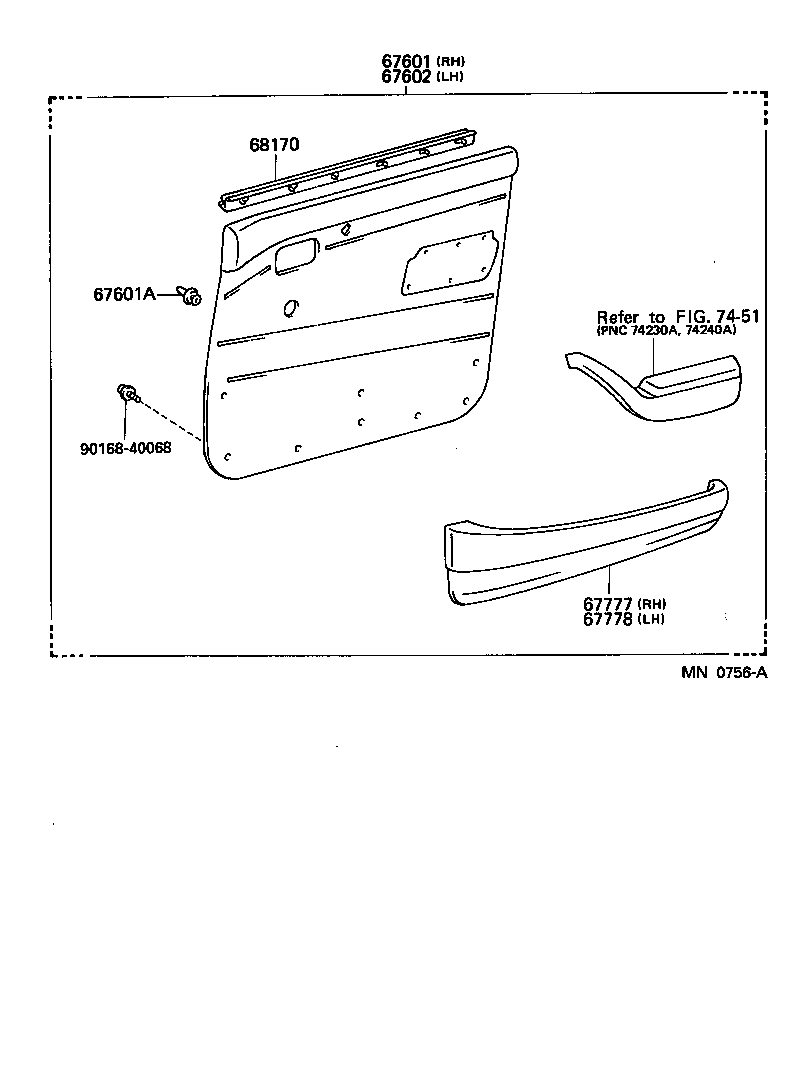

ILLUST NO. 2 OF 2(9001- )GX,VX

Click highlighted areas on diagram

DOOR TRIM,W(POWER WINDOW)

Part #	Description	Period	Qty
67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH
67610-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67610-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67610-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67601A - RETAINER(FOR FRONT DOOR TRIM BOARD)
67771-12040	FJ80,HDJ80,HZJ80..GX,VX GRAY	03/1990 - 04/1990	22
67771-12040	FJ80,HDJ80,HZJ80..GX GRAY	01/1990 - 03/1990	26
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	04/1990 - 07/1991	26
67771-12040	FJ80,HDJ80,HZJ80..GX W(POWER WINDOW),GRAY	01/1990 - 03/1990	22
67771-12050	FJ80,HDJ80,HZJ80..GX,VX RED	03/1990 - 04/1990	4
67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH
67620-6006003	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67620-6006006	FJ80,FZJ80,HDJ80,HZJ80..GX W(POWER WINDOW),SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67620-6004003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1995	1
67777 - POCKET, FRONT DOOR TRIM, RH
67777-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67777-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
67778 - POCKET, FRONT DOOR TRIM, LH
67778-6001006	FJ80,FZJ80,HDJ80,HZJ80..GX SABLE,TRIM4#	01/1990 - 01/1995	1
67778-6001003	FJ80,FZJ80,HDJ80,HZJ80..GX BLUISH GRAY,TRIM1#	01/1990 - 01/1998	1
68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER
68170-60030	FJ80,FZJ80,HDJ80,HZJ80..GX,VX	01/1990 - 01/1998	2
Common parts
90168-40068
Linked diagrams
7451
8602
