FJ80L-GNPNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1991
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001-9501)

Click highlighted areas on diagram

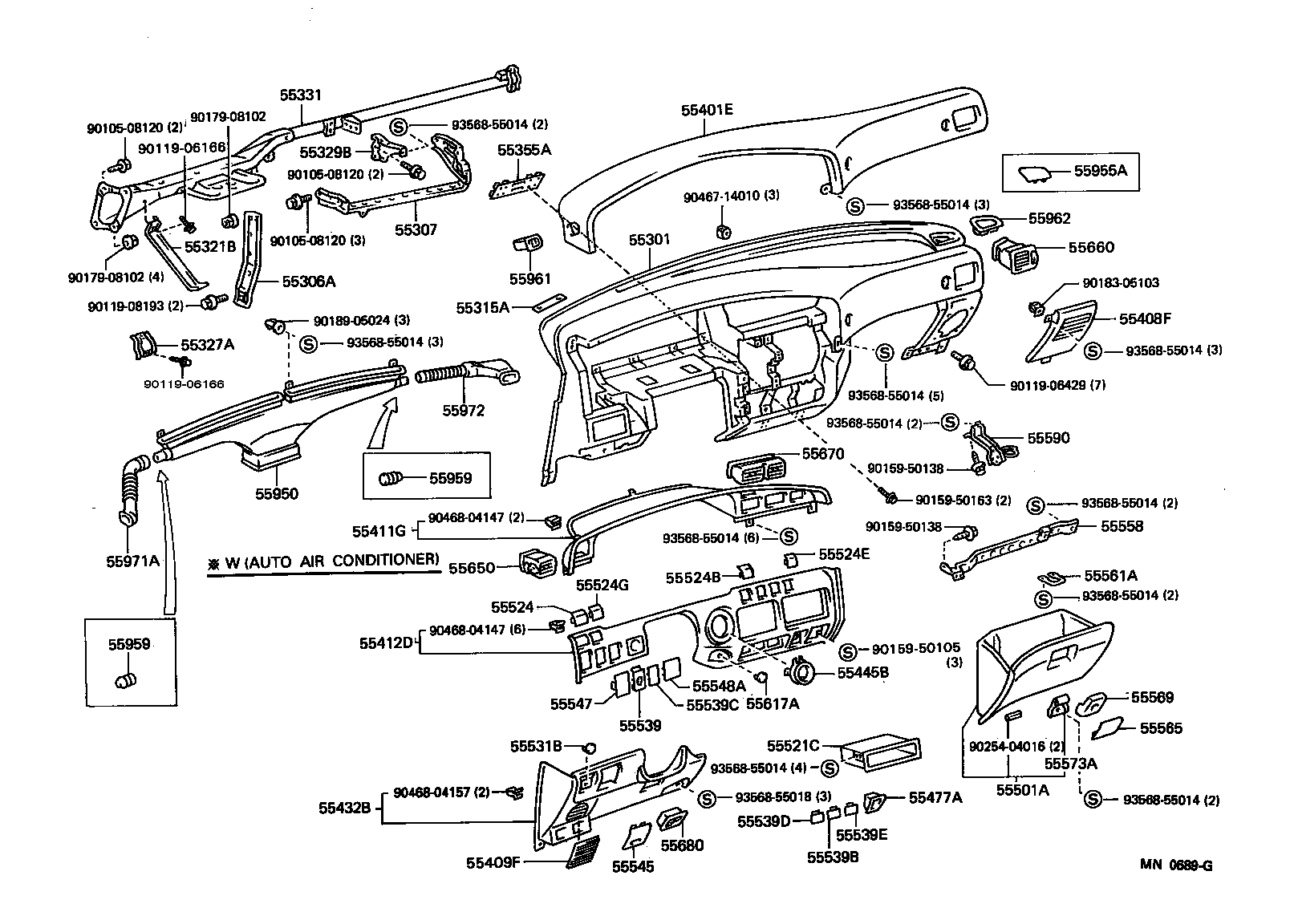

INSTRUMENT PANEL

diagram 55301 55306A 55307 55315A 55321B 55327A 55329B 55331 55355A 55401E 55408F 55409F 55411G 55412D 55432B 55445B 55477A 55501A 55521C 55524 55524B 55524E 55524G 55531B 55539 55539B 55539C 55539D 55539E 55545 55547 55548A 55558 55561A 55565 55569 55573A 55590 55617A 55650 55660 55670 55680 55950 55955A 55959 55959 55961 55962 55971A 55972 9010508120 9010508120 9010508120 9011906166 9011906166 9011906429 9011908193 9015950105 9015950138 9015950138 9015950163 9017908102 9017908102 9018305103 9018905024 9025404016 9046714010 9046804147 9046804147 9046804157 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855018
Part # Description Qty Price
Common parts
90105-08120
90119-06166
90119-06429
90119-08193
90159-50105
90159-50138
90159-50163
90179-08102
90183-05103
90189-05024
90254-04016
90467-14010
90468-04147
90468-04157
93568-55014
93568-55018

(9001-9501)LHD

Click highlighted areas on diagram

diagram 55301 55306A 55307 55321B 55327A 55329B 55331 55355A 55358H 55359A 55401E 55408F 55409F 55411G 55412D 55432B 55445B 55477A 55501A 55521C 55521C 55522B 55522B 55524B 55524C 55524D 55524E 55524G 55531B 55539 55539 55539B 55539C 55539D 55539E 55545 55547 55548A 55558 55561A 55565 55569 55573A 55590 55617A 55650 55660 55670 55680 55950 55955A 55959 55959 55961 55962 55971A 55972 9010508120 9010508120 9010508120 9011906166 9011906166 9011906429 9011908193 9015950138 9015950138 9015950163 9017908102 9017908102 9018305103 9018905024 9025404016 9046714010 9046804147 9046804147 9046804157 9354055020 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9356855014 9418040400
Part # Description Qty Price
55301 - PANEL SUB-ASSY, INSTRUMENT
55311-6012003

FJ80,FZJ80,HDJ80,HZJ80..LHD

BLUISH GRAY,TRIM1#

 1
55311-6012006

FJ80,FZJ80,HDJ80,HZJ80..LHD

SABLE,TRIM4#

 1
55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55306-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55306-60030

FJ80,FZJ80,HDJ80,HZJ80..LHD

W(WINCH)

 1
55307 - REINFORCEMENT SUB-ASSY, INSTRUMENT PANEL, LOWER
55307-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55321B - BRACKET, INSTRUMENT PANEL, NO.1
55321-60020

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55327A - STAY, INSTRUMENT PANEL, NO.2
55327-60020

FJ80,FZJ80,HDJ80,HZJ80

 1
55329B - STAY, INSTRUMENT PANEL, NO.4
55329-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55331 - REINFORCEMENT, INSTRUMENT PANEL
55330-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55355A - PLATE, INSTRUMENT PANEL
55355-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY
55401-6003003

FJ80,HDJ80,HZJ80..LHD

BLUISH GRAY,TRIM1#

 1
55401-6003006

FJ80,HDJ80,HZJ80..LHD

SABLE,TRIM4#

 1
55401-6007006

FJ80

COLD SPEC,SABLE,TRIM4#

 1
55401-6007003

FJ80

COLD SPEC,BLUISH GRAY,TRIM1#

 1
55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55472-6001003

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

BLUISH GRAY,TRIM1#

 1
55472-6001006

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

SABLE,TRIM4#

 1
55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1
55411-60050

FJ80,FZJ80,HDJ80,HZJ80..LHD..(GX,VX)

 1
55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER
55412-60010

FJ80,HDJ80,HZJ80..LHD

W(RADIO)

 1
55412-60030

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER
55432-6001006

FJ80,HDJ80,HZJ80..GX,STD

SABLE,TRIM4#

 1
55432-6001003

FJ80,HDJ80,HZJ80..GX,STD

BLUISH GRAY,TRIM1#

 1
55445B - PLATE, INSTRUMENT PANEL FINISH
55445-60030

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
55477A - BEZEL, CIGARETTE LIGHTER HOLE
55477-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55501A - DOOR SUB-ASSY, GLOVE COMPARTMENT
55501-6005003

FJ80,HDJ80,HZJ80..LHD

BLUISH GRAY,TRIM1#

 1
55501-6005006

FJ80,HDJ80,HZJ80..LHD

SABLE,TRIM4#

 1
55521C - COVER, STEREO OPENING
55521-12110

FJ80,HDJ80,HZJ80..LHD

BOX TYPE

 1
55521C - COVER, STEREO OPENING
55521-12110

FJ80,HDJ80,HZJ80..LHD

BOX TYPE

 1
55522B - COVER, RADIO TUNER OPENING
55522-20060

FJ80,FZJ80,HDJ80,HZJ80..LHD

TYPE B

 1
55522-32010

FJ80,HDJ80,HZJ80..LHD

TYPE A

 1
55522B - COVER, RADIO TUNER OPENING
55522-20060

FJ80,FZJ80,HDJ80,HZJ80..LHD

TYPE B

 1
55522-32010

FJ80,HDJ80,HZJ80..LHD

TYPE A

 1
55524D - COVER, SWITCH BASE HOLE, NO.5
55524-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55524E - COVER, SWITCH BASE HOLE, NO.6
55524-60010

FJ80,HZJ80;HDJ80..ATM;HDJ80..LHD..MTM

 1
55524G - COVER, SWITCH BASE HOLE, NO.2
55524-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55531B - COVER, CHOKE KNOB HOLE
55477-10050

FJ80,HDJ80,HZJ80..LHD

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

BLACK,TRIM1#,4#

 1
55539 - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

BLACK,TRIM1#,4#

 1
55539B - COVER, SPARE SWITCH HOLE, NO.2
55539-3201011

FJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539C - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80..LHD

BLACK,TRIM1#,4#

 1
55539D - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55539E - COVER, SPARE SWITCH HOLE
55539-3201011

FJ80,FZJ80,HDJ80,HZJ80

BLACK,TRIM1#,4#

 1
55545 - COVER, FUSE BOX OPENING
55540-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55547 - COVER, REMOTE CONTROL MIRROR HOLE
55547-95J00

FJ80,FZJ80,HDJ80,HZJ80..GX,STD

 1
55548A - COVER, INSTRUMENT PANEL HOLE
55548-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55558 - REINFORCEMENT, GLOVE COMPARTMENT DOOR
55558-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55561A - STRIKER, GLOVE COMPARTMENT DOOR LOCK
55561-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK
55565-8910113

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55565-8910116

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
55569 - COVER, GLOVE COMPARTMENT DOOR LOCK
55569-8910116

FJ80,FZJ80,HDJ80,HZJ80

SABLE,TRIM4#

 1
55569-8910113

FJ80,FZJ80,HDJ80,HZJ80

BLUISH GRAY,TRIM1#

 1
55573A - HINGE, GLOVE COMPARTMENT DOOR
55573-32010

FJ80,FZJ80,HDJ80,HZJ80

 2
55590 - PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER
55590-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1
55650-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2
55660-6003003

FJ80,FZJ80,HDJ80,HZJ80..LHD

BLUISH GRAY,TRIM1#

 1
55660-6003006

FJ80,FZJ80,HDJ80,HZJ80..LHD

SABLE,TRIM4#

 1
55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3
55670-60010

FJ80,FZJ80,HDJ80,HZJ80

 1
55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1
55680-89101

HDJ80..GX;FJ80,HZJ80

 1
55950 - NOZZLE ASSY, DEFROSTER
55950-60010

FJ80,FZJ80,HDJ80,HZJ80..LHD

 1
55955A - PLATE, DEFROSTER NOZZLE OPENING, NO.1
55955-6002003

FJ80,HDJ80,HZJ80..LHD

BLUISH GRAY,TRIM1#

 1
55955-6002006

FJ80,HDJ80,HZJ80..LHD

SABLE,TRIM4#

 1
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

FJ80,HDJ80,HZJ80

 2
55959 - COVER, DEFROSTER NOZZLE OPENING, NO.1
55959-14010

FJ80,HDJ80,HZJ80

 2
55961 - NOZZLE, SIDE DEFROSTER, NO.1
55961-6001006

FJ80

COLD SPEC,SABLE,TRIM4#

 1
55961-6001003

FJ80

COLD SPEC,BLUISH GRAY,TRIM1#

 1
55962 - NOZZLE, SIDE DEFROSTER, NO.2
55962-6001003

FJ80

COLD SPEC,BLUISH GRAY,TRIM1#

 1
55962-6001006

FJ80

COLD SPEC,SABLE,TRIM4#

 1
55971A - DUCT, SIDE DEFROSTER NOZZLE, NO.1
55971-60010

FJ80

COLD SPEC

 1
55972 - DUCT, SIDE DEFROSTER NOZZLE, NO.2
55972-60010

FJ80

 1
Common parts
90105-08120
90119-06166
90119-06429
90119-08193
90159-50138
90159-50163
90179-08102
90183-05103
90189-05024
90254-04016
90467-14010
90468-04147
90468-04157
93540-55020
93568-55014
94180-40400
