FJ80L-GNPNEA (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

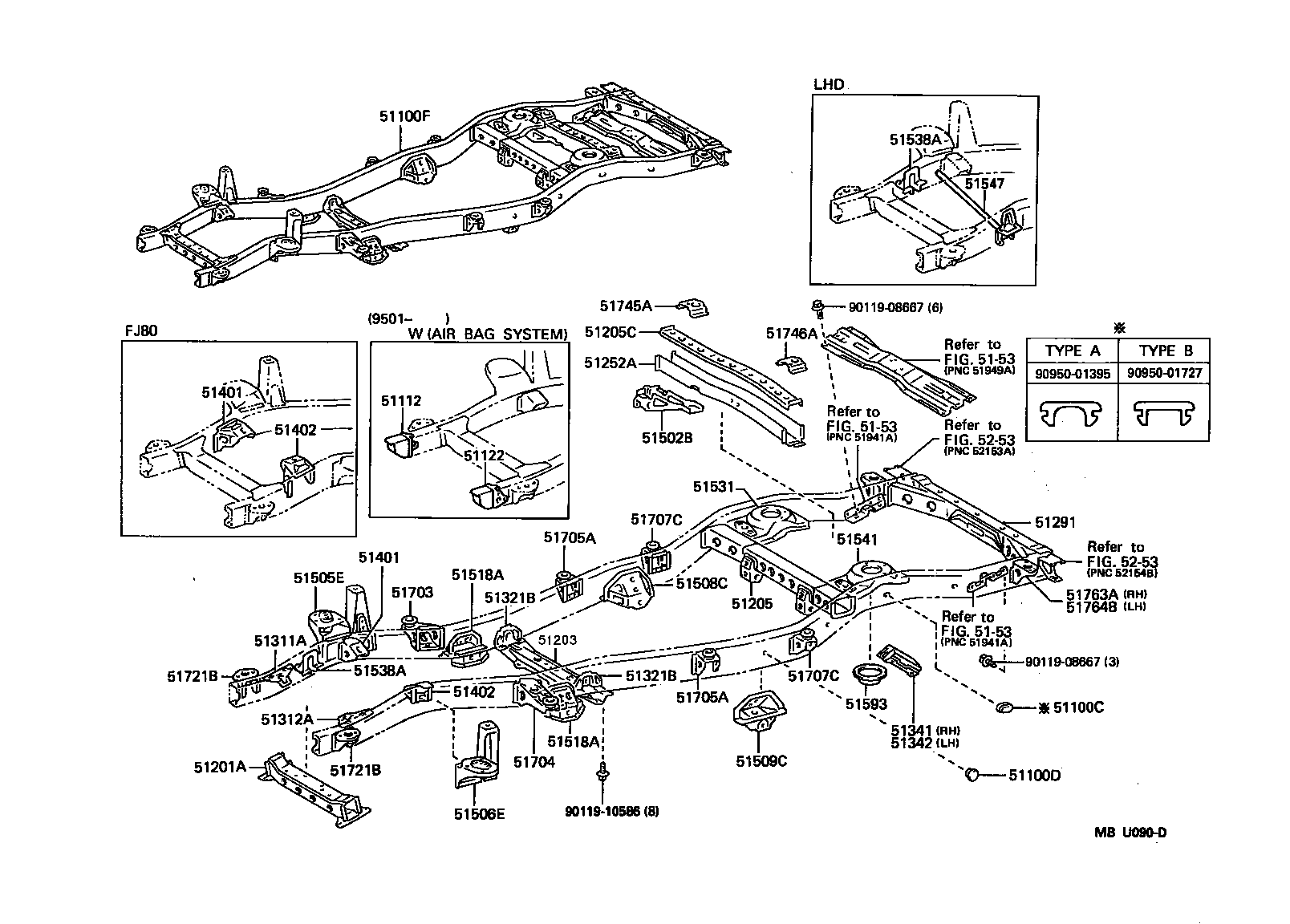

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51100C - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01395 |
FJ80,FZJ80 |
4 | ||
| 51100D - PLUG, HOLE(FOR FRAME) | ||||
| 90950-01675 |
FJ80 |
4 | ||
| 51100F - FRAME SUB-ASSY | ||||
| 51003-60191 |
FJ80 |
1 | ||
| 51003-60190 |
FJ80 |
1 | ||
| 51201A - CROSSMEMBER SUB-ASSY, FRAME, FRONT | ||||
| 51201-60120 |
FJ80,FZJ80 |
1 | ||
| 51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2 | ||||
| 51202-60160 |
FJ80,FZJ80 |
1 | ||
| 51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4 | ||||
| 51204-60100 |
FJ80,FZJ80 |
1 | ||
| 51205C - CROSSMEMBER SUB-ASSY, FRAME, NO.5 | ||||
| 51251-60060 |
FJ80,FZJ80 |
1 | ||
| 51252A - CROSSMEMBER, FRAME, NO.5 LOWER | ||||
| 51252-60010 |
FJ80 |
1 | ||
| 51291 - CROSSMEMBER, FRAME, REAR | ||||
| 51209-60110 |
FJ80 |
1 | ||
| 51311A - GUSSET, REAR FRAME, UPPER RH | ||||
| 51311-60050 |
FJ80,FZJ80 |
1 | ||
| 51312A - GUSSET, REAR FRAME, UPPER LH | ||||
| 51312-60030 |
FJ80,FZJ80 |
1 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-60050 |
FJ80,FZJ80 |
2 | ||
| 51321B - GUSSET, CROSSMEMBER, NO.2 | ||||
| 51321-60050 |
FJ80,FZJ80 |
2 | ||
| 51341 - GUSSET, FRAME NO.4 CROSSMEMBER, RH | ||||
| 51341-60030 |
FJ80,FZJ80 |
1 | ||
| 51342 - GUSSET, FRAME NO.4 CROSSMEMBER, LH | ||||
| 51342-60030 |
FJ80,FZJ80 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60150 |
FJ80 |
1 | ||
| 51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH | ||||
| 51421-60150 |
FJ80 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60150 |
FJ80 |
1 | ||
| 51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH | ||||
| 51422-60150 |
FJ80 |
1 | ||
| 51502B - BRACKET SUB-ASSY, LATERAL ROD SUPPORT | ||||
| 51502-60010 |
FJ80,FZJ80 |
1 | ||
| 51505E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, RH | ||||
| 51505-60011 |
FJ80 |
1 | ||
| 51505-60010 |
FJ80 |
1 | ||
| 51506E - BRACKET SUB-ASSY, FRONT SPRING SUPPORT, LH | ||||
| 51506-60010 |
FJ80 |
1 | ||
| 51506-60011 |
FJ80 |
1 | ||
| 51508C - BRACKET SUB-ASSY, LOWER CONTROL LINK, RH | ||||
| 51508-60010 |
FJ80,FZJ80 |
1 | ||
| 51509C - BRACKET SUB-ASSY, LOWER CONTROL LINK, LH | ||||
| 51509-60010 |
FJ80,FZJ80 |
1 | ||
| 51518A - BRACKET, LEADING ARM | ||||
| 51518-60020 |
FJ80,FZJ80 |
2 | ||
| 51518A - BRACKET, LEADING ARM | ||||
| 51518-60020 |
FJ80,FZJ80 |
2 | ||
| 51531 - BRACKET, REAR SPRING SUPPORT, RH | ||||
| 51531-60020 |
FJ80,FZJ80 |
1 | ||
| 51538A - STAY, LATERAL ROD SUPPORT, FRONT RH | ||||
| 51538-60020 |
FJ80,FZJ80 |
1 | ||
| 51538A - STAY, LATERAL ROD SUPPORT, FRONT RH | ||||
| 51538-60020 |
FJ80,FZJ80 |
1 | ||
| 51541 - BRACKET, REAR SPRING SUPPORT, LH | ||||
| 51541-60020 |
FJ80,FZJ80 |
1 | ||
| 51593 - BRACKET, REAR SPRING BUMPER | ||||
| 51593-60010 |
FJ80,FZJ80 |
2 | ||
| 51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH | ||||
| 51703-60040 |
FJ80,FZJ80 |
1 | ||
| 51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH | ||||
| 51704-60040 |
FJ80,FZJ80 |
1 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-60120 |
FJ80,FZJ80 |
2 | ||
| 51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3 | ||||
| 51705-60120 |
FJ80,FZJ80 |
2 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-60050 |
FJ80,FZJ80 |
2 | ||
| 51707C - BRACKET SUB-ASSY, CAB MOUNTING, NO.4 RH | ||||
| 51707-60050 |
FJ80,FZJ80 |
2 | ||
| 51721B - BRACKET, CAB FRONT MOUNTING, NO.1 | ||||
| 51721-60030 |
FJ80,FZJ80 |
2 | ||
| 51721B - BRACKET, CAB FRONT MOUNTING, NO.1 | ||||
| 51721-60030 |
FJ80,FZJ80 |
2 | ||
| 51745A - BRACKET, REAR BODY MOUNTING, NO.5 RH | ||||
| 51745-60010 |
FJ80,FZJ80 |
1 | ||
| 51746A - BRACKET, REAR BODY MOUNTING, NO.5 LH | ||||
| 51746-60020 |
FJ80,FZJ80 |
1 | ||
| 51763A - BRACKET, BODY SUPPORT, NO.6 RH | ||||
| 51763-60020 |
FJ80,FZJ80 |
1 | ||
| 51764B - BRACKET, BODY SUPPORT, NO.6 LH | ||||
| 51764-60020 |
FJ80,FZJ80 |
1 | ||
| Common parts | ||||
| 90119-08667 | ||||
| 90119-10586 | ||||
| 90950-01395 | ||||
| 90950-01727 | ||||
| Linked diagrams | ||||
| 5153 | ||||
| 5253 | ||||
(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08667 | ||||
| 90119-10586 | ||||
| 90950-01395 | ||||
| 90950-01727 | ||||
| Linked diagrams | ||||
| 5153 | ||||
| 5253 | ||||
