FJ80L-GNPNEA (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

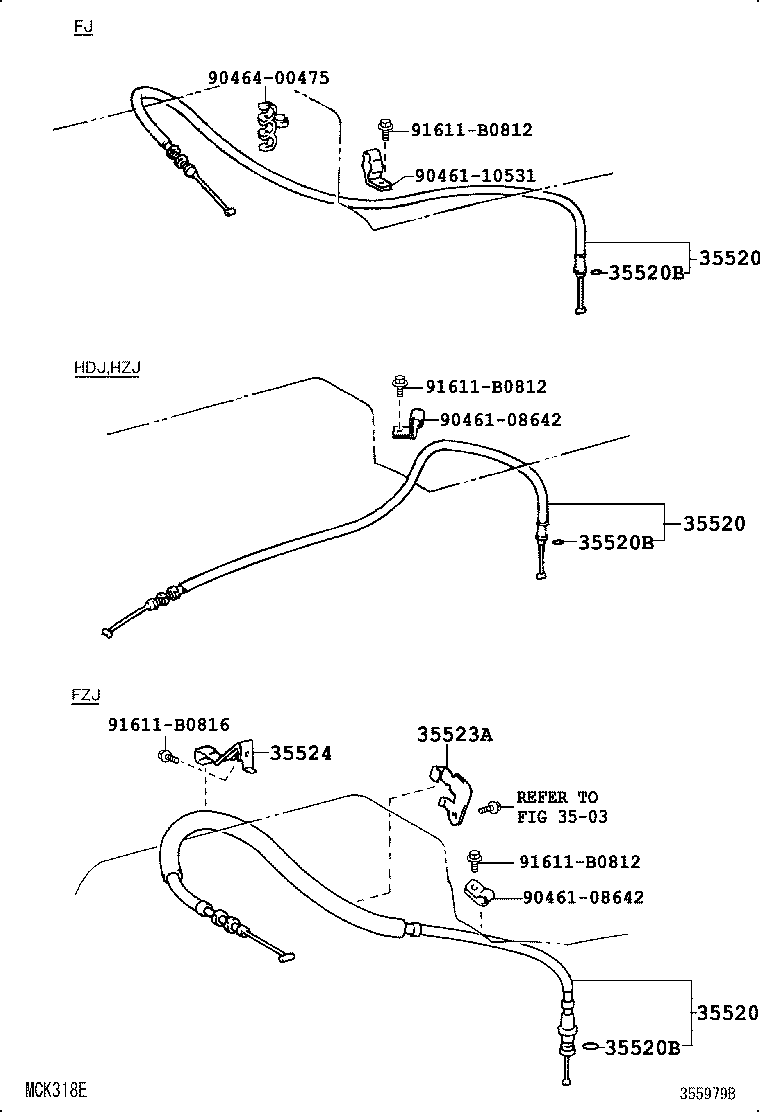

ILLUST NO. 2 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-60090 |
FJ80 |
1 | ||
| 35520 - CABLE ASSY, THROTTLE | ||||
| 35520-60090 |
FJ80 |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
FJ80 |
1 | ||
| 35520B - RING, O(FOR THROTTLE CABLE) | ||||
| 90301-09004 |
FJ80 |
1 | ||
| Common parts | ||||
| 90461-08642 | ||||
| 90461-08681 | ||||
| 90461-10531 | ||||
| 91611-B0812 | ||||
| 91611-B0816 | ||||
| 91651-40610 | ||||
| Linked diagrams | ||||
| 3503 | ||||

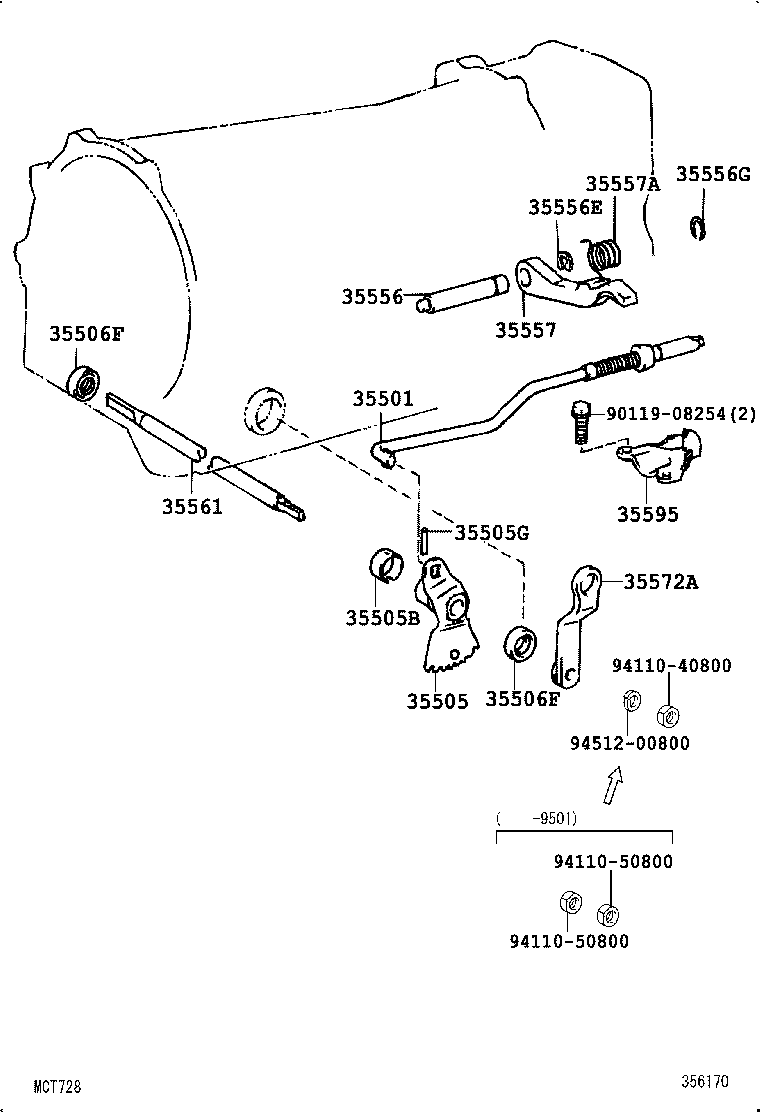

ILLUST NO. 1 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35501 - ROD SUB-ASSY, PARKING LOCK | ||||
| 35501-36010 |
FJ80,FZJ80 |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-60010 |
FJ80 |
1 | ||
| 35505B - SPACER (FOR MANUAL VALVE LEVER) | ||||
| 90560-20008 |
FJ80 |
1 | ||
| 35505G - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER) | ||||
| 90254-04012 |
FJ80,FZJ80 |
1 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
FJ80 |
2 | ||
| 35506F - SEAL, OIL (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90311-12002 |
FJ80 |
2 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-36010 |
FJ80,FZJ80 |
1 | ||
| 35556G - RING, SNAP (FOR PARKING LOCK PAWL SHAFT) | ||||
| 96150-01600 |
FJ80 |
1 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-36010 |
FJ80,FZJ80 |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-30003 |
FJ80,FZJ80 |
1 | ||
| 35561 - SHAFT, MANUAL VALVE LEVER | ||||
| 35561-60010 |
FJ80 |
1 | ||
| 35572A - LEVER, TRANSMISSION CONTROL SHAFT | ||||
| 35572-60050 |
FJ80,FZJ80 |
1 | ||
| 35595 - BRACKET, PARKING LOCK PAWL | ||||
| 35595-36010 |
FJ80,FZJ80 |
1 | ||
| Common parts | ||||
| 90119-08254 | ||||
| 94110-40800 | ||||
| 94110-50800 | ||||
| 94512-00800 | ||||

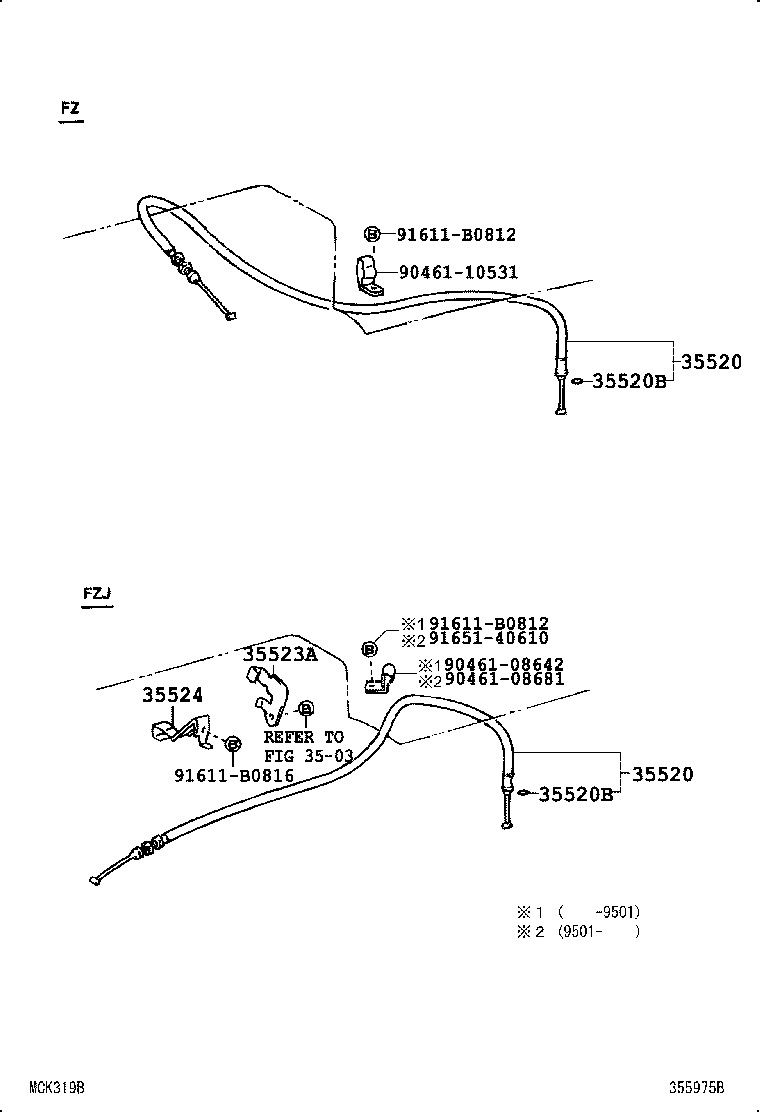

ILLUST NO. 2 OF 2(9001- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90461-08642 | ||||
| 90461-10531 | ||||
| 90464-00475 | ||||
| 91611-B0812 | ||||
| 91611-B0816 | ||||
| Linked diagrams | ||||
| 3503 | ||||

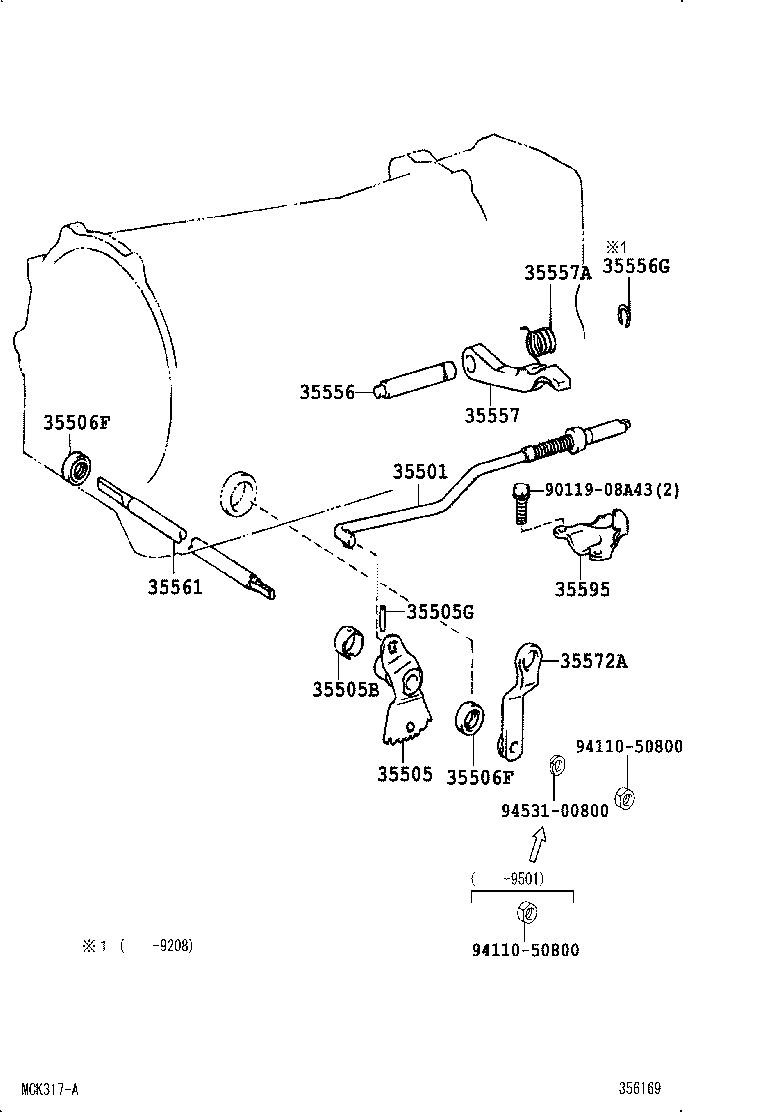

ILLUST NO. 1 OF 2(9001- )ATM
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-08A43 | ||||
| 94110-50800 | ||||
| 94531-00800 | ||||
