FJ80L-GNPNEA (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001- )

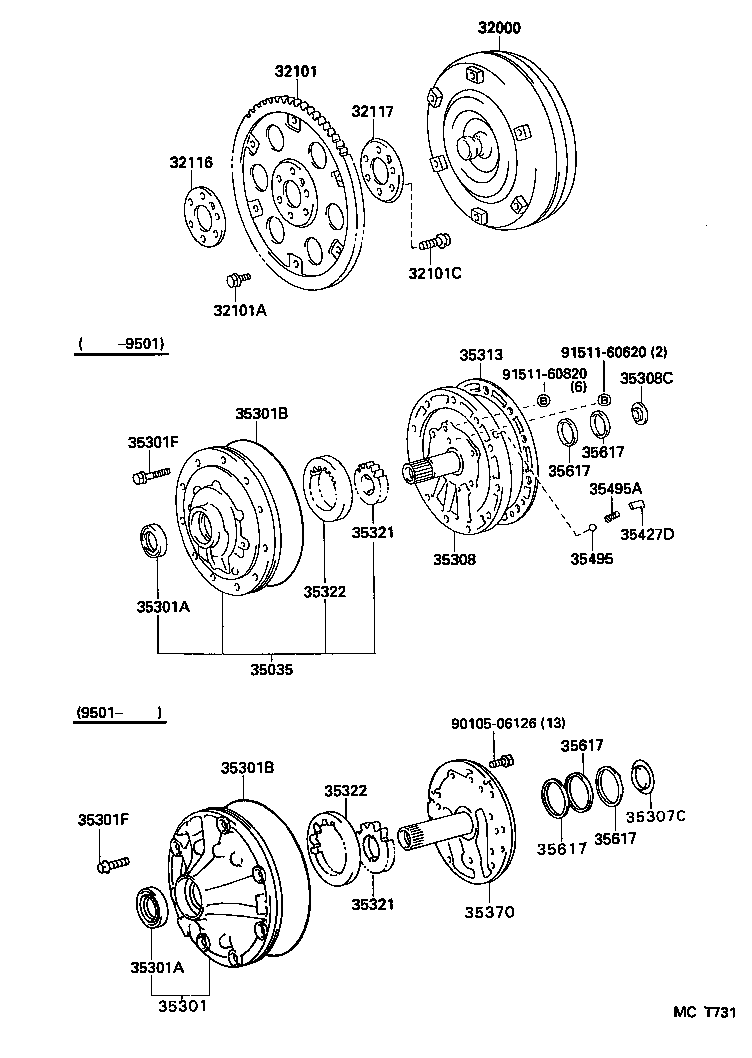

Click highlighted areas on diagram
A440F,A442F,A343F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32000 - CONVERTER ASSY, TORQUE | ||||
| 32000-60031 |
FJ80 |
1 | ||
| 32101 - GEAR SUB-ASSY, DRIVE PLATE & RING | ||||
| 32101-60011 |
FJ80 |
1 | ||
| 32101A - BOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING) | ||||
| 90119-08497 |
FJ80 *8-1.25PX14-10 |
5 | ||
| 90119-08523 |
FJ80 *8-1.25PX14-9 |
1 | ||
| 32101C - BOLT, HEXAGON(FOR DRIVE PLATE SETTING) | ||||
| 90105-11030 |
FJ80 |
6 | ||
| 32116 - SPACER, DRIVE PLATE, FRONT | ||||
| 32116-60011 |
FJ80 |
1 | ||
| 32117 - SPACER, DRIVE PLATE, REAR | ||||
| 32117-60011 |
FJ80 |
1 | ||
| 35035 - BODY SUB-ASSY, FR OIL PUMP & GEAR | ||||
| 35035-36010 |
FJ80 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-42010 |
FJ80,FZJ80 |
1 | ||
| 35301A - SEAL, OIL (FOR FRONT OIL PUMP) | ||||
| 90311-42010 |
FJ80,FZJ80 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99029 |
FJ80 |
1 | ||
| 35301B - RING, O (FOR FRONT OIL PUMP BODY) | ||||
| 90301-99029 |
FJ80 |
1 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 91511-60850 |
FJ80 |
11 | ||
| 35301F - BOLT (FOR FRONT OIL PUMP SETTING) | ||||
| 91511-60850 |
FJ80 |
11 | ||
| 35308 - COVER SUB-ASSY, FRONT OIL PUMP | ||||
| 35308-36010 |
FJ80 |
1 | ||
| 35308C - RACE, THRUST BEARING (FOR FRONT OIL PUMP COVER) | ||||
| 35789-36050 |
FJ80,FZJ80 T=1.0 |
1 | ||
| 35789-36040 |
FJ80,FZJ80 T=0.8 |
1 | ||
| 35789-36060 |
FJ80,FZJ80 T=1.4 |
1 | ||
| 35313 - GASKET, FRONT OIL PUMP COVER | ||||
| 35313-36010 |
FJ80 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-36010 |
FJ80 T=18.45-18.48 |
1 | ||
| 35321-36020 |
FJ80 T=18.43-18.45 |
1 | ||
| 35321 - GEAR, FRONT OIL PUMP DRIVE | ||||
| 35321-36010 |
FJ80 T=18.45-18.48 |
1 | ||
| 35321-36020 |
FJ80 T=18.43-18.45 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-36020 |
FJ80 T=18.43-18.45 |
1 | ||
| 35322-36010 |
FJ80 T=18.45-18.48 |
1 | ||
| 35322 - GEAR, FRONT OIL PUMP DRIVEN | ||||
| 35322-36020 |
FJ80 T=18.43-18.45 |
1 | ||
| 35322-36010 |
FJ80 T=18.45-18.48 |
1 | ||
| 35427D - SEAT, CHECK VALVE SPRING | ||||
| 35427-36010 |
FJ80,FZJ80 |
1 | ||
| 35495 - BALL, CHECK | ||||
| 35495-36010 |
FJ80,FZJ80 |
1 | ||
| 35495A - SPRING, COMPRESSION (FOR CHECK BALL) | ||||
| 90501-18677 |
FJ80,FZJ80 |
1 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FJ80,FZJ80 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FJ80,FZJ80 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FJ80,FZJ80 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FJ80,FZJ80 |
2 | ||
| 35617 - RING, CLUTCH DRUM OIL SEAL | ||||
| 35617-36010 |
FJ80,FZJ80 |
2 | ||
| Common parts | ||||
| 90105-06126 | ||||
| 91511-60620 | ||||
| 91511-60820 | ||||
(9001- )ATM

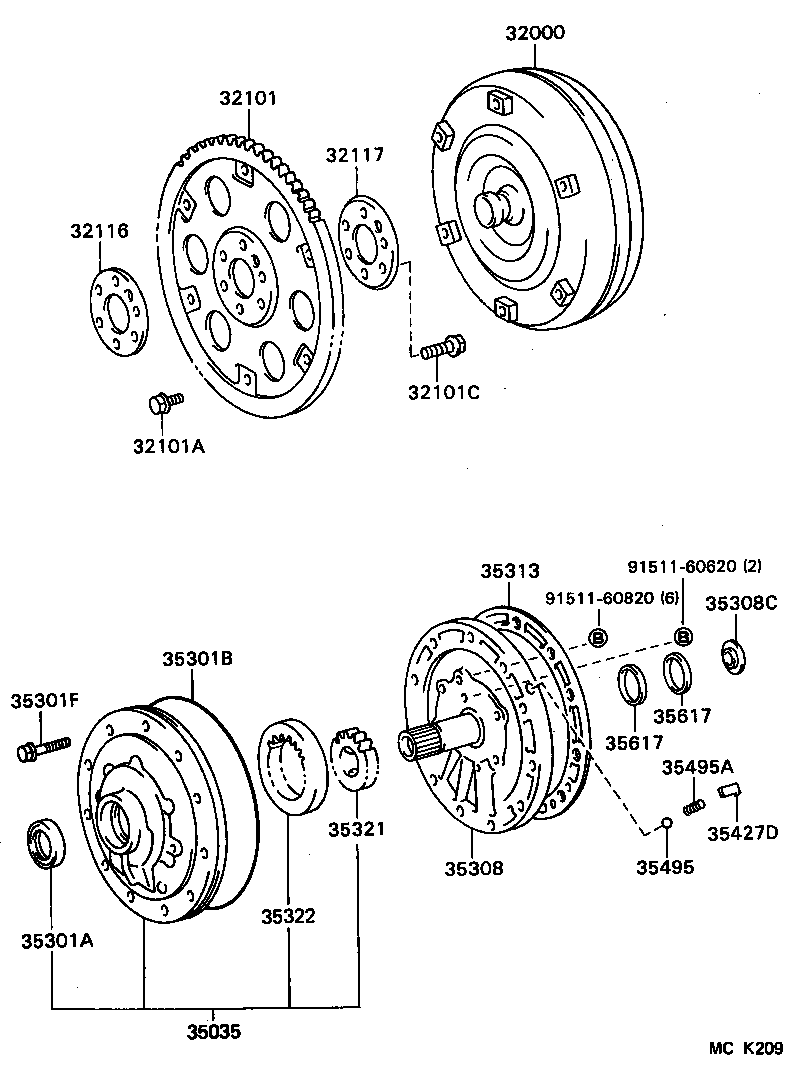

Click highlighted areas on diagram
A440F,A442F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 91511-60620 | ||||
| 91511-60820 | ||||
