FJ80L-GNPEEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

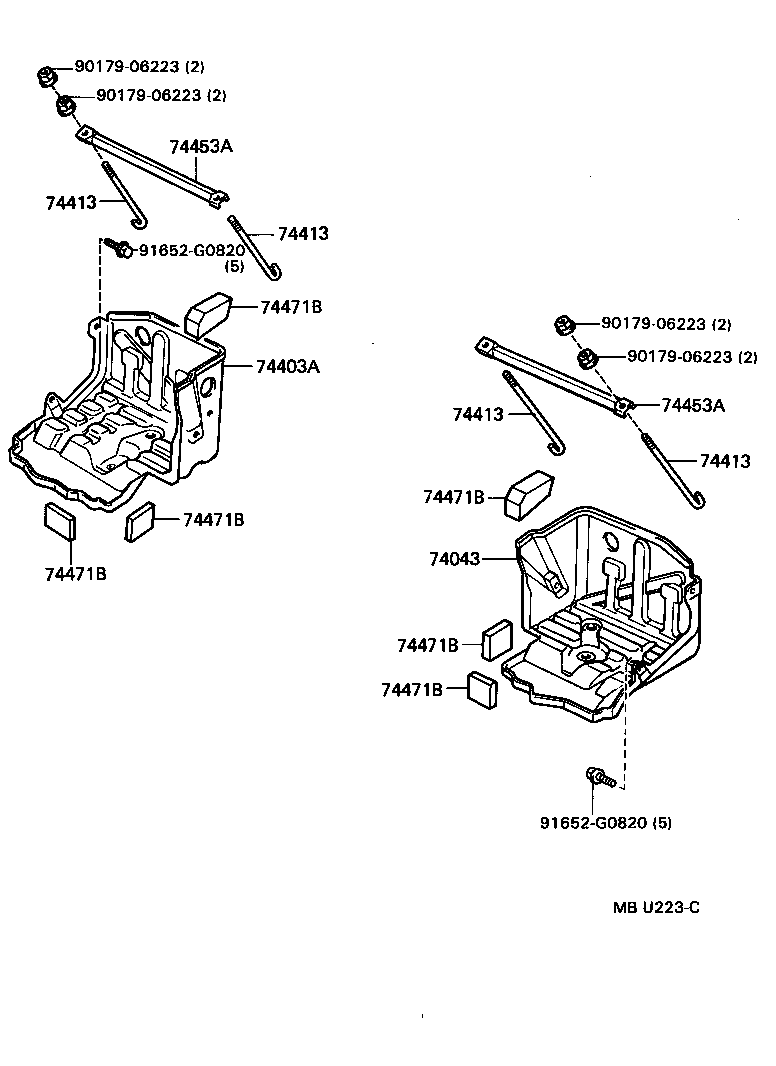

Click highlighted areas on diagram

diagram 74043 74403A 74413 74413 74413 74413 74453A 74453A 74471B 74471B 74471B 74471B 74471B 74471B 9017906223 9017906223 9017906223 9017906223 91652G0820 91652G0820
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-60100

FJ80,HDJ80,HZJ80

 1
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74453A - BAR, BATTERY SET PLATE
74453-60060

FJ80,FZJ80

 1
74453A - BAR, BATTERY SET PLATE
74453-60060

FJ80,FZJ80

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
Common parts
90179-06223
91652-G0820

(9001- )

Click highlighted areas on diagram

diagram 74043 74403A 74413 74413 74413 74413 74453A 74453A 74471B 74471B 74471B 74471B 74471B 74471B 9017906223 9017906223 9017906223 9017906223 91652G0820 91652G0820
Part # Description Qty Price
74403A - CARRIER SUB-ASSY, BATTERY
74403-60100

FJ80,HDJ80,HZJ80

 1
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74413 - BOLT, BATTERY CLAMP
74451-60040

FJ80,FZJ80

 2
74453A - BAR, BATTERY SET PLATE
74453-60060

FJ80,FZJ80

 1
74453A - BAR, BATTERY SET PLATE
74453-60060

FJ80,FZJ80

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
74471B - PAD, BATTERY BOX
74471-60040

FJ80,FZJ80

100X100

 2
74471-60070

FJ80,FZJ80

50X110

 1
Common parts
90179-06223
91652-G0820
