FJ80L-GNPEEW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

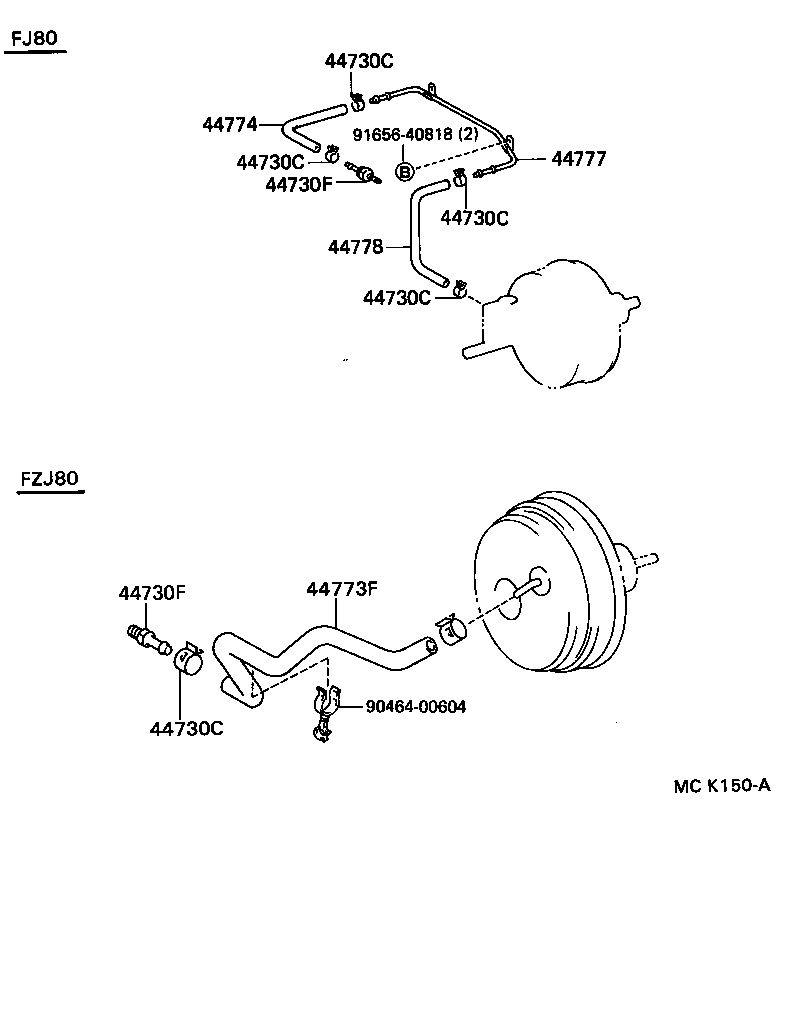

ILLUST NO. 2 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
FJ80,FZJ80 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
FJ80,FZJ80 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-60110 |
FJ80 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60150 |
FJ80 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60060 |
FJ80 |
1 | ||
| Common parts | ||||
| 90464-00604 | ||||
| 91656-40818 | ||||

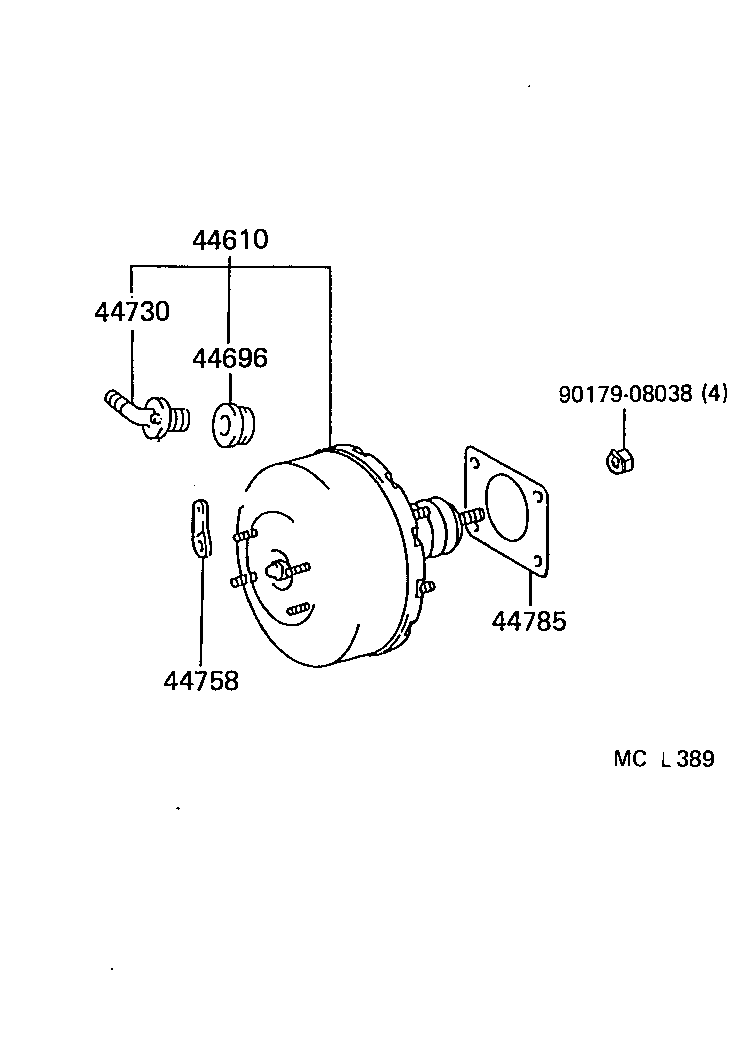

ILLUST NO. 1 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 2 OF 2(9001- )FJ80,FZJ80
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90467-16002 |
FJ80,HDJ80,HZJ80..LHD |
4 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
FJ80,FZJ80 |
1 | ||
| 44730F - UNION, VACUUM HOSE(FOR MANIFOLD SIDE) | ||||
| 90404-51319 |
FJ80,FZJ80 |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-60110 |
FJ80 |
1 | ||
| 44777 - CONNECTOR, VACUUM HOSE, NO.1 | ||||
| 44777-60150 |
FJ80 |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-60060 |
FJ80 |
1 | ||
| Common parts | ||||
| 90464-00604 | ||||
| 91656-40818 | ||||

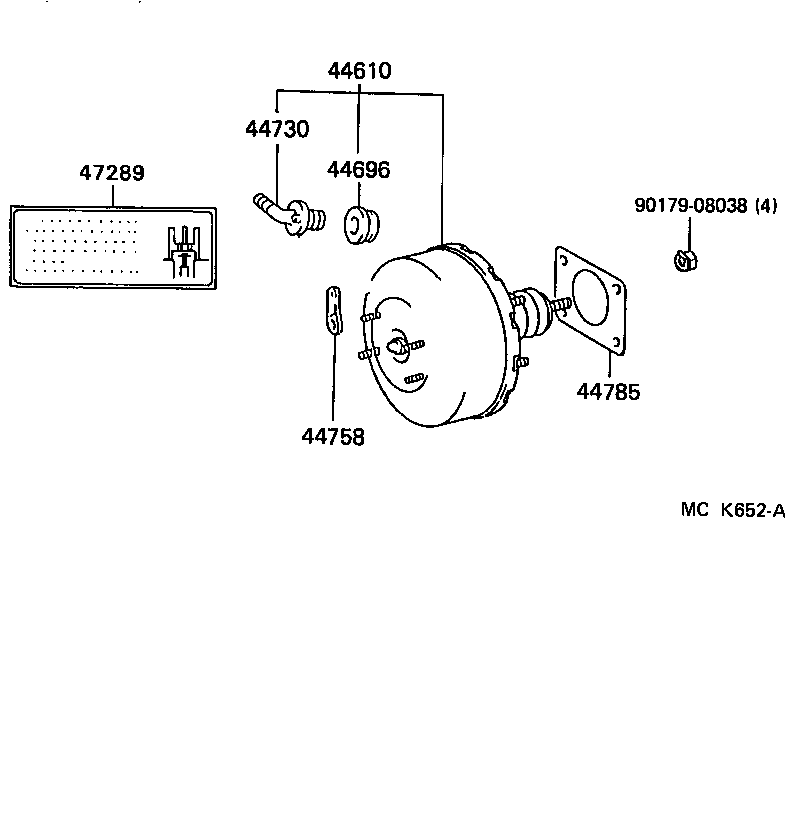

ILLUST NO. 1 OF 2(9001- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-60560 |
FJ80 |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
FJ80;FZJ80..RHD |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-14050 |
FJ80;FZJ80..RHD |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-60050 |
FJ80 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
FJ80,FZJ80,HDJ80,HZJ80 |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
