Toyota Land cruiser FJ80 DISC WHEEL & WHEEL CAP

Manufacturers Home
Toyota
EU
LAND CRUISER
FJ80L-GNPEEW (1990)
4103 - DISC WHEEL & WHEEL CAP

FJ80L-GNPEEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992

Engine 3FE

Transmission ATM

Displacement 2500cc

Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price

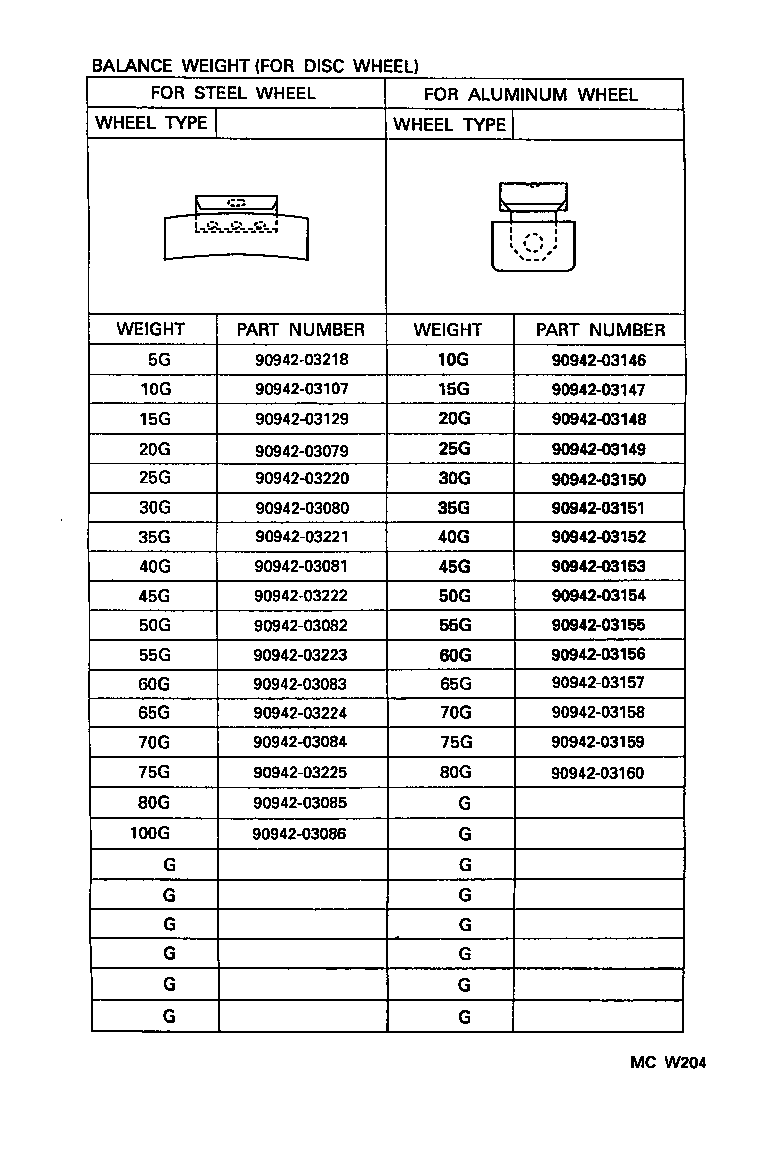

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03107
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03218
90942-03219
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225

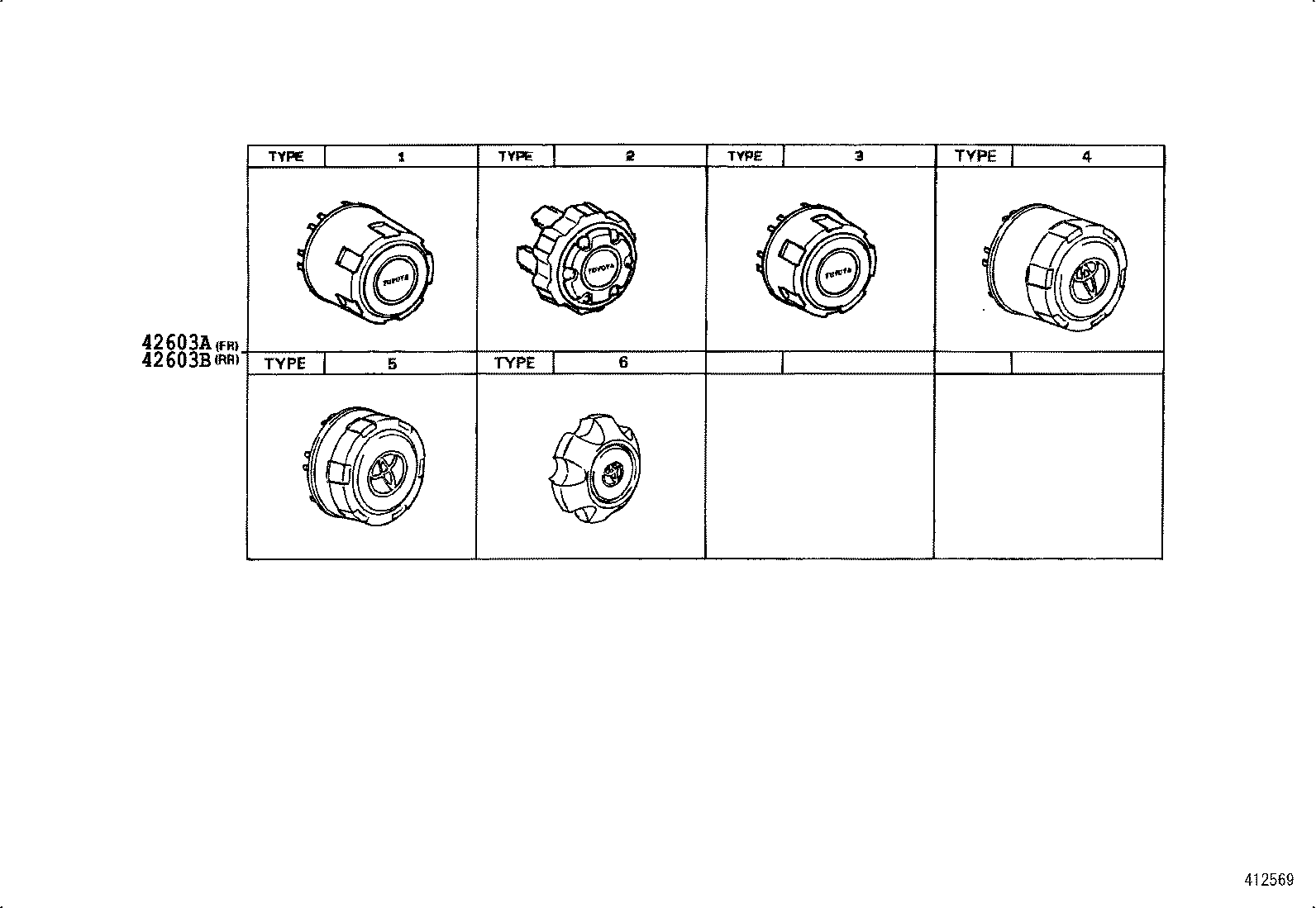

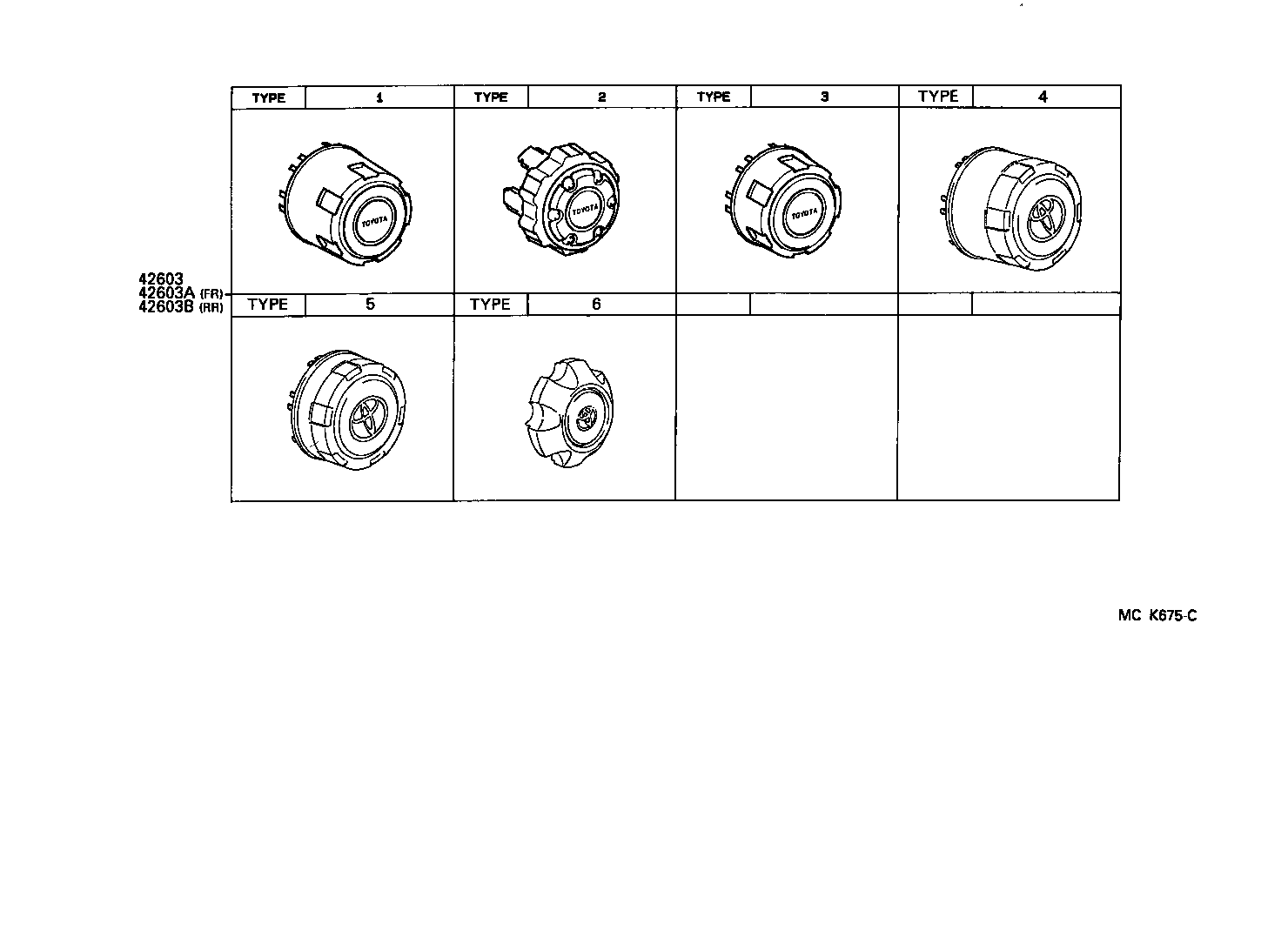

ILLUST NO. 2 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42603A - ORNAMENT SUB-ASSY, WHEEL HUB(FOR FRONT)
42603-60140	FJ80,HDJ80,HZJ80..GX,VX *ALU,W(ALUMINUM WHEEL),TYPE 2	01/1990 - 08/1992	2
42603-60110	FJ80,HDJ80,HZJ80 *STE,TYPE 1	01/1990 - 08/1992	2
42603B - ORNAMENT SUB-ASSY, WHEEL HUB(FOR REAR)
42603-60110	FJ80,HDJ80,HZJ80 STE,W(FFA),TYPE 1	01/1990 - 08/1992	2
42603-60091	FJ80 ALU,W(ALUMINUM WHEEL & FFA),TYPE 2	01/1990 - 01/1992	2
42603-60160	FJ80,HDJ80,HZJ80 *STE,TYPE 3	01/1990 - 08/1992	2
42603-60140	FJ80,HDJ80,HZJ80..GX,VX *ALU,W(ALUMINUM WHEEL),TYPE 2	01/1990 - 08/1992	2
42603-60091	FJ80,HDJ80,HZJ80..GX,VX ALU,W(ALUMINUM WHEEL & FFA),TYPE 2	01/1992 - 08/1992	2

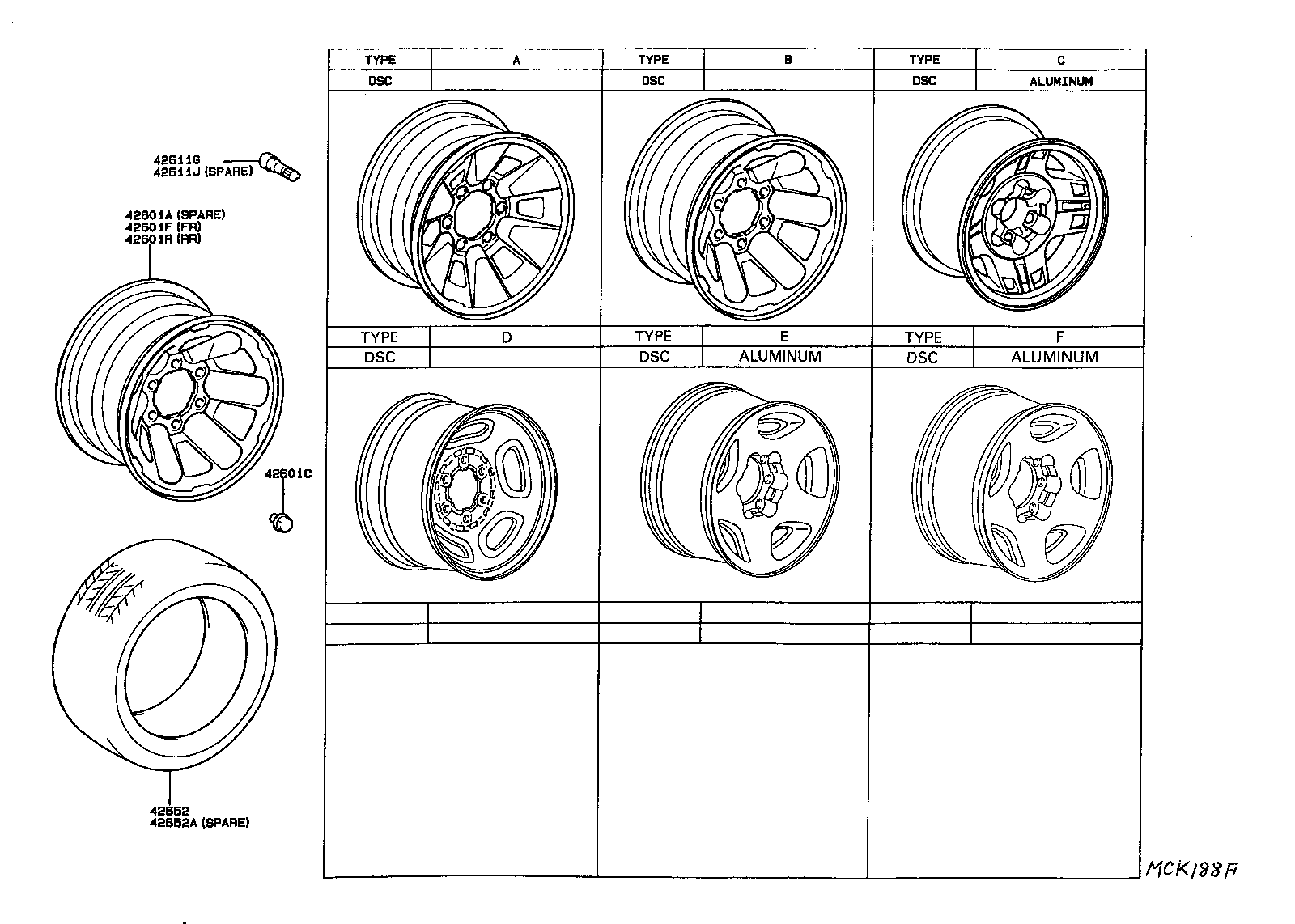

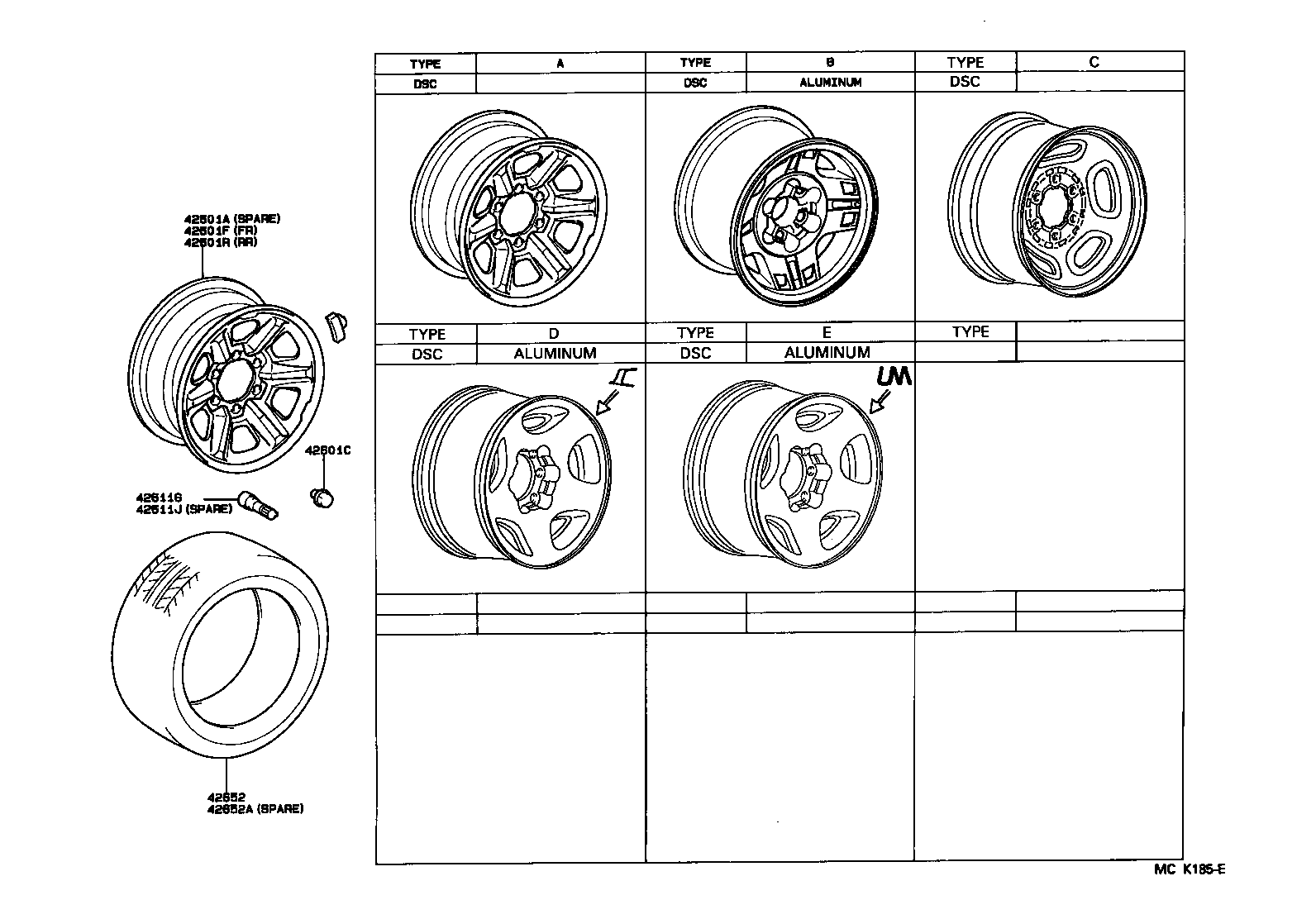

ILLUST NO. 1 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty
42601A - WHEEL, DISC (FOR SPARE)
42611-60040	FJ80,HDJ80,HZJ80..GX,VX 7JJ-15, #,ALUMINUM WHEEL, TYPE C	01/1990 - 08/1992	1
42601-3557003	FJ80,HDJ80,HZJ80..GX,VX 15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.	01/1990 - 08/1992	1
42601-35490	FJ80,HDJ80,HZJ80..GX,VX 6JX16,#,PLATED WHEEL,TYPE A	01/1990 - 01/1995	1
42601-6043003	FJ80,HDJ80,HZJ80 16X6J,OFFSET 30, #,TYPE A,SILVER M.	01/1990 - 01/1995	1
42601C - NUT, HUB (FOR AXLE)
90942-01081	FJ80,HDJ80,HZJ80..GX,VX W(ALUMINUM WHEEL)	01/1990 - 08/1992	24
90942-01082	FJ80,FZJ80,HDJ80,HZJ80	01/1990 - 01/1998	24
42601F - WHEEL, DISC (FOR FRONT)
42601-3557003	FJ80,HDJ80,HZJ80..GX,VX 15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.	01/1990 - 08/1992	2
42601-35490	FJ80,HDJ80,HZJ80..GX,VX 6JX16,#,PLATED WHEEL,TYPE A	01/1990 - 01/1995	2
42611-60040	FJ80,HDJ80,HZJ80..GX,VX 7JJ-15, #,ALUMINUM WHEEL, TYPE C	01/1990 - 08/1992	2
42601-6043003	FJ80,HDJ80,HZJ80 16X6J,OFFSET 30, #,TYPE A,SILVER M.	01/1990 - 01/1995	2
42601R - WHEEL, DISC (FOR REAR)
42601-6043003	FJ80,HDJ80,HZJ80 16X6J,OFFSET 30, #,TYPE A,SILVER M.	01/1990 - 01/1995	2
42611-60040	FJ80,HDJ80,HZJ80..GX,VX 7JJ-15, #,ALUMINUM WHEEL, TYPE C	01/1990 - 08/1992	2
42601-35490	FJ80,HDJ80,HZJ80..GX,VX 6JX16,#,PLATED WHEEL,TYPE A	01/1990 - 01/1995	2
42601-3557003	FJ80,HDJ80,HZJ80..GX,VX 15X7JJ, #,PLATED WHEEL, TYPE B,SILVER M.	01/1990 - 08/1992	2
42652 - TIRE
42605-6A120	FJ80,HDJ80,HZJ80..GX,VX 265/75R15,*D/L	01/1990 - 08/1992	4
42605-6A190	FJ80,HDJ80,HZJ80..GX,VX 265/75R15,*B/S	01/1990 - 08/1992	4
42605-6A150	FJ80,HDJ80,HZJ80..DSL,EFI,TD2 215/80R16,*D/L	01/1990 - 01/1998	4
42605-6A160	FJ80,HDJ80,HZJ80 215/80R16,*B/S	01/1990 - 01/1994	4
42652A - TIRE (FOR SPARE)
42605-6A120	FJ80,HDJ80,HZJ80..GX,VX 265/75R15,*D/L	01/1990 - 08/1992	1
42605-6A160	FJ80,HDJ80,HZJ80 215/80R16,*B/S	01/1990 - 01/1994	1
42605-6A150	FJ80,HDJ80,HZJ80..DSL,EFI,TD2 215/80R16,*D/L	01/1990 - 01/1998	1
42605-6A190	FJ80,HDJ80,HZJ80..GX,VX 265/75R15,*B/S	01/1990 - 08/1992	1

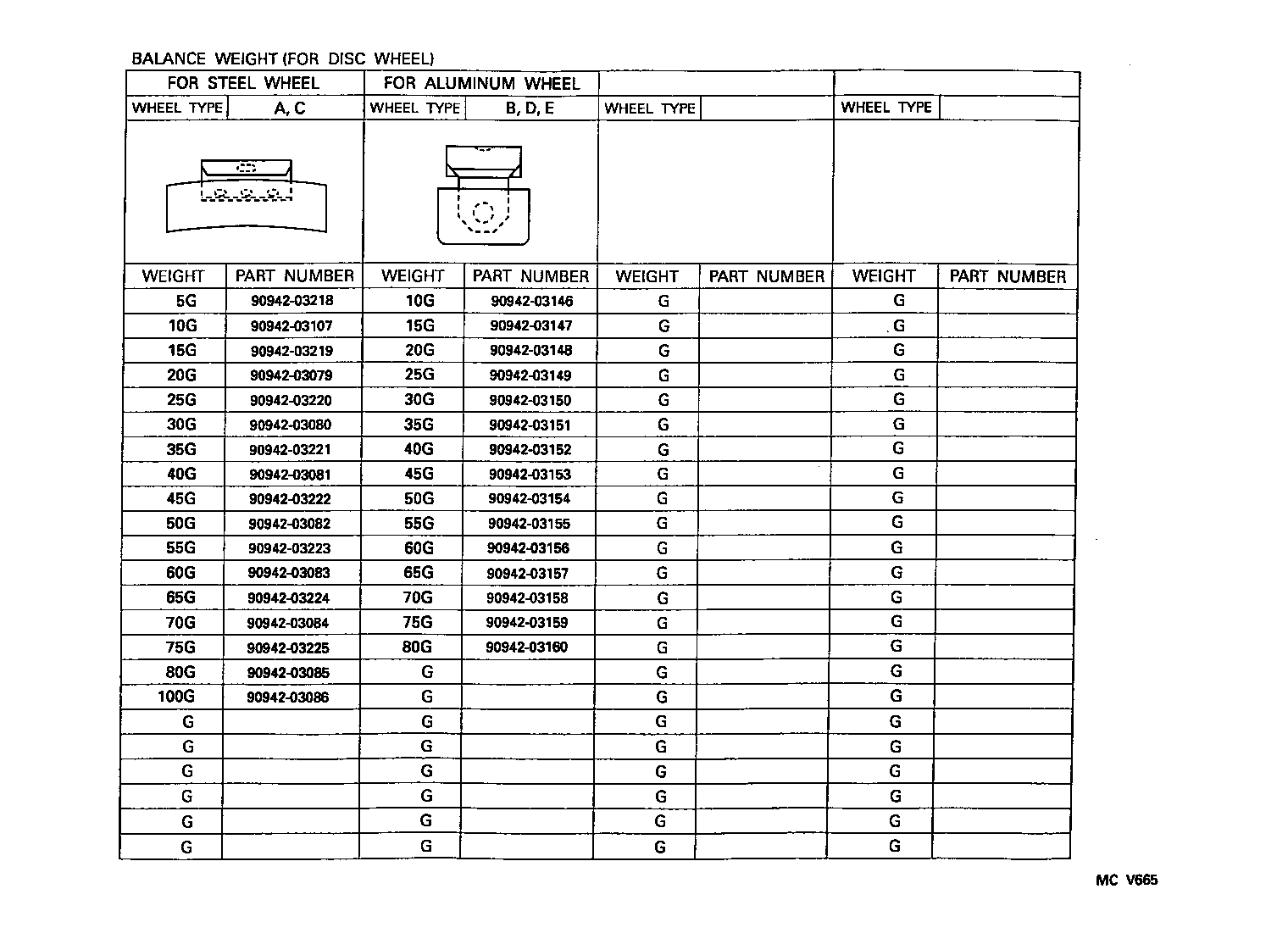

ILLUST NO. 3 OF 3(9001- )

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90942-03079
90942-03080
90942-03081
90942-03082
90942-03083
90942-03084
90942-03085
90942-03086
90942-03107
90942-03129
90942-03146
90942-03147
90942-03148
90942-03149
90942-03150
90942-03151
90942-03152
90942-03153
90942-03154
90942-03155
90942-03156
90942-03157
90942-03158
90942-03159
90942-03160
90942-03218
90942-03220
90942-03221
90942-03222
90942-03223
90942-03224
90942-03225

FJ80L-GNPEEW (1990)

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 3 OF 3(9001- )

ILLUST NO. 2 OF 3(9001- )

ILLUST NO. 1 OF 3(9001- )

ILLUST NO. 3 OF 3(9001- )
