FJ80L-GNPEEW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)

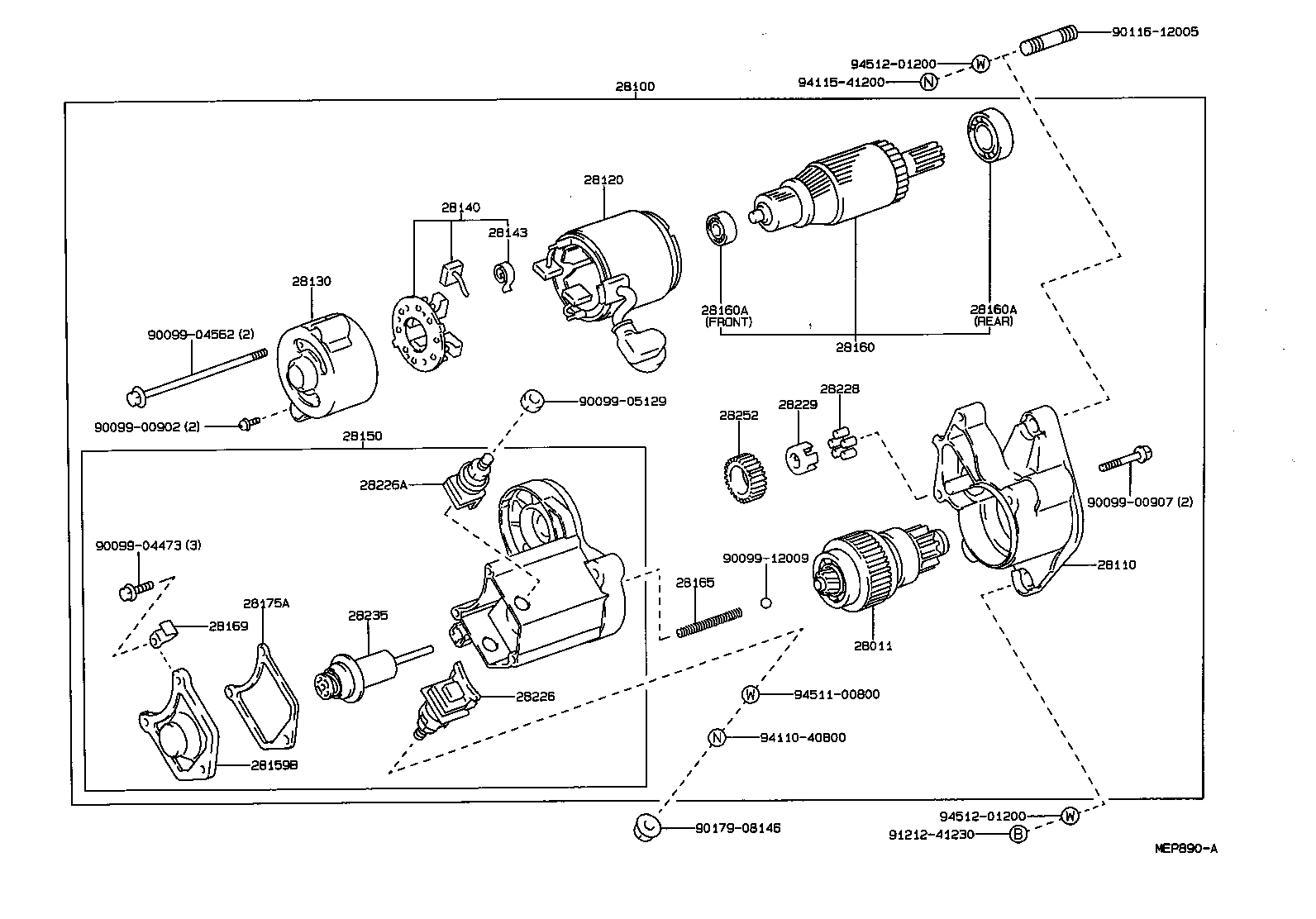

Click highlighted areas on diagram
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3FE..FJ80 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60070 |
3FE..FJ80 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-60070 |
3FE..FJ80 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3FE..FJ80 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
3FE..FJ80 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3FE..FJ80 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3FE..FJ80 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
3FE..FJ80 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3FE..FJ80 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3FE..FJ80 FRONT |
1 | ||
| 90099-10113 |
3FE..FJ80 REAR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3FE..FJ80 FRONT |
1 | ||
| 90099-10113 |
3FE..FJ80 REAR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3FE..FJ80 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
3FE..FJ80 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3FE..FJ80 |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3FE..FJ80 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3FE..FJ80 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-12005 | ||||
| 90179-08146 | ||||
| 91212-41230 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
(9001-9208)3FE
Click highlighted areas on diagram
12V 1.0KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
3FE..FJ80 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-60070 |
3FE..FJ80 12V 1.0KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-60070 |
3FE..FJ80 |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-26071 |
3FE..FJ80 |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-34060 |
3FE..FJ80 |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-26070 |
3FE..FJ80 |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
3FE..FJ80 |
4 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-34080 |
3FE..FJ80 |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-26071 |
3FE..FJ80 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3FE..FJ80 FRONT |
1 | ||
| 90099-10113 |
3FE..FJ80 REAR |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 28253-45020 |
3FE..FJ80 FRONT |
1 | ||
| 90099-10113 |
3FE..FJ80 REAR |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
3FE..FJ80 |
1 | ||
| 28226 - STARTER KIT, BATTERY TERMINAL | ||||
| 28226-72080 |
3FE..FJ80 |
1 | ||
| 28226A - STARTER KIT, MOTOR TERMINAL | ||||
| 28226-72010 |
3FE..FJ80 |
1 | ||
| 28229 - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
3FE..FJ80 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28254-45020 |
3FE..FJ80 |
1 | ||
| Common parts | ||||
| 90099-00902 | ||||
| 90099-00907 | ||||
| 90099-04473 | ||||
| 90099-04562 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90116-12005 | ||||
| 90179-08146 | ||||
| 91212-41230 | ||||
| 94110-40800 | ||||
| 94115-41200 | ||||
| 94511-00800 | ||||
| 94512-01200 | ||||
