FJ80L-GNPEEW (1990)
Toyota Land Cruiser
Production
Jan 1990
-
Aug 1992
Engine
3FE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9001-9208)

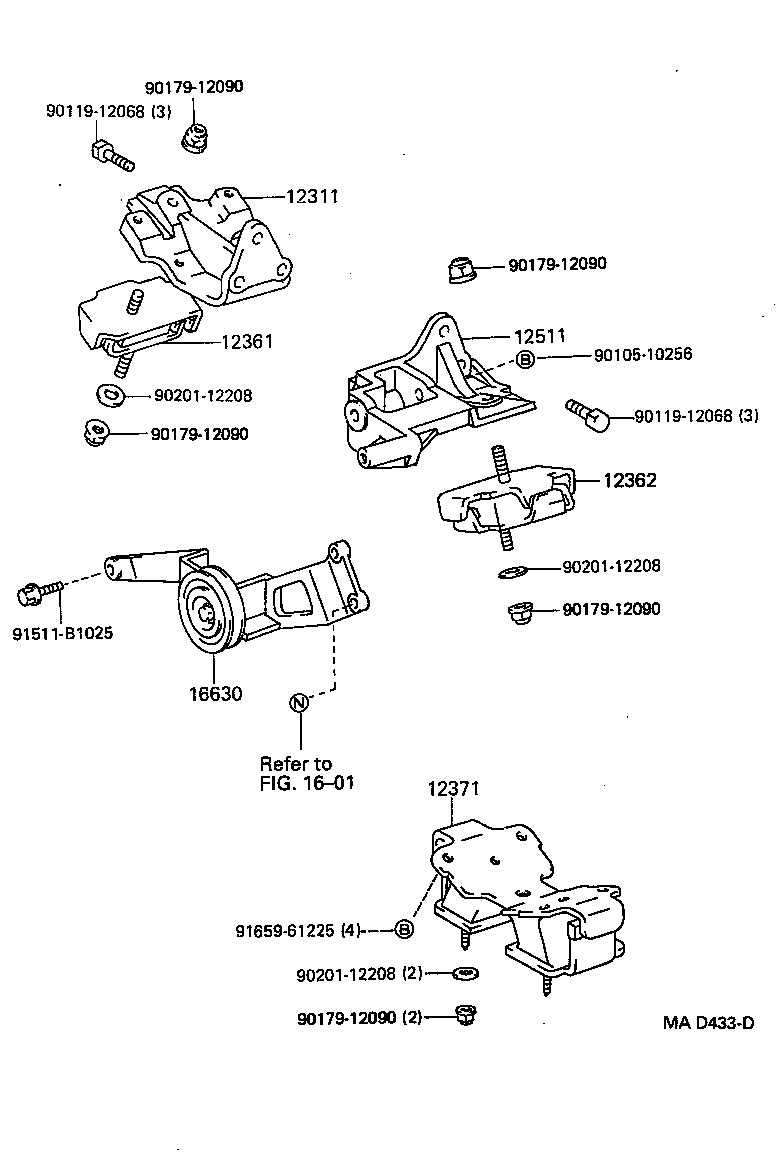

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-61090 |
3FE..FJ80 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-61050 |
3FE..FJ80 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-61010 |
3FE..FJ80 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-61060 |
3FE..FJ80 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-61061 |
3FE..FJ80 |
1 | ||
| 12511-61070 |
3FE..FJ80 W(12V-90AIC ALTERNATOR) |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-61030 |
3FE..FJ80 |
1 | ||
| Common parts | ||||
| 90105-10256 | ||||
| 90119-12068 | ||||
| 90179-12090 | ||||
| 90201-12208 | ||||
| 91511-B1025 | ||||
| 91659-61225 | ||||
| Linked diagrams | ||||
| 1601 | ||||
(9001-9208)3FE
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH | ||||
| 12311-61090 |
3FE..FJ80 |
1 | ||
| 12361 - INSULATOR, ENGINE MOUNTING, FRONT | ||||
| 12361-61050 |
3FE..FJ80 |
1 | ||
| 12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE) | ||||
| 12362-61010 |
3FE..FJ80 |
1 | ||
| 12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1 | ||||
| 12371-61060 |
3FE..FJ80 |
1 | ||
| 12511 - BRACKET, ALTERNATOR, NO.1 | ||||
| 12511-61061 |
3FE..FJ80 |
1 | ||
| 12511-61070 |
3FE..FJ80 W(12V-90AIC ALTERNATOR) |
1 | ||
| 16630 - PULLEY ASSY, IDLER | ||||
| 16630-61030 |
3FE..FJ80 |
1 | ||
| Common parts | ||||
| 90105-10256 | ||||
| 90119-12068 | ||||
| 90179-12090 | ||||
| 90201-12208 | ||||
| 91511-B1025 | ||||
| 91659-61225 | ||||
| Linked diagrams | ||||
| 1601 | ||||
