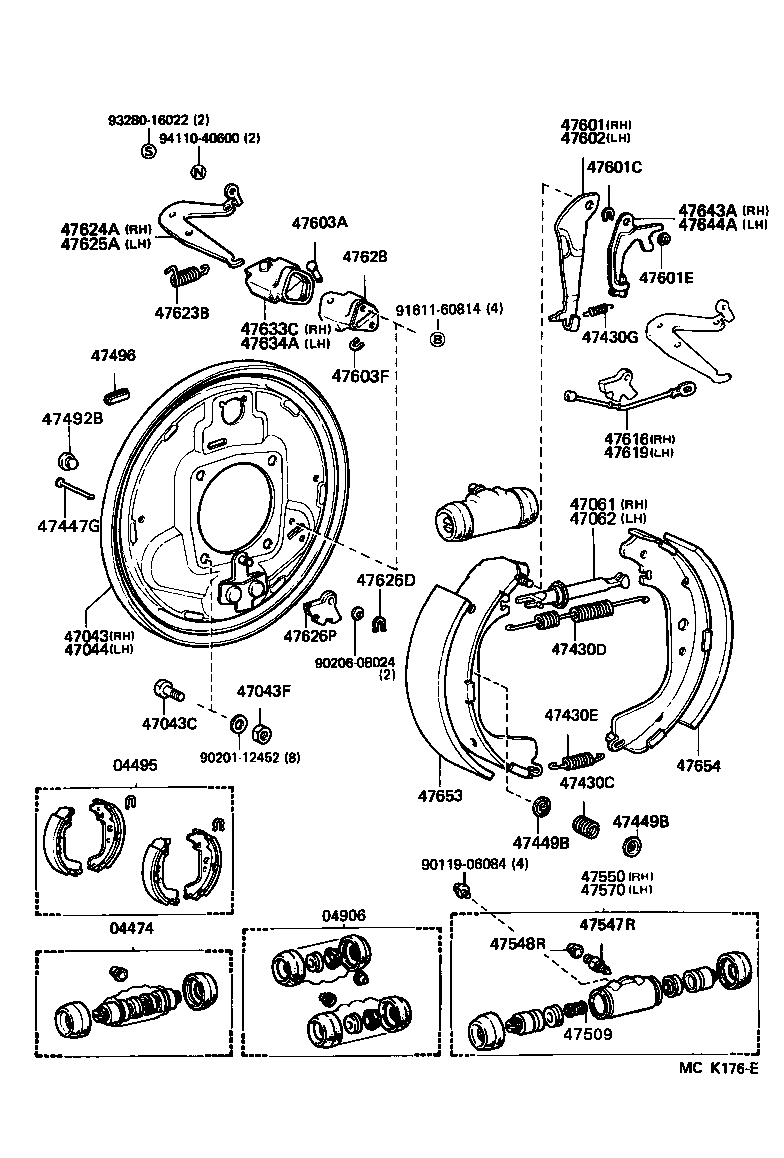

FJ80L-GCPNEW (1990)
Toyota Land Cruiser
(9001- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04474 - CYLINDER KIT, REAR WHEEL | ||||
| 04474-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 04495 - SHOE KIT, REAR BRAKE | ||||
| 04495-60060 |
FJ80,HDJ80,HZJ80 MARK NBK LN508 |
1 | ||
| 04906 - CUP KIT, REAR WHEEL CYLINDER | ||||
| 04906-60050 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 04906-35130 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47043 - PLATE SUB-ASSY, BRAKE BACKING, REAR RH | ||||
| 47043-60090 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47043C - BOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 90101-12175 |
FJ80,HDJ80,HZJ80 *12-1.25PX33-21 |
8 | ||
| 90101-12021 |
FJ80,HDJ80,HZJ80 *12-1.25PX33-21 |
8 | ||
| 47043F - NUT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING) | ||||
| 94115-71200 |
FJ80,HDJ80,HZJ80 |
8 | ||
| 47044 - PLATE SUB-ASSY, BRAKE BACKING, REAR LH | ||||
| 47044-60040 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47061 - STRUT SET, PARKING BRAKE SHOE, RH | ||||
| 47061-60011 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47062 - STRUT SET, PARKING BRAKE SHOE, LH | ||||
| 47062-60011 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47430C - SPRING(FOR REAR BRAKE SHOE HOLD DOWN) | ||||
| 90501-20012 |
FJ80,HDJ80,HZJ80 |
4 | ||
| 47430D - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-26011 |
FJ80,HDJ80,HZJ80 RH |
1 | ||
| 90506-26014 |
FJ80,HDJ80,HZJ80 LH |
1 | ||
| 47430E - SPRING, TENSION(FOR REAR BRAKE SHOE RETURN) | ||||
| 90506-18031 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47430G - SPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER) | ||||
| 90506-12031 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47447G - PIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47447-60010 |
FJ80,HDJ80,HZJ80 |
4 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
FJ80,HDJ80,HZJ80 |
8 | ||
| 47449B - CUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE) | ||||
| 47449-30020 |
FJ80,HDJ80,HZJ80 |
8 | ||
| 47496 - PLUG, HOLE(FOR REAR BRAKE) | ||||
| 47491-20011 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47509 - SPRING SUB-ASSY, REAR WHEEL CYLINDER PISTON | ||||
| 47509-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47547R - PLUG, BLEEDER(FOR DRUM BRAKE, REAR) | ||||
| 47547-60020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47548R - CAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR) | ||||
| 31478-30010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47550 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER) | ||||
| 47550-60120 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47570 - CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER) | ||||
| 47550-60120 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47601 - LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE) | ||||
| 47611-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47601C - WASHER, C(FOR REAR BRAKE) | ||||
| 90213-07010 |
FJ80,HDJ80,HZJ80 T=1.6 |
2 | ||
| 47601E - RING, E(FOR REAR BRAKE) | ||||
| 96160-00500 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47602 - LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE) | ||||
| 47612-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47603A - PIN, W/HOLE(FOR REAR BRAKE) | ||||
| 90249-08068 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47603F - WASHER, TYPE C(FOR PARKING BRAKE BELL CRANK) | ||||
| 90213-06013 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47616 - WIRE, PARKING BRAKE, RH | ||||
| 47616-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47619 - WIRE, PARKING BRAKE, LH | ||||
| 47616-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47623B - SPRING, TENSION(FOR PARKING BRAKE BELL CRANK RETURN) | ||||
| 90506-20033 |
FJ80,HDJ80,HZJ80 |
4 | ||
| 47624A - CRANK, PARKING BRAKE BELL, RH | ||||
| 47624-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47625A - CRANK, PARKING BRAKE BELL, LH | ||||
| 47625-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47626D - RING, E(FOR PARKING BRAKE SEGMENTAL PULLEY) | ||||
| 96160-00600 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47626P - PULLEY, PARKING BRAKE SEGMENTAL | ||||
| 47626-60010 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47628 - BRACKET, REAR BRAKE BELLCRANK | ||||
| 47628-35020 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47633C - BOOT, REAR BRAKE BELLCRANK, RH | ||||
| 47633-35020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47634A - BOOT, REAR BRAKE BELLCRANK, LH | ||||
| 47633-35020 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47643A - LEVER, REAR BRAKE AUTOMATIC ADJUST, RH | ||||
| 47643-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47644A - LEVER, REAR BRAKE AUTOMATIC ADJUST, LH | ||||
| 47644-60010 |
FJ80,HDJ80,HZJ80 |
1 | ||
| 47653 - LINING, REAR BRAKE SHOE(FOR FRONT OR UPPER) | ||||
| 47655-60040 |
FJ80,HDJ80,HZJ80 |
2 | ||
| 47654 - LINING, REAR BRAKE SHOE(FOR REAR OR LOWER) | ||||
| 47655-60040 |
FJ80,HDJ80,HZJ80 |
2 | ||
| Common parts | ||||
| 90119-06084 | ||||
| 90201-12452 | ||||
| 90206-08024 | ||||
| 91611-60814 | ||||
| 93280-16022 | ||||
| 94110-40600 | ||||
