FJ80L-GCPNEW (1990)

Toyota Land Cruiser

Production Jan 1990 - Aug 1992
Engine 3FE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9001- )

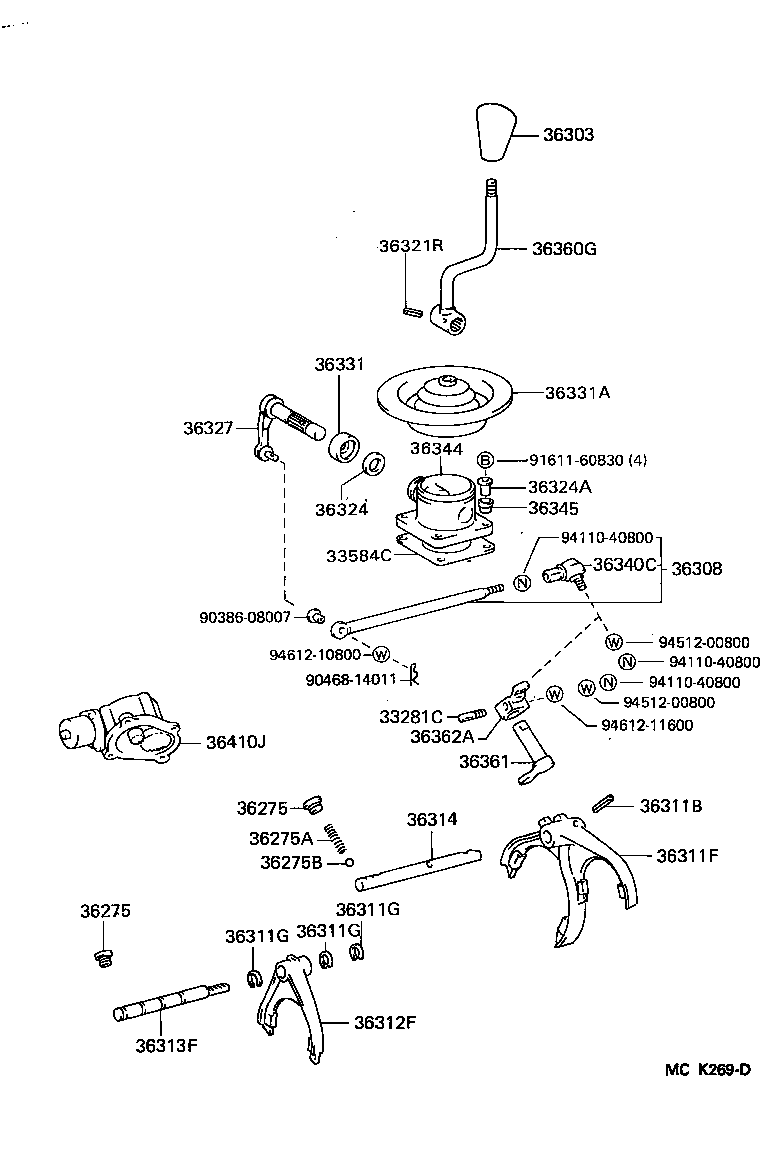

Click highlighted areas on diagram

HF2A,HF2AV

diagram 33281C 33584C 36275 36275 36275A 36275B 36303 36308 36311B 36311F 36311G 36311G 36311G 36312F 36313F 36314 36321R 36324 36324A 36327 36331 36331A 36340C 36344 36345 36360G 36361 36362A 36410J 9038608007 9046814011 9161160830 9411040800 9411040800 9411040800 9451200800 9451200800 9461210800 9461211600
Part # Description Qty Price
Common parts
90386-08007
90468-14011
91611-60830
94110-40800
94512-00800
94612-10800
94612-11600

(9001- )

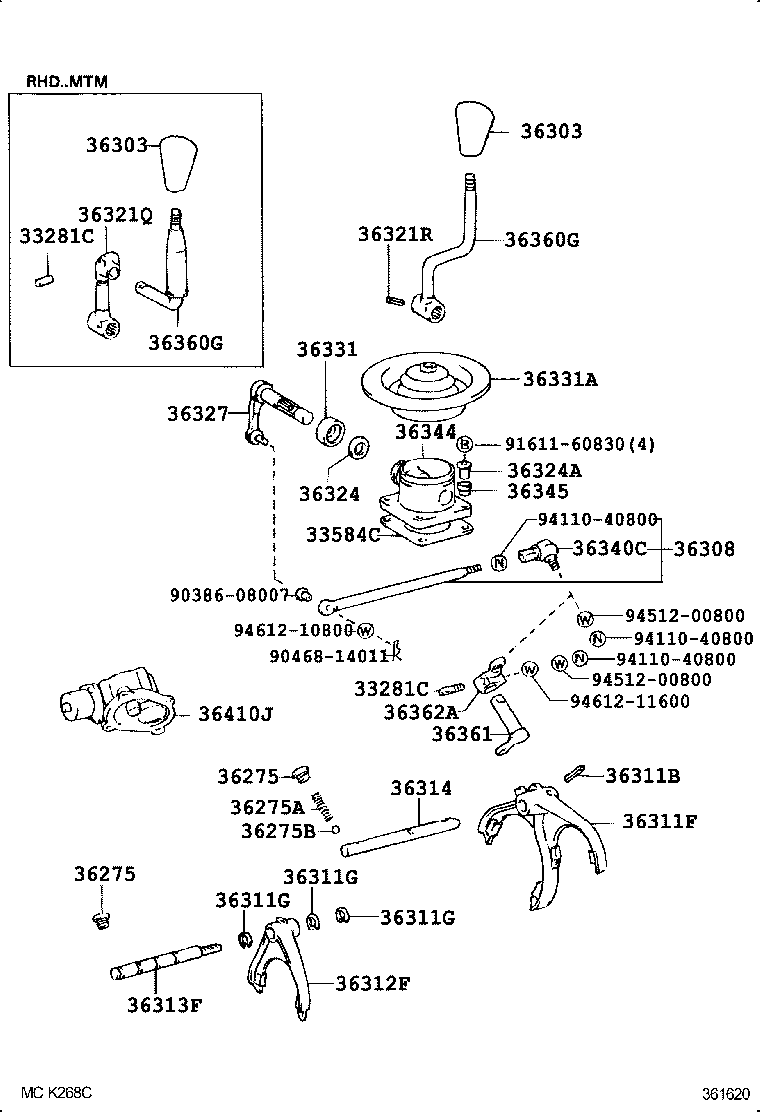

Click highlighted areas on diagram

HF2A

diagram 33281C 33281C 33584C 36275 36275 36275A 36275B 36303 36303 36308 36311B 36311F 36311G 36311G 36311G 36312F 36313F 36314 36321Q 36321R 36324 36324A 36327 36331 36331A 36340C 36344 36345 36360G 36360G 36361 36362A 36410J 9038608007 9046814011 9161160830 9411040800 9411040800 9411040800 9451200800 9451200800 9461210800 9461211600
Part # Description Qty Price
33281C - PIN, LEVER LOCK
33281-16020

FJ80,HDJ80,HZJ80

 1
33281C - PIN, LEVER LOCK
33281-16020

FJ80,HDJ80,HZJ80

 1
33584C - GASKET,TRANSFER CONTROL SHIFT LEVER RETAINER
33584-60020

FJ80,HDJ80,HZJ80

 1
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12008

FJ80,HDJ80,HZJ80

 3
36275 - PLUG, SHIFT DETENT BALL SPRING
90341-12008

FJ80,HDJ80,HZJ80

 3
36275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL)
90501-14134

FJ80,HDJ80,HZJ80

L=27.1

 1
90501-18093

FJ80,HDJ80,HZJ80

L=23.8

 1
36275B - BALL, SHIFT DETENT
90360-10003

FJ80,HDJ80,HZJ80

OD=9.52,STEEL

 1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-6018001

FJ80,HDJ80,HZJ80..GX,VX

BLACK,TRIM1#,4#

 1
36303 - KNOB SUB-ASSY, SHIFT LEVER
36303-6018001

FJ80,HDJ80,HZJ80..GX,VX

BLACK,TRIM1#,4#

 1
36308 - ROD SUB-ASSY, HIGH & LOW SHIFT
36308-60160

FJ80,HDJ80,HZJ80..ATM

 1
36311B - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT FORK)
90254-05016

FJ80,HDJ80,HZJ80

L=25.5

 1
36311F - FORK, TRANSFER GEAR SHIFT, NO.1
36311-60080

FJ80,HDJ80,HZJ80

 1
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

FJ80,HDJ80,HZJ80

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

FJ80,HDJ80,HZJ80

 3
36311G - RING, SHAFT SNAP (FOR TRANSFER GEAR SHIFT FORK)
90520-13004

FJ80,HDJ80,HZJ80

 3
36312F - FORK, TRANSFER GEAR SHIFT, NO.2
36312-60050

FJ80,HDJ80,HZJ80

 1
36313F - SHAFT, TRANSFER FRONT DRIVE SHIFT FORK
36313-60100

FJ80,HDJ80,HZJ80

 1
36314 - SHAFT, TRANSFER HIGH AND LOW SHIFT FORK
36314-60050

FJ80,HDJ80,HZJ80

 1
36321R - PIN, SLOTTED SPRING (FOR TRANSFER SHIFT LEVER)
90254-05002

FJ80,HDJ80,HZJ80

 1
36324 - BUSH, TRANSFER SHIFT LEVER
36324-60060

FJ80,HDJ80,HZJ80

 2
36327 - SHAFT, TRANSFER SHIFT LEVER
36327-60060

FJ80,HDJ80,HZJ80..ATM

 1
36331 - BOOT, TRANSFER SHIFT LEVER
36331-60010

FJ80,HDJ80,HZJ80

 1
36331A - BOOT, TRANSFER SHIFT LEVER, NO.2
36331-60030

FJ80,HDJ80,HZJ80..ATM

 1
36340C - END ASSY, HIGH & LOW CONNECTING ROD
33740-26010

FJ80,HDJ80,HZJ80

 1
36344 - RETAINER, TRANSFER CONTROL SHIFT LEVER
36344-60020

FJ80,HDJ80,HZJ80

 1
36344-60021

FJ80,HDJ80,HZJ80

 1
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-60340

FJ80,HDJ80,HZJ80..ATM

 1
36360G - LEVER ASSY, TRANSFER HIGH & LOW SHIFT
36360-60340

FJ80,HDJ80,HZJ80..ATM

 1
36361 - LEVER, TRANSFER SHIFT, INNER
36361-60030

FJ80,HDJ80,HZJ80

 1
36362A - LEVER, TRANSFER SHIFT, OUTER
36362-60030

FJ80,HDJ80,HZJ80

 1
36410J - ACTUATOR ASSY, TRANSFER SHIFT
36410-60040

FJ80,HDJ80,HZJ80

 1
36410-60050

FJ80,HDJ80,HZJ80

 1
36410-60041

FJ80,HDJ80,HZJ80

 1
Common parts
90386-08007
90468-14011
91611-60830
94110-40800
94512-00800
94612-10800
94612-11600
