FJ62RV-KC (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62..RHD

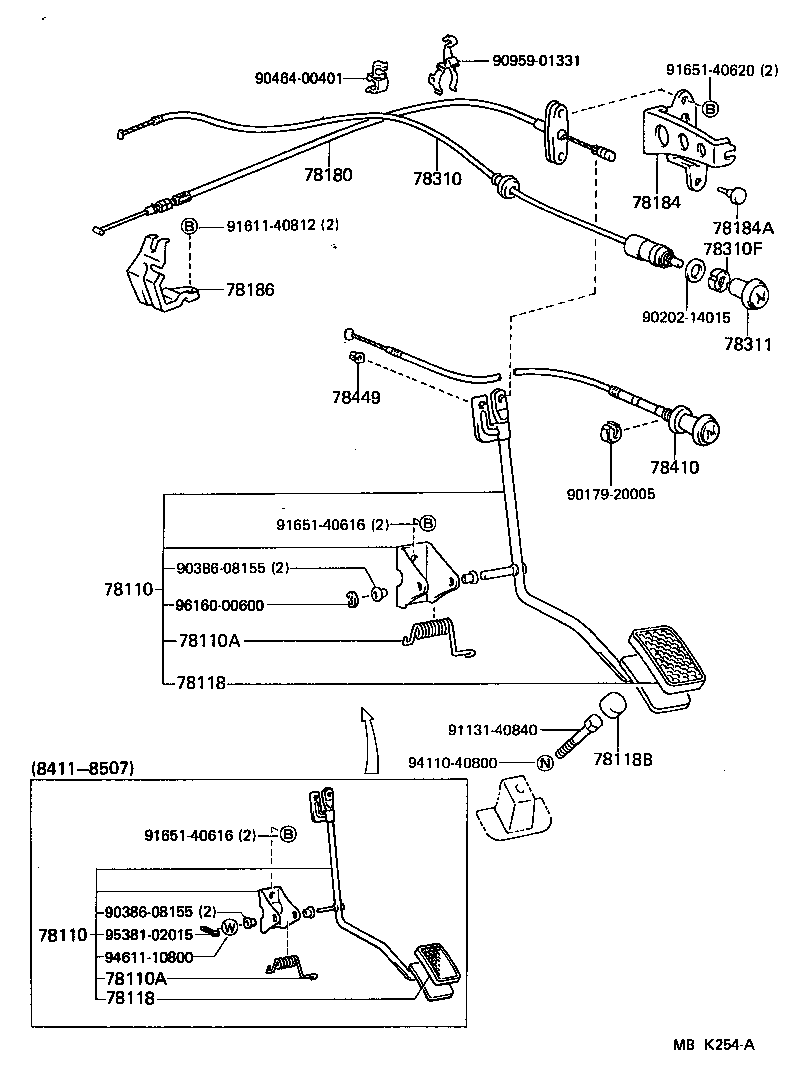

Click highlighted areas on diagram

diagram 78110 78110 78110A 78110A 78118 78118 78118B 78180 78184 78184A 78186 78310 78310F 78311 78410 78449 9017920005 9020214015 9038608155 9038608155 9046400401 9095901331 9113140840 9161140812 9165140616 9165140616 9165140620 9411040800 9461110800 9538102015 9616000600
Part # Description Qty Price
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A04

FJ62..RHD

 1
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78110 - ROD ASSY, ACCELERATOR PEDAL
78120-90A04

FJ62..RHD

 1
78120-90A05

BJ60,FJ62,HJ6#..RHD

W/THROTTLE BUTTON

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26046

BJ60,FJ62,HJ60..RHD

 1
78110A - SPRING (FOR ACCELERATOR PEDAL ROD)
90508-26046

BJ60,FJ62,HJ60..RHD

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118 - PAD, ACCELERATOR PEDAL
78111-95110

BJ60,FJ6#,HJ6#

 1
78118B - STOPPER, ACCELERATOR PEDAL
78118-90K00

BJ60,FJ62,HJ6#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-90A26

FJ62..RHD

 1
78180-90A10

FJ62..RHD

 1
78184 - CHANNEL, ACCELERATOR IDLE ADJUSTING STOPPER
78184-90A01

BJ60,FJ62,HJ60..RHD

 1
78184-90A01

BJ60,FJ62..RHD..MTM

 1
78184A - CUSHION (FOR ACCELERATOR ADJUST STOPPER CHANNEL)
90541-06008

BJ60,FJ6#,HJ6#..RHD

 1
78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1
78186-90A02

FJ62

 1
78310F - NUT, CHOKE
90179-14032

FJ62

 1
78311 - KNOB, CHOKE CONTROL CABLE
78303-90A03

FJ62

 1
78410 - CABLE ASSY, THROTTLE CONTROL
78410-90A00

BJ60,FJ62,HJ6#..RHD

 1
78449 - GUIDE, THROTTLE CABLE
78449-90300

BJ60,FJ6#,HJ60

 1
Common parts
90179-20005
90202-14015
90386-08155
90464-00401
90959-01331
91131-40840
91611-40812
91651-40616
91651-40620
94110-40800
94611-10800
95381-02015
96160-00600
