FJ62RG-PZQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )4FC

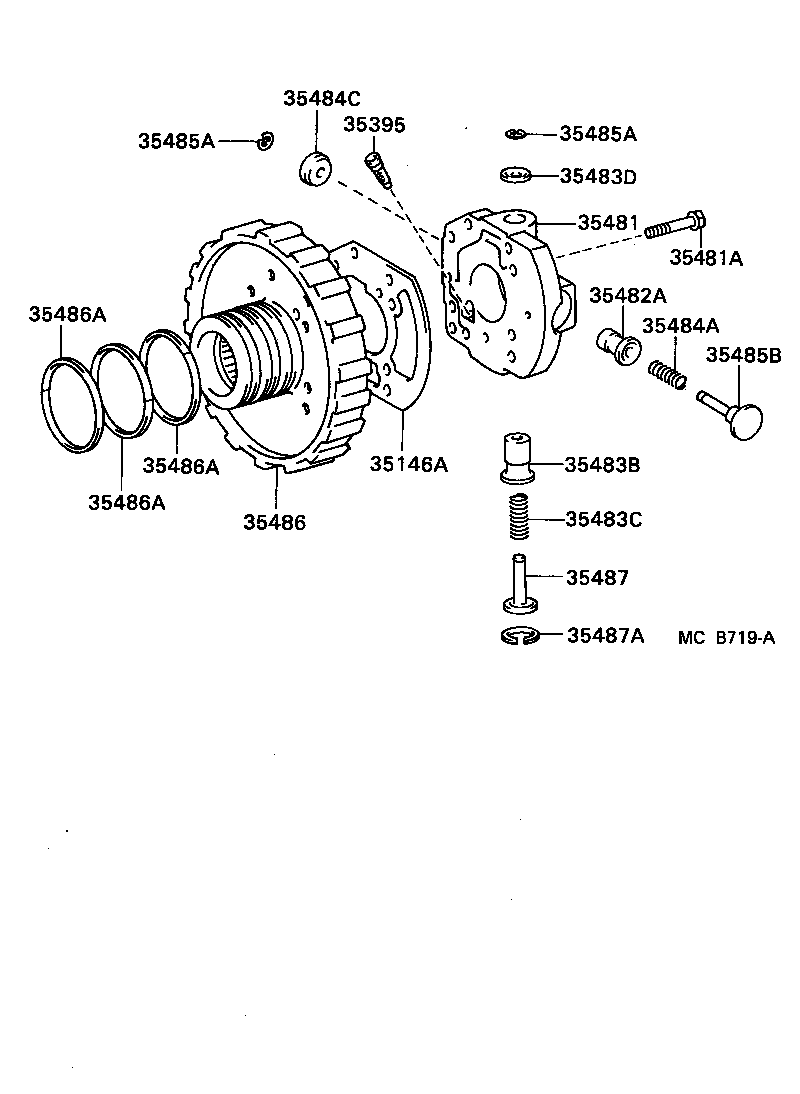

Click highlighted areas on diagram

diagram 35146A 35395 35481 35481A 35482A 35483B 35483C 35483D 35484A 35484C 35485A 35485A 35485B 35486 35486A 35486A 35486A 35487 35487A
Part # Description Qty Price
35146A - GASKET, GOVERNOR BODY
35146-36010

FJ62,HJ6#..4FC

 1
35395 - STRAINER, GOVERNOR OIL
35395-36010

FJ62,HJ6#..4FC

 1
35481 - BODY, GOVERNOR
35481-36010

FJ62,HJ6#..4FC

 1
35481-36011

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
35481A - BOLT (FOR GOVERNOR BODY)
90105-06069

FJ62,HJ6#..4FC

 8
35482A - VALVE, GOVERNOR, NO.1
35482-60010

FJ62..4FC

 1
35483B - VALVE, GOVERNOR, NO.2
35483-60010

FJ62..4FC

 1
35483C - SPRING, COMPRESSION (FOR GOVERNOR VALVE NO.2)
90501-12086

FJ62..4FC

 1
35483D - SPACER (FOR GOVERNOR VALVE NO.2)
90561-06006

FJ62,HJ6#..4FC

 1
35484A - SPRING, COMPRESSION (FOR GOVERNOR WEIGHT)
90501-07045

FJ62..4FC

 1
35484C - WEIGHT, GOVERNOR
35484-60010

FJ62..4FC

 1
35484-60011

FJ62..4FC

 1
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05002

FJ62,HJ6#..4FC

 2
35485A - RING, E (FOR GOVERNOR VALVE SHAFT)
90523-05002

FJ62,HJ6#..4FC

 2
35485B - SHAFT, GOVERNOR VALVE, NO.1
35485-36010

FJ62,HJ6#..4FC

 1
35486 - SUPPORT, GOVERNOR BODY
35486-36010

FJ62,HJ6#..4FC

 1
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..4FC

 3
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..4FC

 3
35486A - RING (FOR GOVERNOR BODY SUPPORT)
35735-36010

FJ62,HJ6#..4FC

 3
35487 - SHAFT, GOVERNOR VALVE, NO.2
35487-36010

FJ62,HJ6#..4FC

 1
35487A - RING, SNAP (FOR GOVERNOR VALVE SHAFT NO.2)
96151-02500

FJ62,HJ6#..4FC

 1
