FJ62RG-PQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )FJ62..ARL,ME

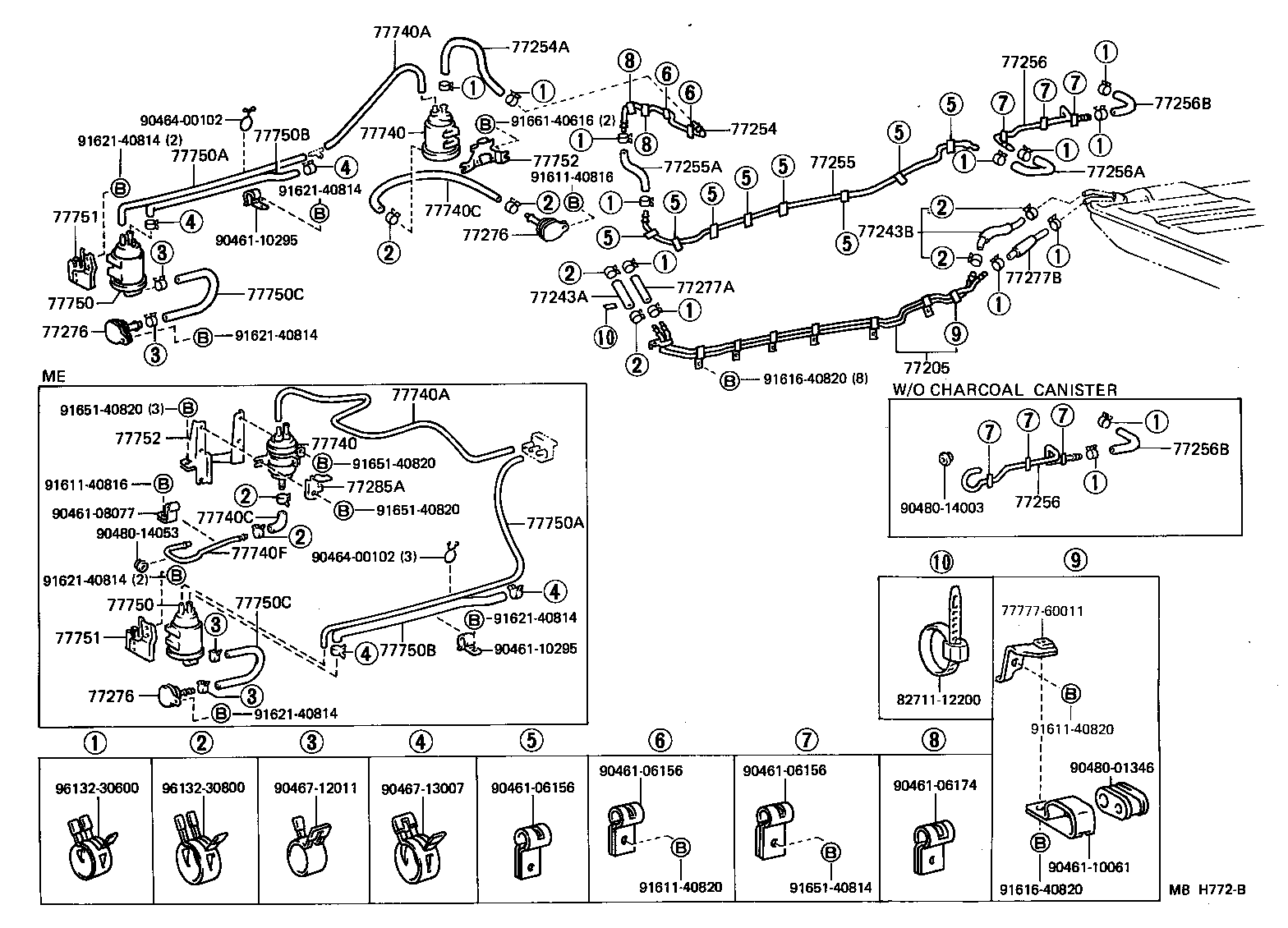

Click highlighted areas on diagram

diagram 77205 77243A 77243B 77254 77254A 77255 77255A 77256 77256 77256A 77256B 77256B 77276 77276 77276 77277A 77277B 77285A 77740 77740 77740A 77740A 77740C 77740C 77740F 77750 77750 77750A 77750A 77750B 77750B 77750C 77750C 77751 77751 77752 77752 7777760011 8271112200 9046106156 9046106156 9046106156 9046106174 9046108077 9046110061 9046110295 9046110295 9046400102 9046400102 9046712011 9046713007 9048001346 9048014003 9048014053 9161140816 9161140816 9161140820 9161140820 9161640820 9161640820 9162140814 9162140814 9162140814 9162140814 9162140814 9162140814 9165140814 9165140820 9165140820 9165140820 9166140616 9613230600 9613230800
Part # Description Qty Price
77205 - TUBE SUB-ASSY, FUEL MAIN
77205-60062

FJ62

 1
77243A - HOSE, FUEL, NO.1 (FOR MAIN TUBE, NO.3)
95332-08040

FJ6#

*H,L=380,ID=7.6

 1
77243B - HOSE, FUEL, NO.2 (FOR MAIN TUBE, NO.3)
77250-60050

BJ60,FJ6#,HJ6#

 1
77254 - TUBE, FUEL EMISSION, NO.1
77263-60030

FJ62..ARL,ME

 1
77254A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.1)
95332-06030

FJ6#..ARL

*H,L=300

 1
95333-06030

FJ62..ARL

*H,L=300

 1
77255 - TUBE, FUEL EMISSION, NO.2
77261-60031

FJ62..ARL,ME

 1
77261-60070

FJ62..ARL,ME

 1
77255A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.2)
95332-06020

FJ6#..ARL

*H,L=180

 1
95333-06020

FJ62..ARL

*H,L=180

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60120

FJ62..ARL,ME

W/CHARCOAL CANISTER

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256 - TUBE, FUEL EMISSION, NO.3
77244-60120

FJ62..ARL,ME

W/CHARCOAL CANISTER

 1
77244-60130

BJ60,FJ62,HJ6#..ARL,GEN,ME

W/O CHARCOAL CANISTER

 1
77256A - HOSE, FUEL, NO.1 (FOR EMISSION TUBE, NO.3)
95333-06030

FJ62..ARL,ME

*H,L=240

 1
95332-06030

FJ62..ARL,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77256B - HOSE, FUEL, NO.2 (FOR EMISSION TUBE, NO.3)
95332-06030

BJ60,FJ62,HJ6#..ARL,GEN,ME

*H,L=240

 1
77276 - PROTECTOR, FUEL HOSE
77276-60020

FJ62

 2
77276 - PROTECTOR, FUEL HOSE
77276-60020

FJ62

 2
77276 - PROTECTOR, FUEL HOSE
77276-60020

FJ62

 2
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23273-61020

FJ62

 1
77250-60070

FJ62

 1
77277B - HOSE, FUEL, NO.2(FOR RETURN TUBE, NO.1)
95332-06030

FJ62

*H,L=260

 1
95333-06030

FJ62

*H,L=260

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-10660

FJ62..ARL

*H,L=600,MARK=#6

 1
77740A - HOSE, FUEL, NO.1(FOR CHARCOAL CANISTER)
95411-10660

FJ62..ARL

*H,L=600,MARK=#6

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95333-08030

FJ62..ARL

*H,L=280

 1
95332-08030

FJ6#..ARL

*H,L=280,ID=7.6

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
95333-08030

FJ62..ARL

*H,L=280

 1
95332-08030

FJ6#..ARL

*H,L=280,ID=7.6

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60070

FJ62

 1
77750 - CANISTER ASSY, CHARCOAL
77704-60070

FJ62

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-10795

FJ62..ARL,ME

*H,L=800

 1
77750A - HOSE, FUEL, NO.1 (FOR CHARCOAL CANISTER)
95411-10795

FJ62..ARL,ME

*H,L=800

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90910-05171

FJ62..ARL,ME

 1
77750B - HOSE, FUEL, NO.2 (FOR CHARCOAL CANISTER)
90910-05171

FJ62..ARL,ME

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
90910-05172

FJ62

 1
77750C - HOSE, FUEL, NO.3 (FOR CHARCOAL CANISTER)
90910-05172

FJ62

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60080

FJ62

 1
77751 - BRACKET, CHARCOAL CANISTER BASE
77751-60080

FJ62

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77751-32010

FJ62..ARL

 1
77752 - BRACKET, CHARCOAL CANISTER SUPPORT
77751-32010

FJ62..ARL

 1
Common parts
77777-60011
82711-12200
90461-06156
90461-06174
90461-08077
90461-10061
90461-10295
90464-00102
90467-12011
90467-13007
90480-01346
90480-14003
90480-14053
91611-40816
91611-40820
91616-40820
91621-40814
91651-40814
91651-40820
91661-40616
96132-30600
96132-30800
