FJ62RG-PQ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8008-8510)

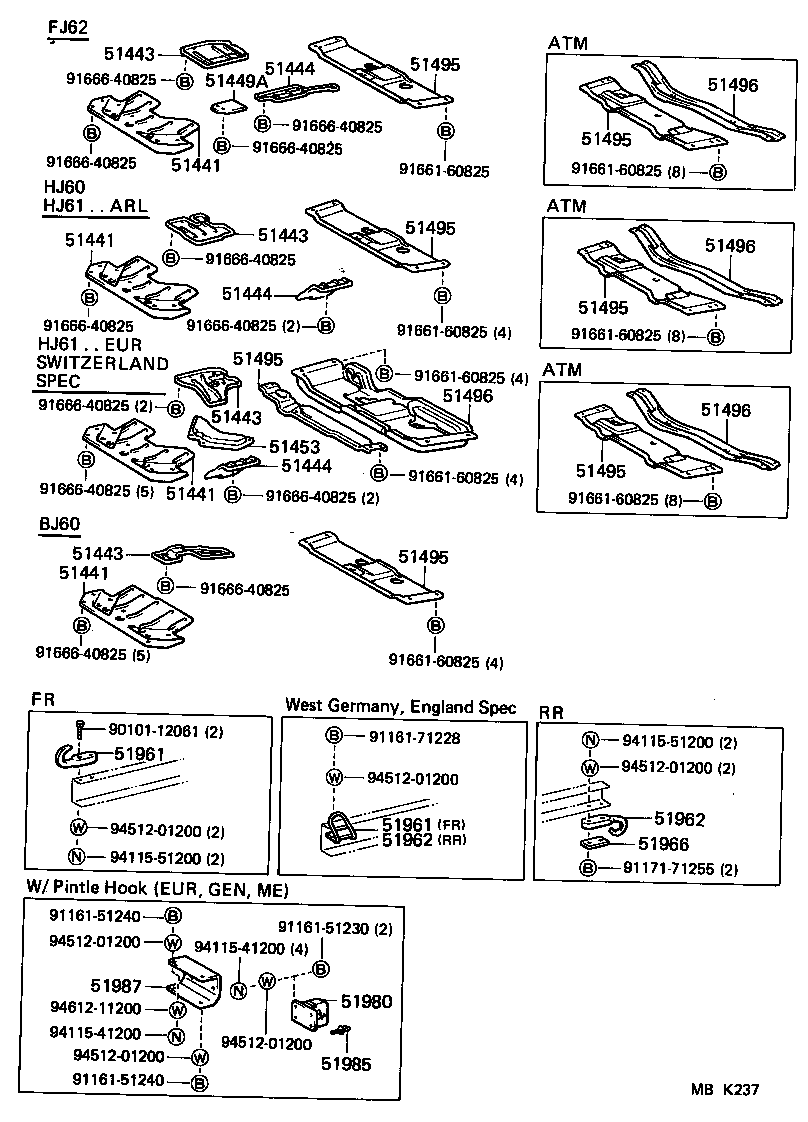

Click highlighted areas on diagram

diagram 51441 51441 51441 51443 51443 51443 51444 51444 51444 51449A 51453 51456A 51456A 51495 51495 51495 51495 51495 51495 51496 51496 51496 51961 51961 51962 51962 51962 51966 51966 51980 51985 51987 9010112061 9116151230 9116151230 9116151230 9116151240 9116151240 9116171228 9117171255 9117171255 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9165140820 9166160820 9166160820 9166160820 9166160825 9166160825 9166160825 9166160825 9166160825 9166160825 9411541200 9411541200 9411551200 9411551200 9411551200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9451211200
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51961 - HOOK, NO.1
51961-60010

BJ60,FJ6#,HJ6#

 1
51961 - HOOK, NO.1
51961-60010

BJ60,FJ6#,HJ6#

 1
51962 - HOOK, NO.2
51961-36040

BJ60,FJ62,HJ6#

 1
51962 - HOOK, NO.2
51961-36040

BJ60,FJ62,HJ6#

 1
51962 - HOOK, NO.2
51961-36040

BJ60,FJ62,HJ6#

 1
51966 - RETAINER, REAR HOOK
51966-60010

BJ60,FJ6#,HJ6#

 1
51966 - RETAINER, REAR HOOK
51966-60010

BJ60,FJ6#,HJ6#

 1
Common parts
90101-12061
91161-51230
91161-51240
91161-71228
91171-71255
91651-40820
91661-60820
91661-60825
94115-41200
94115-51200
94512-01200
94512-11200

(8510- )

Click highlighted areas on diagram

diagram 51441 51441 51441 51441 51443 51443 51443 51443 51444 51444 51444 51449A 51453 51495 51495 51495 51495 51495 51495 51495 51496 51496 51496 51496 51961 51961 51962 51962 51966 51980 51985 51987 9010112061 9116151230 9116151240 9116151240 9116171228 9117171255 9166160825 9166160825 9166160825 9166160825 9166160825 9166160825 9166160825 9166160825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9166640825 9411541200 9411541200 9411551200 9411551200 9451201200 9451201200 9451201200 9451201200 9451201200 9451201200 9461211200
Part # Description Qty Price
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51441 - COVER, ENGINE UNDER, NO.1
51441-60061

FJ62,HJ60

 1
51441-60060

FJ6#,HJ60

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51443 - COVER, ENGINE UNDER, REAR RH
51443-60031

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51444 - COVER, ENGINE UNDER, REAR LH
51444-60041

FJ62

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51495 - COVER, TRANSMISSION UNDER
51495-60140

FJ62,HJ60..4FC

 1
51495-60141

FJ62,HJ60..4FC

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51496 - COVER, TRANSMISSION UNDER, NO.2
51496-60040

FJ62,HJ60..4FC

 1
51496-60041

FJ62,HJ61..4FC;HJ60..4FC..EUR

 1
51961 - HOOK, NO.1
51961-60010

BJ60,FJ6#,HJ6#

 1
51961 - HOOK, NO.1
51961-60010

BJ60,FJ6#,HJ6#

 1
51962 - HOOK, NO.2
51961-36040

BJ60,FJ62,HJ6#

 1
51962 - HOOK, NO.2
51961-36040

BJ60,FJ62,HJ6#

 1
51966 - RETAINER, REAR HOOK
51966-60010

BJ60,FJ6#,HJ6#

 1
Common parts
90101-12061
91161-51230
91161-51240
91161-71228
91171-71255
91661-60825
91666-40825
94115-41200
94115-51200
94512-01200
94612-11200
