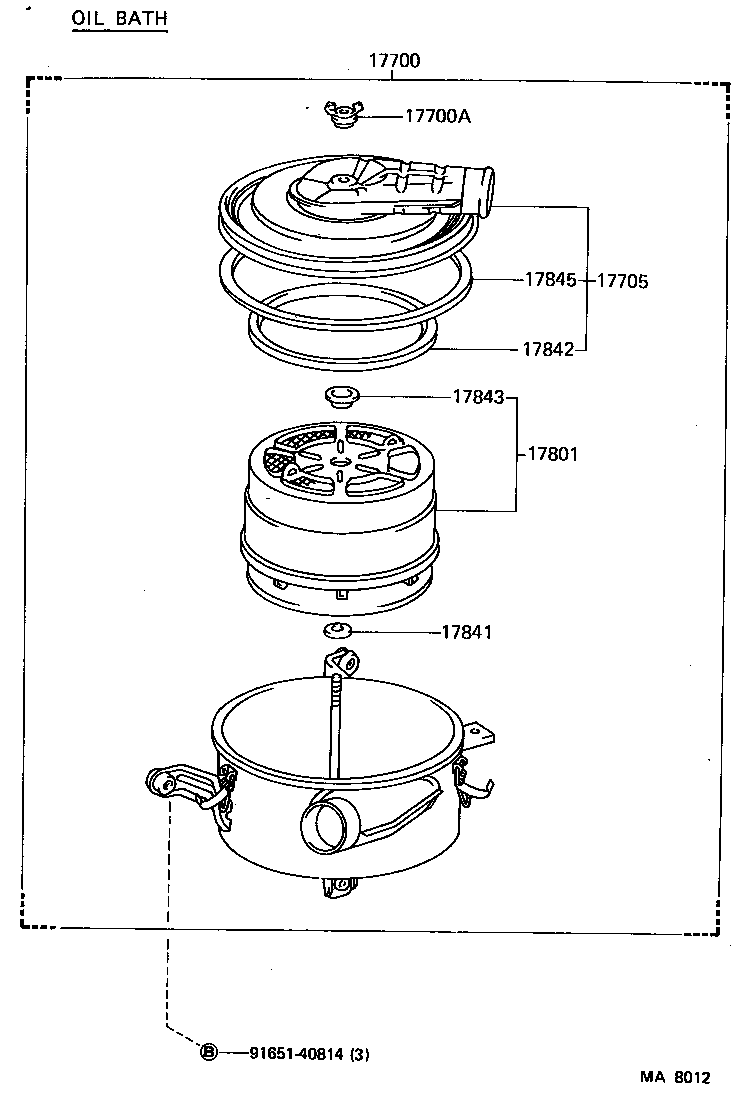

FJ62RG-MQ (1984)
Toyota Land Cruiser
(8411- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-68151 |
3F..FJ62 CYCLONE |
1 | ||
| 17700-68150 |
3F..FJ62 CYCLONE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2F,3F..FJ6#..ARL,GEN,ME CYCLONE OR OIL BATH |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-68100 |
3F..FJ62 CYCLONE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
3F..FJ62 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3F..FJ62 CYCLONE |
1 | ||
| Common parts | ||||
| 91651-40814 | ||||

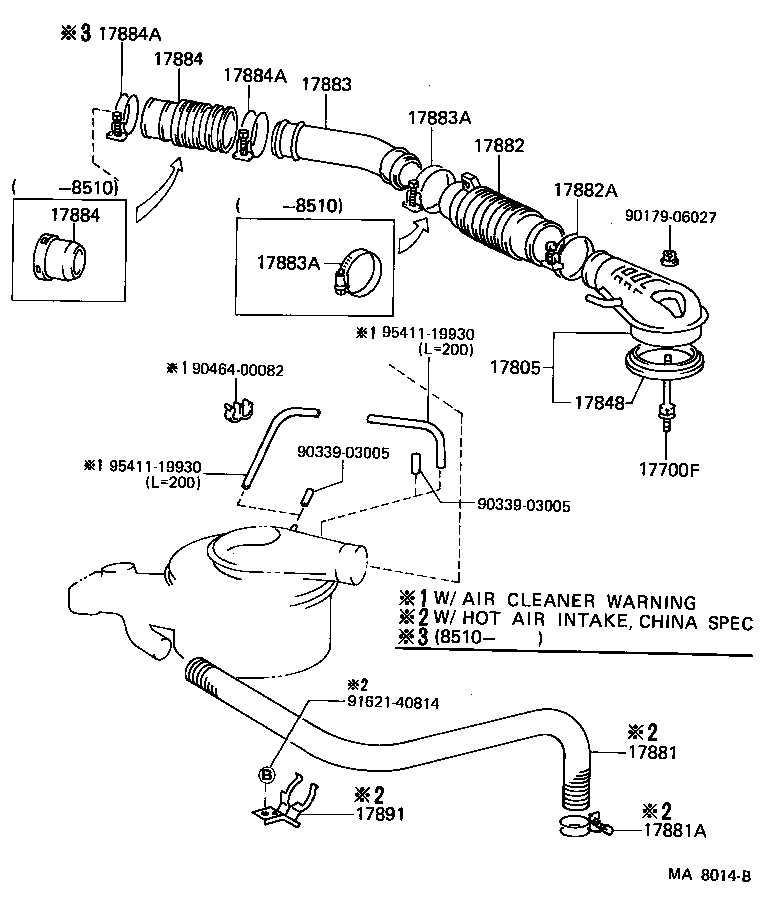

(8411- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700F - BOLT, STUD(FOR AIR CLEANER SETTING) | ||||
| 90116-06024 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17805 - CONNECTOR SUB-ASSY, INTAKE AIR | ||||
| 17805-61020 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17848 - GASKET, AIR CLEANER TO CARBURETOR | ||||
| 17848-61020 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17882 - HOSE, AIR CLEANER, NO.2 | ||||
| 17881-61060 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17881-61061 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17882A - CLAMP(FOR AIR CLEANER HOSE, NO.2) | ||||
| 96111-10800 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17883 - HOSE, AIR CLEANER, NO.3 | ||||
| 17882-61031 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17882-61040 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-80001 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 96111-10800 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17883A - CLAMP(FOR AIR CLEANER HOSE, NO.3) | ||||
| 90460-80001 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 96111-10800 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-61010 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17883-61011 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17884 - HOSE, AIR CLEANER, NO.4 | ||||
| 17883-61010 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17883-61011 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10880 |
3F..FJ62 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ62 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| 17884A - CLAMP(FOR AIR CLEANER HOSE, NO.4) | ||||
| 96111-10880 |
3F..FJ62 HOSE SIDE |
1 | ||
| 96111-10800 |
3F..FJ62 AIR CLEANER SIDE |
1 | ||
| 96111-10830 |
3F..FJ62 OIL BATH OR CYCLONE |
1 | ||
| Common parts | ||||
| 90179-06027 | ||||
| 90339-03005 | ||||
| 90464-00082 | ||||
| 91621-40814 | ||||
| 95411-19930 | ||||

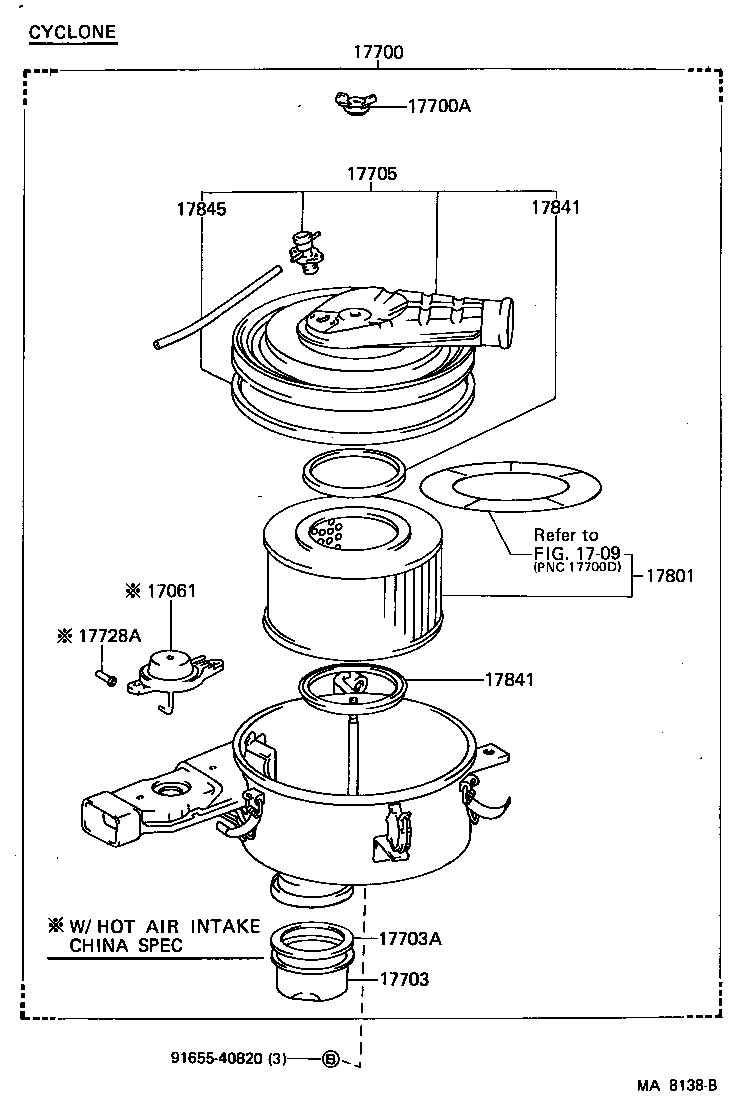

(8411- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17700 - CLEANER ASSY, AIR | ||||
| 17700-68151 |
3F..FJ62 CYCLONE |
1 | ||
| 17700-68150 |
3F..FJ62 CYCLONE |
1 | ||
| 17700A - NUT, WING(FOR AIR CLEANER) | ||||
| 90175-08008 |
2F,3F..FJ6#..ARL,GEN,ME CYCLONE OR OIL BATH |
1 | ||
| 17703 - CASE SUB-ASSY, BOTTOM AIR CLEANER FILTER | ||||
| 17703-68010 |
2F,3F..FJ6#..ARL,GEN,ME CYCLONE |
1 | ||
| 17703A - GASKET(FOR BOTTOM AIR CLEANER FILTER CASE) | ||||
| 90430-98001 |
2F,3F..FJ6#..ARL,GEN,ME CYCLONE |
1 | ||
| 17705 - CAP SUB-ASSY, AIR CLEANER | ||||
| 17705-68100 |
3F..FJ62 CYCLONE |
1 | ||
| 17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER | ||||
| 17801-61030 |
3F..FJ62 |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3F..FJ62 CYCLONE |
1 | ||
| 17841 - GASKET, FILTER ELEMENT | ||||
| 17841-68010 |
3F..FJ62 CYCLONE |
1 | ||
| Common parts | ||||
| 91655-40820 | ||||
| Linked diagrams | ||||
| 1709 | ||||

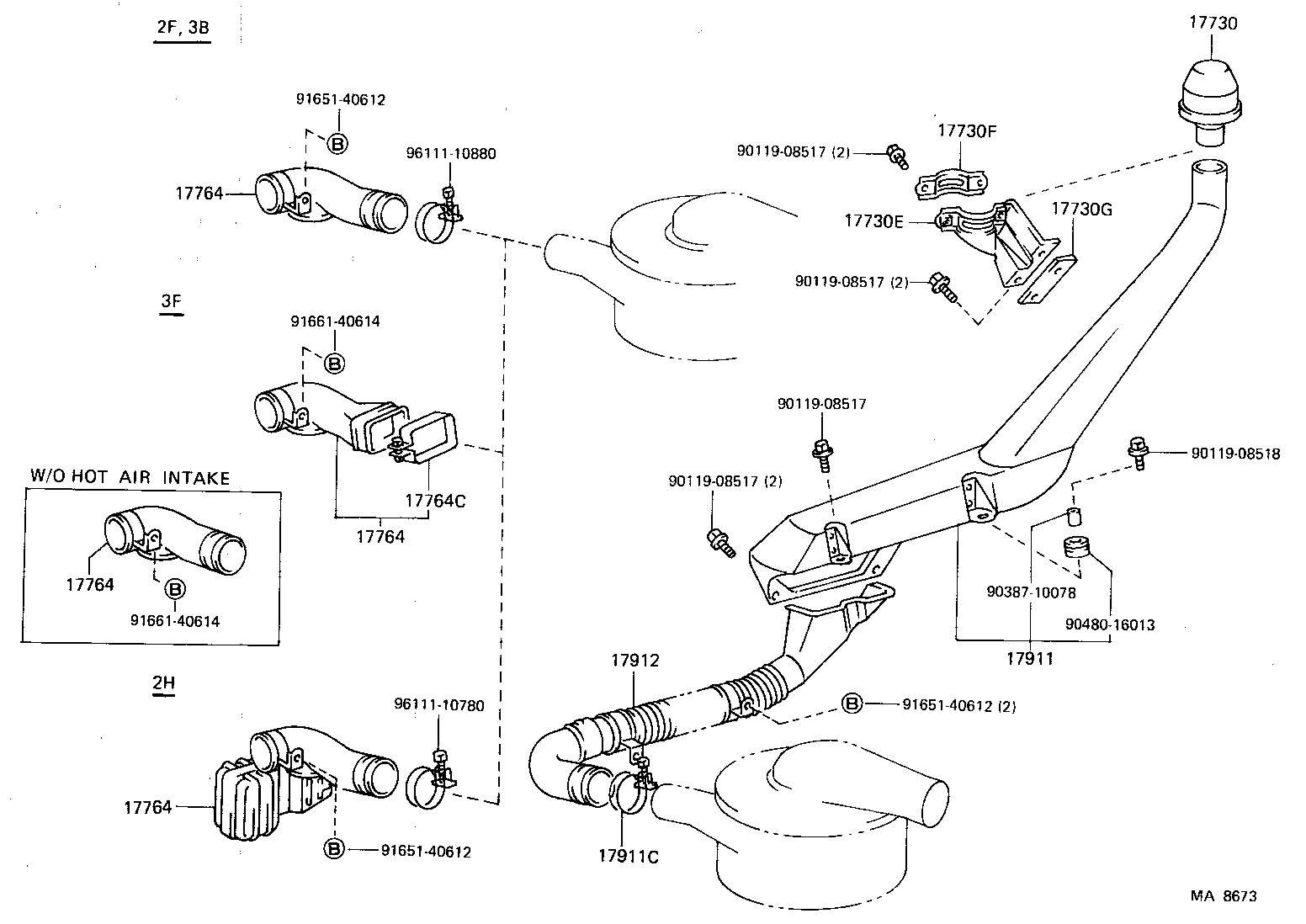

(8510- )3F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17730 - PRECLEANER ASSY, AIR W/HOSE | ||||
| 17709-61031 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17709-61031 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17709-61031 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17709-61030 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17709-61030 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17709-61030 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17730E - BRACKET, PRECLEANER, NO.1 | ||||
| 53772-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53772-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53772-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17730F - BRACKET, PRECLEANER, NO.2 | ||||
| 53773-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53773-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53773-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17730G - PAD, PRECLEANER | ||||
| 53966-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53966-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53966-90K00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17911 - DUCT, COOL AIR INTAKE, NO.1 | ||||
| 53207-90A03 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53207-90A03 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53207-90A03 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17911C - CLAMP, COOL AIR INTAKE DUCT, NO.1 | ||||
| 96111-10780 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 96111-10780 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 96111-10780 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 17912 - DUCT, COOL AIR INTAKE, NO.2 | ||||
| 53208-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53208-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| 53208-90A00 |
3F..FJ62..MTM SCHNORKEL TYPE |
1 | ||
| Common parts | ||||
| 90119-08517 | ||||
| 90119-08518 | ||||
| 90387-10078 | ||||
| 90480-16013 | ||||
| 91651-40612 | ||||
| 91661-40614 | ||||
| 96111-10780 | ||||
| 96111-10880 | ||||
