FJ62RG-K (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )3F

Click highlighted areas on diagram

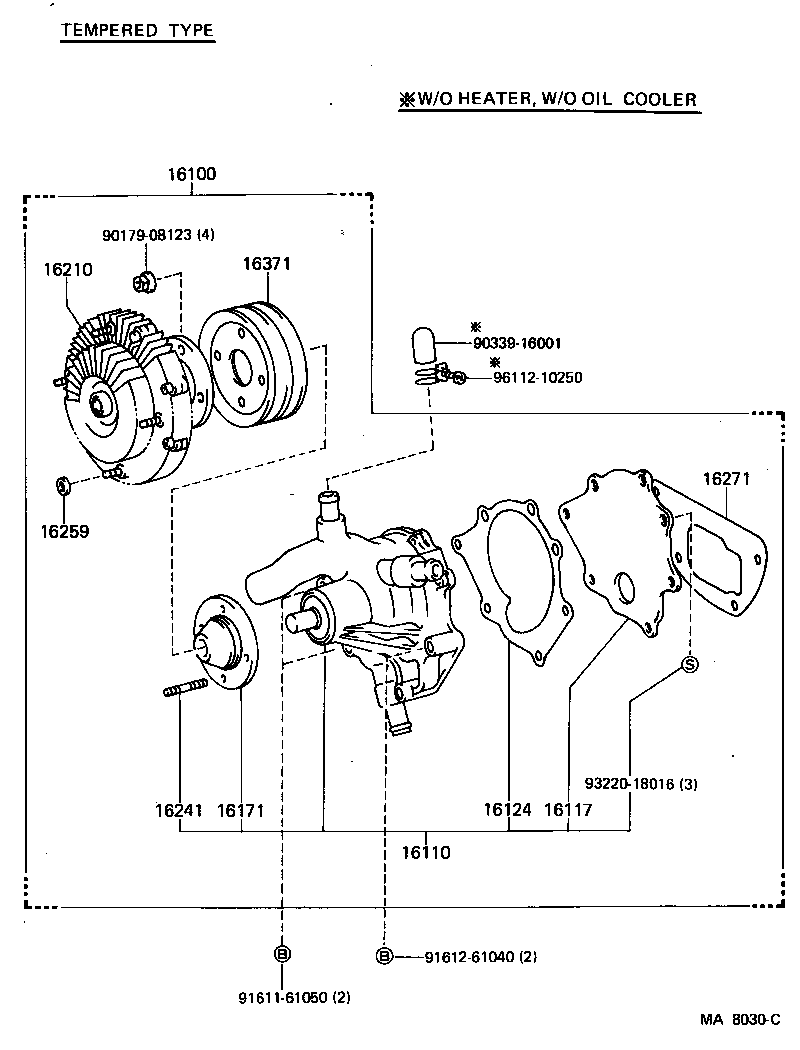

diagram 16100 16110 16117 16124 16171 16210 16241 16259 16271 16371 9017908123 9033916001 9161161050 9161261040 9322018016 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69155

3F..FJ62..LUB..GEN

TEMPERED,W/OIL COOLER,HEATER

 1
16100-69145

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16110 - PUMP ASSY, WATER, W/O COUPLING
16110-61170

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16110-61180

3F..FJ62..LUB..GEN

TEMPERED,W/OIL COOLER,HEATER

 1
16117 - PLATE, WATER PUMP
16117-61110

3F..FJ62

 1
16124 - GASKET, WATER PUMP COVER
16124-61110

3F..FJ62

 1
16171 - SEAT, WATER PUMP PULLEY
16171-61071

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16210 - COUPLING ASSY, FLUID
16210-61121

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16198-41050

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 4
16259 - GASKET, FAN
16259-52010

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 4
16271 - GASKET, WATER PUMP
16271-61010

3F..FJ62

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
Common parts
90179-08123
90339-16001
91611-61050
91612-61040
93220-18016
96112-10250

(8411- )3F

Click highlighted areas on diagram

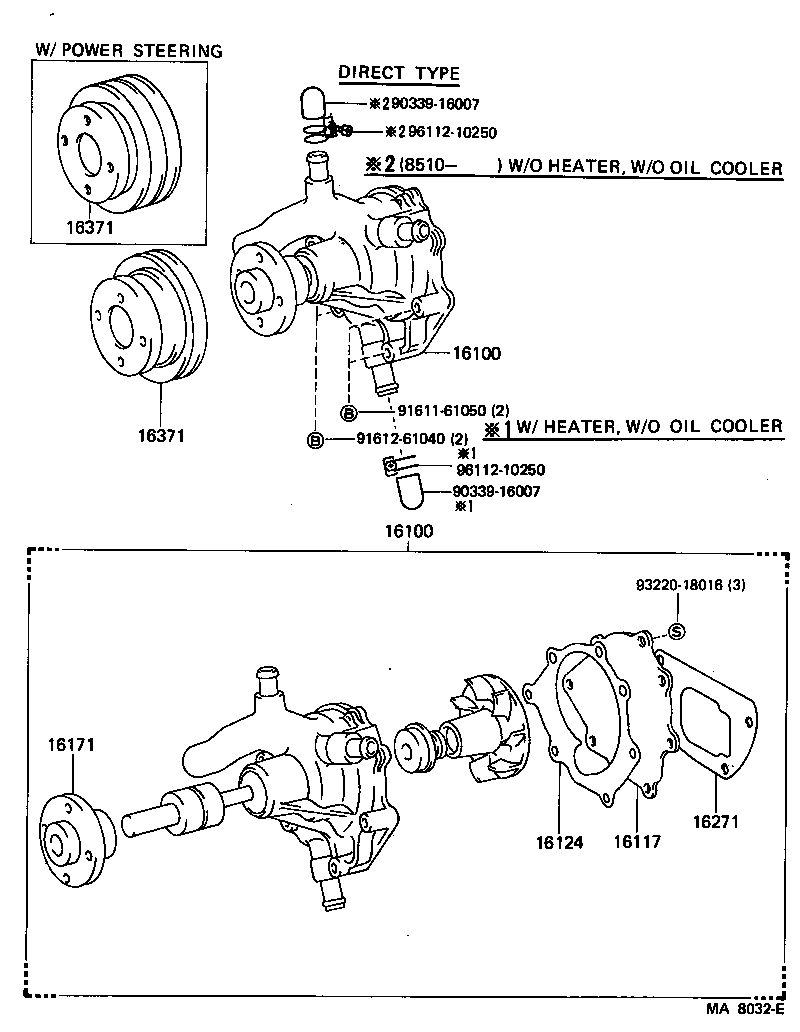

diagram 16100 16100 16117 16124 16171 16271 16371 16371 9033916007 9033916007 9161161050 9161261040 9322018016 9611210250 9611210250
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-69155

3F..FJ62..LUB..GEN

TEMPERED,W/OIL COOLER,HEATER

 1
16100-69145

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16100 - PUMP ASSY, ENGINE WATER
16100-69155

3F..FJ62..LUB..GEN

TEMPERED,W/OIL COOLER,HEATER

 1
16100-69145

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16117 - PLATE, WATER PUMP
16117-61110

3F..FJ62

 1
16124 - GASKET, WATER PUMP COVER
16124-61110

3F..FJ62

 1
16171 - SEAT, WATER PUMP PULLEY
16171-61071

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16271 - GASKET, WATER PUMP
16271-61010

3F..FJ62

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
16371 - PULLEY, FAN
16173-61070

3F..FJ62..ARL,ME;3F..FJ62..LUB..GEN

TEMPERED TYPE

 1
Common parts
90339-16007
91611-61050
91612-61040
93220-18016
96112-10250
