FJ62LV-MC (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1987
Engine
3F
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )3F

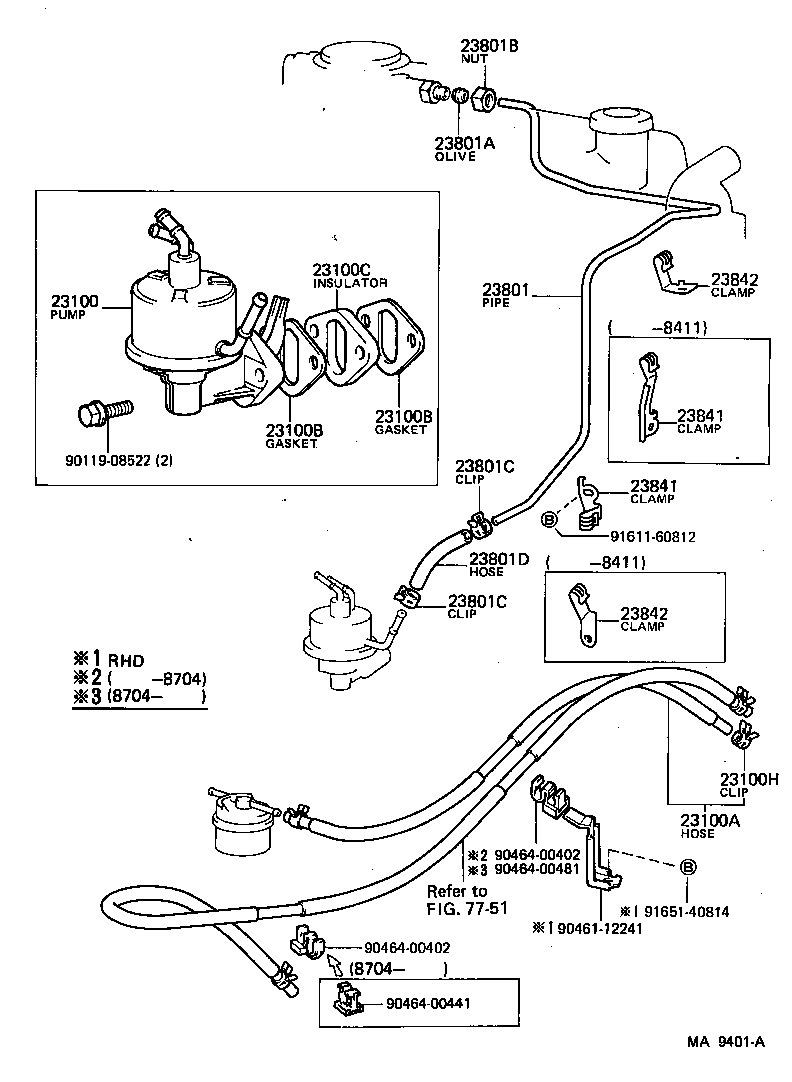

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-61080 |
3F..FJ62 |
1 | ||
| 23100-61100 |
3F..FJ62 |
1 | ||
| 23100-61090 |
3F..FJ62..LHD..4F..LUB;3F..FJ62..LHD..SOB..GEN CHINA SPEC |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 23820-61041 |
2F,3F..FJ6# |
1 | ||
| 77260-60100 |
3F..FJ62..LHD |
1 | ||
| 77260-60100 |
3F..FJ62 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-31000 |
3F..FJ62 |
2 | ||
| 96132-30800 |
2F,3F..FJ6# |
2 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23811-61060 |
3F..FJ62 |
1 | ||
| 23801A - OLIVE(FOR FUEL PIPE) | ||||
| 96395-71400 |
2F,3F..FJ6# |
1 | ||
| 23801B - NUT, UNION(FOR FUEL PIPE) | ||||
| 90402-13041 |
2F,3F..FJ6# |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
2F,3F..FJ6# |
2 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30800 |
2F,3F..FJ6# |
2 | ||
| 23801D - HOSE, FUEL PIPE, NO.1 | ||||
| 95333-08020 |
3F..FJ62 *H,L=130 |
1 | ||
| 95332-08020 |
2F,3F..FJ6# *H,L=130,ID=7.6 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-61030 |
3F..FJ62 |
1 | ||
| 23841 - CLAMP, FUEL PIPE(HOSE), NO.1 | ||||
| 23841-61030 |
3F..FJ62 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23842-61020 |
3F..FJ62 |
1 | ||
| 23842 - CLAMP, FUEL PIPE(HOSE), NO.2 | ||||
| 23842-61020 |
3F..FJ62 |
1 | ||
| Common parts | ||||
| 90119-08522 | ||||
| 90461-12241 | ||||
| 90464-00402 | ||||
| 90464-00441 | ||||
| 90464-00481 | ||||
| 91611-60812 | ||||
| 91651-40814 | ||||
| Linked diagrams | ||||
| 7751 | ||||
