FJ62LV-KCZ (1984)

Toyota Land Cruiser

Production Nov 1984 - Aug 1987
Engine 3F
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8411- )BJ60,FJ62

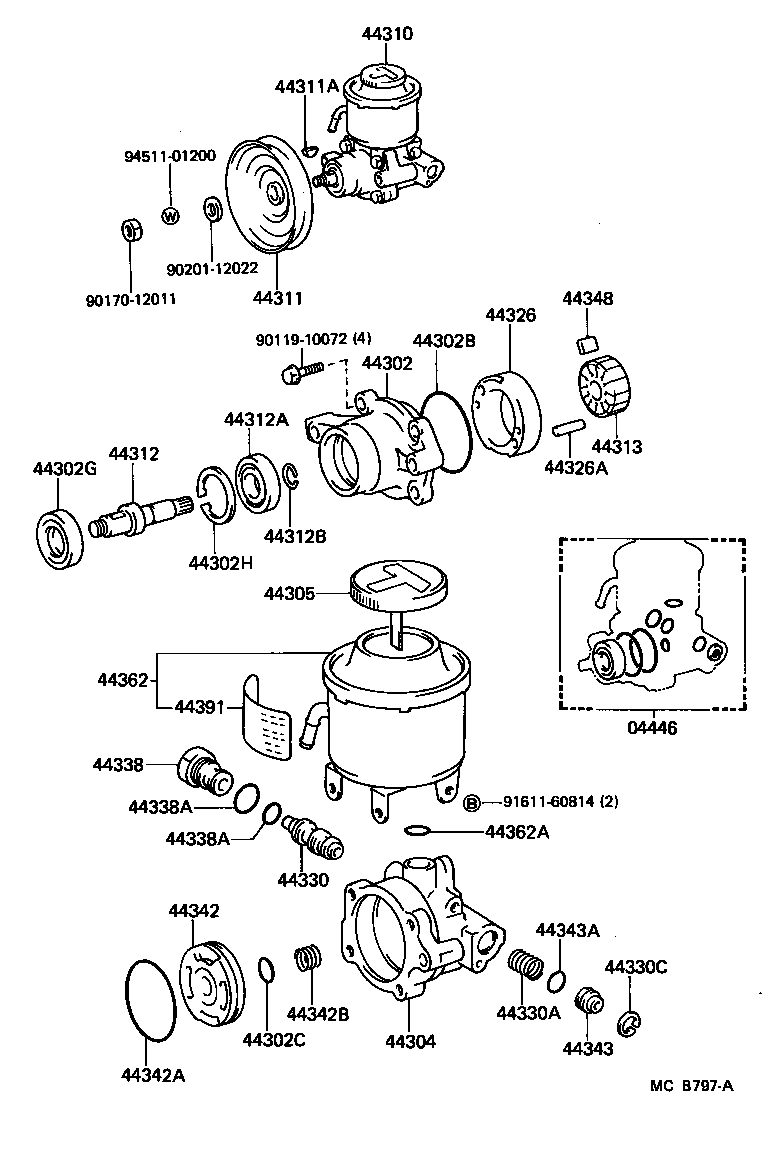

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44338 44338A 44338A 44342 44342A 44342B 44343 44343A 44348 44362 44362A 44391 9011910072 9017012011 9020112022 9161160814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-35010

BJ60,FJ62,HJ6#

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-14010

BJ60,FJ62

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

BJ60,FJ62,HJ6#

 2
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

BJ60,FJ62,HJ6#

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

BJ60,FJ62,HJ6#

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

BJ60,FJ62,HJ6#

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-60020

BJ60,FJ62

 1
44304-60021

BJ60,FJ62

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

FJ6#,HJ6#

 1
44310 - PUMP ASSY, VANE
44320-60090

BJ60,FJ62

 1
44311 - PULLEY, VANE PUMP
44311-60010

FJ6#

 1
44312 - SHAFT, VANE PUMP
44312-12010

BJ60,FJ62,HJ6#

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

BJ60,FJ62,HJ6#

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

BJ60,FJ62,HJ6#

 1
44313 - ROTOR, VANE PUMP
44313-12040

BJ60,FJ62,HJ6#

MARK 3,MARK 3

 1
44313-12030

BJ60,FJ62,HJ6#

MARK 2,MARK 2

 1
44313-12020

BJ60,FJ62,HJ6#

MARK 1,MARK 1

 1
44313-12050

BJ60,FJ62,HJ6#

MARK 4,MARK 4

 1
44313-12010

BJ60,FJ62,HJ6#

NO MARK,NO MARK

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12030

BJ60,FJ62,HJ6#

MARK 2,MARK 2

 1
44325-12040

BJ60,FJ62,HJ6#

MARK 3,MARK 3

 1
44325-12050

BJ60,FJ62,HJ6#

MARK 4,MARK 4

 1
44325-12010

BJ60,FJ62,HJ6#

NO MARK,NO MARK

 1
44325-12020

BJ60,FJ62,HJ6#

MARK 1,MARK 1

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

BJ60,FJ62,HJ6#

L=25,OD=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-30120

BJ60,FJ62,HJ6#

MARK C,MARK C

 1
44330-30130

BJ60,FJ62,HJ6#

MARK D,MARK D

 1
44330-30110

BJ60,FJ62,HJ6#

MARK B,MARK B

 1
44330-30140

BJ60,FJ62,HJ6#

MARK E,MARK E

 1
44330-30150

BJ60,FJ62,HJ6#

MARK F,MARK F

 1
44330-30100

BJ60,FJ62,HJ6#

MARK A,MARK A

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12103

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
44338 - UNION, PRESSURE PORT
44308-35030

BJ60,FJ62,HJ6#

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

BJ60,FJ62,HJ6#

OD=25.5,ID=22.5,OD=25.5

 2
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

BJ60,FJ62,HJ6#

OD=25.5,ID=22.5,OD=25.5

 2
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

BJ60,FJ62,HJ6#

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

BJ60,FJ62,HJ6#

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

BJ60,FJ62,HJ6#

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12040

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014

BJ60,FJ62

OD=17.6

 1
44348 - PLATE, VANE PUMP
44345-12010

BJ60,FJ62,HJ6#

L=14.997,ROTOR:NO MARK

 10
44345-12020

BJ60,FJ62,HJ6#

L=14.995,ROTOR:MARK 1

 10
44345-12050

BJ60,FJ62,HJ6#

L=14.989,ROTOR:MARK 4

 10
44345-12030

BJ60,FJ62,HJ6#

L=14.993,ROTOR:MARK 2

 10
44345-12040

BJ60,FJ62,HJ6#

L=14.991,ROTOR:MARK 3

 10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44306-60070

BJ60,FJ62

 1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-14010

HJ60..MTM;BJ60,FJ62,HJ61;HJ60..4FC..EUR

 1
Common parts
90119-10072
90170-12011
90201-12022
91611-60814
94511-01200
