FJ62LV-KCZ (1984)
Toyota Land Cruiser
Production
Nov 1984
-
Aug 1987
Engine
3F
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8411- )

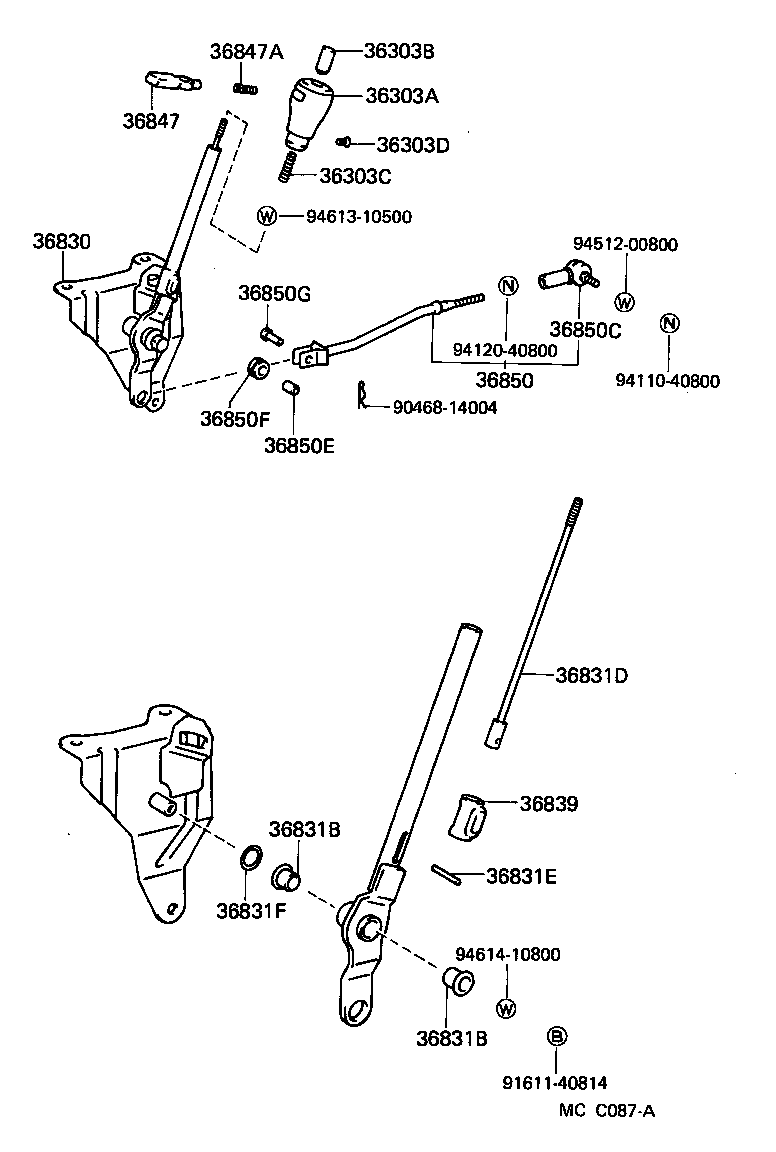

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 36303A - KNOB SUB-ASSY, SHIFT LEVER (FOR POWER TAKE-OFF) | ||||
| 36303-60140 |
FJ62..GEN,ME |
1 | ||
| 36303B - BUTTON, SHIFT LEVER KNOB (FOR POWER TAKE-OFF) | ||||
| 33623-60030 |
FJ62..GEN,ME |
1 | ||
| 36303C - SPRING, COMPRESSION (FOR SHIFT LEVER KNOB BUTTON) | ||||
| 90501-10073 |
FJ62..GEN,ME |
1 | ||
| 36303D - SCREW (FOR SHIFT LEVER KNOB SETTING) | ||||
| 90149-40004 |
FJ62..GEN,ME |
2 | ||
| 36830 - LEVER ASSY, POWER TAKE-OFF SHIFT | ||||
| 36830-60072 |
HJ60..GEN;HJ60..LHD..5F..EUR;BJ60,FJ62,HJ61..MTM..(EUR,GEN,ME) |
1 | ||
| 36830-60071 |
HJ60..LHD..5F..EUR;BJ60,FJ62,HJ60..MTM..(GEN,ME) |
1 | ||
| 36831B - BUSH (FOR POWER TAKE-OFF SHIFT LEVER) | ||||
| 90386-13192 |
FJ62..GEN,ME |
2 | ||
| 36831B - BUSH (FOR POWER TAKE-OFF SHIFT LEVER) | ||||
| 90386-13192 |
FJ62..GEN,ME |
2 | ||
| 36831D - ROD, DETENT (FOR POWER TAKE-OFF) | ||||
| 33631-60040 |
FJ62..GEN,ME |
1 | ||
| 36831E - PIN, GROOVED (FOR POWER TAKE-OFF DETENT ROD) | ||||
| 90256-05001 |
FJ62..GEN,ME |
1 | ||
| 36831F - WASHER, WAVE (FOR POWER TAKE-OFF SHIFT LEVER) | ||||
| 90206-13003 |
FJ62..GEN,ME |
1 | ||
| 36839 - BOOT, POWER TAKE-OFF SHIFT LEVER | ||||
| 36839-60030 |
FJ62..GEN,ME |
1 | ||
| 36847 - LEVER, POWER TAKE-OFF LOCK | ||||
| 36847-60020 |
FJ62..GEN,ME |
1 | ||
| 36847A - SPRING, COMPRESSION (FOR POWER TAKE-OFF LOCK LEVER) | ||||
| 90501-05011 |
FJ62..GEN,ME |
1 | ||
| 36850 - ROD ASSY, POWER TAKE-OFF SHIFT | ||||
| 36850-60072 |
HJ60..GEN;HJ60..LHD..5F..EUR;BJ60,FJ62,HJ61..MTM..(EUR,GEN,ME) |
1 | ||
| 36850-60071 |
HJ60..LHD..5F..EUR;BJ60,FJ62,HJ60..MTM..(GEN,ME) |
1 | ||
| 36850C - END ASSY, POWER TAKE-OFF SHIFT ROD | ||||
| 33740-26010 |
FJ62..GEN,ME |
1 | ||
| 36850E - BUSH (FOR POWER TAKE-OFF SHIFT ROD) | ||||
| 90389-08005 |
FJ62..GEN,ME |
1 | ||
| 36850F - GROMMET (FOR POWER TAKE-OFF SHIFT ROD) | ||||
| 90480-17177 |
FJ62..GEN,ME |
1 | ||
| 36850G - PIN, W/HOLE (FOR POWER TAKE-OFF SHIFT ROD) | ||||
| 90240-08034 |
FJ62..GEN,ME |
1 | ||
| Common parts | ||||
| 90468-14004 | ||||
| 91611-40814 | ||||
| 94110-40800 | ||||
| 94120-40800 | ||||
| 94512-00800 | ||||
| 94613-10500 | ||||
| 94614-10800 | ||||
